Model # CWE4800ACB Official Maytag oven

Here are the diagrams and repair parts for Official Maytag CWE4800ACB oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

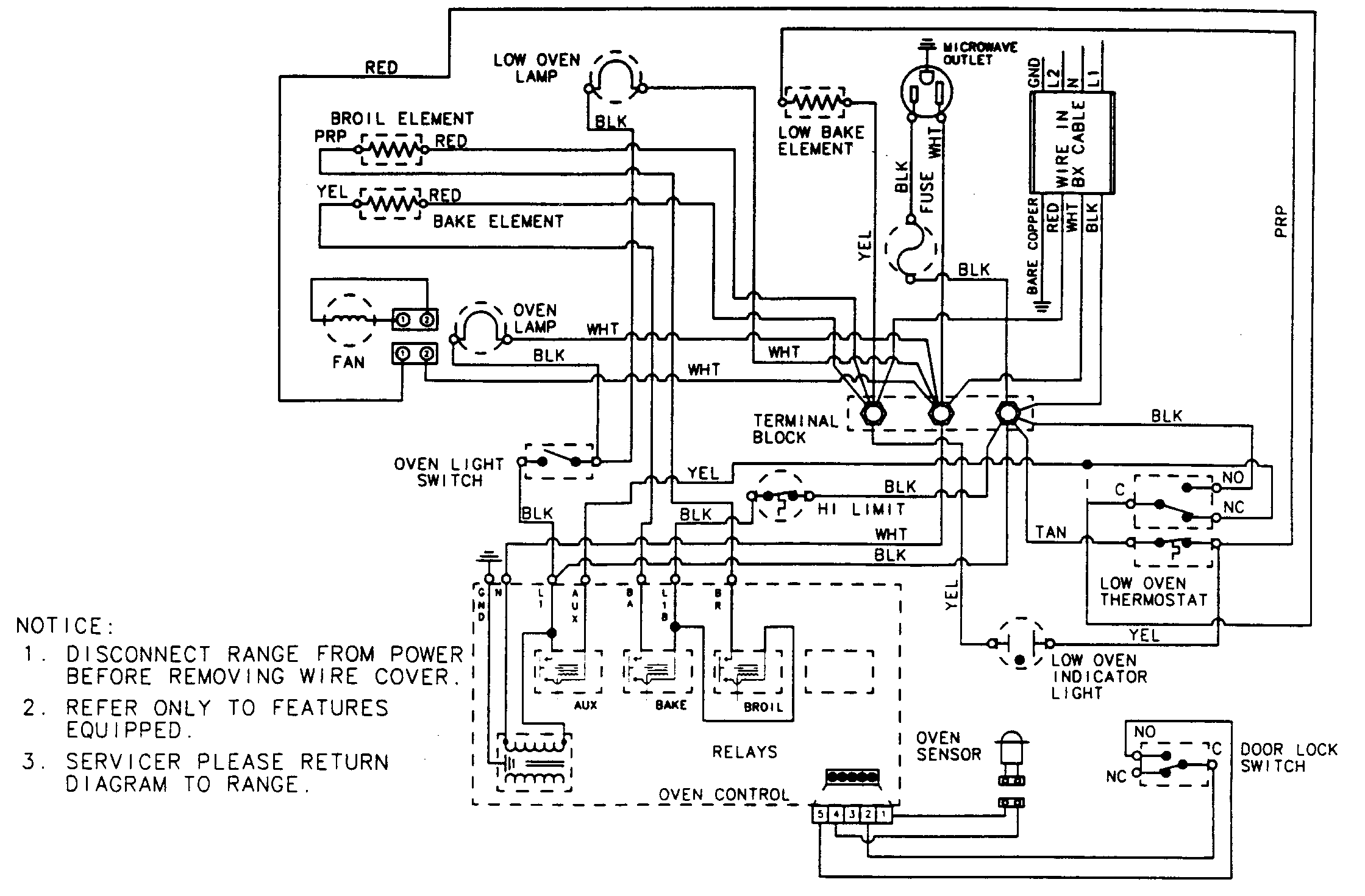

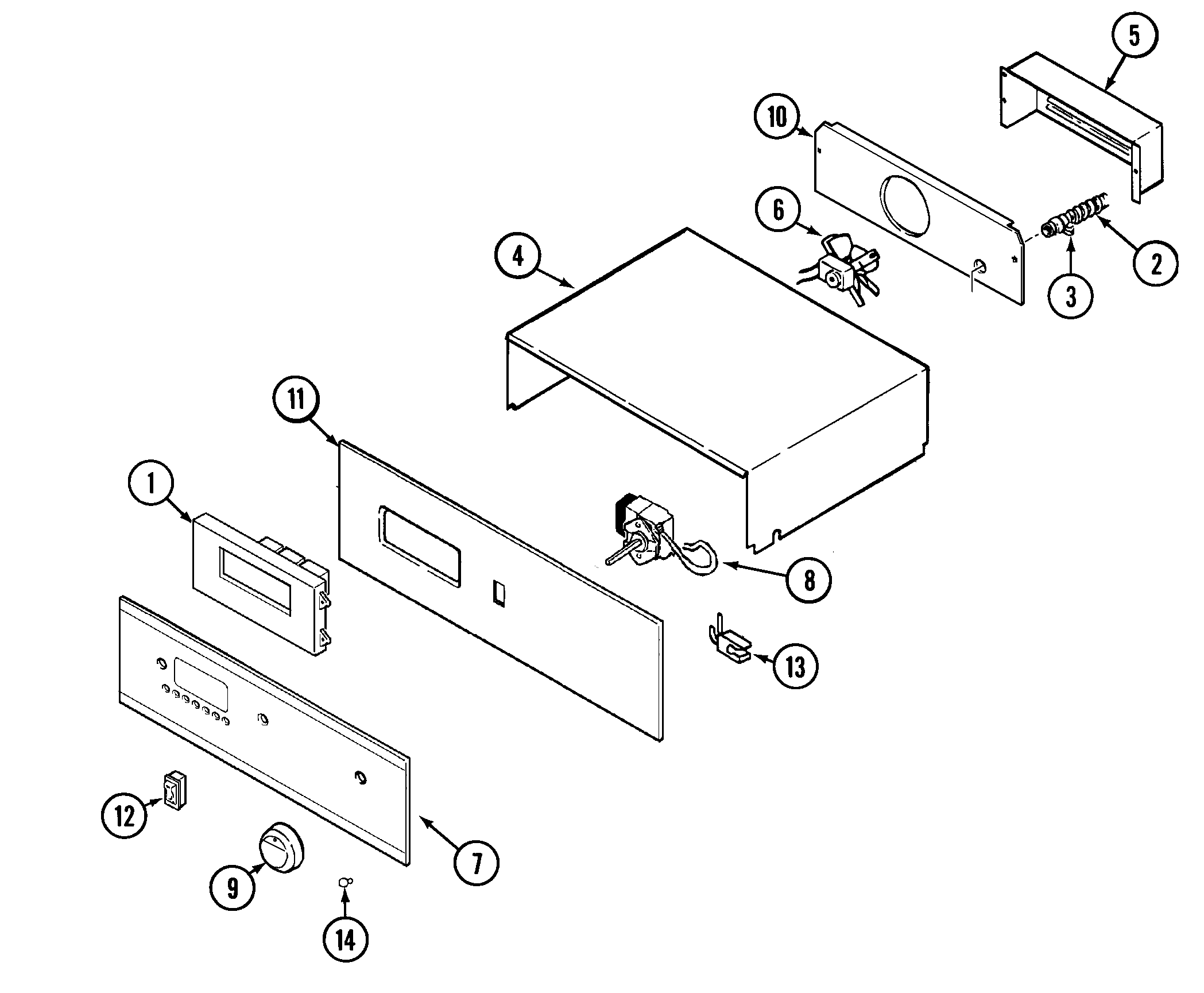

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Oven Bulb 7407P103-60
#8

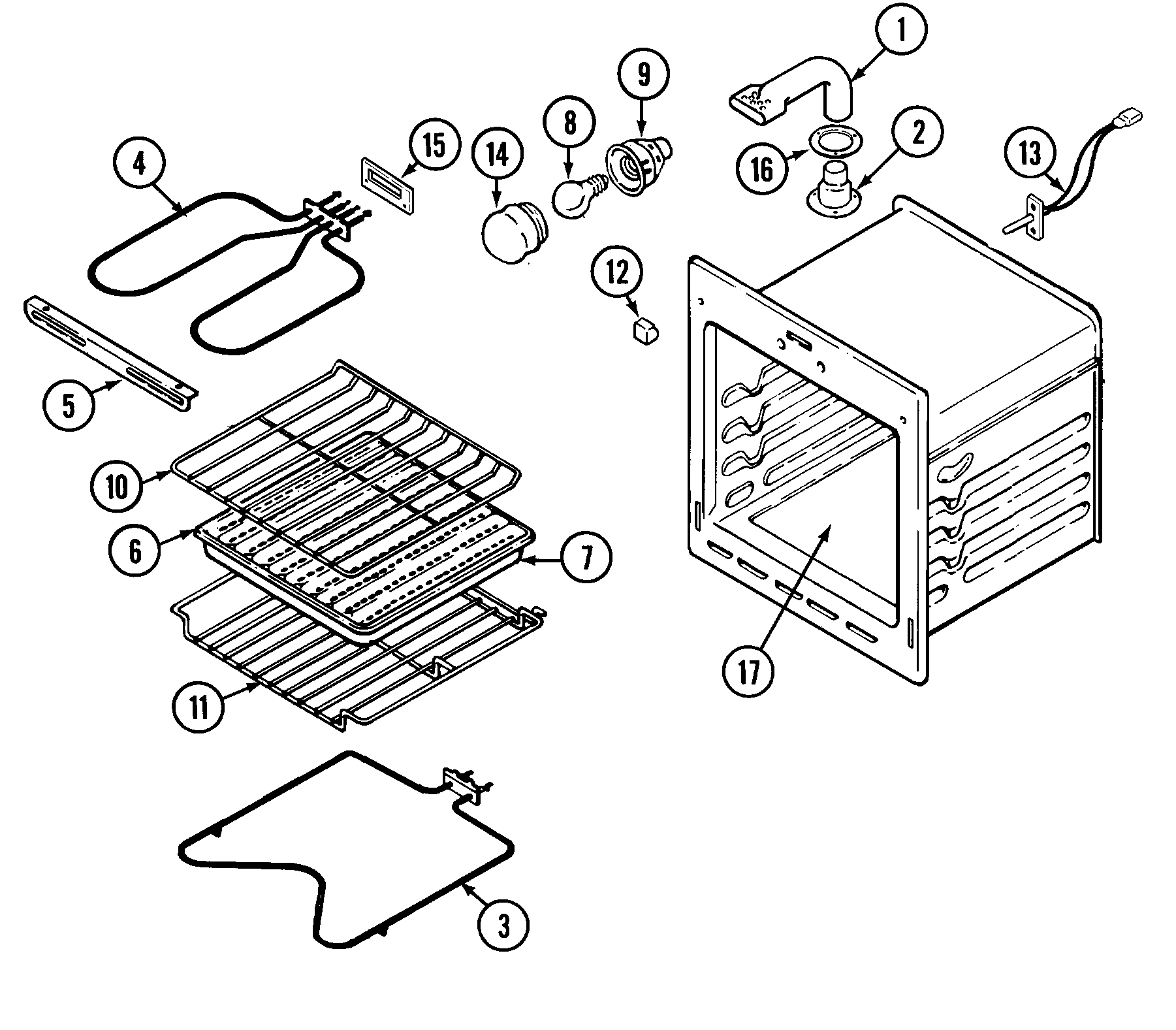

Oven (cwe4800acb/ace) diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P038-60
#14

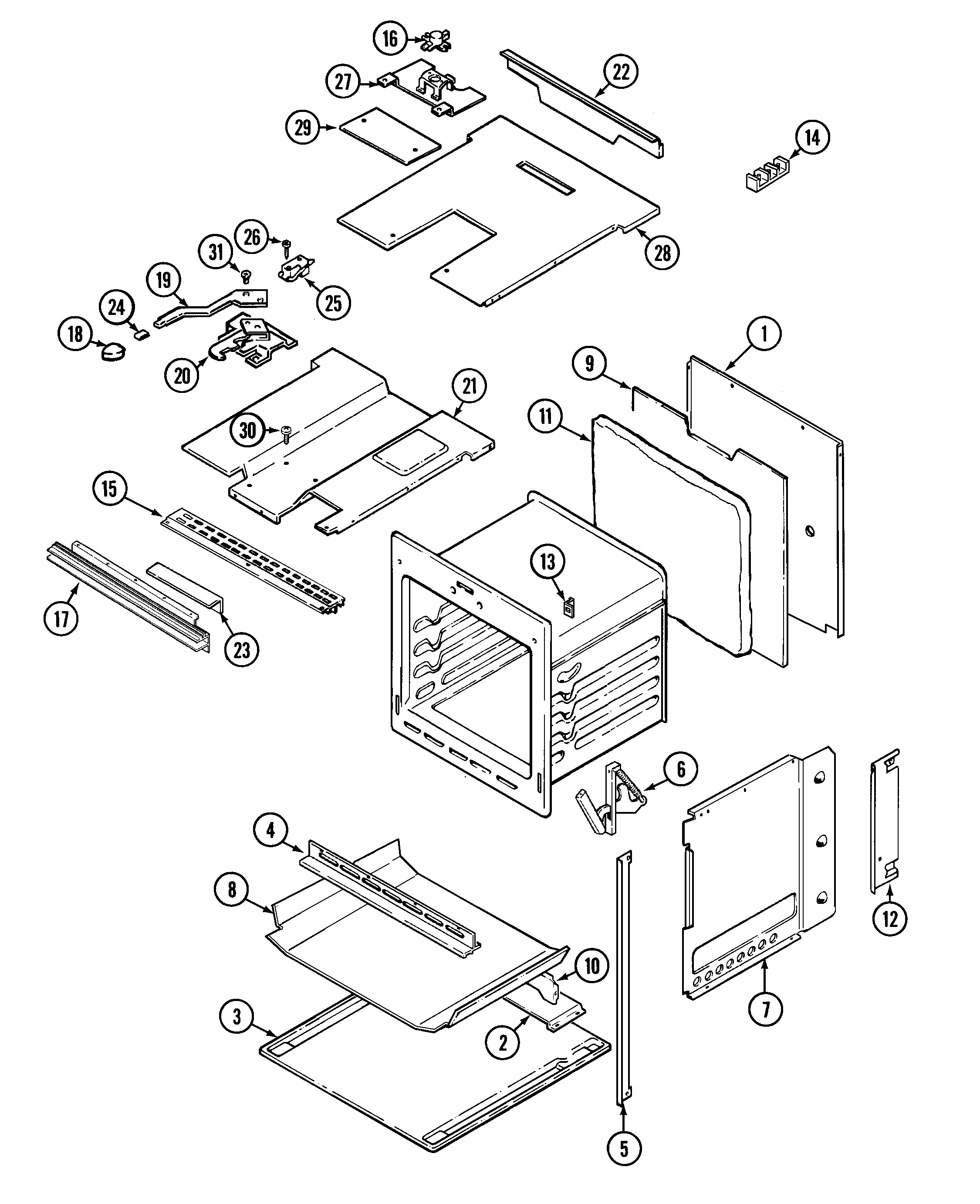

Body (cwe4800acb/ace) diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 7430P010-60
#13

Oven (cwe4800acb/ace) diagram

Oven sensor

Part #7430P010-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P010-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Panel Screw 7101P041-60
#2C

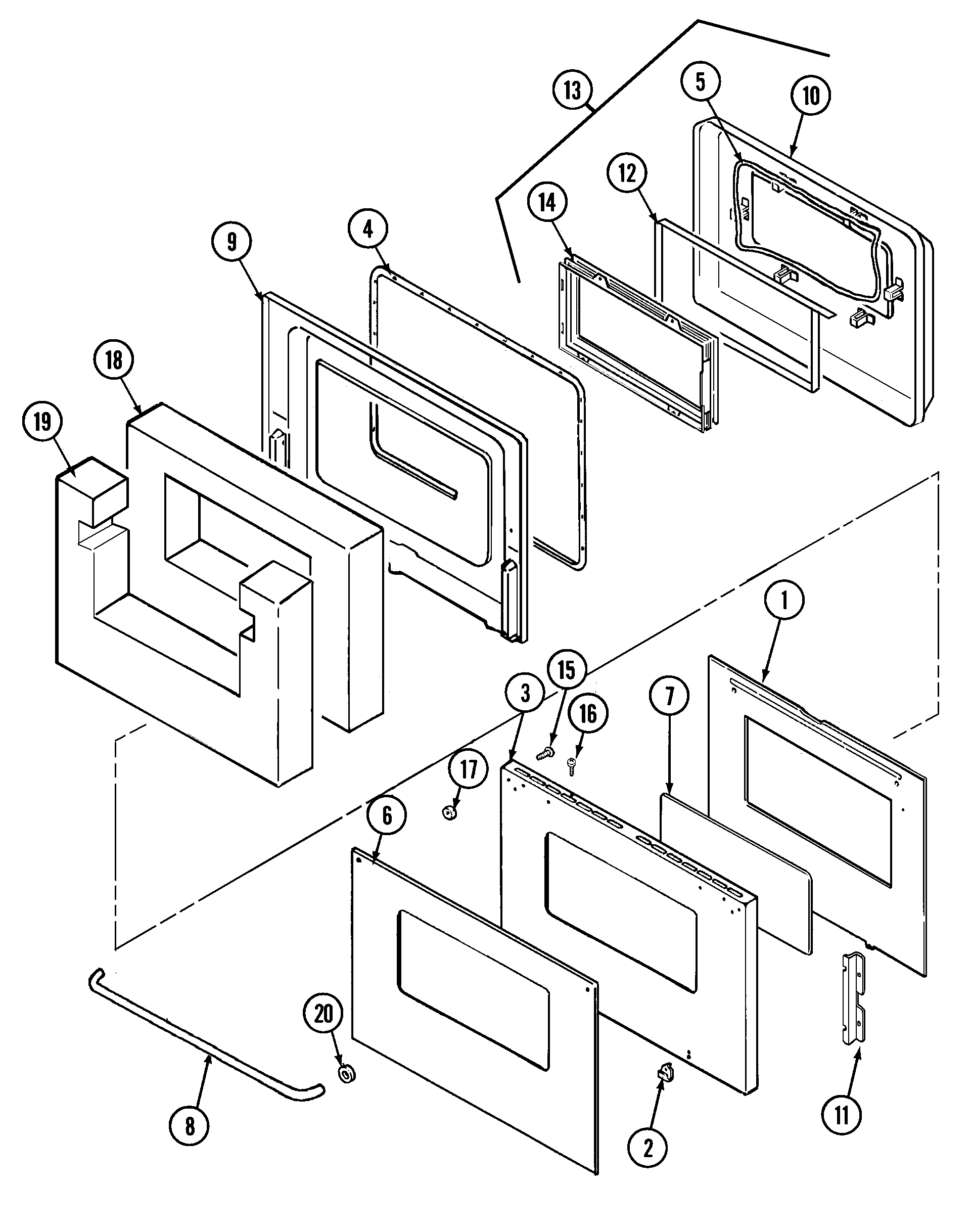

Door diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
#14A

Door diagram

Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Oven Broiler Element 7406P090-60
#4

Oven (cwe4800acb/ace) diagram

Oven broiler element

Part #7406P090-60

Replaced by #WP7406P203-60

?
Manufacturer substitution
This part replaces 7406P090-60. Substitute parts can look different from the original.
$69.32 |
8% OFF Phone Price : $75.32
In Stock
Screw 7101P115-60
Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Receptacle 7407P088-60
#9

Oven (cwe4800acb/ace) diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
Wall Oven High-limit Thermostat (replaces 1832411, 551174, 7403e063, 7403p002-60, 790265, Y0s03010799) 7403P063-60
#16

Body (cwe4800acb/ace) diagram

Wall oven high-limit thermostat (replaces 1832411, 551174, 7403e063, 7403p002-60, 790265, y0s03010799)

Part #7403P063-60

$87.49 |
6% OFF Phone Price : $93.49
In Stock
Screw (wht) 7101P261-60
#16

Door diagram

Screw (wht)

Part #7101P261-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P261-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
