Gas Range

Model # 1198326700 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1198326700 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1198326700 Ranges
Light Bulb 2911
#82

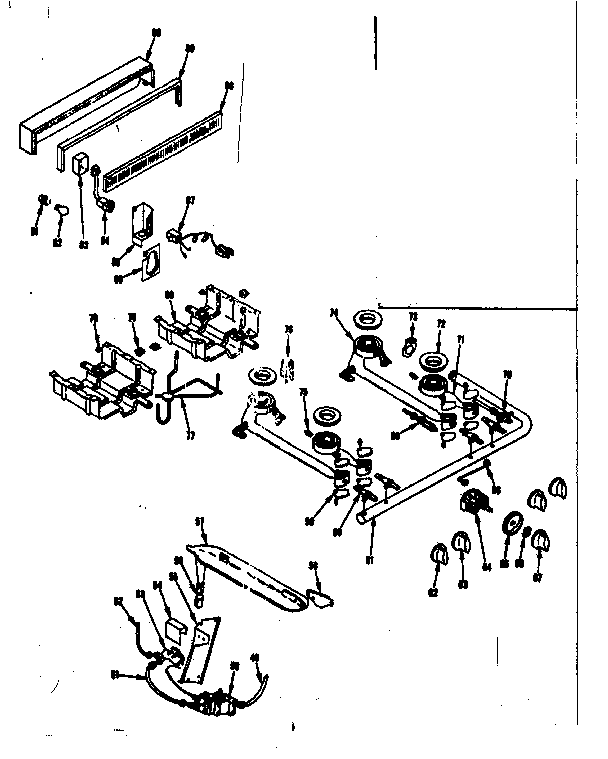

Backguard and top burner section diagram

Light bulb

Part #2911

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2911. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$16.73 |
11% OFF Phone Price : $18.73
In Stock
3/16 Nut Slv 5728
#52A

Backguard and top burner section diagram

3/16 nut slv

Part #5728

The manufacturer no longer makes this part, and there's no substitute part

1/8 Nut Slve 5727
#50A

Backguard and top burner section diagram

1/8 nut slve

Part #5727

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob (black) 3585
#63B

Backguard and top burner section diagram

Burner knob (black)

Part #3585

The manufacturer no longer makes this part, and there's no substitute part

Knob (white) 4806
#63A

Backguard and top burner section diagram

Knob (white)

Part #4806

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob (black) 3584
#62B

Backguard and top burner section diagram

Burner knob (black)

Part #3584

The manufacturer no longer makes this part, and there's no substitute part

3/8 Nut Slve 5725
#49A

Backguard and top burner section diagram

3/8 nut slve

Part #5725

The manufacturer no longer makes this part, and there's no substitute part

Rear Knob 4807
#62A

Backguard and top burner section diagram

Rear knob

Part #4807

The manufacturer no longer makes this part, and there's no substitute part

C Hook 3419
#23

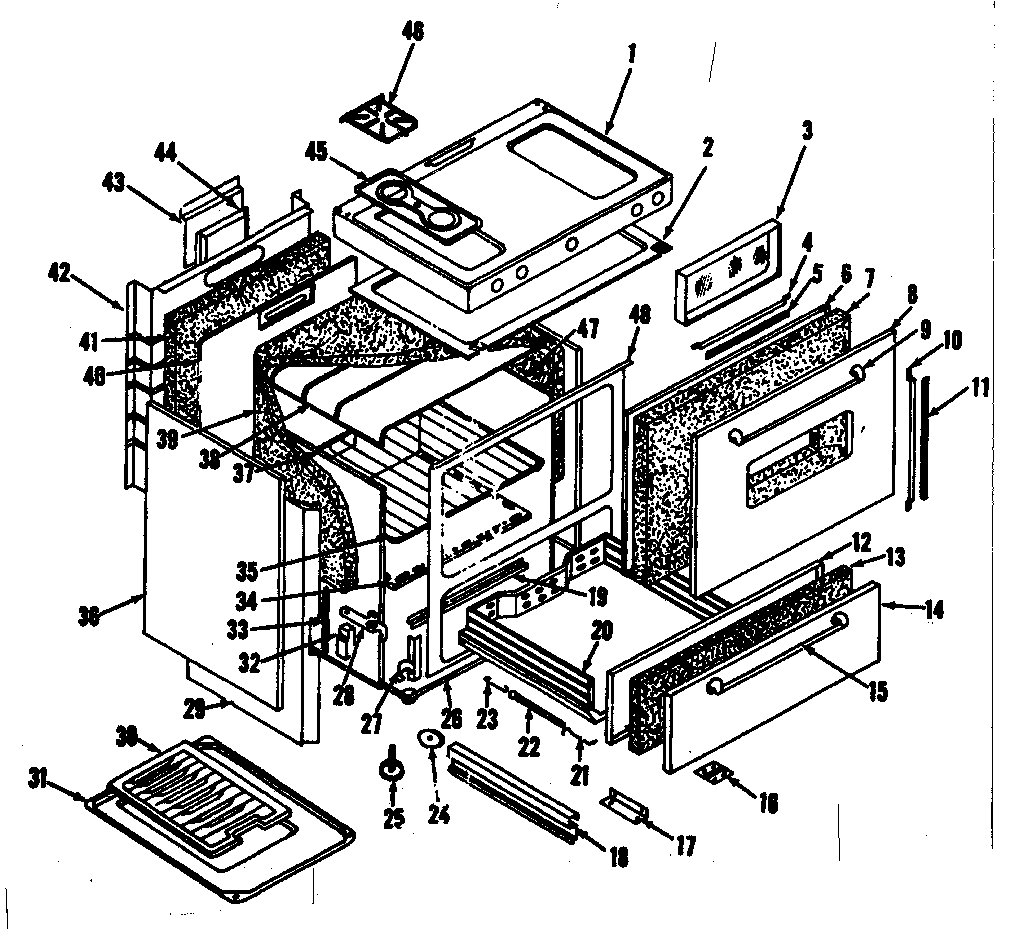

Body section diagram

C hook

Part #3419

The manufacturer no longer makes this part, and there's no substitute part

Grate 3921
#46

Body section diagram

Grate

Part #3921

The manufacturer no longer makes this part, and there's no substitute part
