Gas Snowblower

Model # 247888700 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 247888700 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

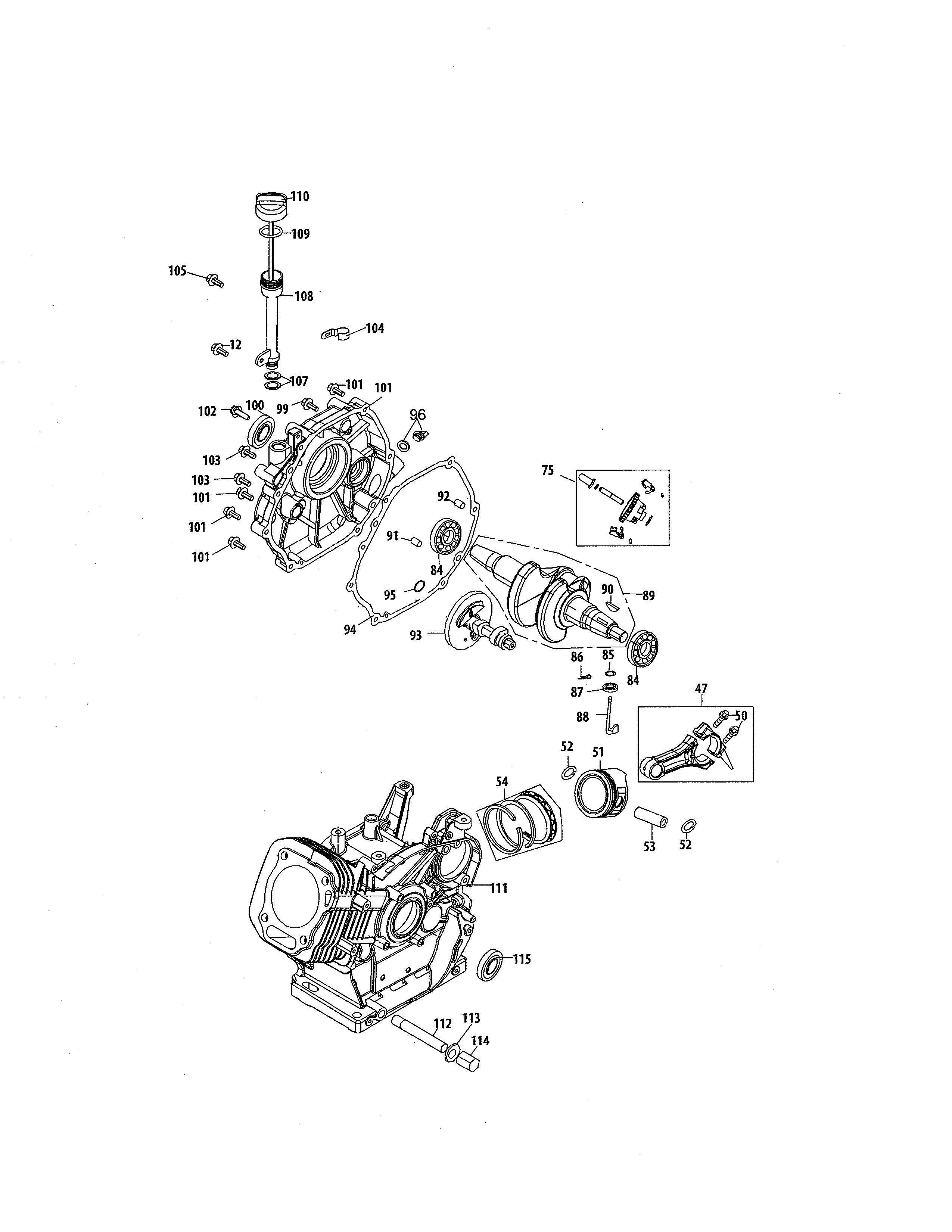

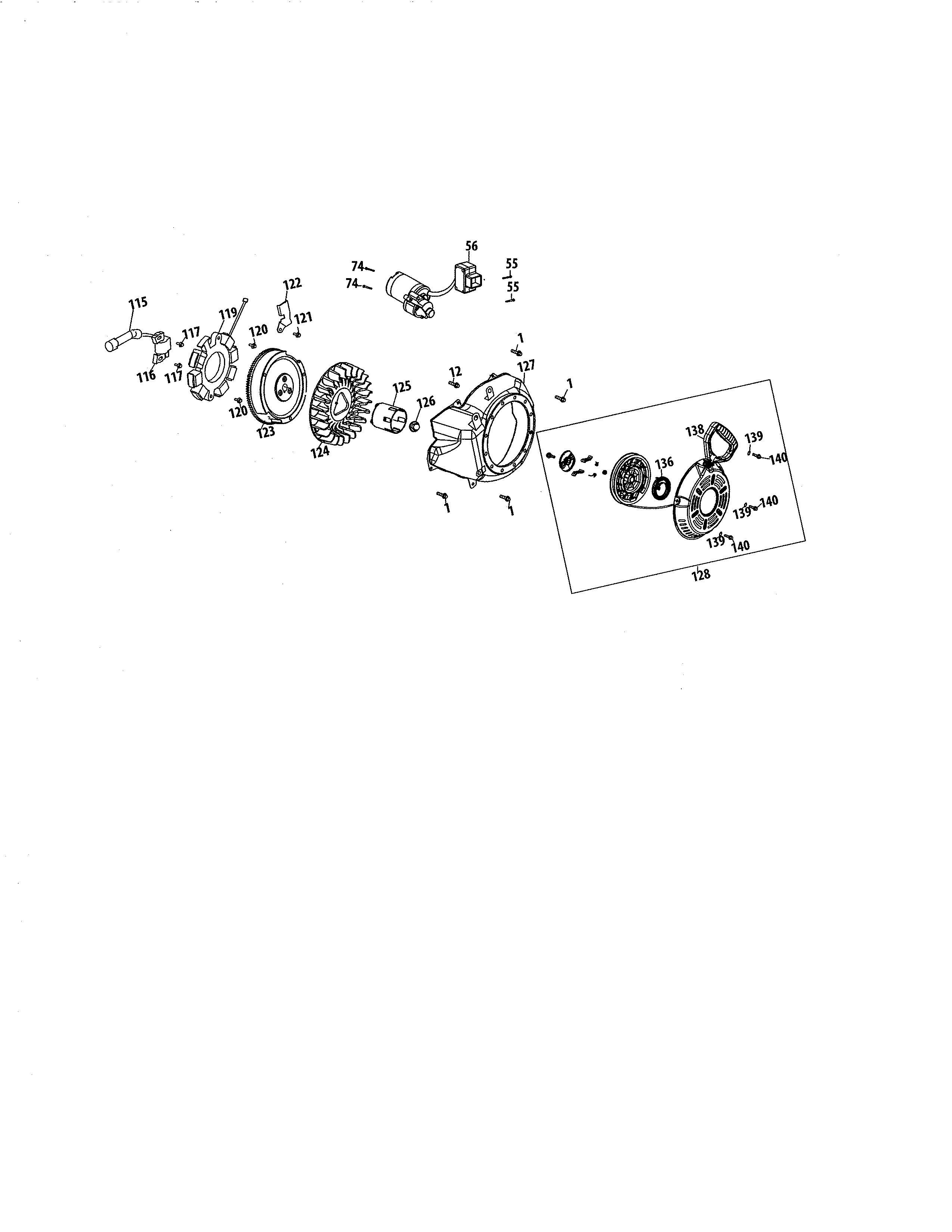

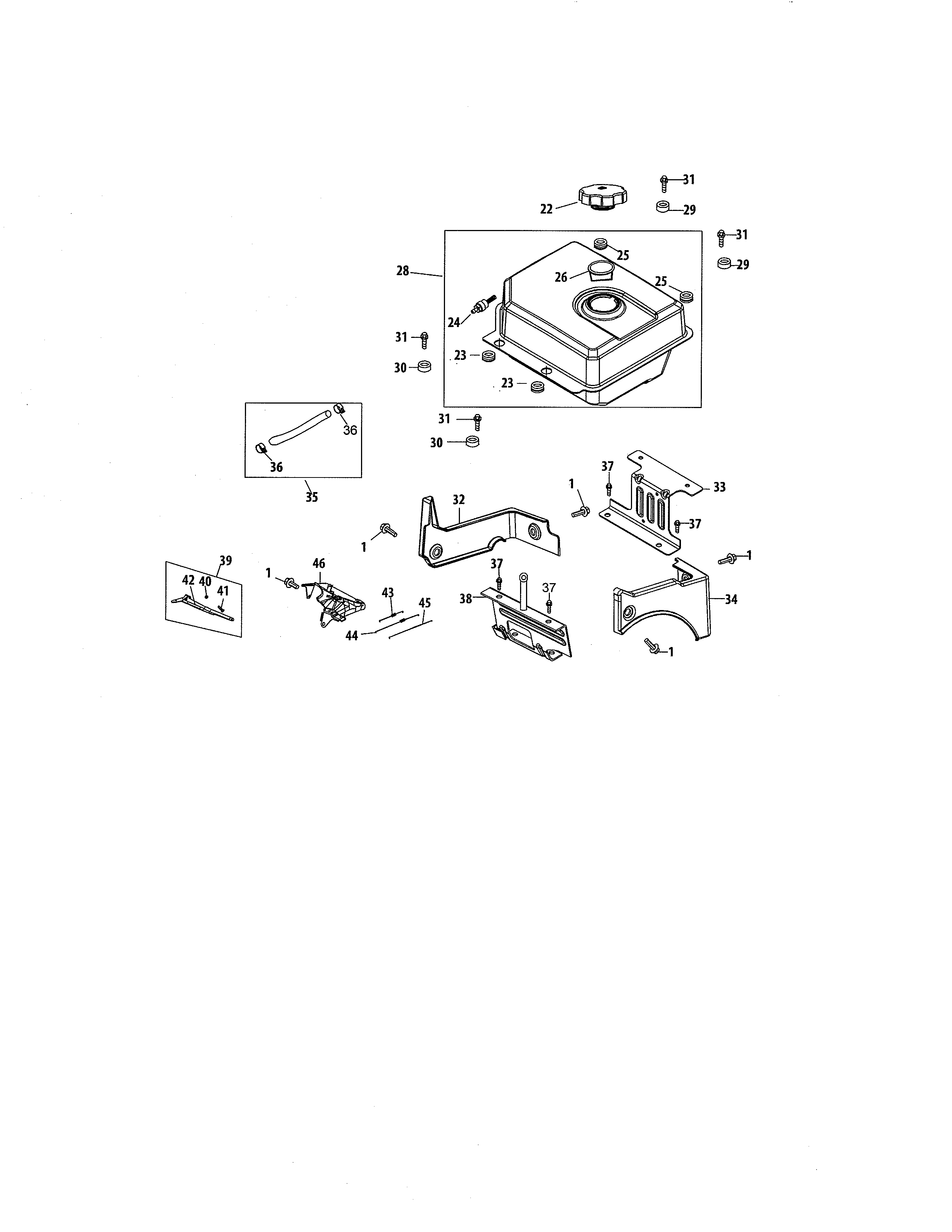

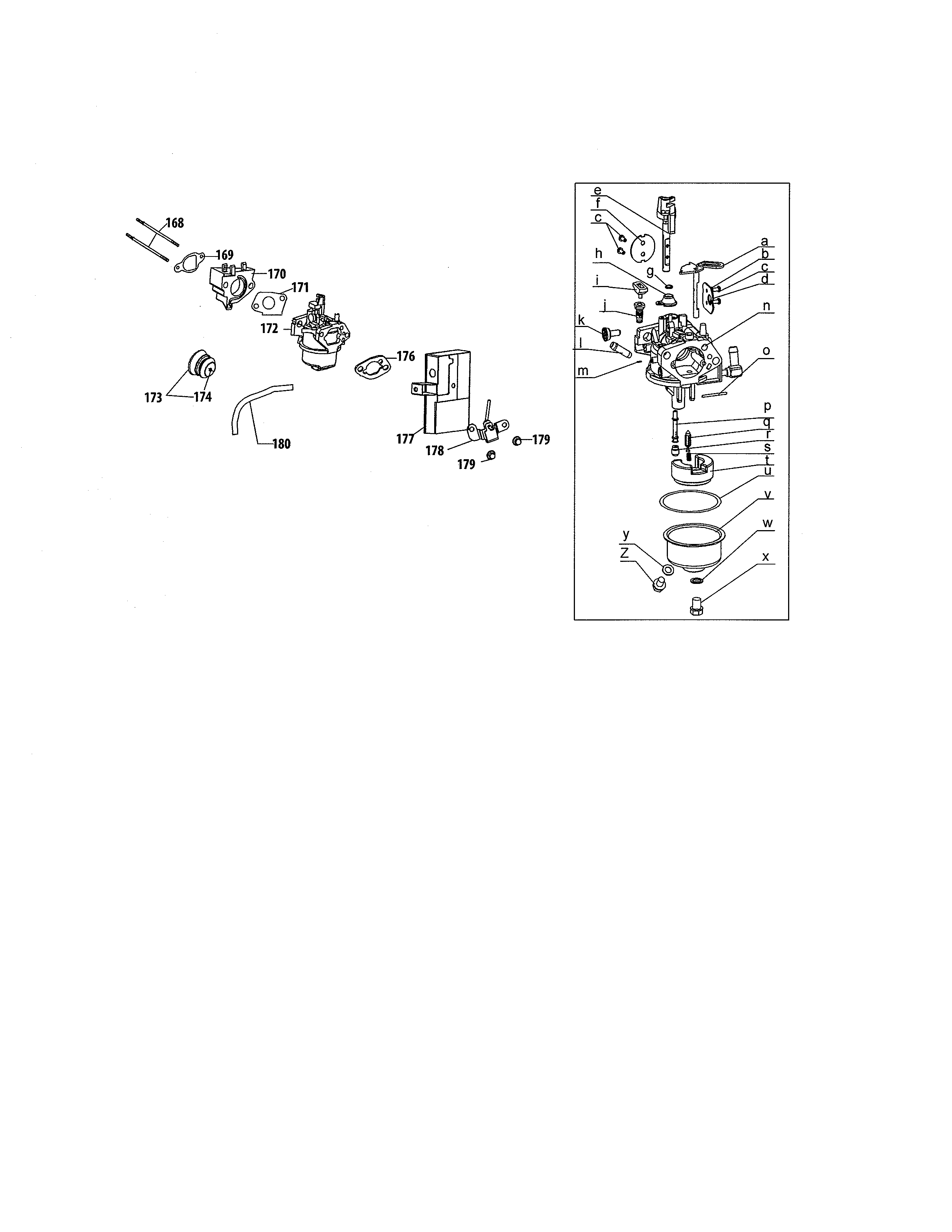

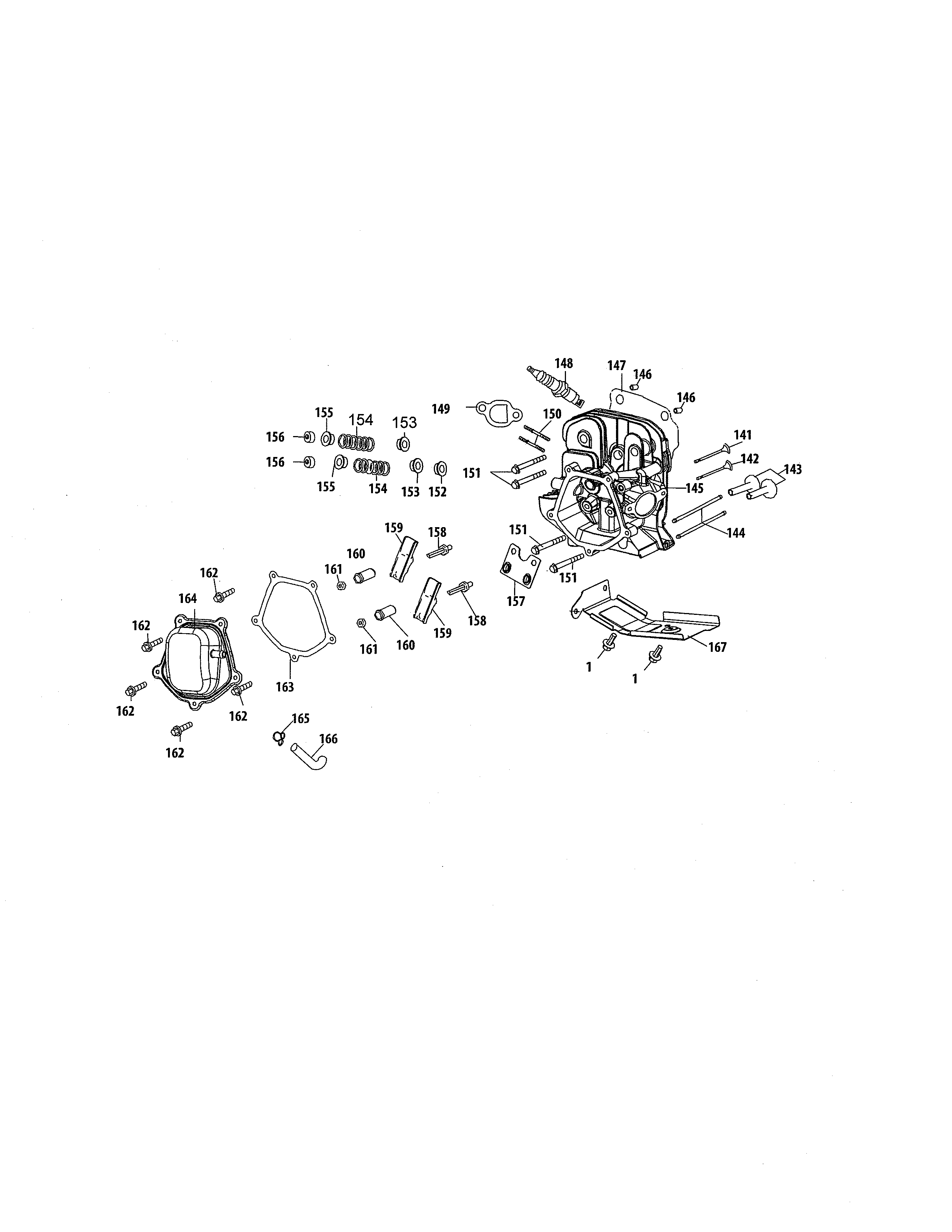

  View engine

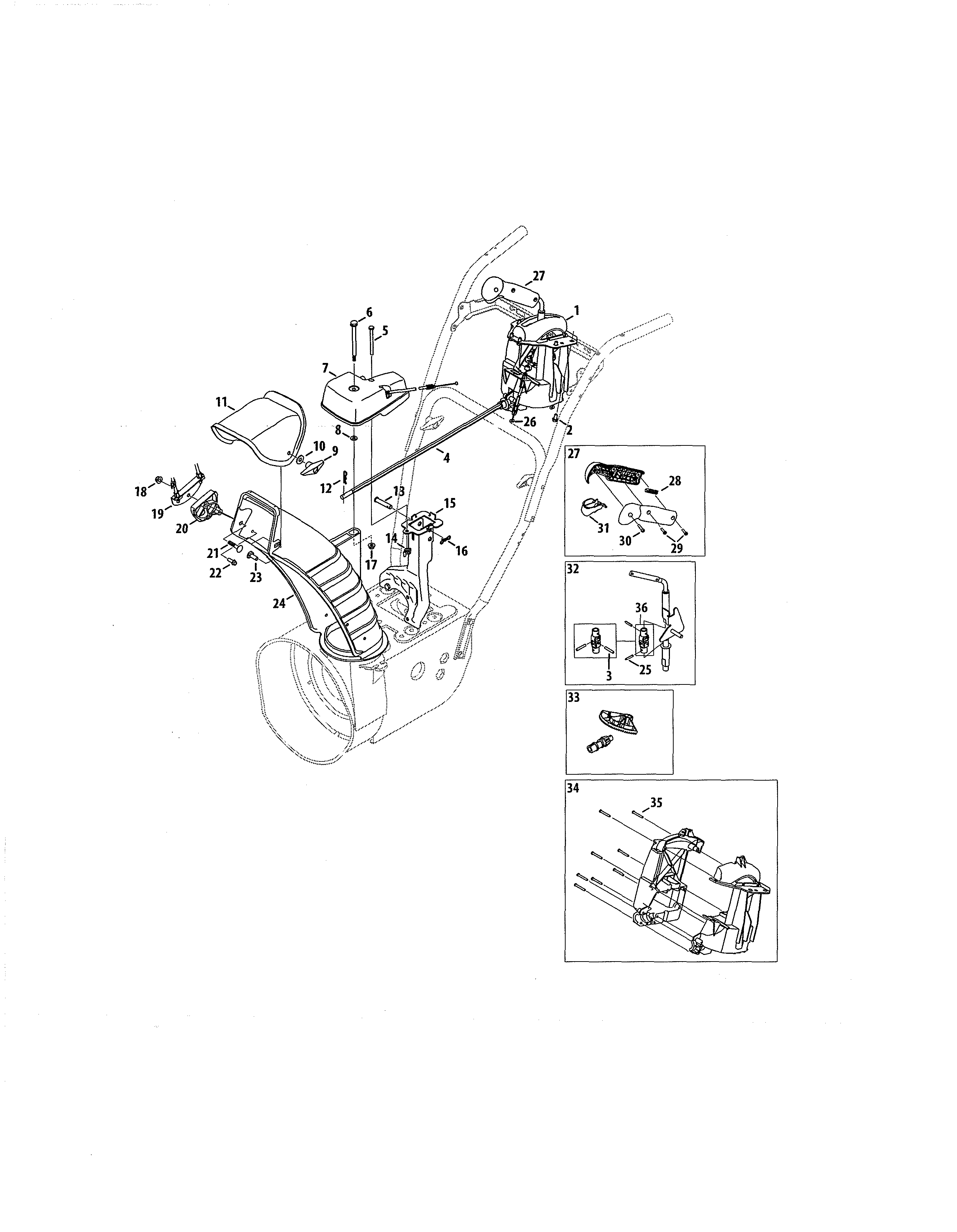

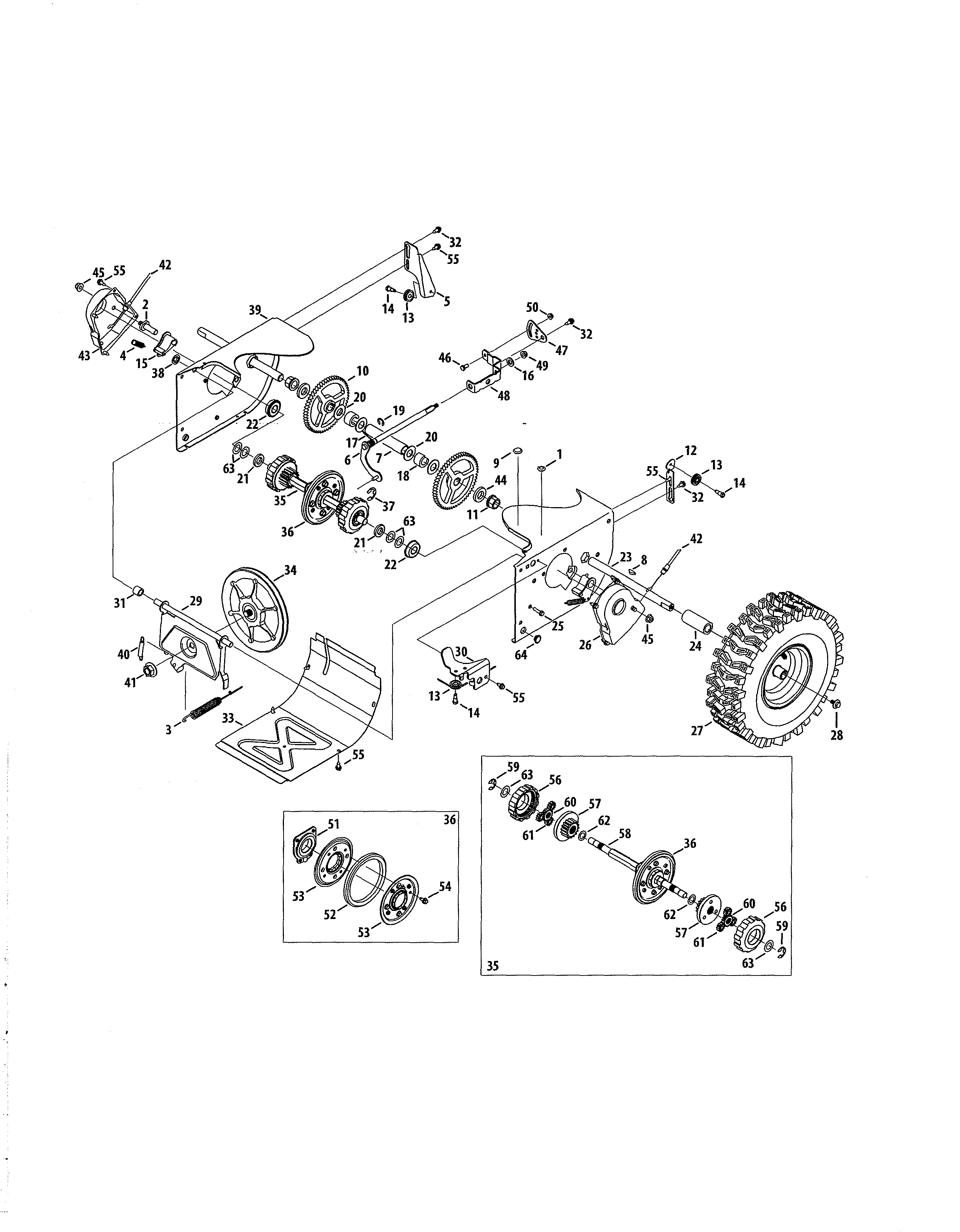

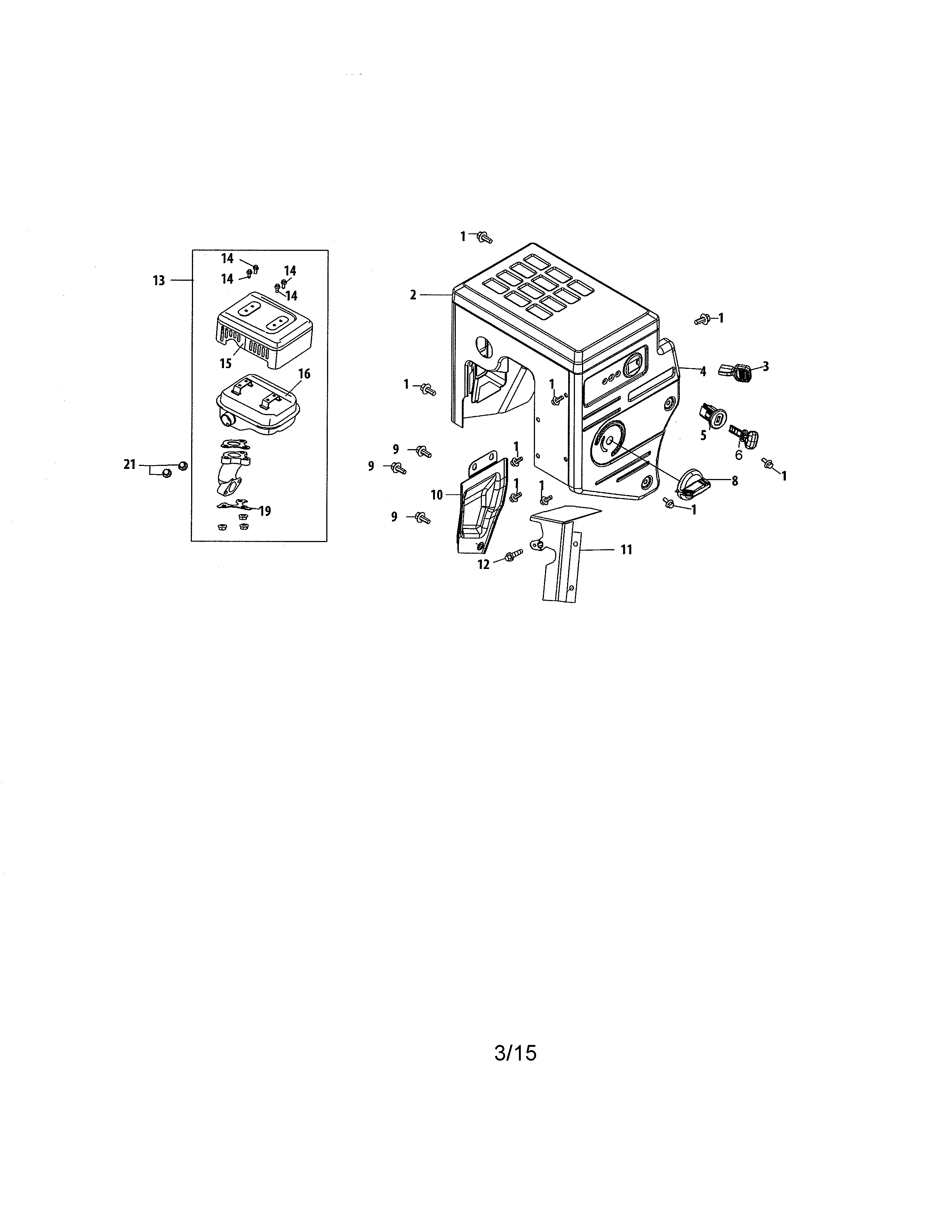

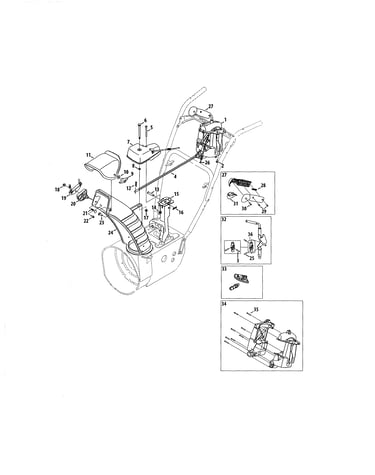

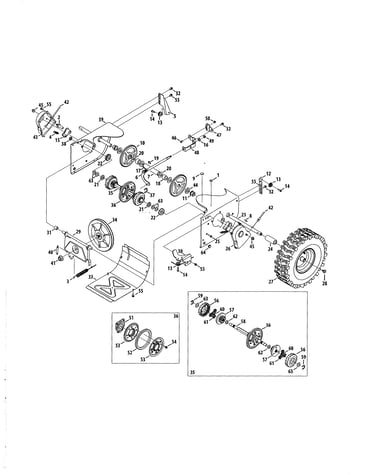

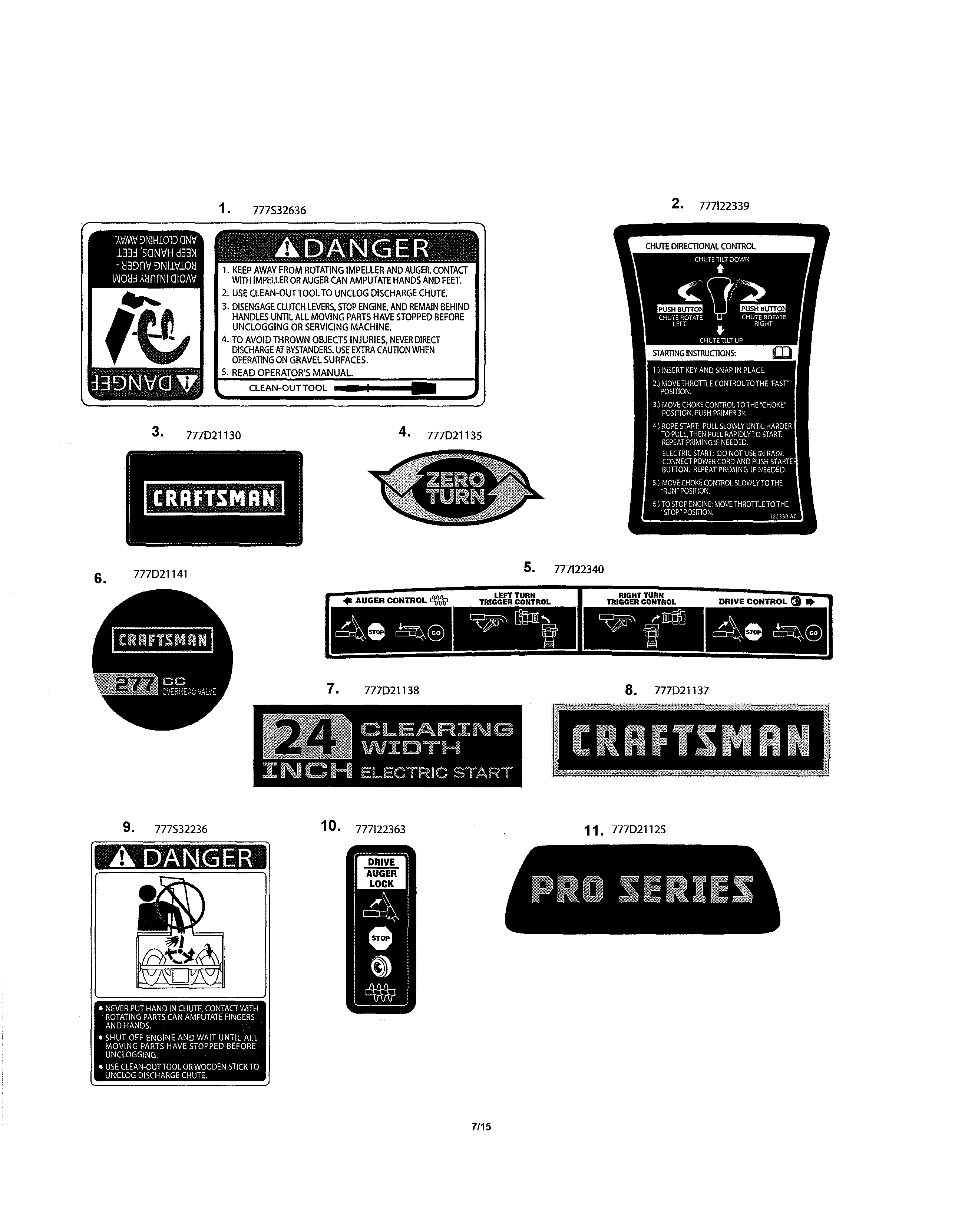

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 375 parts  |
Lawn & Garden Equipment Cotter Pin, 1/4- To 5/16-in 714-04040
Lawn & garden equipment cotter pin, 1/4- to 5/16-in

Part #714-04040

BEST SELLER
This item is not returnable
$3.00 |
25% OFF Phone Price : $4.00
In Stock
Troybilt Snowblower Shear Pin (replaces 738-04124) 738-04124A
#7

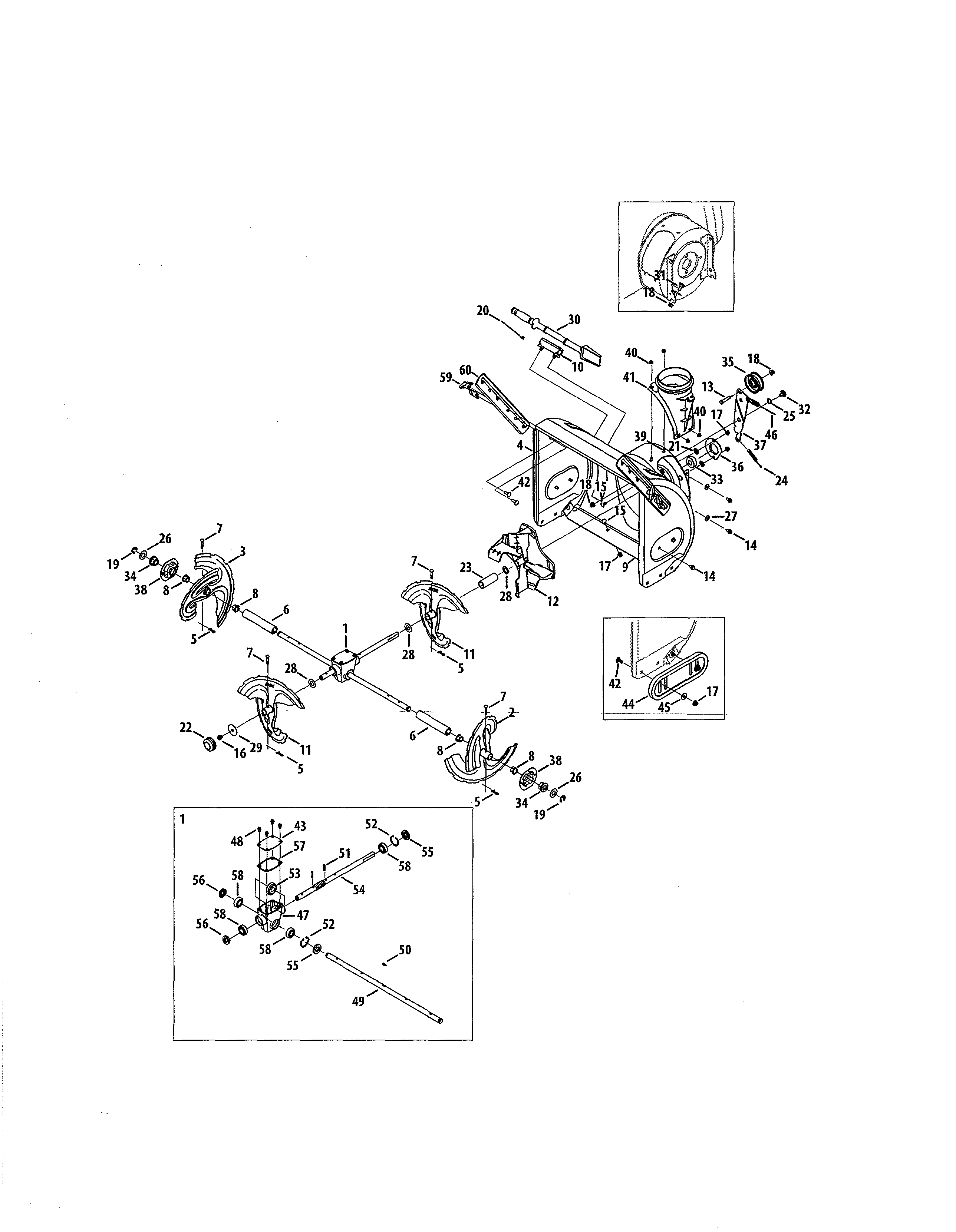

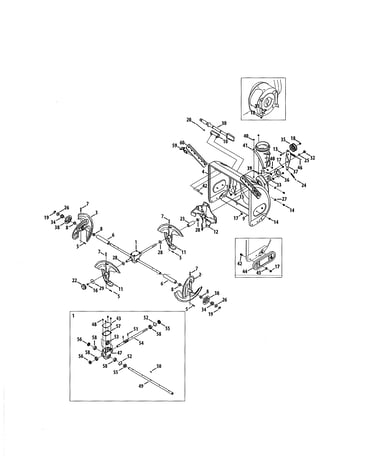

Auger/spiral/gearbox diagram

Troybilt snowblower shear pin (replaces 738-04124)

Part #738-04124A

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Snowblower Scraper Blade 790-00120-0691
#9

Auger/spiral/gearbox diagram

Snowblower scraper blade

Part #790-00120-0691

Replaced by #790-00120-0637

?
Manufacturer substitution
This part replaces 790-00120-0691. Substitute parts can look different from the original.
BEST SELLER
$37.74 |
14% OFF Phone Price : $43.74
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
Back Order
Toro Lawn & Garden Equipment Carriage Bolt (replaces 753-08024, 910-0451) 710-0451
#15

Auger/spiral/gearbox diagram

Toro lawn & garden equipment carriage bolt (replaces 753-08024, 910-0451)

Part #710-0451

BEST SELLER
This item is not returnable
$5.42 |
16% OFF Phone Price : $6.42
In Stock
Snowblower Auger Drive Belt, 1/2 X 37-in 954-04195A
#68

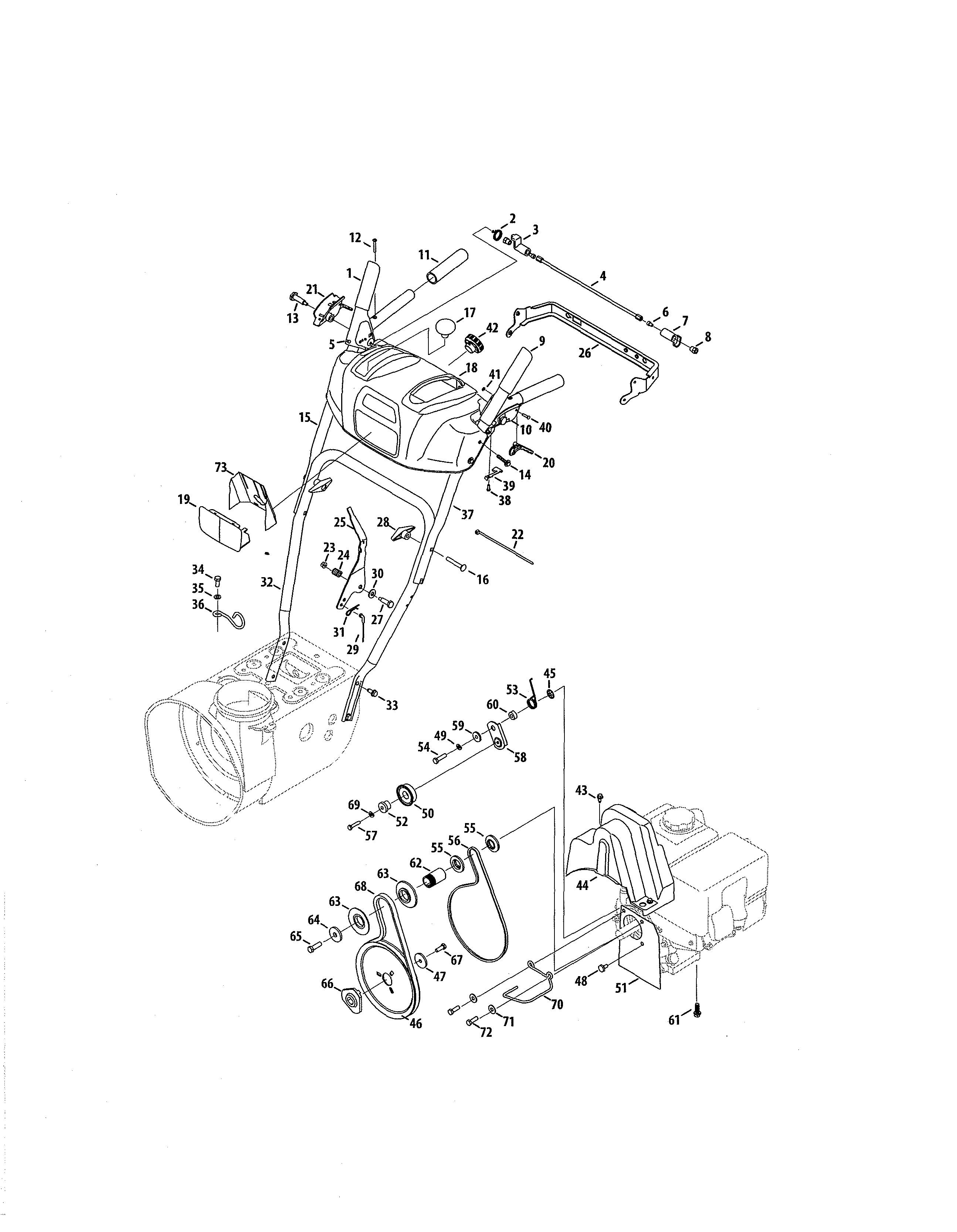

Handles/pulleys diagram

Snowblower auger drive belt, 1/2 x 37-in

Part #954-04195A

Replaced by #490-501-Y080

?
Manufacturer substitution
This part replaces 954-04195A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.27 |
16% OFF Phone Price : $38.27
Back Order
Snowblower Ground Drive Belt, 3/8 X 36-1/8-in (replaces 754-04201a, 954-04201, Oem-754-04201) 954-04201A
#56

Handles/pulleys diagram

Snowblower ground drive belt, 3/8 x 36-1/8-in (replaces 754-04201a, 954-04201, oem-754-04201)

Part #954-04201A

BEST SELLER

Get free shipping with Automatic Reorder

$27.21 |
18% OFF Phone Price : $33.21
In Stock
Snowblower Clean-out Tool (replaces 731-2643) 931-2643
#30

Auger/spiral/gearbox diagram

Snowblower clean-out tool (replaces 731-2643)

Part #931-2643

BEST SELLER

Get free shipping with Automatic Reorder

$25.67 |
19% OFF Phone Price : $31.67
In Stock
Yard-man Snowblower Spring 732-04460
#24

Auger/spiral/gearbox diagram

Yard-man snowblower spring

Part #732-04460

BEST SELLER
$7.20 |
12% OFF Phone Price : $8.20
In Stock
