Model # MGF316WFSB Official Universal/Multiflex (Frigidaire) gas range
Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MGF316WFSB gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forMGF316WFSB Ranges
- #19

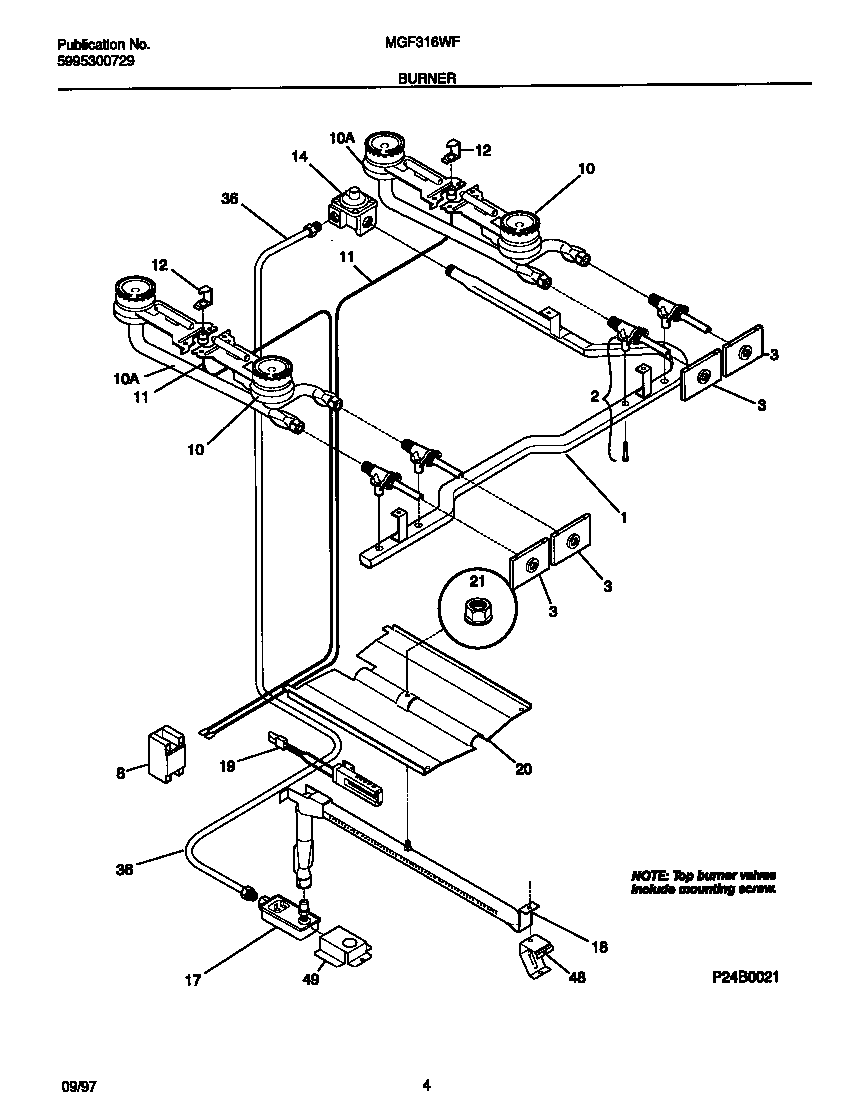

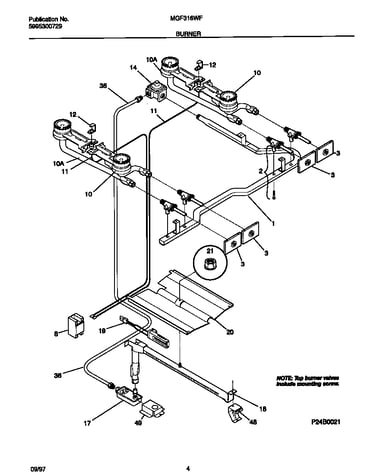

Burner diagram
Frigidaire range oven burner igniterPart #5303935066
$34.33 |15% OFF Phone Price : $40.33In Stock - #17
Burner diagram
Frigidaire range oven gas valvePart #3203459
$206.76 |5% OFF Phone Price : $218.76In Stock - #39B

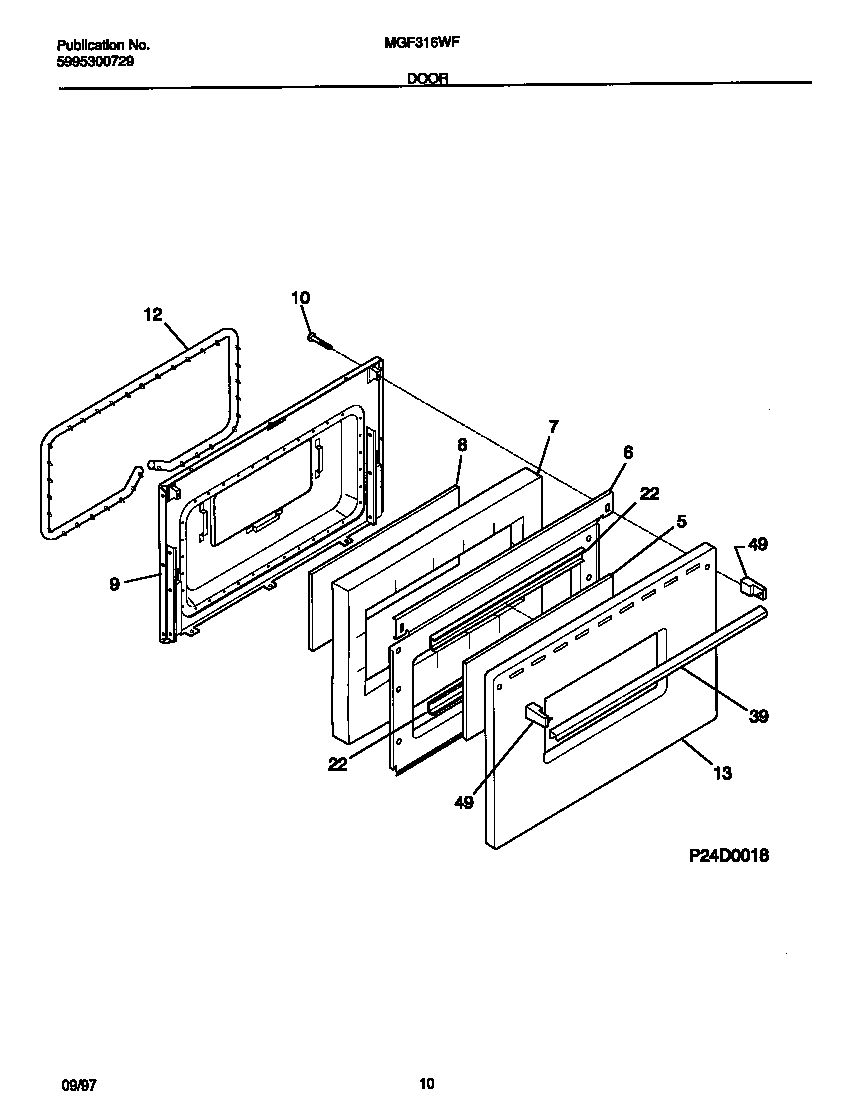

Door diagram
Range washerPart #316008401
$13.71 |13% OFF Phone Price : $15.71In Stock - #10
Burner diagram
Range surface burner head, frontPart #316039002
Replaced by #5304506427
?Manufacturer substitutionThis part replaces 316039002. Substitute parts can look different from the original.$58.35 |9% OFF Phone Price : $64.35In Stock - #24

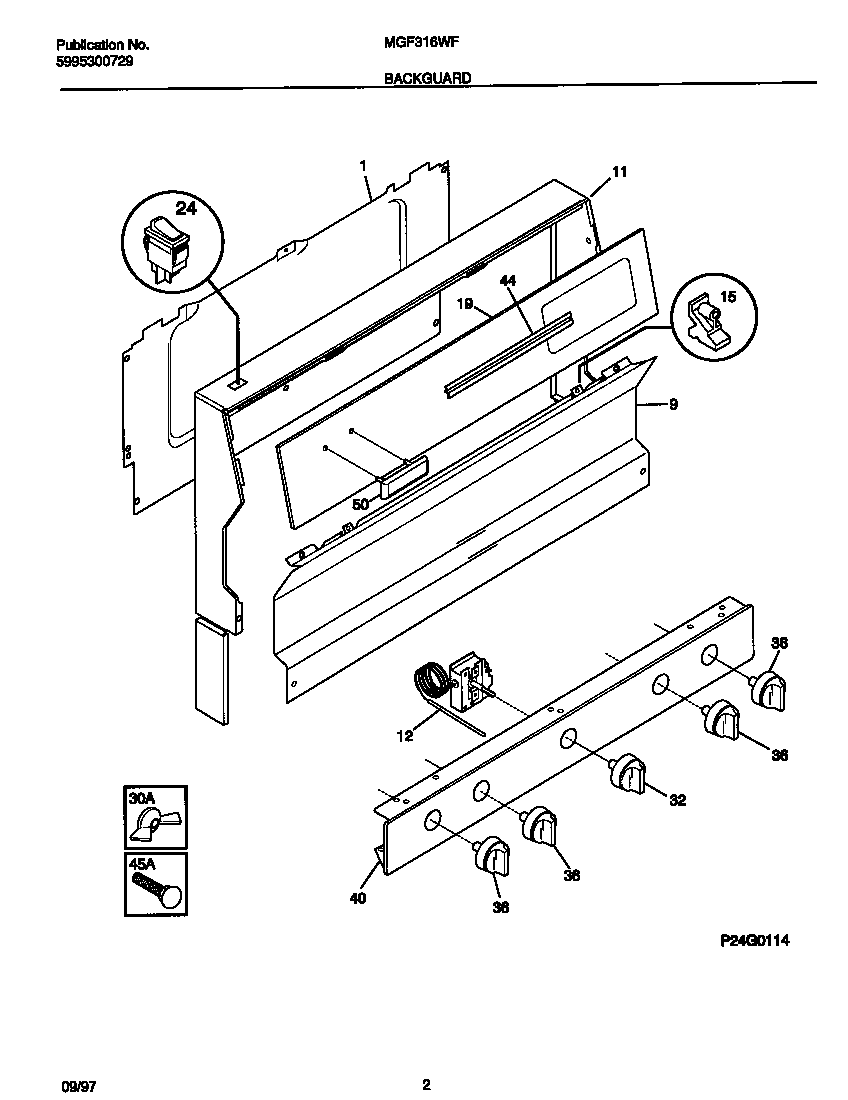

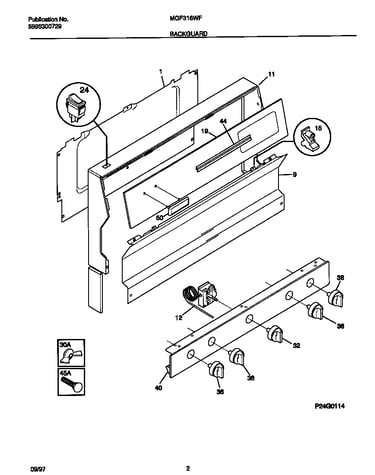

Backguard diagram
Rocker switchPart #316005607
Replaced by #5304527842
?Manufacturer substitutionThis part replaces 316005607. Substitute parts can look different from the original.This item is not returnable$11.14 |15% OFF Phone Price : $13.14In Stock - #10
Burner diagram
Range surface burner assembly, rearPart #316039003
Replaced by #5304506426
?Manufacturer substitutionThis part replaces 316039003. Substitute parts can look different from the original.$76.48 |7% OFF Phone Price : $82.48In Stock - #8
Burner diagram
Range spark modulePart #5303912606
$104.47 |10% OFF Phone Price : $116.47In Stock - #27

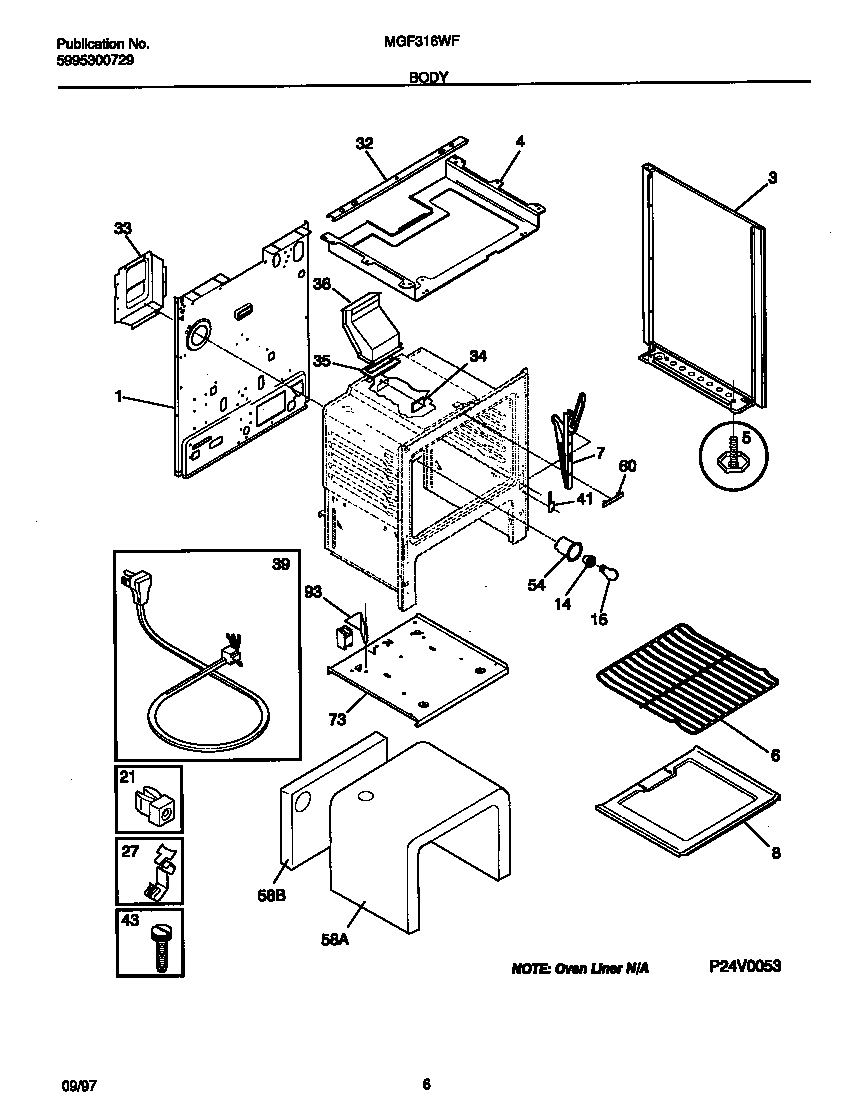

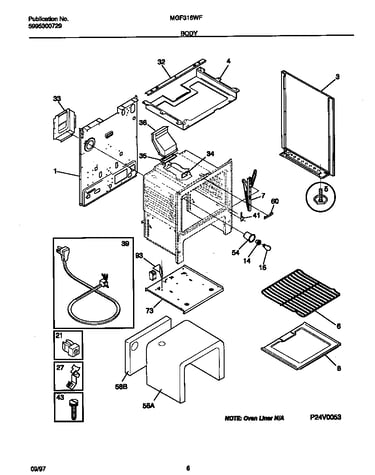

Body diagram
Range oven control thermostat bulb clipPart #5303284616
This item is not returnable$9.63 |9% OFF Phone Price : $10.63In Stock - #60

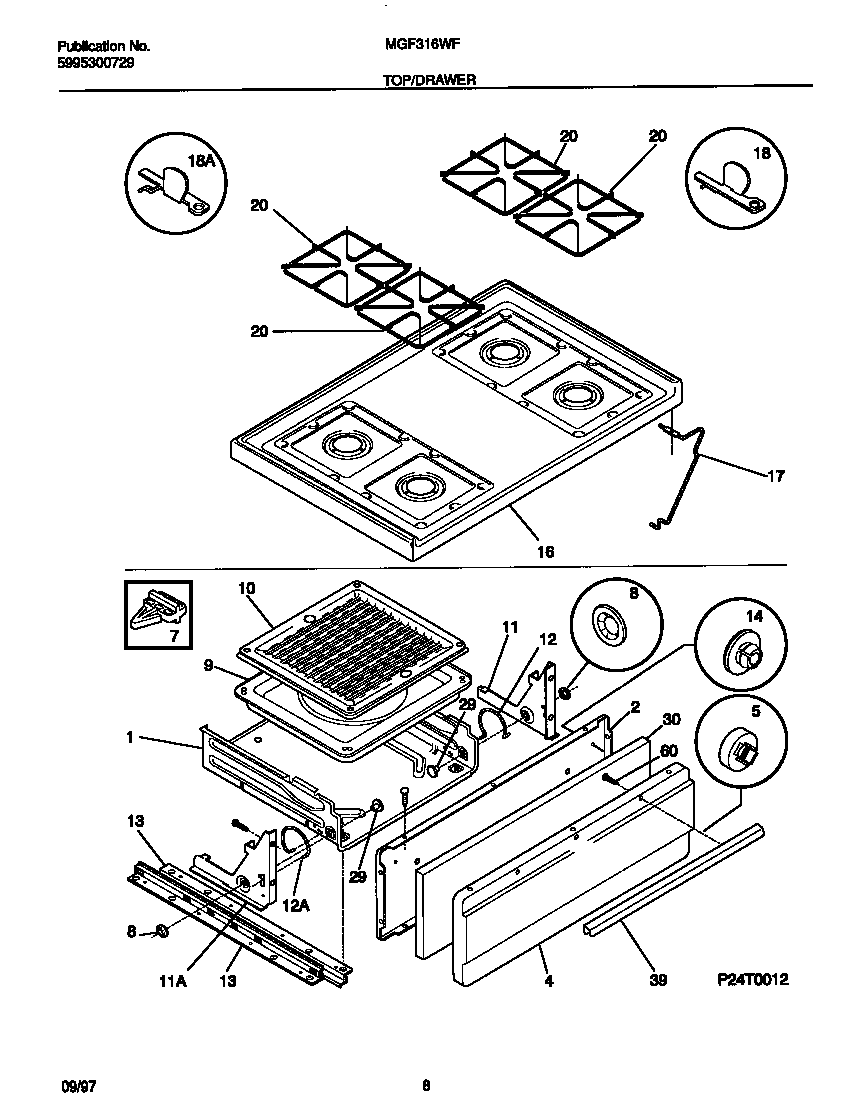

Top/drawer diagram
Range screwPart #316089500
This item is not returnable$41.14In Stock - #49
Door diagram
End capPart #316020101
Replaced by #316137000
?Manufacturer substitutionThis part replaces 316020101. Substitute parts can look different from the original.$50.08 |11% OFF Phone Price : $56.08In Stock
