Furnace

Model # GDJ100M12A1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP GDJ100M12A1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

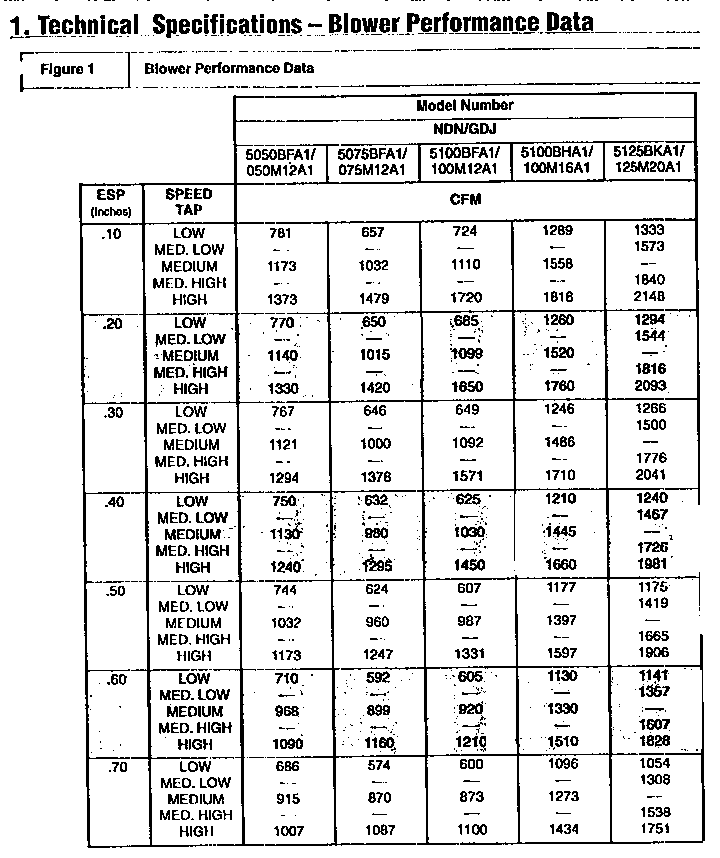

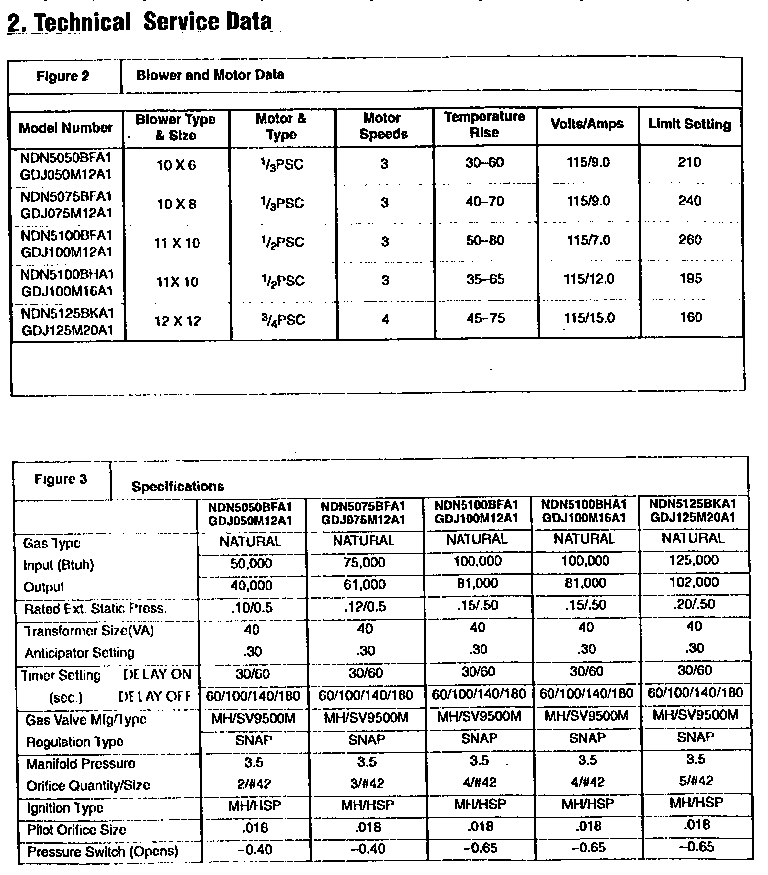

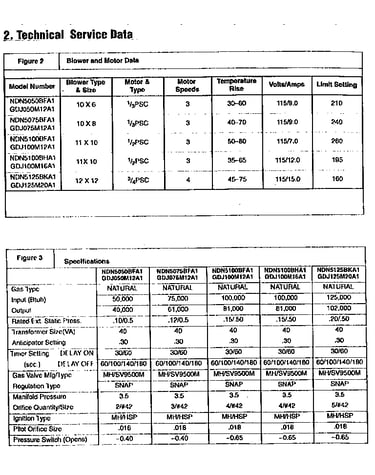

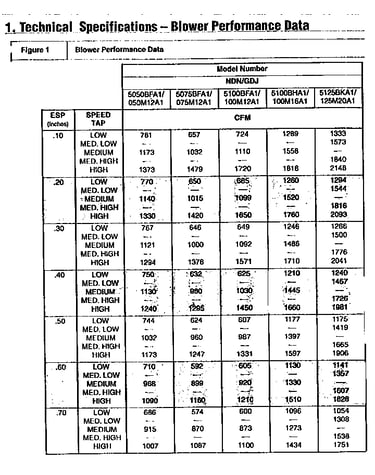

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#7

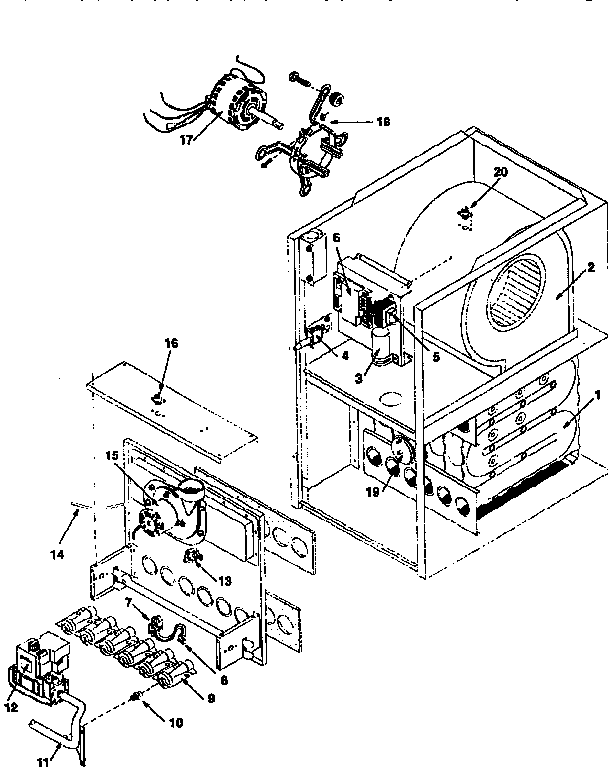

Burner assembly diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009836
#6

Burner assembly diagram

Cont fan tmr

Part #1009836

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009836. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel 601210
#2

Burner assembly diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Heat Exchange 231010104
#1

Burner assembly diagram

Heat exchange

Part #231010104

Replaced by #1014491

?
Manufacturer substitution
This part replaces 231010104. Substitute parts can look different from the original.
$799.23
In Stock
Sw Lmt T S 1320366
#13

Burner assembly diagram

Sw lmt t s

Part #1320366

$13.40
In Stock
Panel Cutoff 721020008
#20

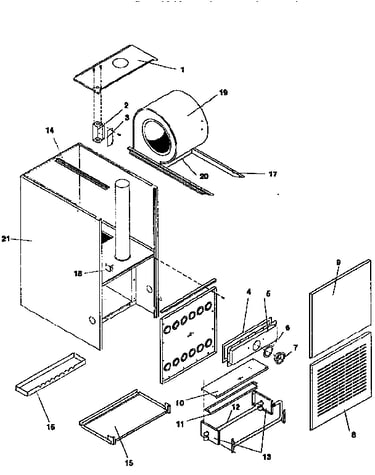

Cabinet diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Baffle 707010031

#NI

All parts diagram

Baffle

Part #707010031

$49.47
In Stock
Gskt Htx Bnr 2480906

#NI

All parts diagram

Gskt htx bnr

Part #2480906

$15.97
In Stock
Shield 1008631
#11

Cabinet diagram

Shield

Part #1008631

$67.80
In Stock
Switch 611872
#4

Burner assembly diagram

Switch

Part #611872

$25.58
In Stock
