Kenmore
Household Fan

Model # 689110150 Official Kenmore 42" ceiling fan

Here are the diagrams and repair parts for Official Kenmore 689110150 42" ceiling fan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Capacitor 11-002
#18

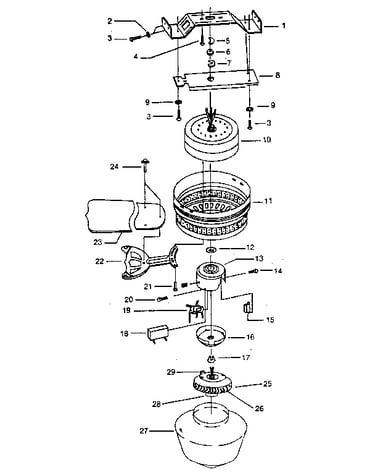

Unit parts diagram

Capacitor

Part #11-002

The manufacturer no longer makes this part, and there's no substitute part

Screw PKS100
#25

Unit parts diagram

Screw

Part #PKS100

The manufacturer no longer makes this part, and there's no substitute part

Housing 6-0029
#24

Unit parts diagram

Housing

Part #6-0029

The manufacturer no longer makes this part, and there's no substitute part

Diffuser L1-1000
#27

Unit parts diagram

Diffuser

Part #L1-1000

The manufacturer no longer makes this part, and there's no substitute part

Washer 813679-12
#12

Unit parts diagram

Washer

Part #813679-12

The manufacturer no longer makes this part, and there's no substitute part

Nut 5-0039
#6

Unit parts diagram

Nut

Part #5-0039

The manufacturer no longer makes this part, and there's no substitute part

Washer 5-0040
#7

Unit parts diagram

Washer

Part #5-0040

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 12-020
#16

Unit parts diagram

Switch cover

Part #12-020

The manufacturer no longer makes this part, and there's no substitute part

Hanger Bracket 1-0005
#1

Unit parts diagram

Hanger bracket

Part #1-0005

The manufacturer no longer makes this part, and there's no substitute part

Flange 14-023
#22

Unit parts diagram

Flange

Part #14-023

The manufacturer no longer makes this part, and there's no substitute part
