Model # 517797940 Official Craftsman blower/vacuum

Here are the diagrams and repair parts for Official Craftsman 517797940 blower/vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

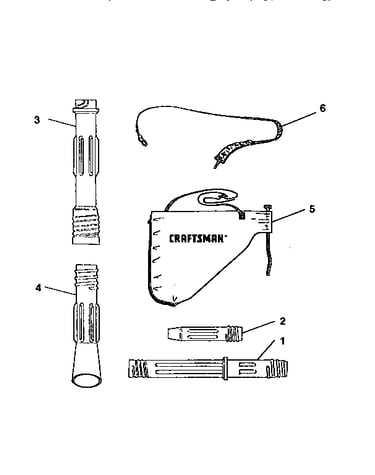

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Lead 08502
#6

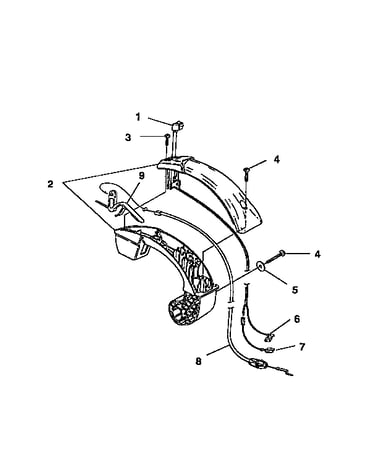

Handle assembly diagram

Lead

Part #08502

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Fuel Line 01439-10
#12

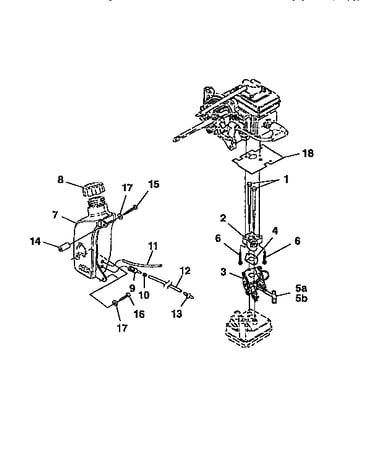

Carburetor kit and fuel tank diagram

Leaf blower fuel line

Part #01439-10

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 58833
#4

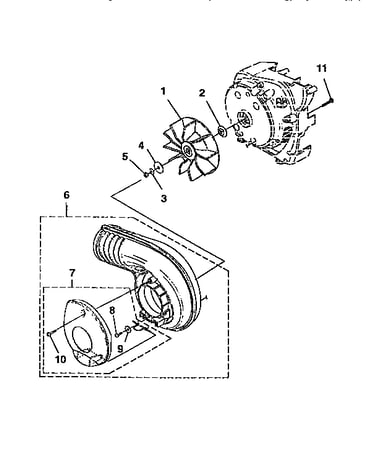

Blower housing diagram

Thrust washer

Part #58833

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank A08780
#7

Carburetor kit and fuel tank diagram

Fuel tank

Part #A08780

The manufacturer no longer makes this part, and there's no substitute part

Nut 81208
#10

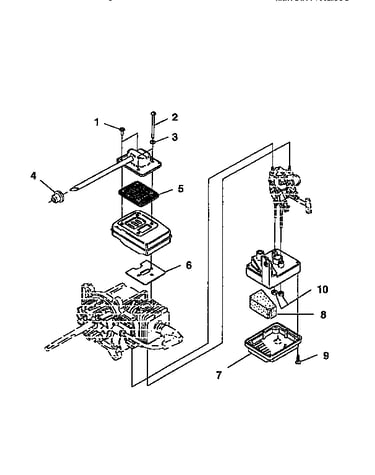

Muffler assembly diagram

Nut

Part #81208

The manufacturer no longer makes this part, and there's no substitute part

Muffler Shield 08107
#2

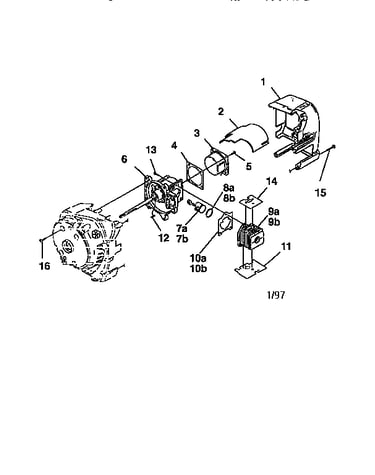

Cylinder assembly diagram

Muffler shield

Part #08107

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Kit A07145
#9B

Cylinder assembly diagram

Cylinder kit

Part #A07145

The manufacturer no longer makes this part, and there's no substitute part

Rotor A04158S
#1

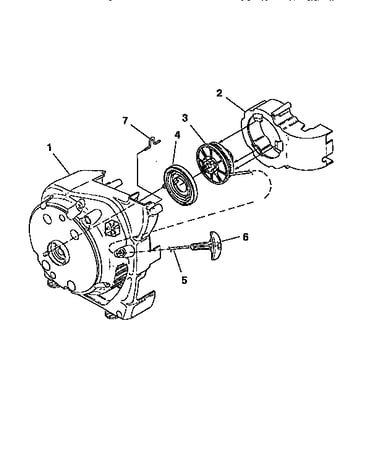

Starter assembly diagram

Rotor

Part #A04158S

The manufacturer no longer makes this part, and there's no substitute part

Voluter Door A08786
#7

Blower housing diagram

Voluter door

Part #A08786

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 82537
Lawn & garden equipment screw

Part #82537

The manufacturer no longer makes this part, and there's no substitute part
