Electric Line Trimmer

Model # 257798201 Official Craftsman electric line trimmer

Here are the diagrams and repair parts for Official Craftsman 257798201 electric line trimmer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for257798201 Line Trimmers

  • Retaining Ring 2467-1
    Retaining ring

    Part #2467-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Hub 1679-05
    #22

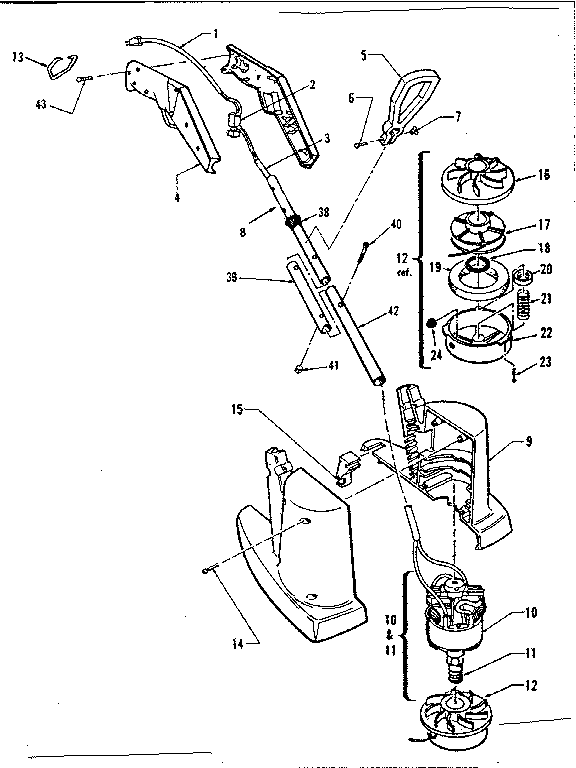

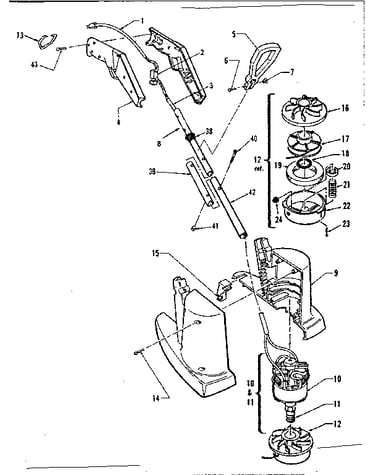

    Drive shaft and cutter head assembly diagram

    Hub

    Part #1679-05

    The manufacturer no longer makes this part, and there's no substitute part

  • Hanger Hook 2701
    #13

    Drive shaft and cutter head assembly diagram

    Hanger hook

    Part #2701

    The manufacturer no longer makes this part, and there's no substitute part

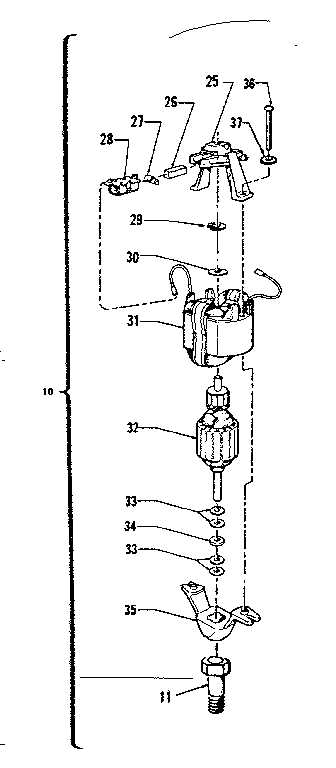

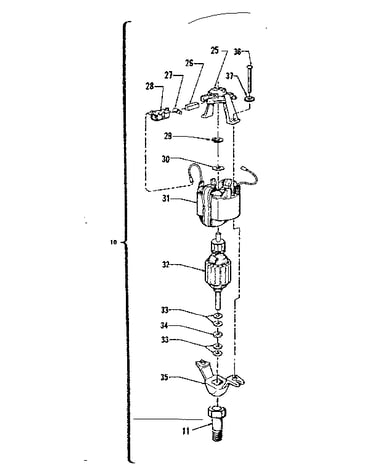

  • Brush End Assembly 71-064-1
    Brush end assembly

    Part #71-064-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Trigger Switch 1930-1
    #2

    Drive shaft and cutter head assembly diagram

    Trigger switch

    Part #1930-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle Tube 3797-1
    #42

    Drive shaft and cutter head assembly diagram

    Handle tube

    Part #3797-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Cotter Pin 2703
    #23

    Drive shaft and cutter head assembly diagram

    Cotter pin

    Part #2703

    The manufacturer no longer makes this part, and there's no substitute part

  • Drive End Assembly 71-067-1
    Drive end assembly

    Part #71-067-1

    The manufacturer no longer makes this part, and there's no substitute part

  • O-ring 3162
    #18

    Drive shaft and cutter head assembly diagram

    O-ring

    Part #3162

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature Assembly 3676
    Armature assembly

    Part #3676

    The manufacturer no longer makes this part, and there's no substitute part
