Front-Engine Lawn Tractor

Model # 91799421 Official Craftsman 12-hp tractor

Here are the diagrams and repair parts for Official Craftsman 91799421 12-hp tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

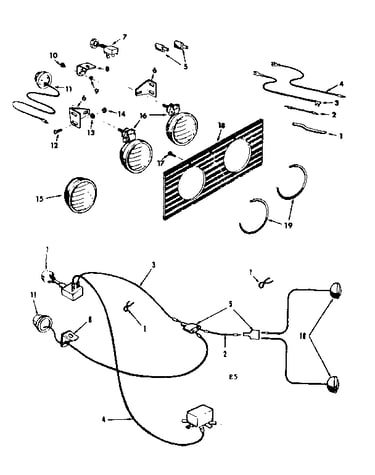

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 288 parts  |
Hardened Race Thrust Bearing 6266H
#39

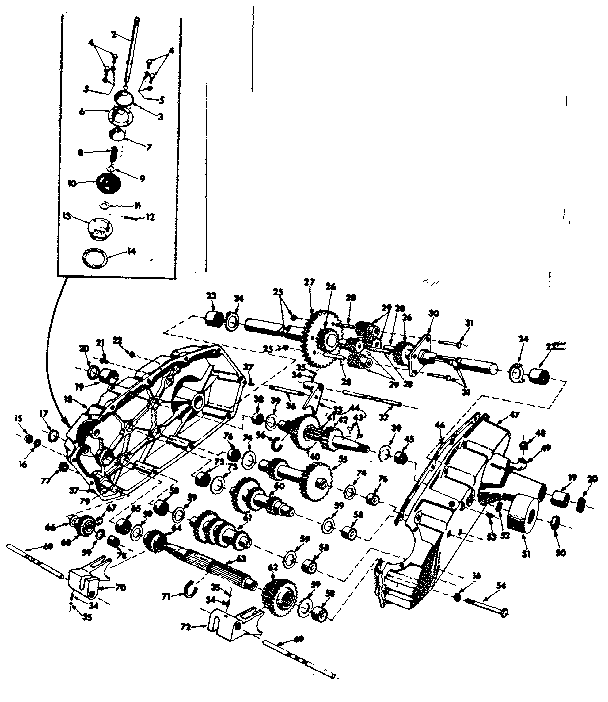

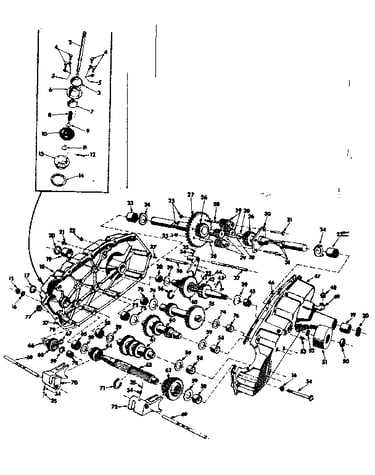

Transmission diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.09 |
15% OFF Phone Price : $13.09
In Stock
E-ring 98000071
E-ring

Part #98000071

Replaced by #812000029

?
Manufacturer substitution
This part replaces 98000071. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Battery 96042X
#7

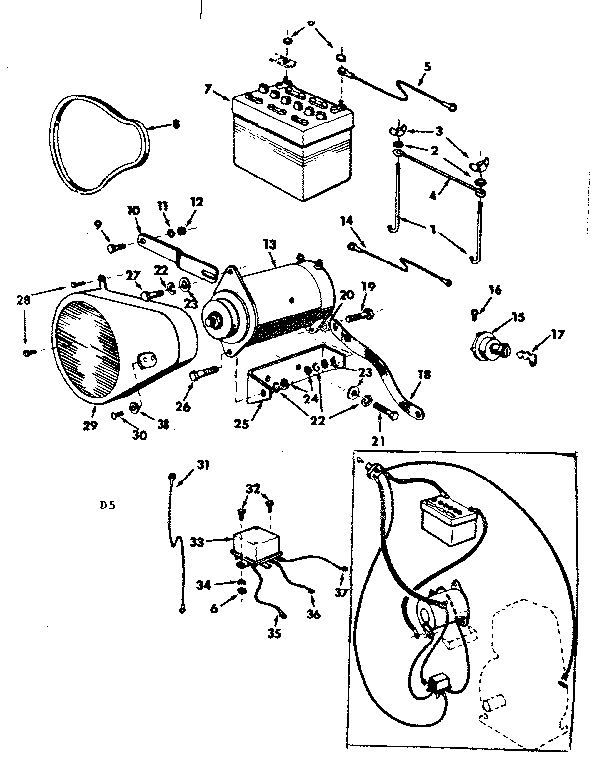

Electrical system diagram

Battery

Part #96042X

The manufacturer no longer makes this part, and there's no substitute part

Ball 7392M
#35

Transmission diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Flange Bearing 5920H
#49

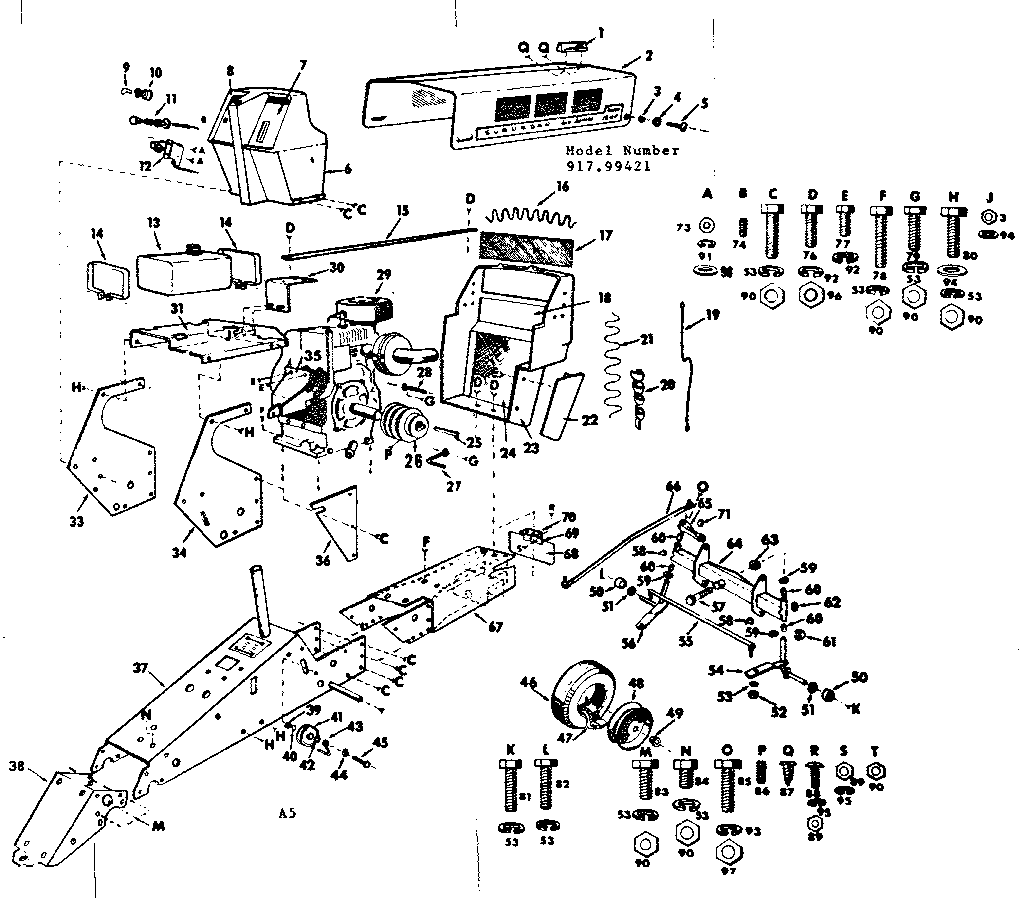

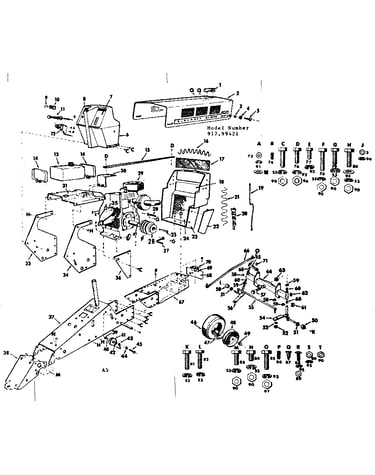

Top half diagram

Flange bearing

Part #5920H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 5920H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Washer 19262014
#59

Top half diagram

Washer

Part #19262014

Replaced by #819272016

?
Manufacturer substitution
This part replaces 19262014. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Flat Idler 6635H
Flat idler

Part #6635H

Replaced by #583772001

?
Manufacturer substitution
This part replaces 6635H. Substitute parts can look different from the original.
This item is not returnable
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Washer 19252016
#4

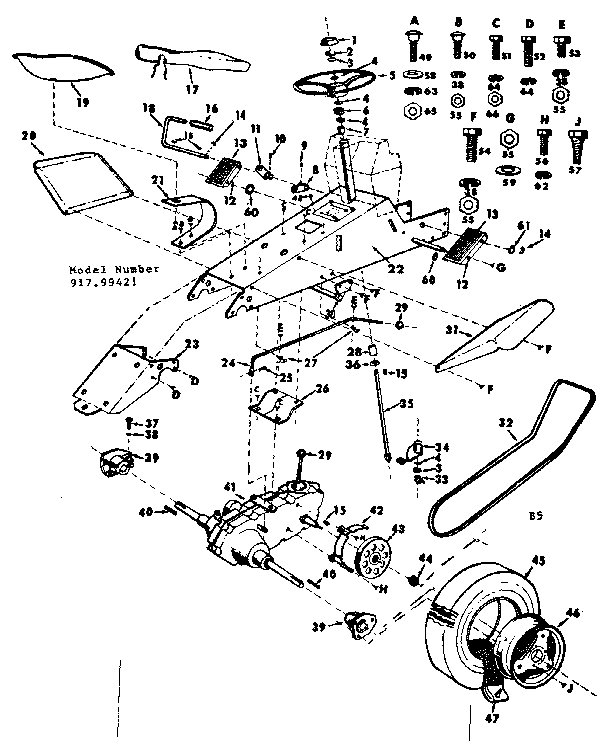

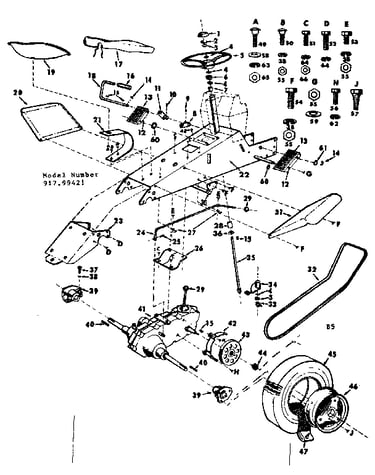

Steering assembly diagram

Washer

Part #19252016

Replaced by #532121749

?
Manufacturer substitution
This part replaces 19252016. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Gripco Nut 1685H
#3

Top half diagram

Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 5999H
#39

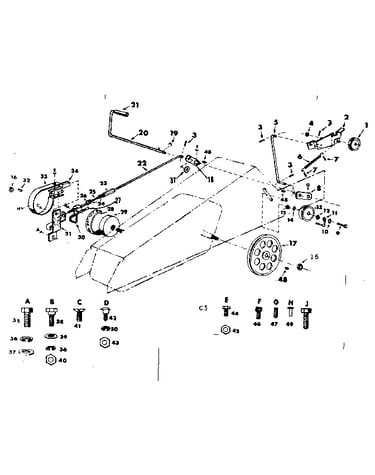

Front axle assembly diagram

Spring washer

Part #5999H

Replaced by #532062335

?
Manufacturer substitution
This part replaces 5999H. Substitute parts can look different from the original.
$13.69
In Stock
