Model # LRE30757SW/00 Official LG electric range

Here are the diagrams and repair parts for Official LG LRE30757SW-00 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

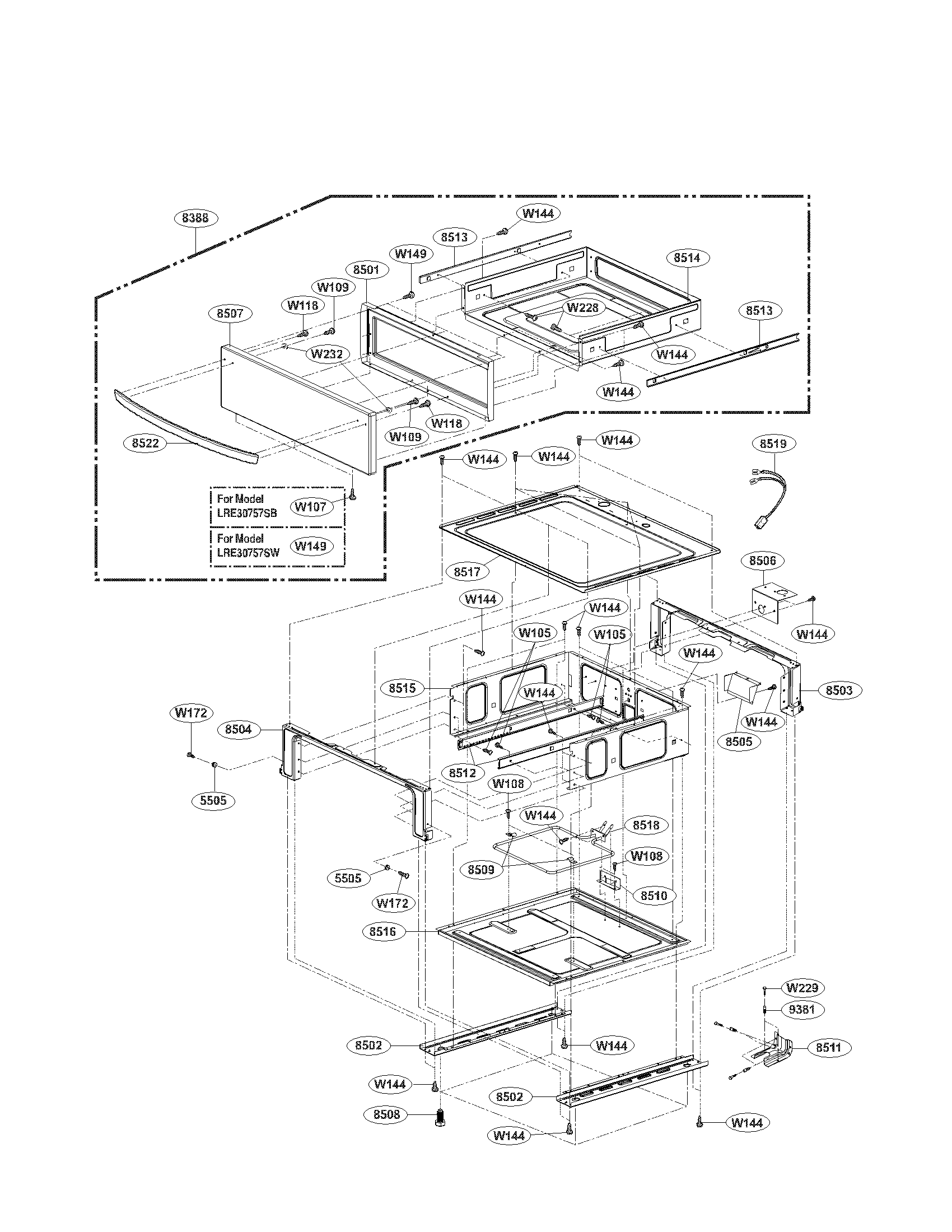

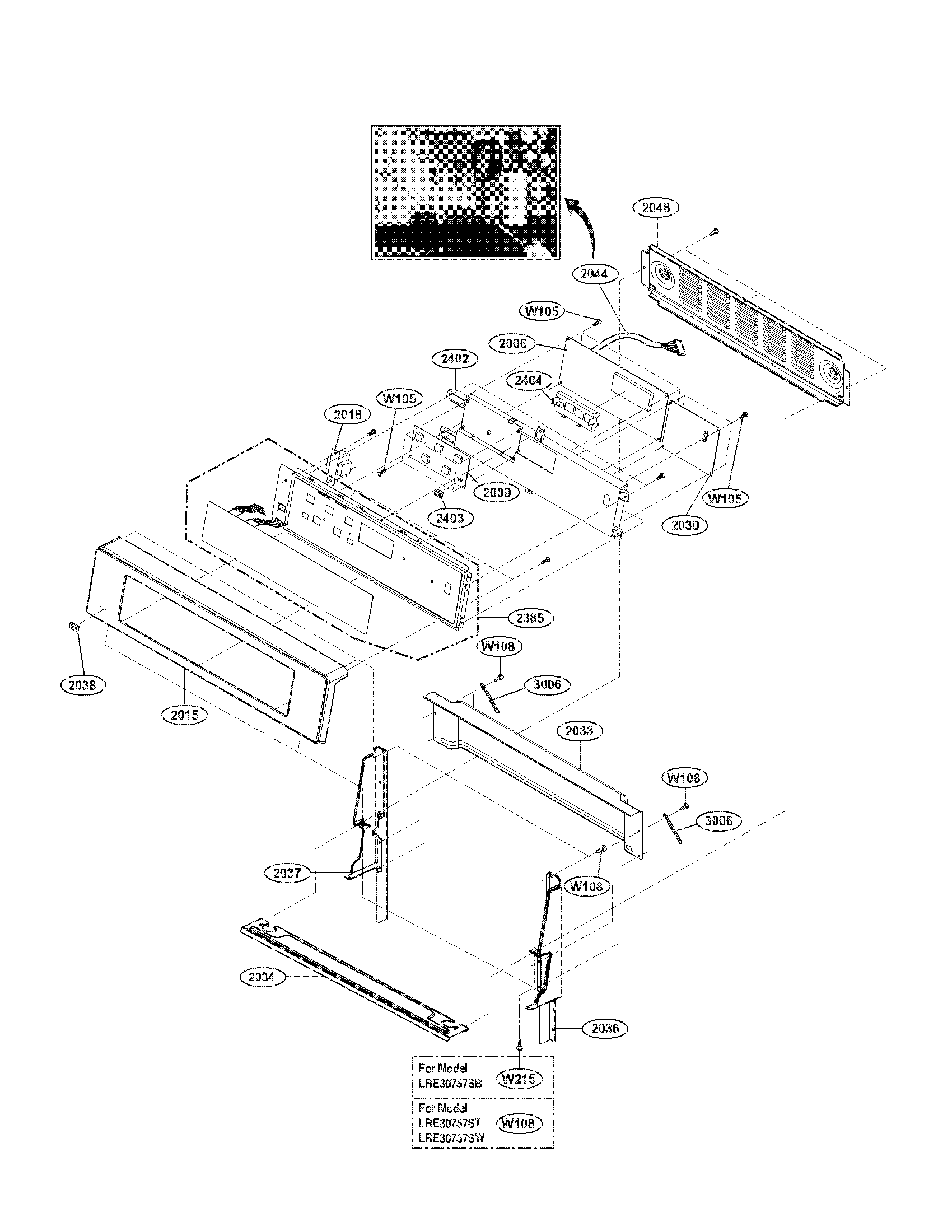

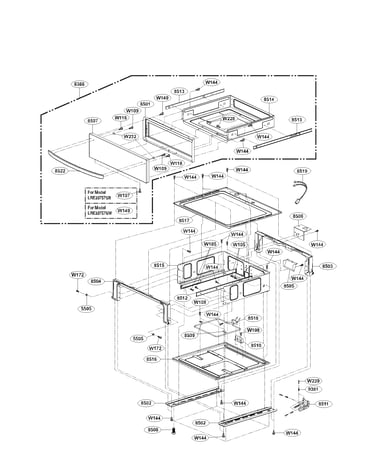

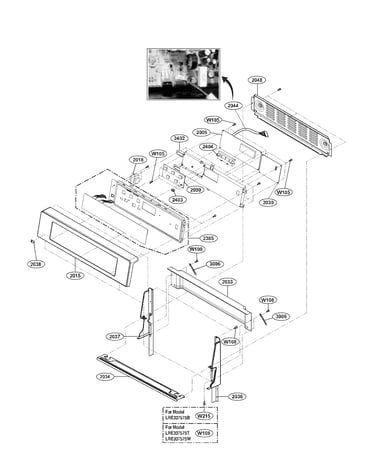

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Range Nut 1NHB0500032
#W233

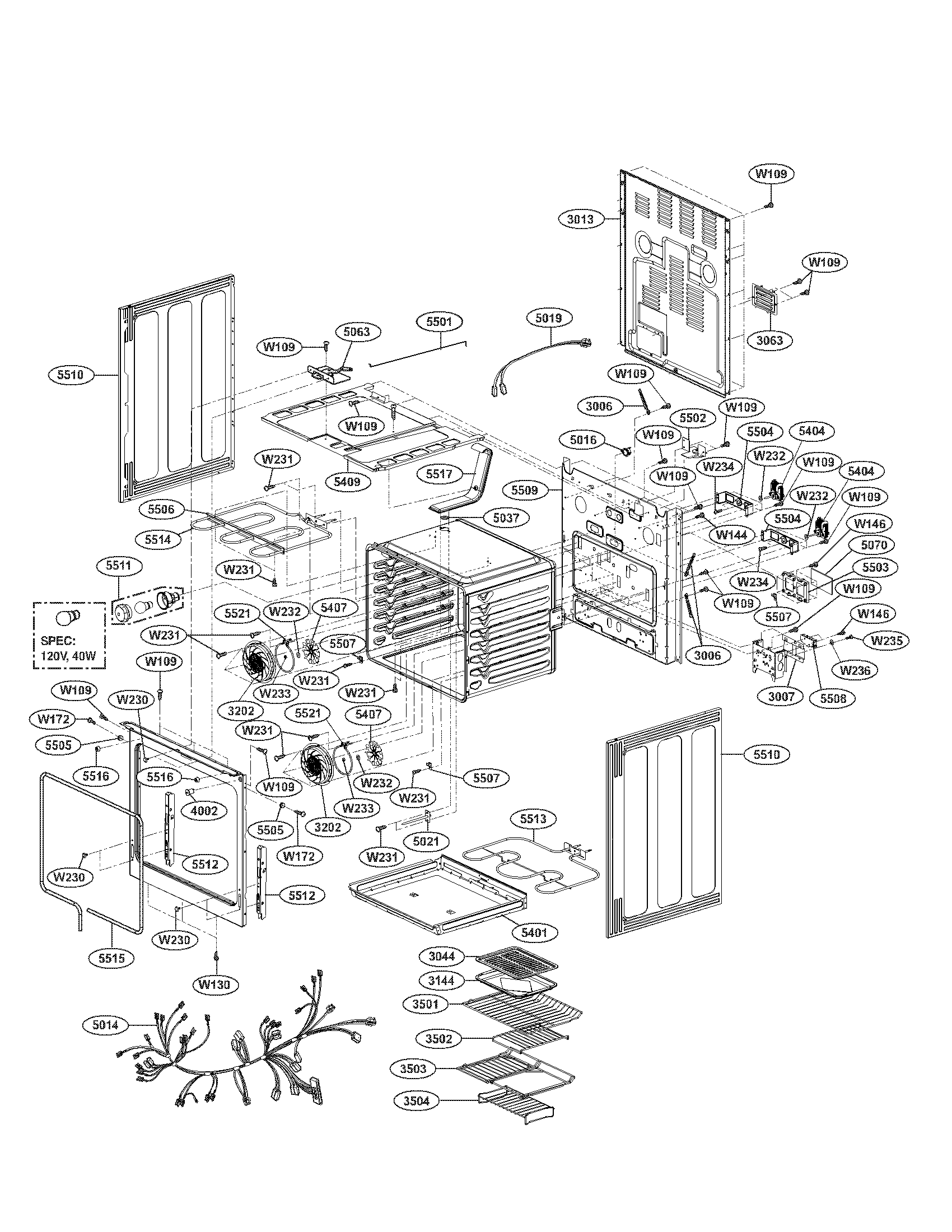

Cavity parts diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Heater Sheath 5300W1S026A
#5513

Cavity parts diagram

Heater sheath

Part #5300W1S026A

Replaced by #MEE36593201

?
Manufacturer substitution
This part replaces 5300W1S026A. Substitute parts can look different from the original.
BEST SELLER
$56.57 |
10% OFF Phone Price : $62.57
In Stock
Range Oven Door Inner Glass 4890W1N005A
#1018

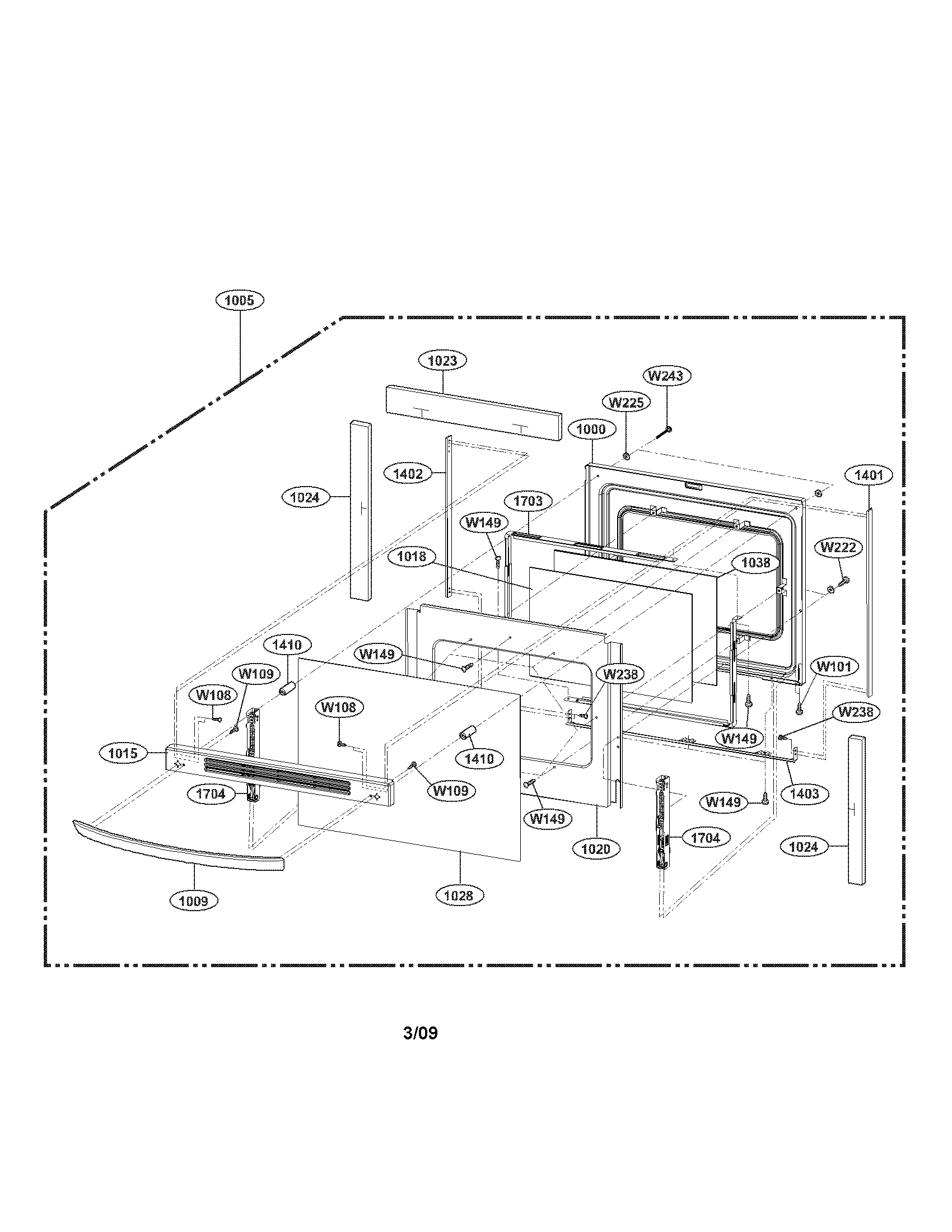

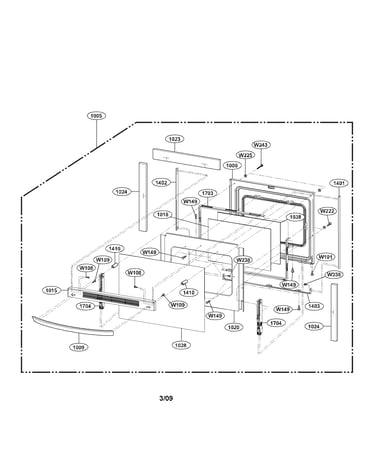

Door parts diagram

Range oven door inner glass

Part #4890W1N005A

$108.52 |
10% OFF Phone Price : $120.52
In Stock
Range Oven Rack MHL39256101
#3501

Cavity parts diagram

Range oven rack

Part #MHL39256101

Replaced by #MHL39256107

?
Manufacturer substitution
This part replaces MHL39256101. Substitute parts can look different from the original.
$33.64 |
15% OFF Phone Price : $39.64
In Stock
Range Terminal Block EAG32629302
#5508

Cavity parts diagram

Range terminal block

Part #EAG32629302

$44.48 |
12% OFF Phone Price : $50.48
In Stock
Range Washer, 5.3 X 1-mm 1WZZ81N001A
Range washer, 5.3 x 1-mm

Part #1WZZ81N001A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Lamp 6913W1N002B
#5511

Cavity parts diagram

Lamp

Part #6913W1N002B

Replaced by #6913W1N002C

?
Manufacturer substitution
This part replaces 6913W1N002B. Substitute parts can look different from the original.
$68.57 |
8% OFF Phone Price : $74.57
In Stock
Fan Motor EAU36206001
#5404

Cavity parts diagram

Fan motor

Part #EAU36206001

Replaced by #EAU36206002

?
Manufacturer substitution
This part replaces EAU36206001. Substitute parts can look different from the original.
$88.29 |
6% OFF Phone Price : $94.29
In Stock
Range Radiant Surface Element, 8-in 5300W1R005A
#3302

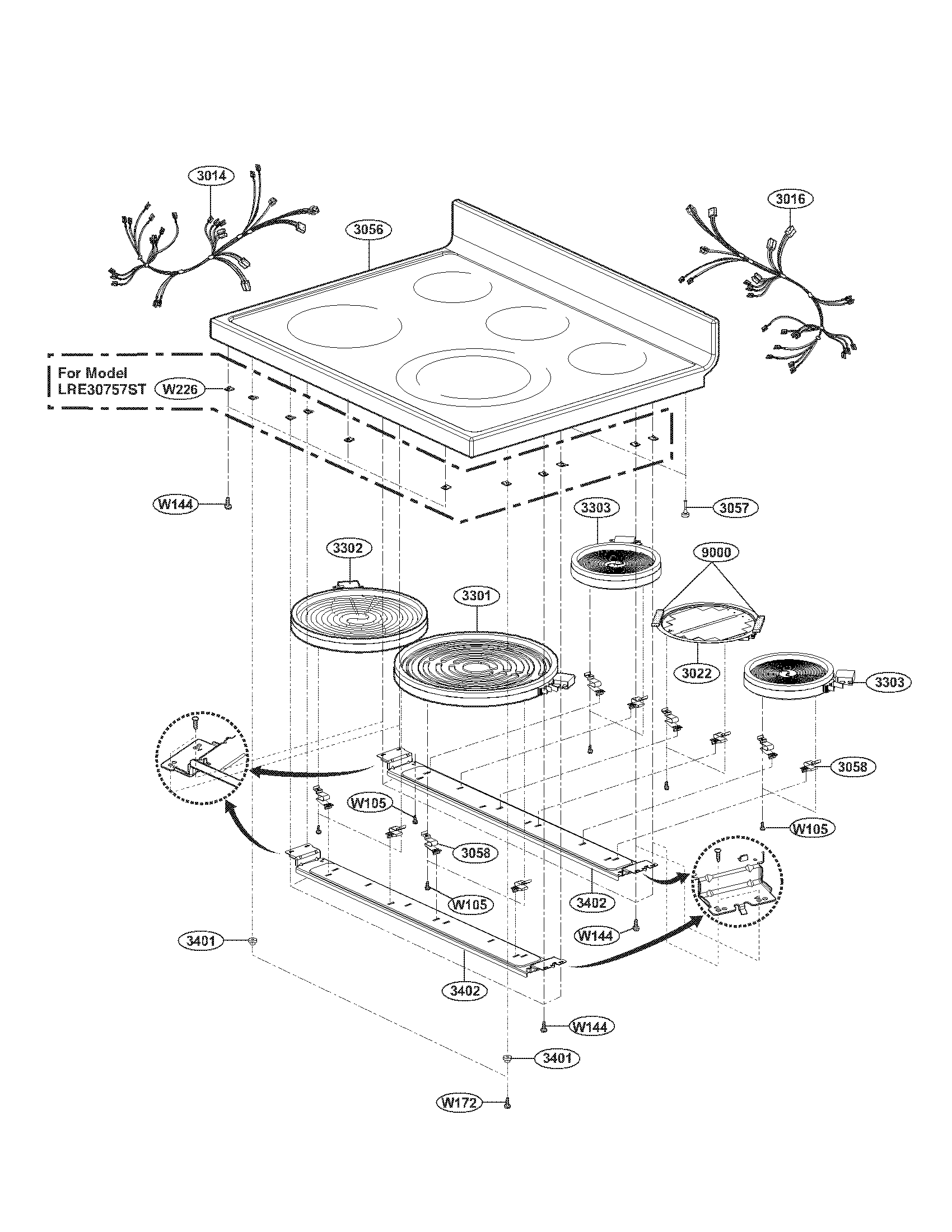

Cooktop parts diagram

Range radiant surface element, 8-in

Part #5300W1R005A

$189.31 |
6% OFF Phone Price : $201.31
In Stock
Range Oven Door Screw, 5 X 59-mm 1SZZW5N001H
#W243

Door parts diagram

Range oven door screw, 5 x 59-mm

Part #1SZZW5N001H

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
