Gas Range

Model # PGR5702BDT Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag PGR5702BDT gas freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

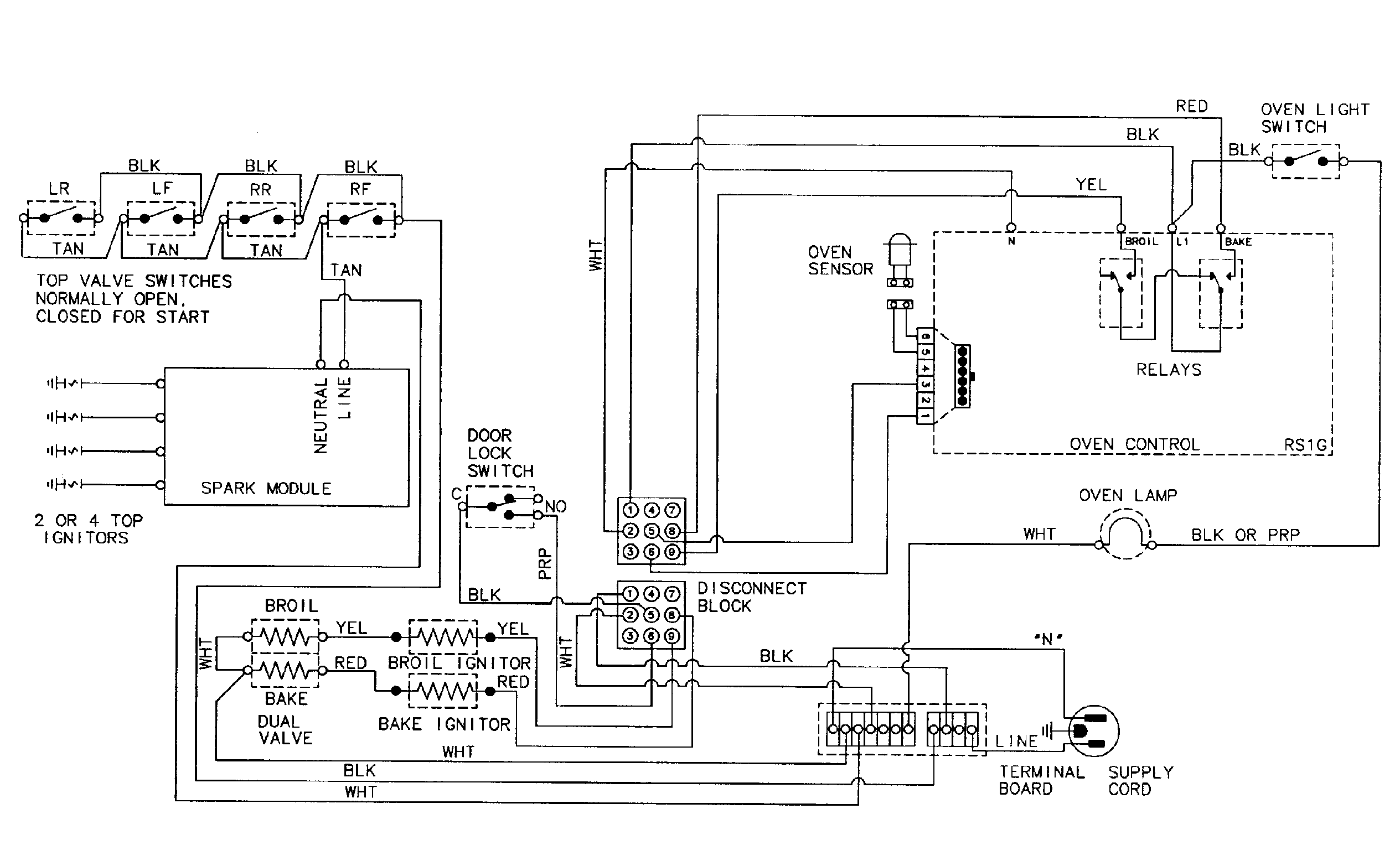

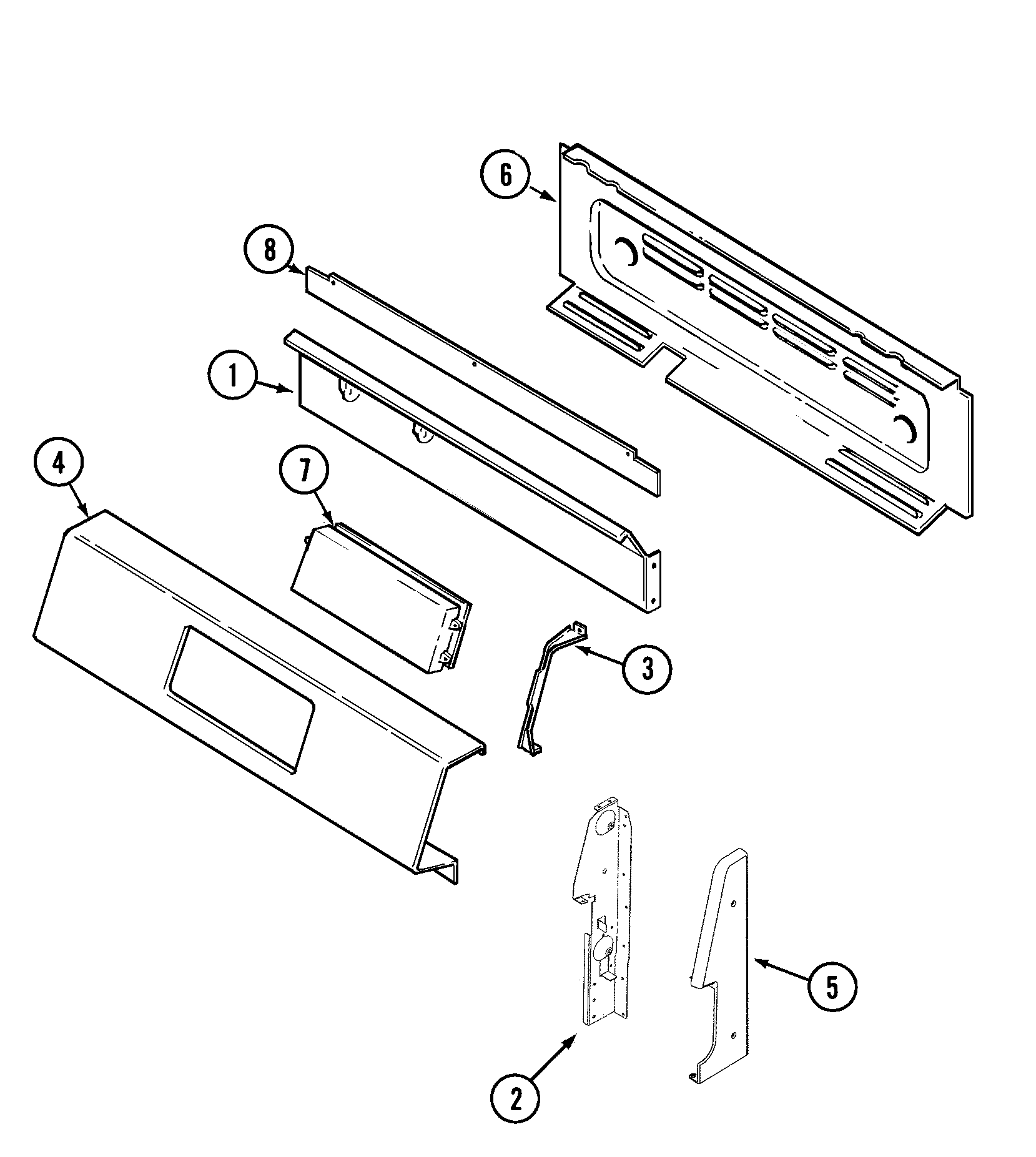

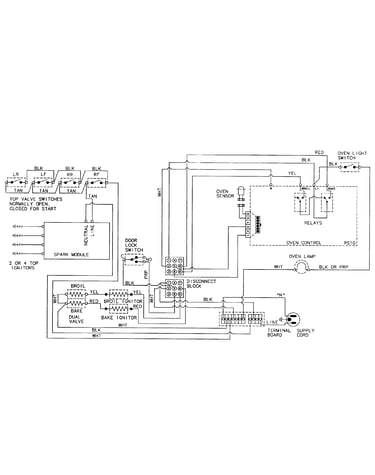

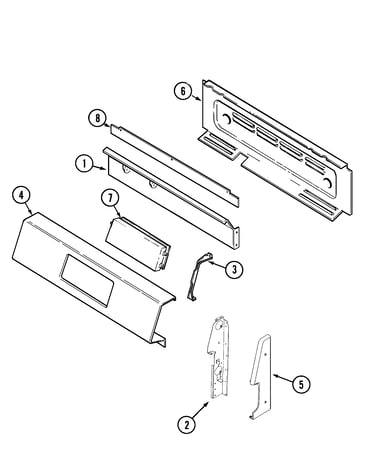

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forPGR5702BDT Ranges

  • Screw, #10 X 7101P274-60
    #3A

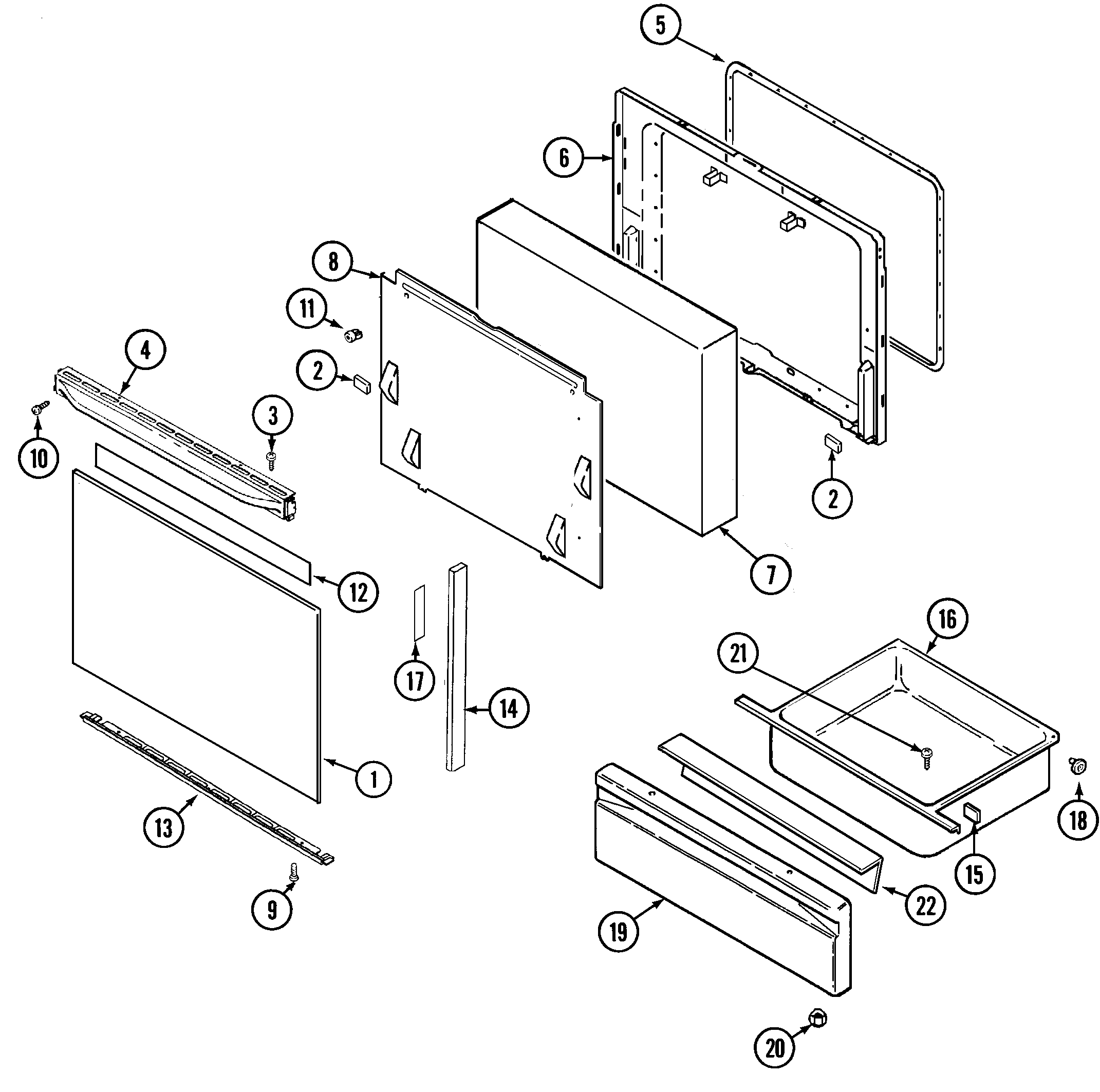

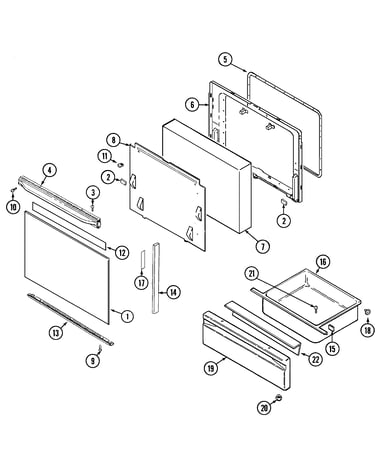

    Door/drawer diagram

    Screw, #10 x

    Part #7101P274-60

    Replaced by #WP3387230

    ?
    Manufacturer substitution
    This part replaces 7101P274-60. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.33
    19% OFF Phone Price : $5.33
    In Stock
  • Oven Sensor 74004944
    #5

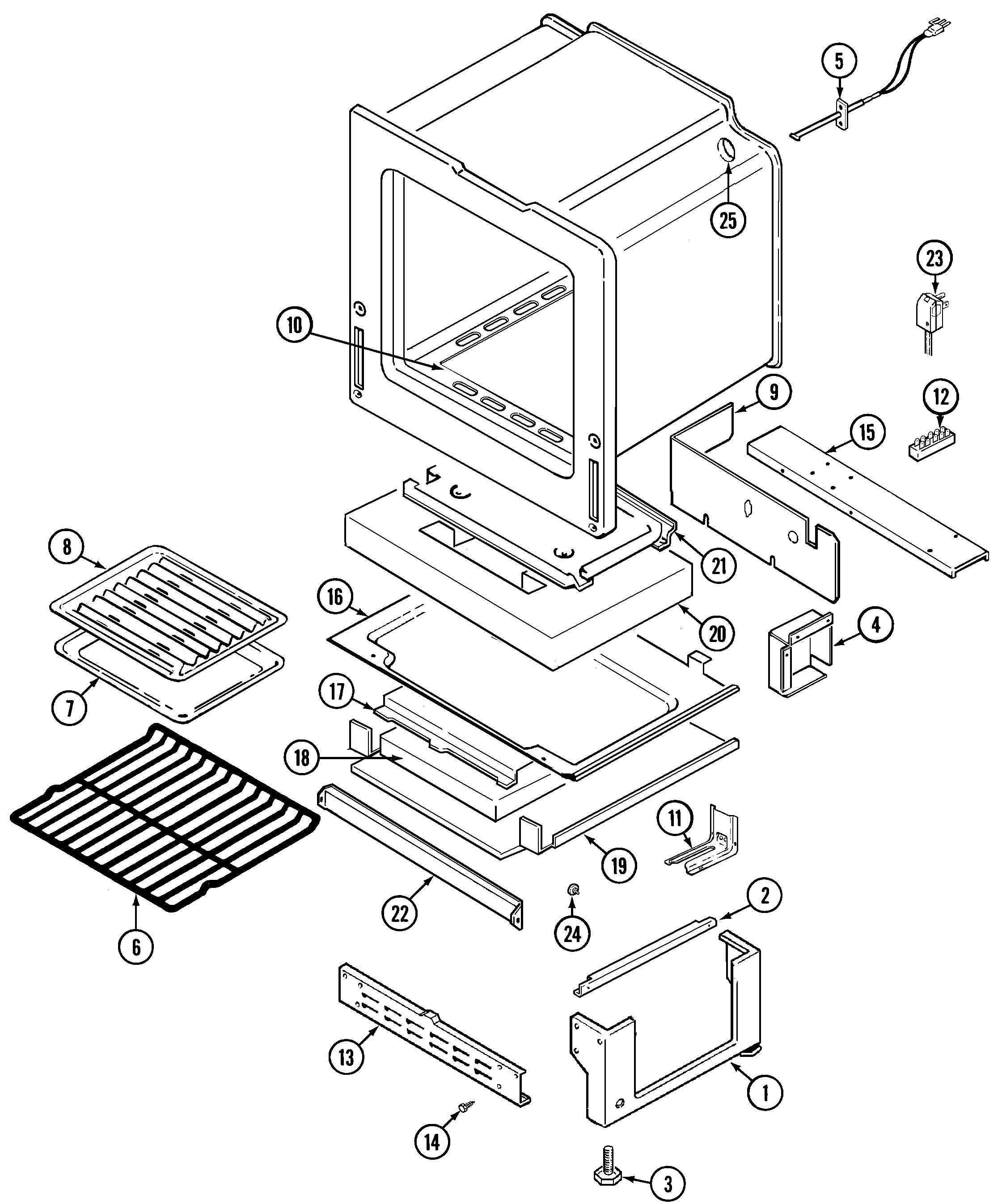

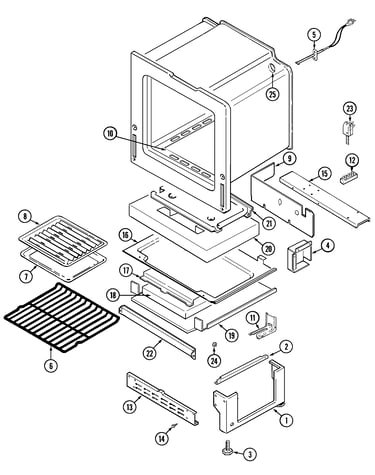

    Oven/base diagram

    Oven sensor

    Part #74004944

    Replaced by #12001655

    ?
    Manufacturer substitution
    This part replaces 74004944. Substitute parts can look different from the original.
    BEST SELLER
    $29.48
    17% OFF Phone Price : $35.48
    In Stock
  • Range Surface Burner Igniter 74004053
    #10

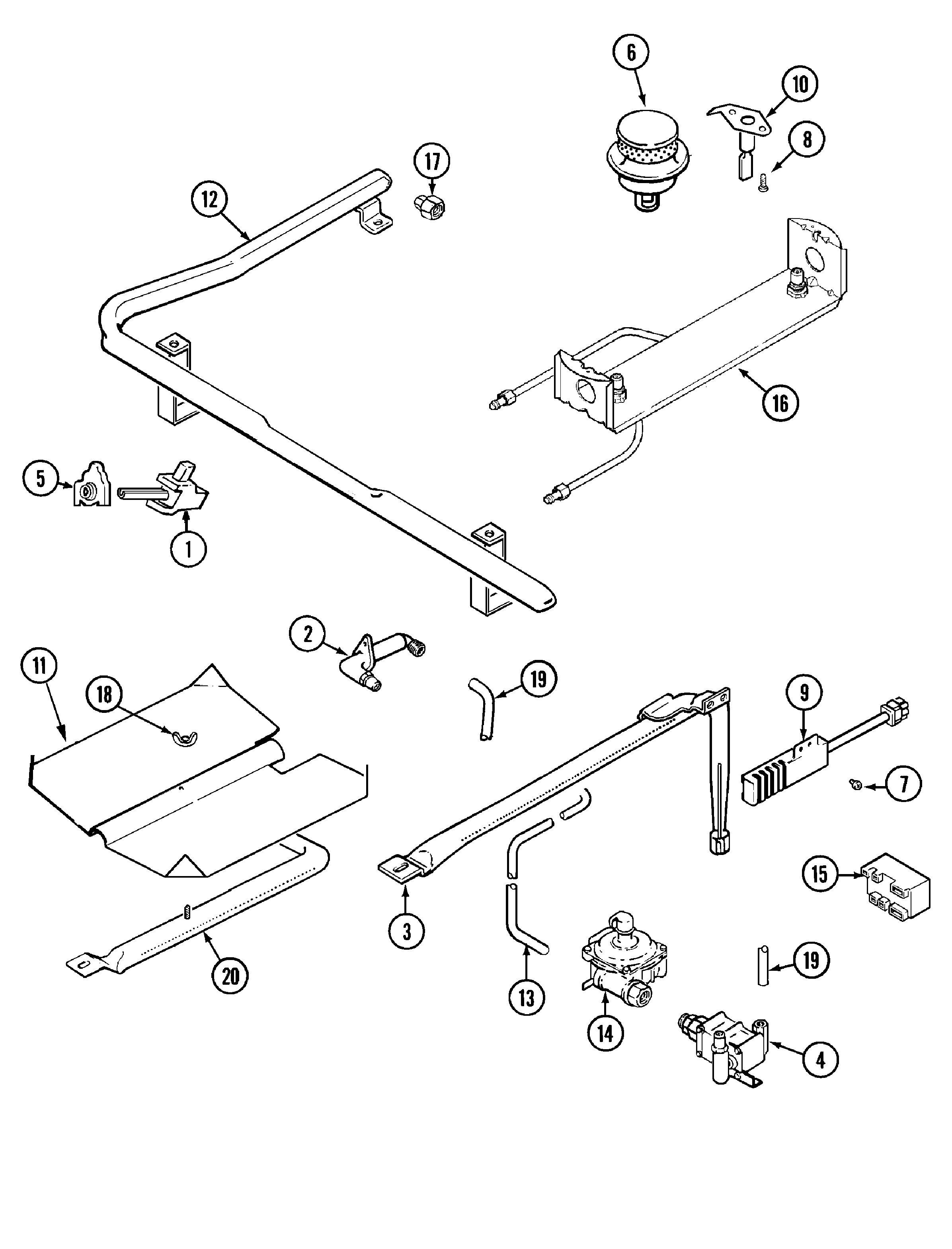

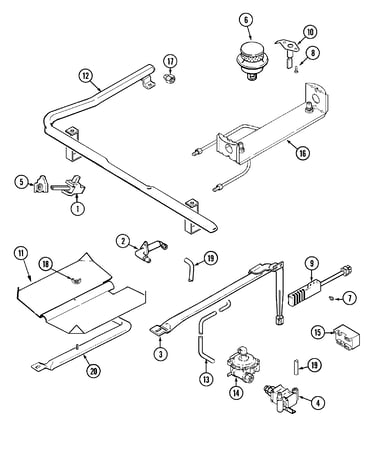

    Gas controls diagram

    Range surface burner igniter

    Part #74004053

    BEST SELLER
    $25.30
    19% OFF Phone Price : $31.30
    In Stock
  • Door Gasket 7201P046-60
    #5

    Door/drawer diagram

    Door gasket

    Part #7201P046-60

    Replaced by #WPW10162384

    ?
    Manufacturer substitution
    This part replaces 7201P046-60. Substitute parts can look different from the original.
    $69.42
    8% OFF Phone Price : $75.42
    In Stock
  • Bracket Screw 7101P040-60
    Bracket screw

    Part #7101P040-60

    Replaced by #WP98008545

    ?
    Manufacturer substitution
    This part replaces 7101P040-60. Substitute parts can look different from the original.
    This item is not returnable
    $4.67
    18% OFF Phone Price : $5.67
    In Stock
  • Burner Seal 12500050
    #6

    Gas controls diagram

    Burner seal

    Part #12500050

    Replaced by #WP3412D024-09

    ?
    Manufacturer substitution
    This part replaces 12500050. Substitute parts can look different from the original.
    $55.52
    10% OFF Phone Price : $61.52
    In Stock
  • Screw 790448
    #2B

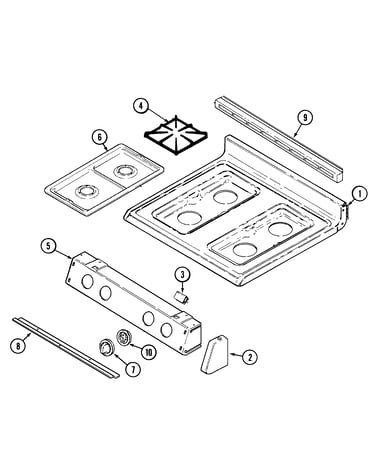

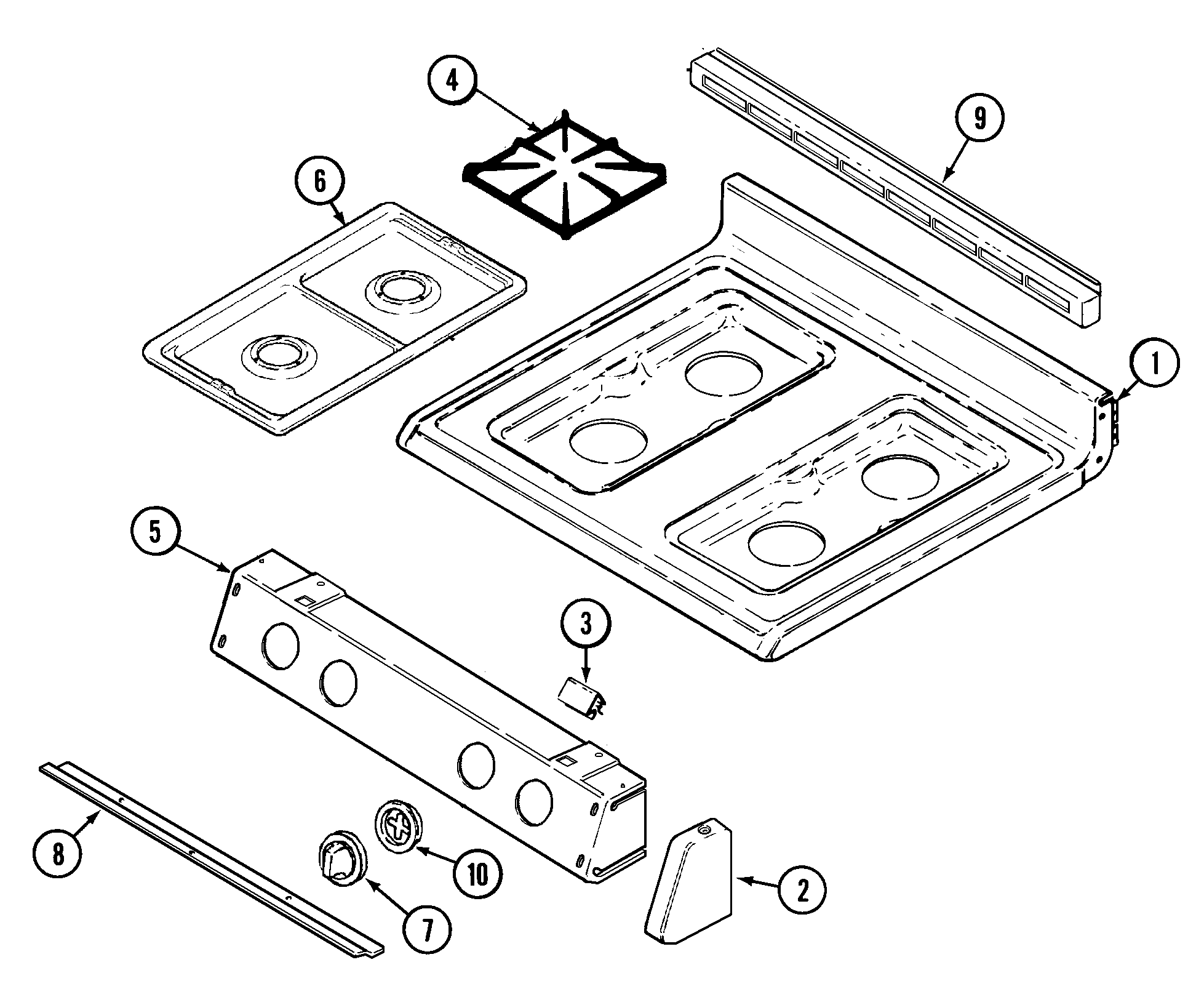

    Top assembly diagram

    Screw

    Part #790448

    Replaced by #WP98008545

    ?
    Manufacturer substitution
    This part replaces 790448. Substitute parts can look different from the original.
    This item is not returnable
    $4.67
    18% OFF Phone Price : $5.67
    In Stock
  • Screw 7101P282-60
    Screw

    Part #7101P282-60

    Replaced by #WP4159193

    ?
    Manufacturer substitution
    This part replaces 7101P282-60. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
  • Oven Rack 74001757
    #6

    Oven/base diagram

    Oven rack

    Part #74001757

    Replaced by #WPW10282492

    ?
    Manufacturer substitution
    This part replaces 74001757. Substitute parts can look different from the original.
    $56.89
    10% OFF Phone Price : $62.89
    In Stock
  • Lever Screw 7101P230-60
    #13

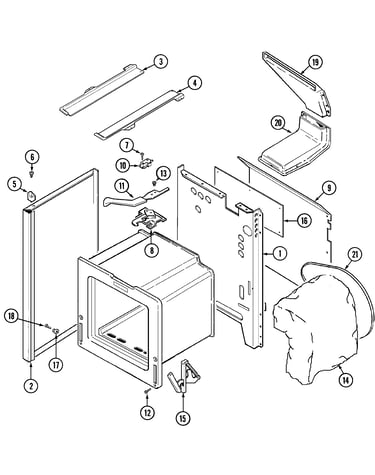

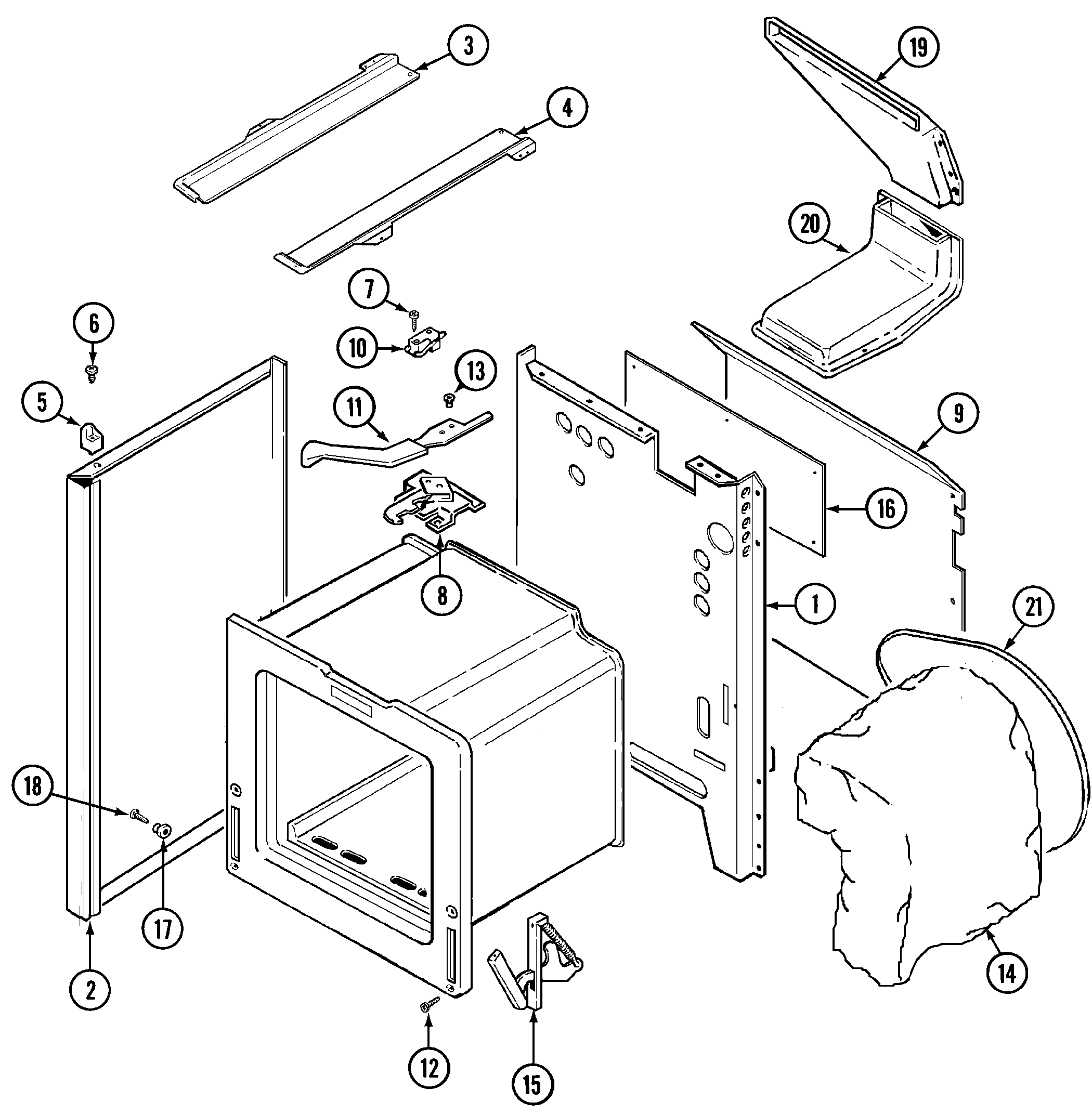

    Body diagram

    Lever screw

    Part #7101P230-60

    Replaced by #WP4159193

    ?
    Manufacturer substitution
    This part replaces 7101P230-60. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
