Model # BGB30-BQRN-70004A Official DCS gas grill

Here are the diagrams and repair parts for Official DCS BGB30-BQRN-70004A gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Wrapper I/ 214413
#7

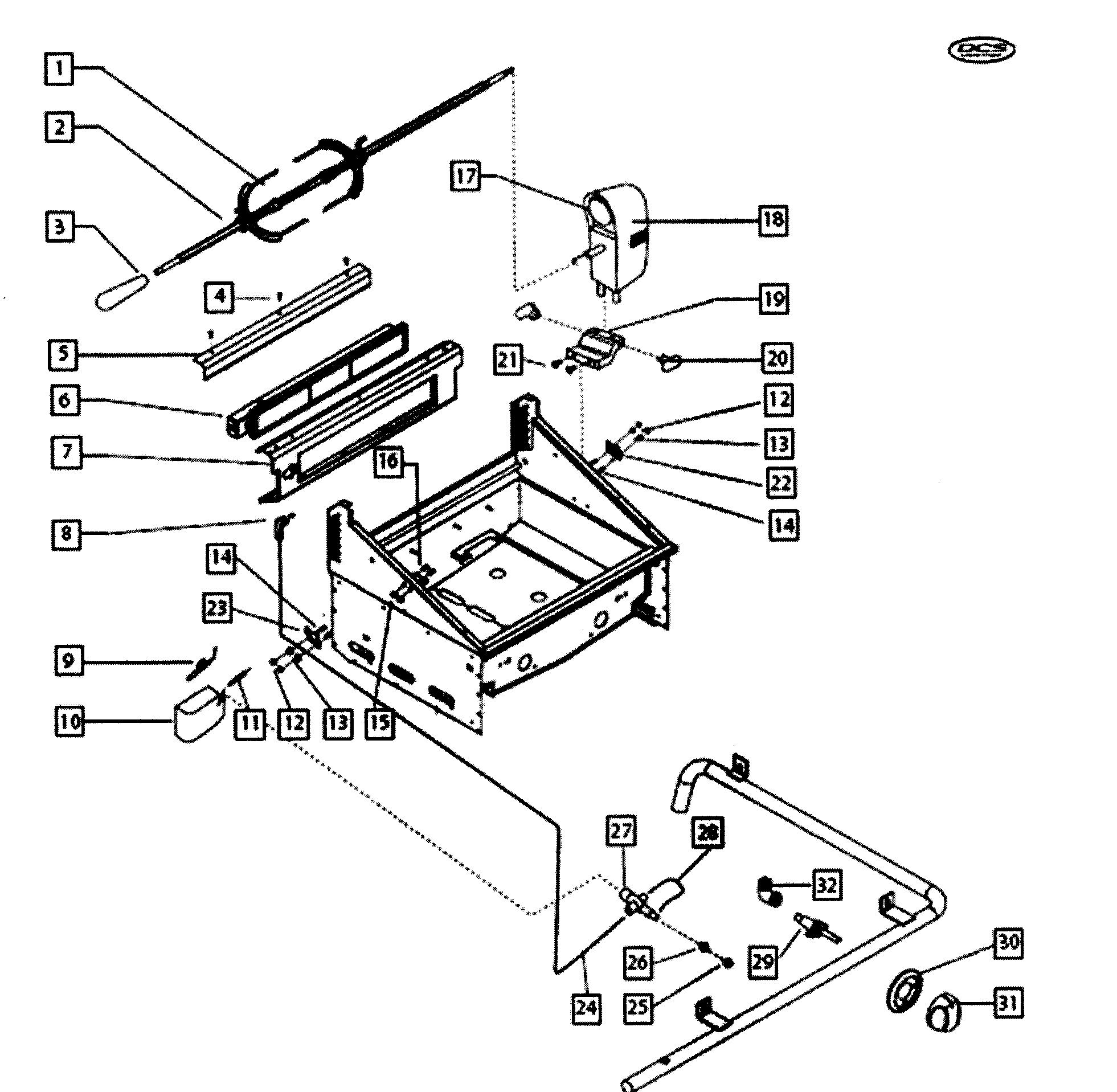

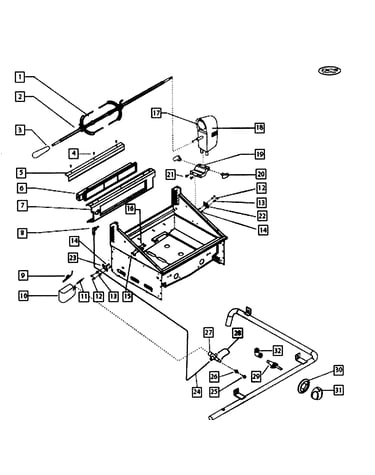

Rotisserie diagram

Wrapper i/

Part #214413

$199.99
In Stock
Gas Grill Acorn Nut 211387
#NI

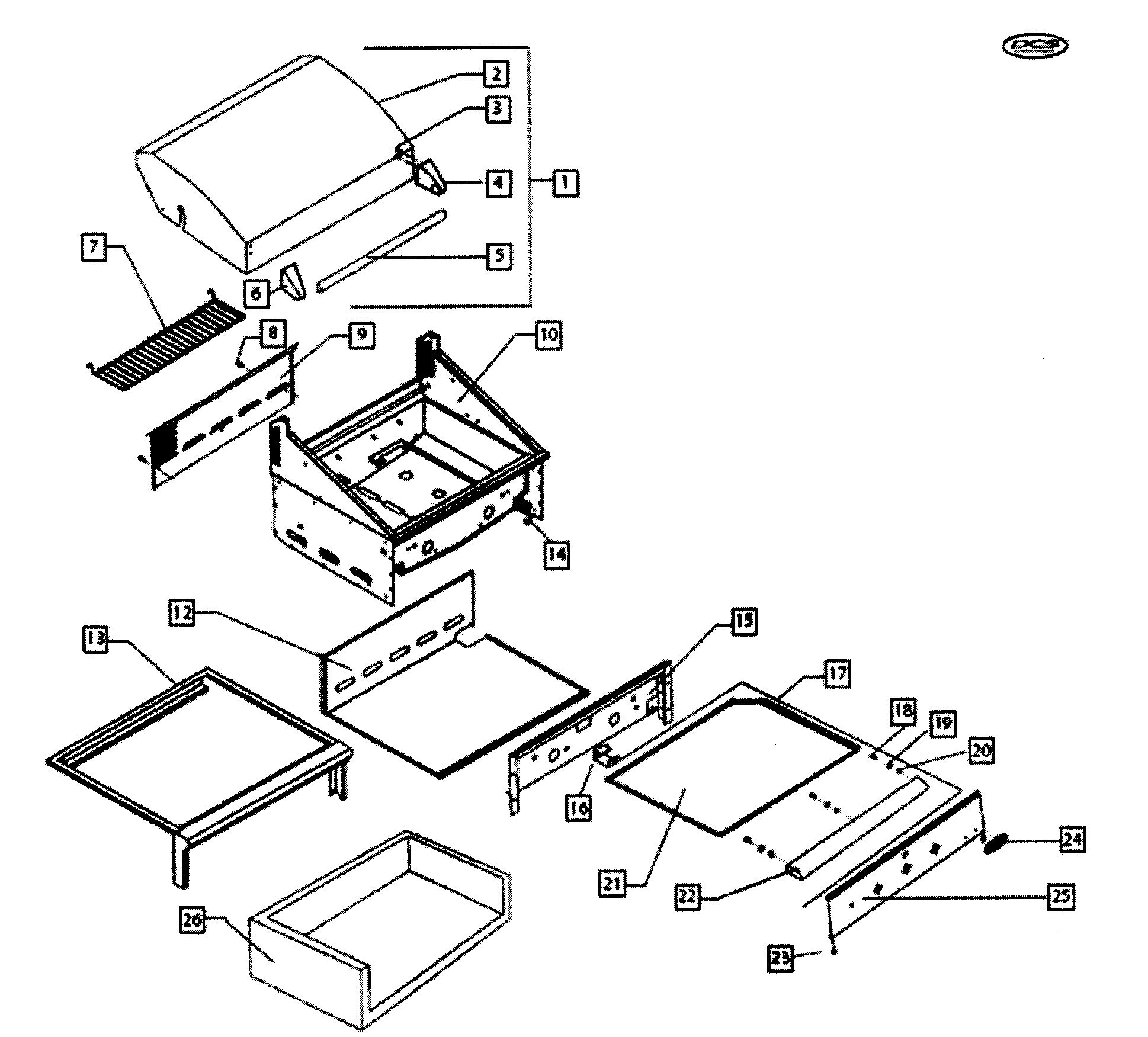

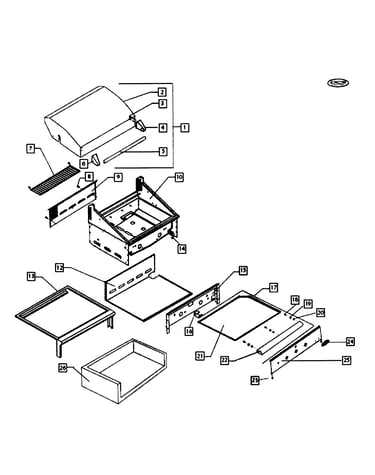

Grill body diagram

Gas grill acorn nut

Part #211387

The manufacturer no longer makes this part, and there's no substitute part

U-burner 210617
#4

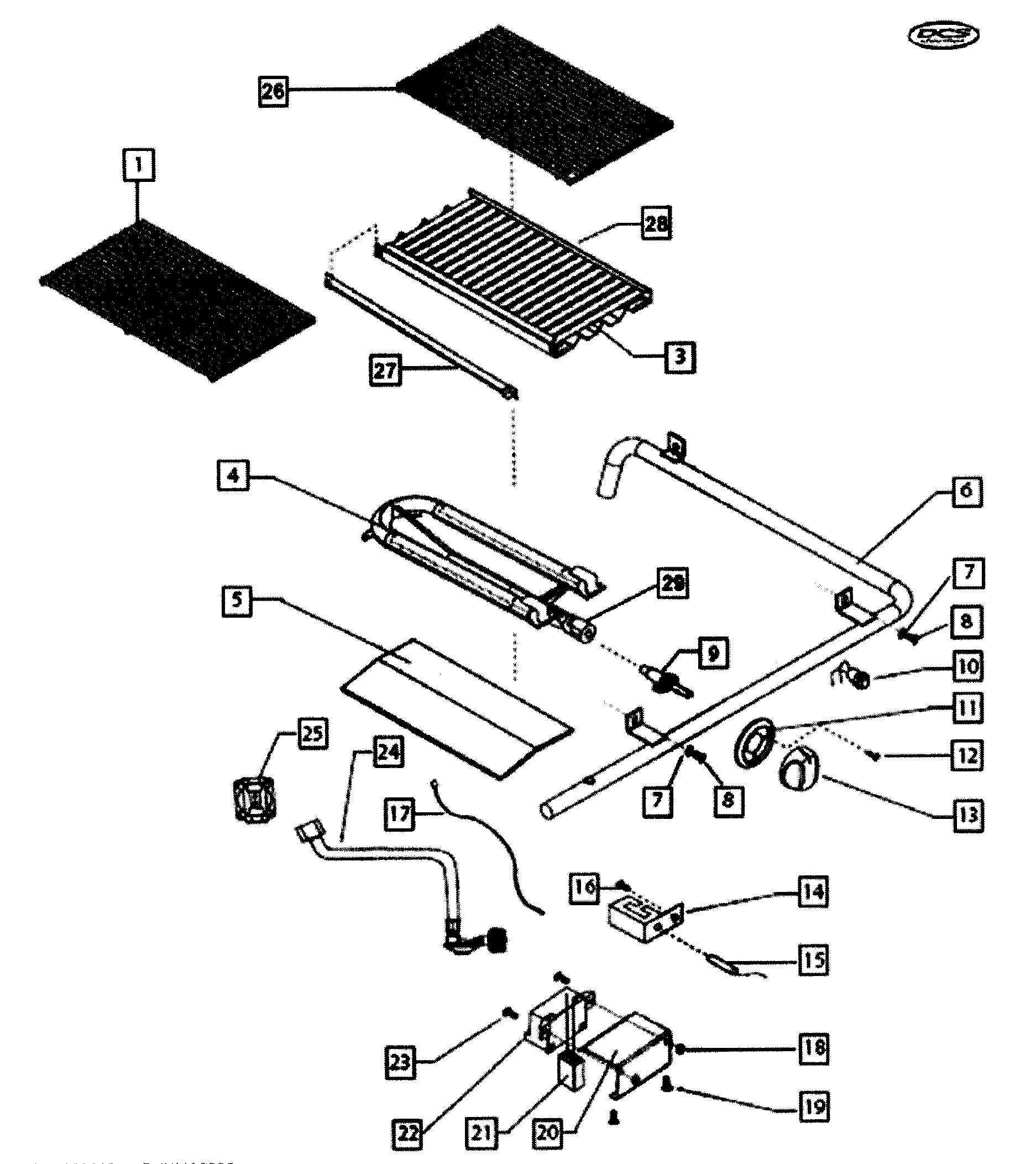

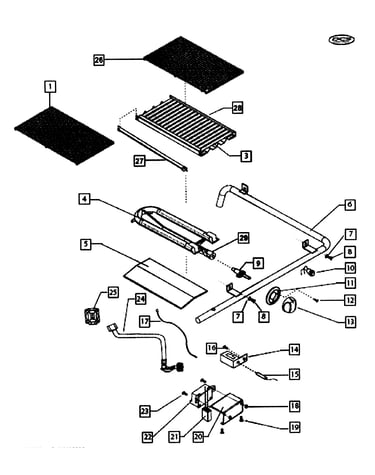

Burner diagram

U-burner

Part #210617

The manufacturer no longer makes this part, and there's no substitute part

Drawer Catch 211098
#17

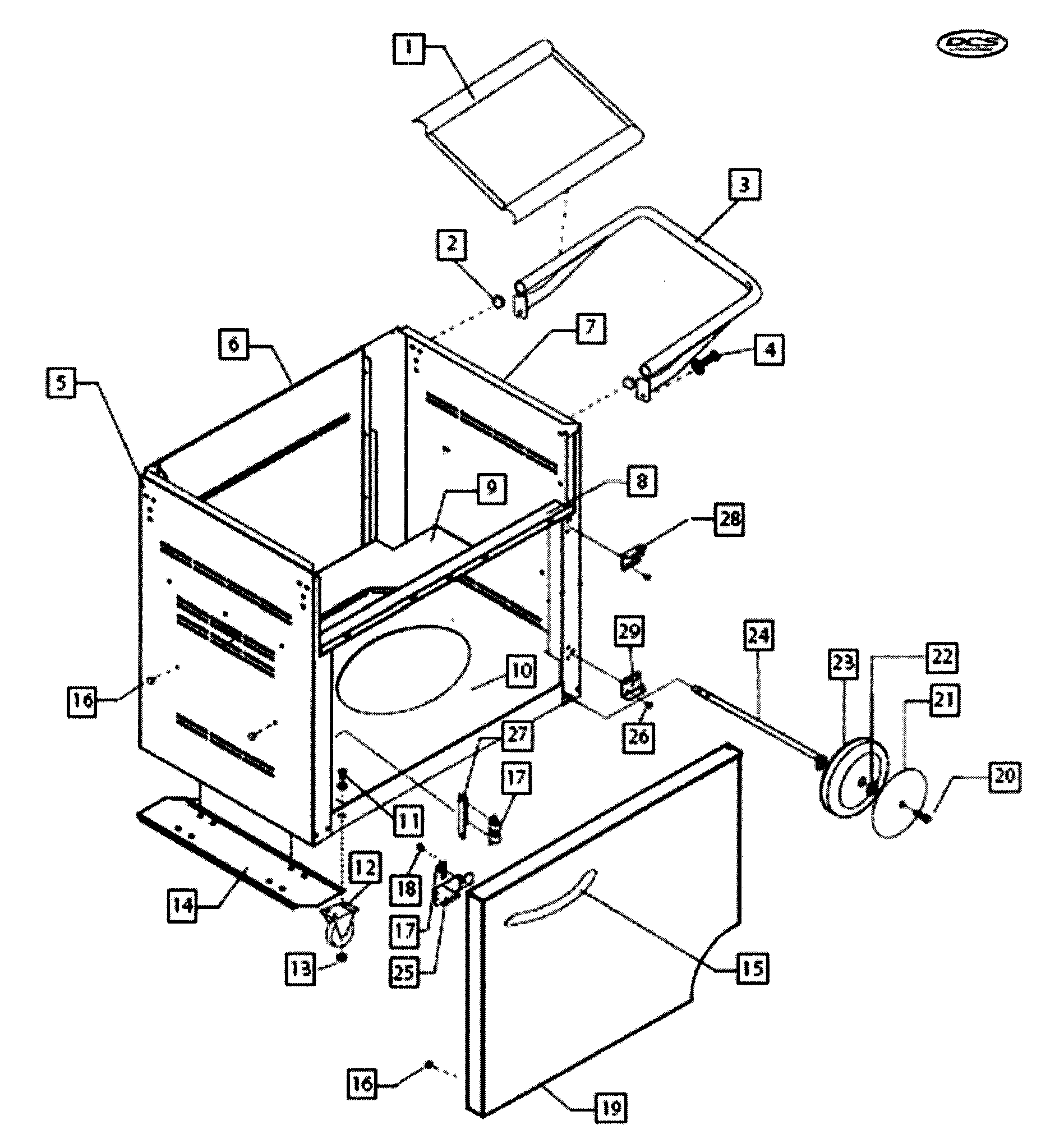

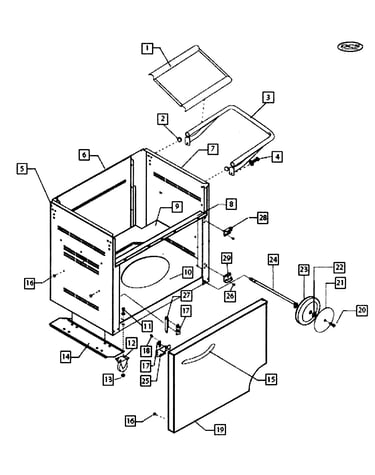

Cart assy diagram

Drawer catch

Part #211098

The manufacturer no longer makes this part, and there's no substitute part

Shelf 214466
#1

Cart assy diagram

Shelf

Part #214466

The manufacturer no longer makes this part, and there's no substitute part

Bulb 211686
#17

Rotisserie diagram

Bulb

Part #211686

The manufacturer no longer makes this part, and there's no substitute part

Hub Cap 214477
#21

Cart assy diagram

Hub cap

Part #214477

The manufacturer no longer makes this part, and there's no substitute part

Bolt 211328
#8

Burner diagram

Bolt

Part #211328

The manufacturer no longer makes this part, and there's no substitute part

Bracket 214356
#27

Cart assy diagram

Bracket

Part #214356

The manufacturer no longer makes this part, and there's no substitute part

Lid Spacer 223810
#NI

Grill body diagram

Lid spacer

Part #223810

The manufacturer no longer makes this part, and there's no substitute part
