Dehumidifier

Model # 58054501400 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58054501400 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

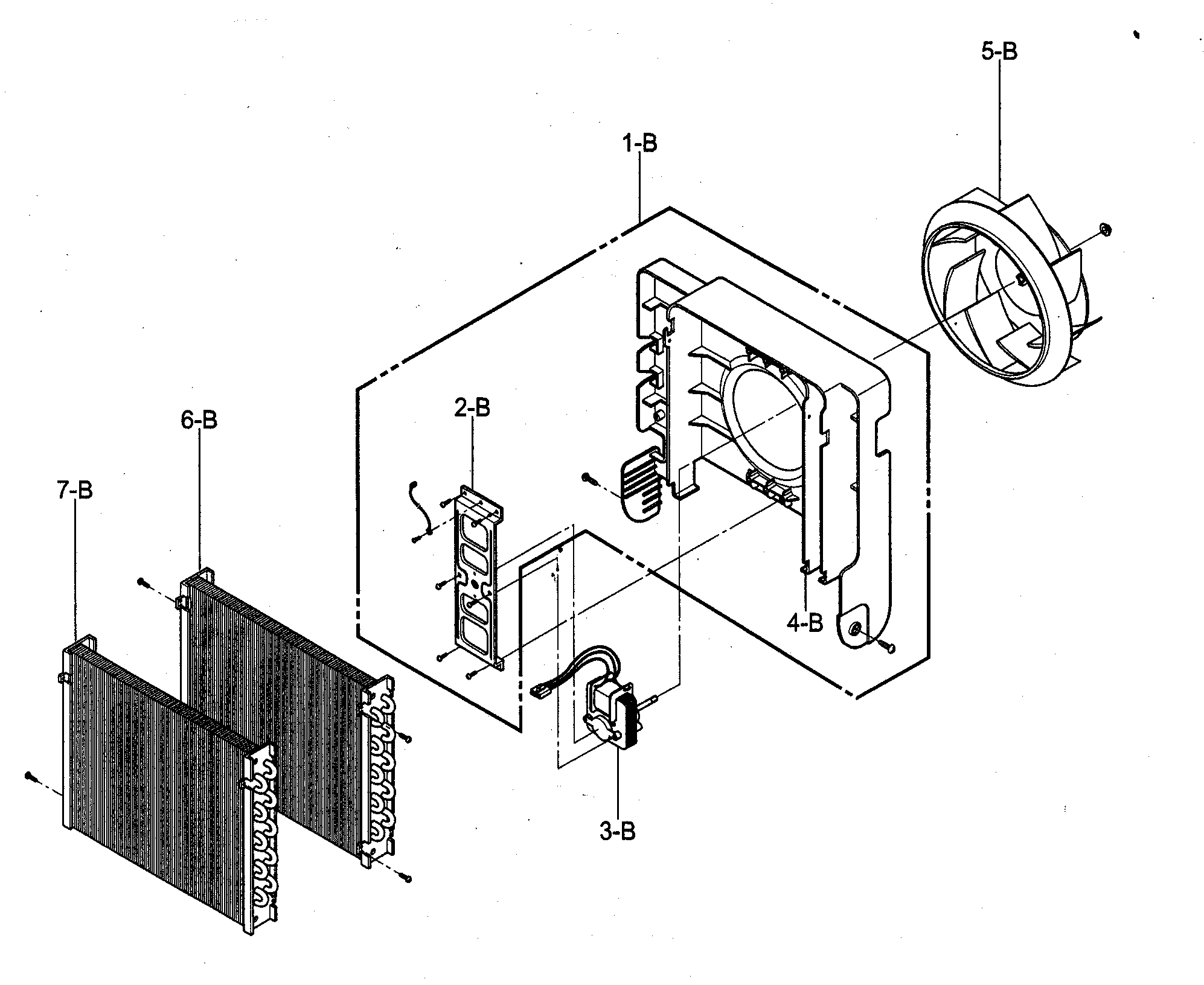

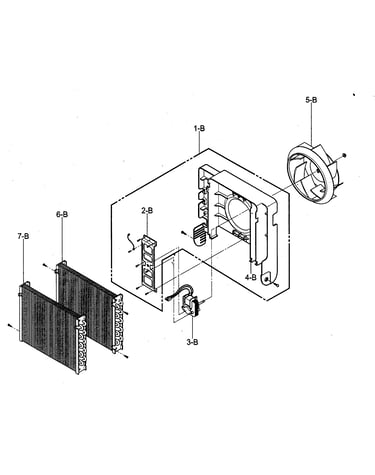

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Dehumidifier Wire Harness 6877A20025K
#9-A

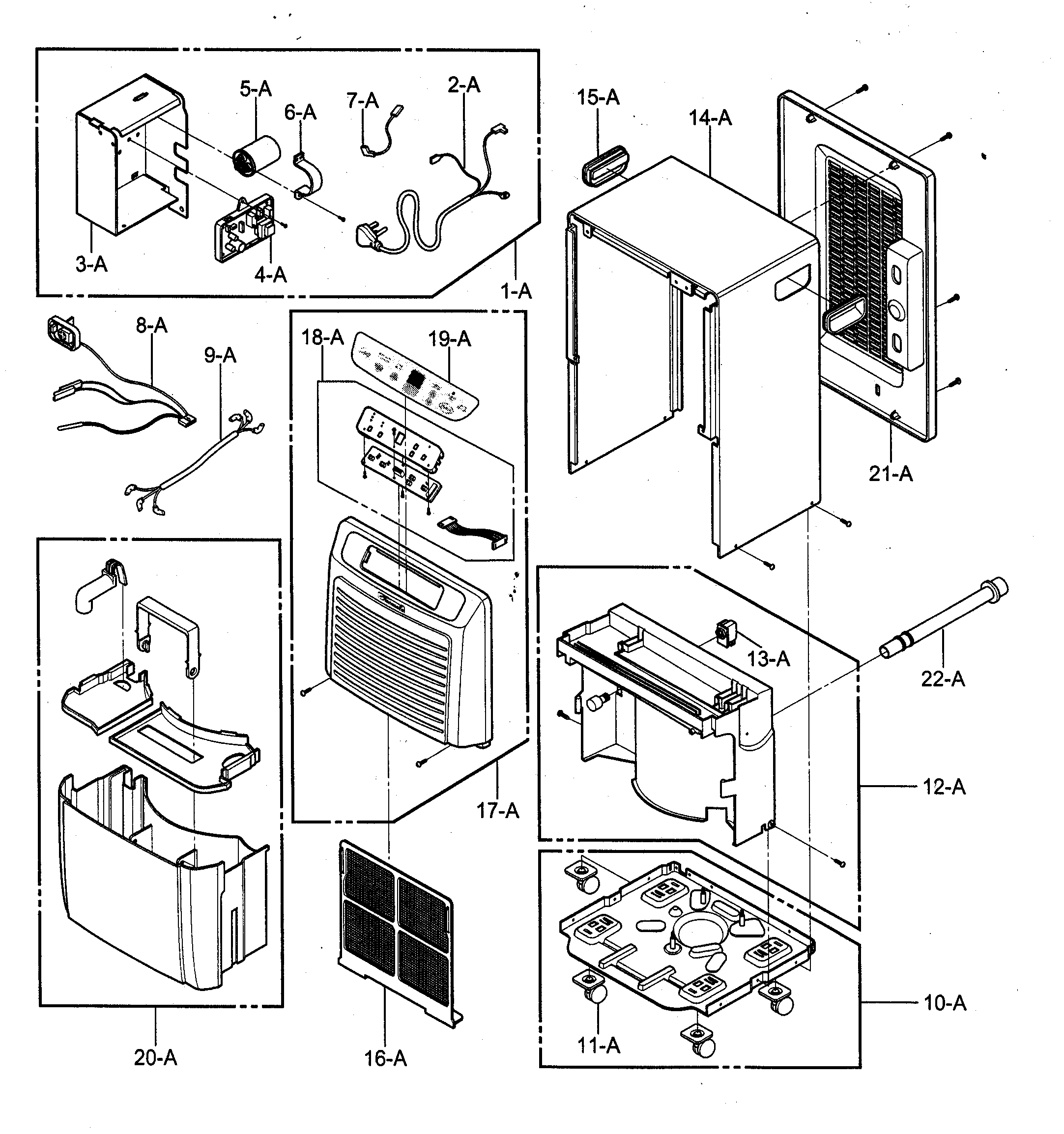

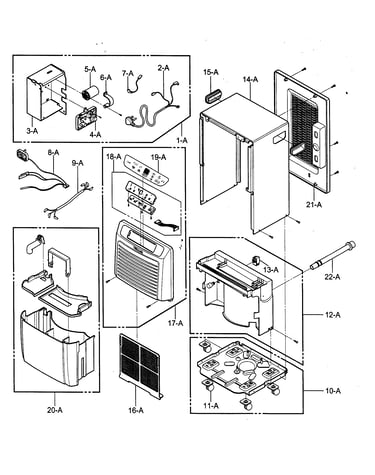

Outer case/control parts diagram

Dehumidifier wire harness

Part #6877A20025K

$24.09
In Stock
Clamp 4H00442J
#6-A

Outer case/control parts diagram

Clamp

Part #4H00442J

This item is not returnable
$4.51
In Stock
Brkt,wshr 4810AR4155A
#7-C

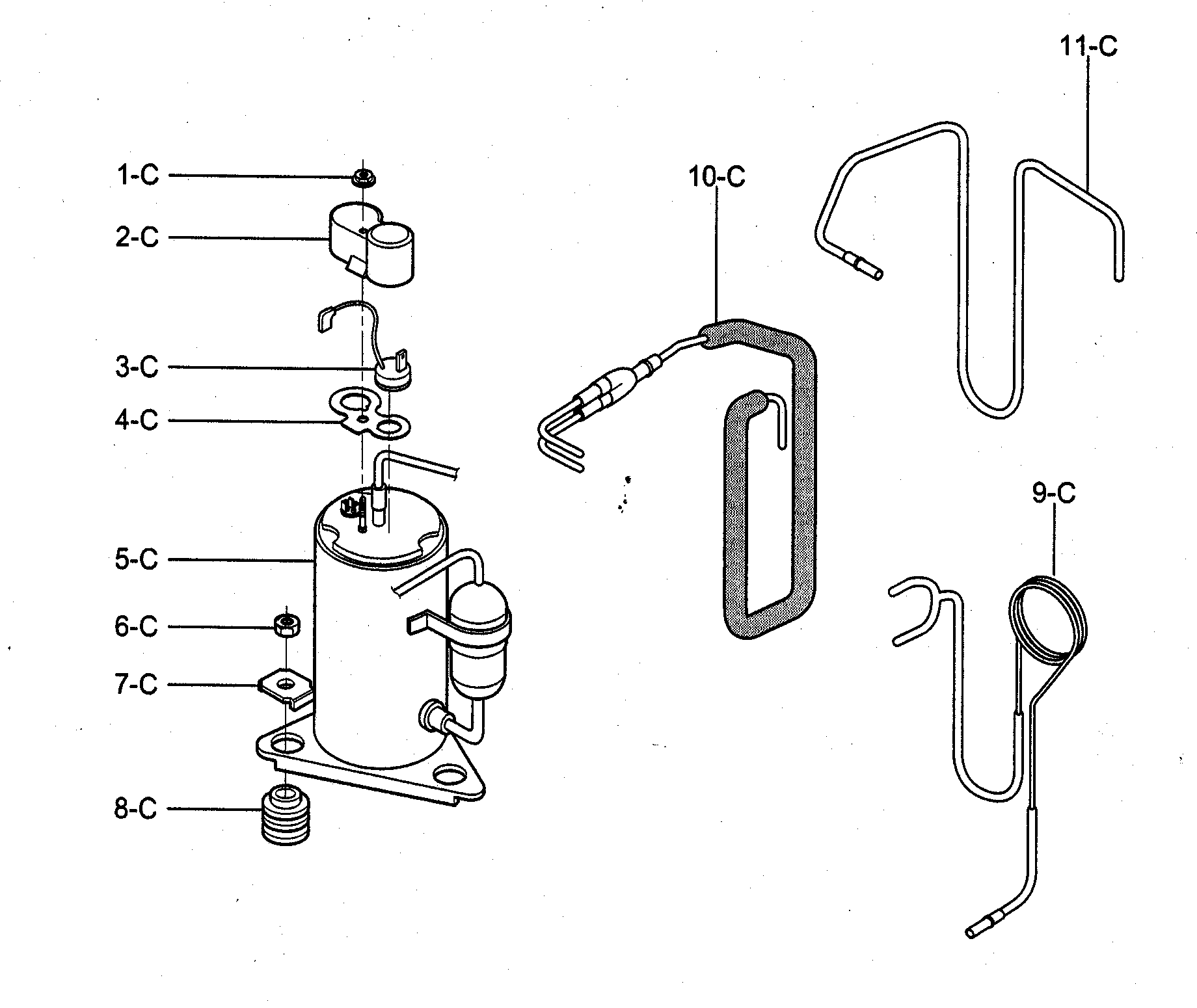

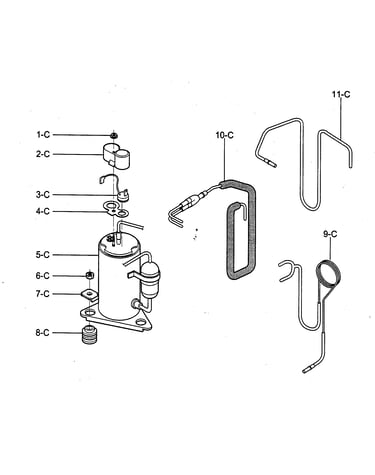

Compressor parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Dehumidifier Control Board Wire Harness 6862A20013R
#7-A

Outer case/control parts diagram

Dehumidifier control board wire harness

Part #6862A20013R

This item is not returnable
$7.00
In Stock
Zenith Room Air Conditioner Compressor Overload Protector 6750U-L058A
#3-C

Compressor parts diagram

Zenith room air conditioner compressor overload protector

Part #6750U-L058A

This item is not returnable
$18.83
In Stock
Handle 3650A20004A
#15-A

Outer case/control parts diagram

Handle

Part #3650A20004A

This item is not returnable
$7.00
In Stock
Kenmore Capillary Tube 5211A31002A
#9-C

Compressor parts diagram

Kenmore capillary tube

Part #5211A31002A

$29.98
In Stock
Hex Nut 1NHA0801206
#6-C

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Dehumidifier Front Grille Assembly 3531A10254D
#17-A

Outer case/control parts diagram

Dehumidifier front grille assembly

Part #3531A10254D

$65.98 |
8% OFF Phone Price : $71.98
In Stock
Bushing 4830A30005A
#8-C

Compressor parts diagram

Bushing

Part #4830A30005A

The manufacturer no longer makes this part, and there's no substitute part
