Model # WR30X212 Official GE ice maker

Here are the diagrams and repair parts for Official GE WR30X212 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Refrigerator Silicone WR97X163
#43B

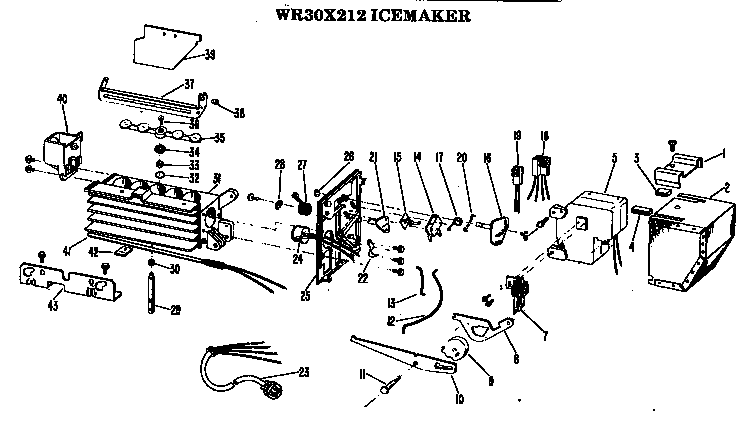

Icemaker diagram

Refrigerator silicone

Part #WR97X163

$42.00
In Stock
Refrigerator Leaf Switch WR23X103
#7

Icemaker diagram

Refrigerator leaf switch

Part #WR23X103

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Heater WR51X199
#41

Icemaker diagram

Refrigerator heater

Part #WR51X199

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pad Kit WR29X117
#35

Icemaker diagram

Refrigerator pad kit

Part #WR29X117

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Rod WR29X120
#36

Icemaker diagram

Refrigerator rod

Part #WR29X120

The manufacturer no longer makes this part, and there's no substitute part

Actuator Kit WR29X71
#16

Icemaker diagram

Actuator kit

Part #WR29X71

The manufacturer no longer makes this part, and there's no substitute part

Shield - Mold Side WR29X5103
#39

Icemaker diagram

Shield - mold side

Part #WR29X5103

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clip WR2X4485
#22

Icemaker diagram

Refrigerator clip

Part #WR2X4485

The manufacturer no longer makes this part, and there's no substitute part

Cam Assembly WR29X67
#9

Icemaker diagram

Cam assembly

Part #WR29X67

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bushing WR29X81
#38

Icemaker diagram

Refrigerator bushing

Part #WR29X81

The manufacturer no longer makes this part, and there's no substitute part
