Craftsman
Front-Engine Lawn Tractor

Model # 917255270 Official Craftsman 36" 10-hp riding lawn tractor with electric start

Here are the diagrams and repair parts for Official Craftsman 917255270 36" 10-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

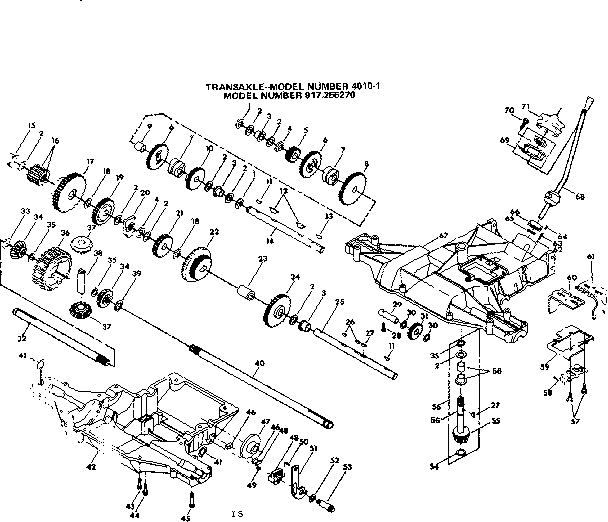

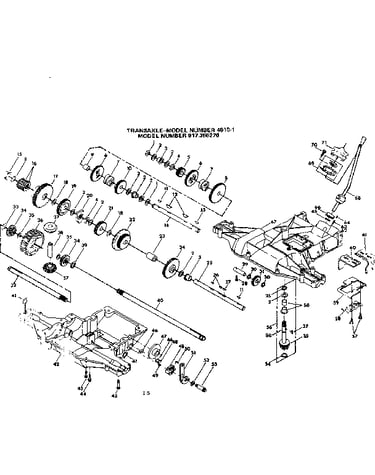

  View engine

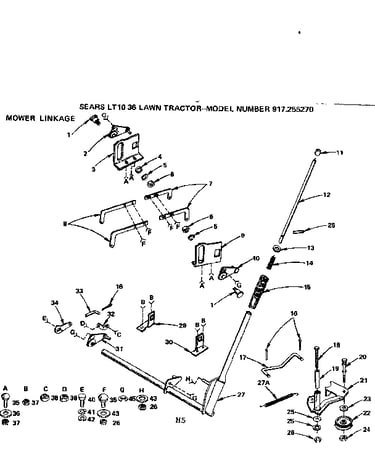

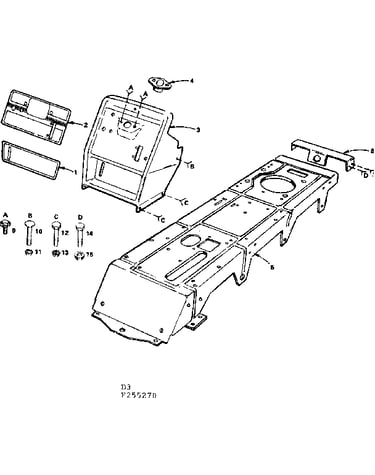

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 507 parts  |
Solenoid 7754R
#14

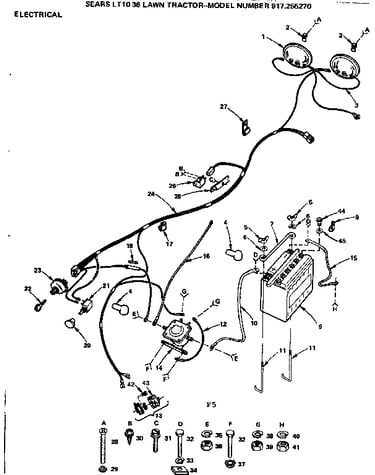

Electrical diagram

Solenoid

Part #7754R

Replaced by #532146154

?
Manufacturer substitution
This part replaces 7754R. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Starter Switch 4406R
#23

Electrical diagram

Starter switch

Part #4406R

Replaced by #532365402

?
Manufacturer substitution
This part replaces 4406R. Substitute parts can look different from the original.
BEST SELLER
$29.38 |
17% OFF Phone Price : $35.38
In Stock
Rim 71652
#18

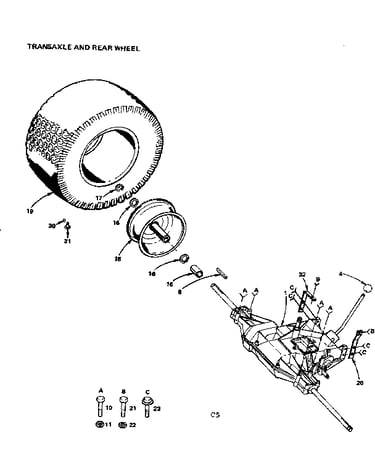

Transaxle and rear wheel diagram

Rim

Part #71652

Replaced by #532106108

?
Manufacturer substitution
This part replaces 71652. Substitute parts can look different from the original.
BEST SELLER
$92.29 |
6% OFF Phone Price : $98.29
In Stock
Washer 1600P
#13

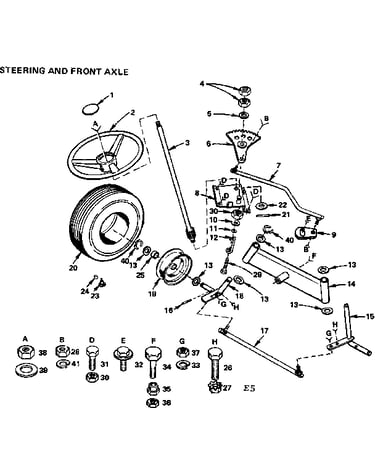

Steering and front axle diagram

Washer

Part #1600P

Replaced by #532121749

?
Manufacturer substitution
This part replaces 1600P. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Washer 1617P
#16

Transaxle and rear wheel diagram

Washer

Part #1617P

Replaced by #532121749

?
Manufacturer substitution
This part replaces 1617P. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Carriage Bolt, 5/16-18 X 3/4-in STD533107
#32

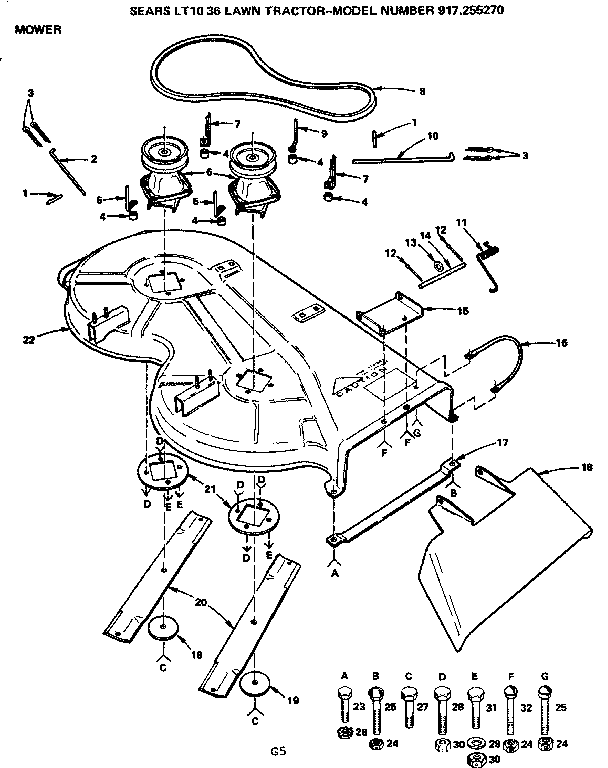

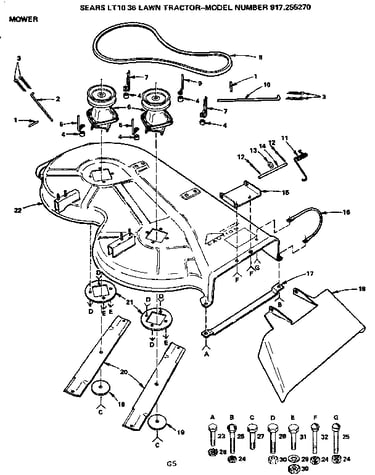

Mower diagram

Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Spacer 6355R
#51

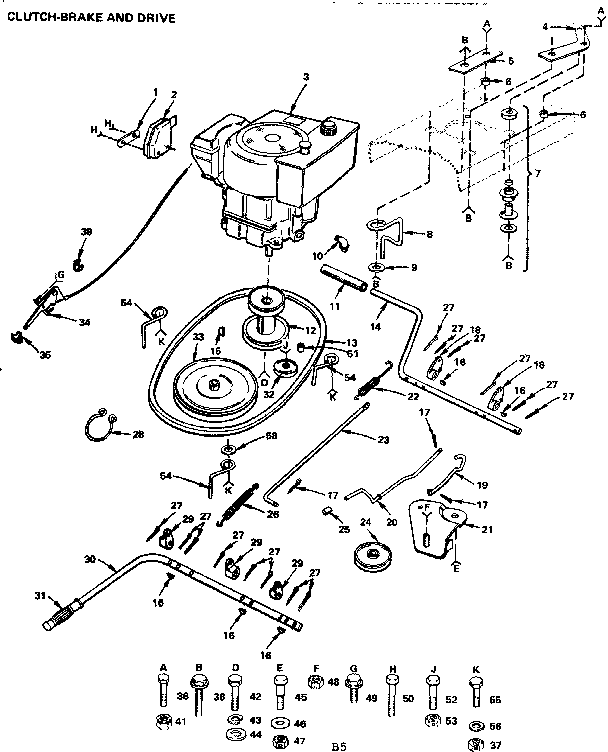

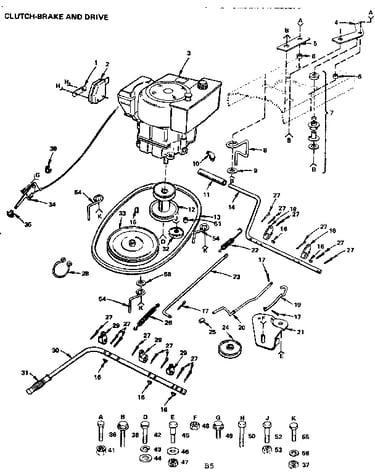

Clutch-brake and drive diagram

Spacer

Part #6355R

Replaced by #532124965

?
Manufacturer substitution
This part replaces 6355R. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Keps Nut 518P
#27

Steering and front axle diagram

Keps nut

Part #518P

Replaced by #873510600

?
Manufacturer substitution
This part replaces 518P. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Tractor Grass Catcher Left Gauge Wheel Bracket 2029J
#24

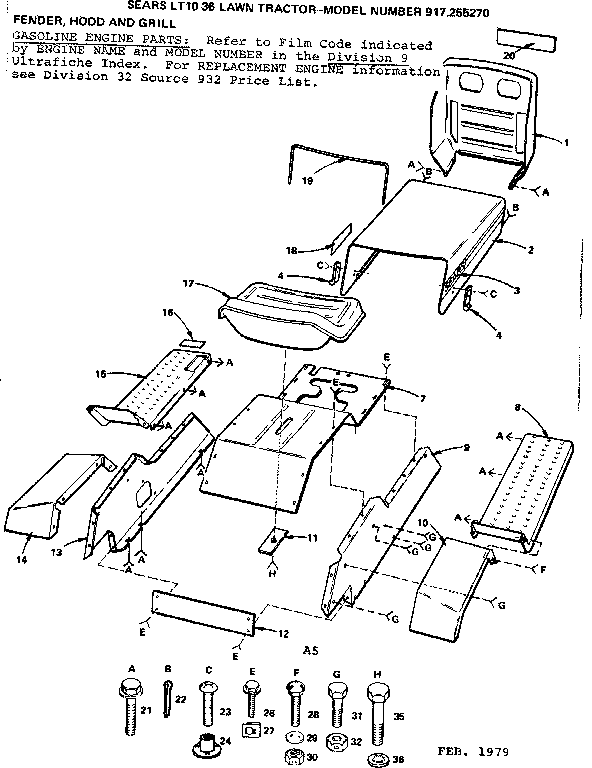

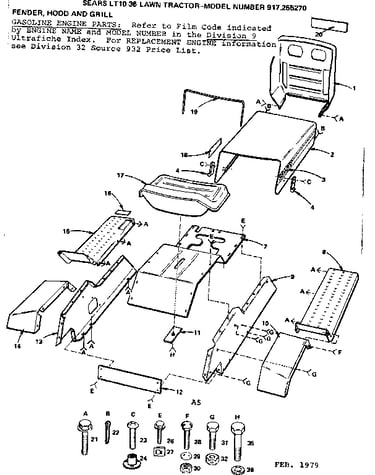

Fender, hood and grill diagram

Lawn tractor grass catcher left gauge wheel bracket

Part #2029J

Replaced by #596987401

?
Manufacturer substitution
This part replaces 2029J. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Screw 5615P
#21

Fender, hood and grill diagram

Screw

Part #5615P

Replaced by #596030701

?
Manufacturer substitution
This part replaces 5615P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
