Gas Line Trimmer

Model # TITAN 2000-400028-15 Official McCulloch trimmer

Here are the diagrams and repair parts for Official McCulloch TITAN-2000-400028-15 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

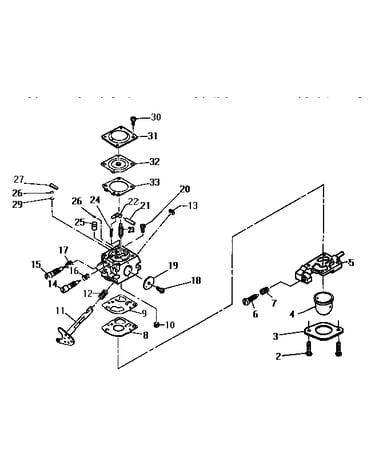

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Flywheel 222308
#49

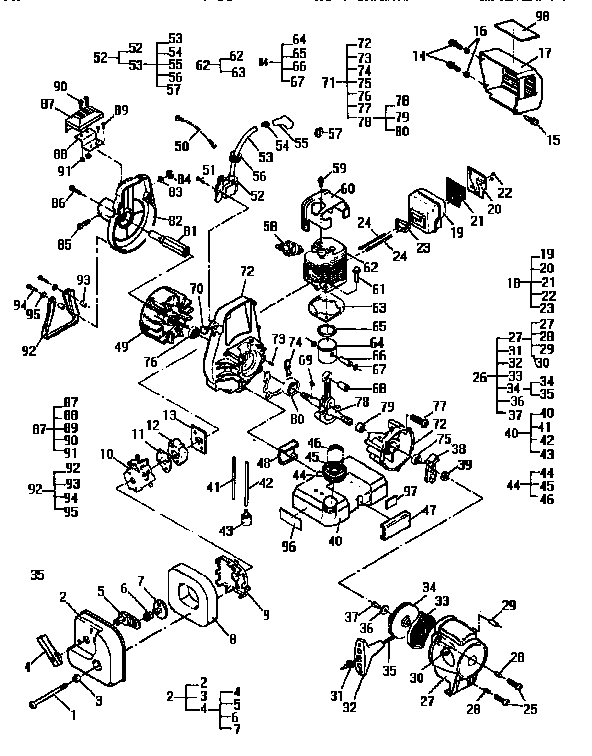

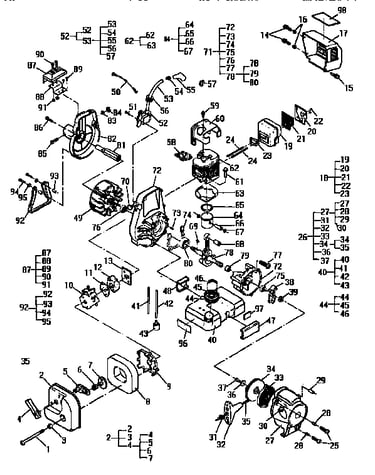

Engine assembly diagram

Flywheel

Part #222308

The manufacturer no longer makes this part, and there's no substitute part

Stop Button 68846
#11

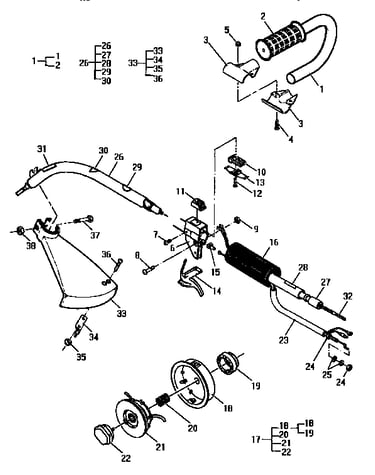

Shaft/shield/cutter assembly diagram

Stop button

Part #68846

The manufacturer no longer makes this part, and there's no substitute part

Fuel Decal 322250
#46

Engine assembly diagram

Fuel decal

Part #322250

The manufacturer no longer makes this part, and there's no substitute part

Insulator- S 223984
#12

Engine assembly diagram

Insulator- s

Part #223984

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 216143
#80

Engine assembly diagram

Ball bearing

Part #216143

The manufacturer no longer makes this part, and there's no substitute part

Air Box 222758
#9

Engine assembly diagram

Air box

Part #222758

The manufacturer no longer makes this part, and there's no substitute part

Kit, Heat Sh 300653
#87

Engine assembly diagram

Kit, heat sh

Part #300653

The manufacturer no longer makes this part, and there's no substitute part

Decal Stop 222506
#96

Engine assembly diagram

Decal stop

Part #222506

The manufacturer no longer makes this part, and there's no substitute part

Fan Housing 224108
#82

Engine assembly diagram

Fan housing

Part #224108

The manufacturer no longer makes this part, and there's no substitute part

Screw 110706
#12

Shaft/shield/cutter assembly diagram

Screw

Part #110706

The manufacturer no longer makes this part, and there's no substitute part
