Frigidaire
Side-By-Side Refrigerator

Model # FFSC2323TS0 Official Frigidaire side-by-side refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFSC2323TS0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

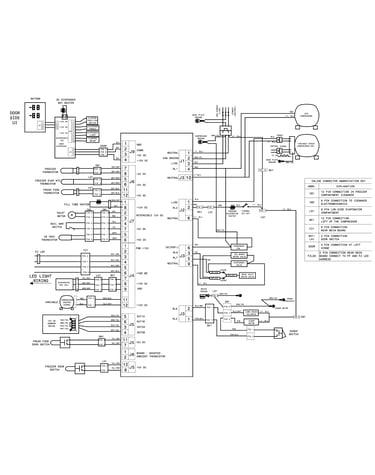

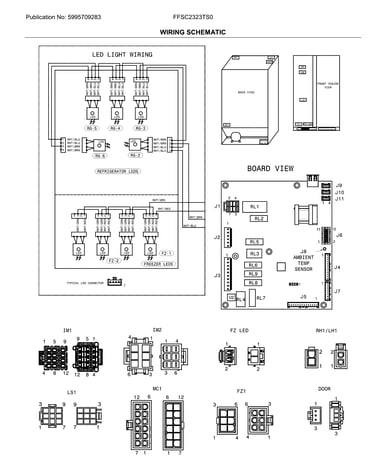

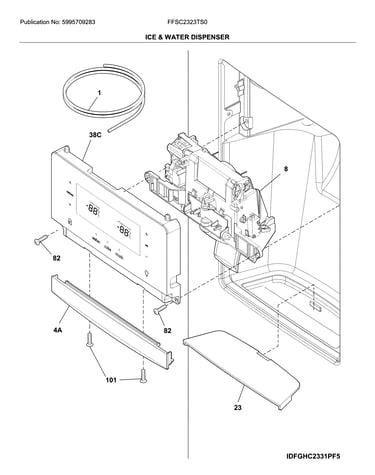

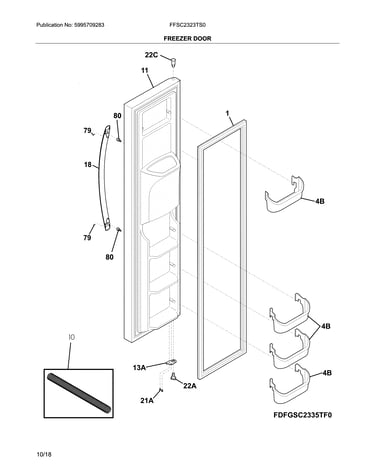

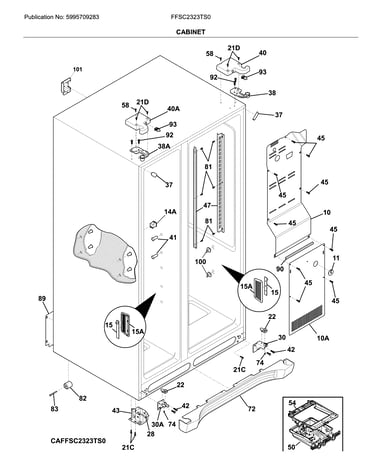

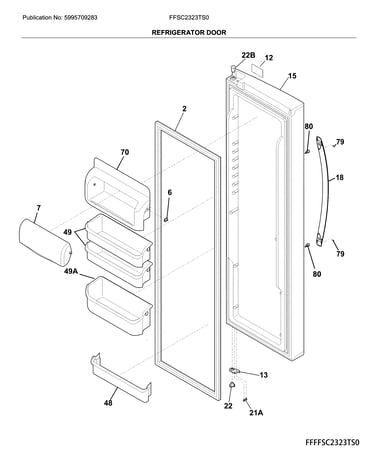

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Refrigerator Door Air Filter 242047801
#209

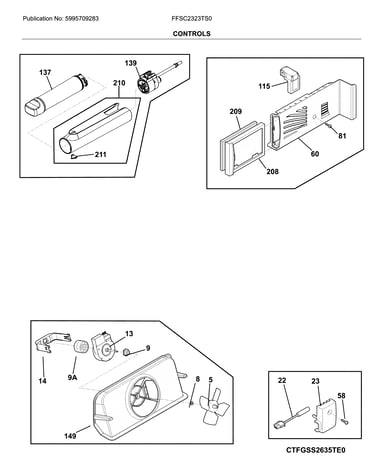

Controls diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Refrigerator Filter Dryer 242047603
#4

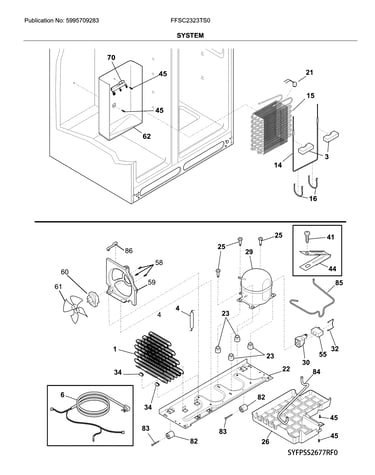

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

Ice maker diagram

Refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$78.80 |
7% OFF Phone Price : $84.80
In Stock
Refrigerator Filter Assembly 807946701
#137

Controls diagram

Refrigerator filter assembly

Part #807946701

Replaced by #EPTWFU01

?
Manufacturer substitution
This part replaces 807946701. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$64.98
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
Refrigerator Crisper Drawer Cover Frame (replaces 240350701) 240350702
#25

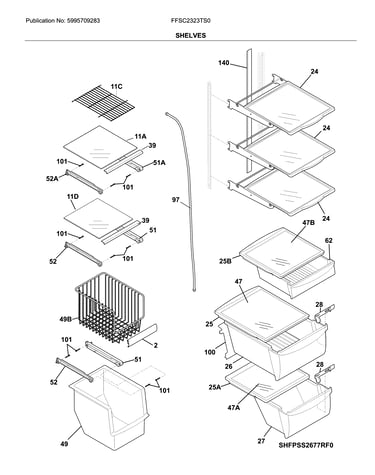

Shelves diagram

Refrigerator crisper drawer cover frame (replaces 240350701)

Part #240350702

BEST SELLER
$57.80 |
9% OFF Phone Price : $63.80
In Stock
Kenmore Pro Refrigerator Crisper Drawer Cover Support Stud (replaces 240350802, 7240350802, 7240423701, 7241993001) 241993001
Kenmore pro refrigerator crisper drawer cover support stud (replaces 240350802, 7240350802, 7240423701, 7241993001)

Part #241993001

BEST SELLER
$10.21 |
16% OFF Phone Price : $12.21
In Stock
Refrigerator Auger Motor (replaces 241816601) 241816602

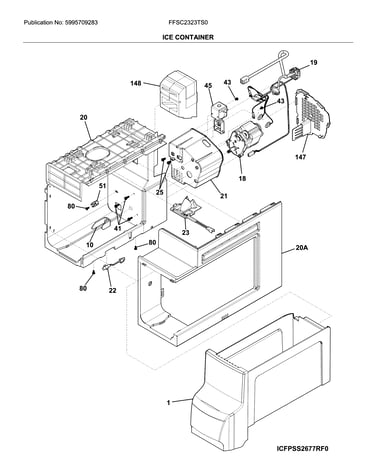

#18

Ice container diagram

Refrigerator auger motor (replaces 241816601)

Part #241816602

BEST SELLER
$153.24 |
7% OFF Phone Price : $165.24
In Stock
