Model # 315111630 Official Craftsman 3/8" 2-speed reversible cordless drill

Here are the diagrams and repair parts for Official Craftsman 315111630 3/8" 2-speed reversible cordless drill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315111630 Power Tools
Chuck 973094-001
#2

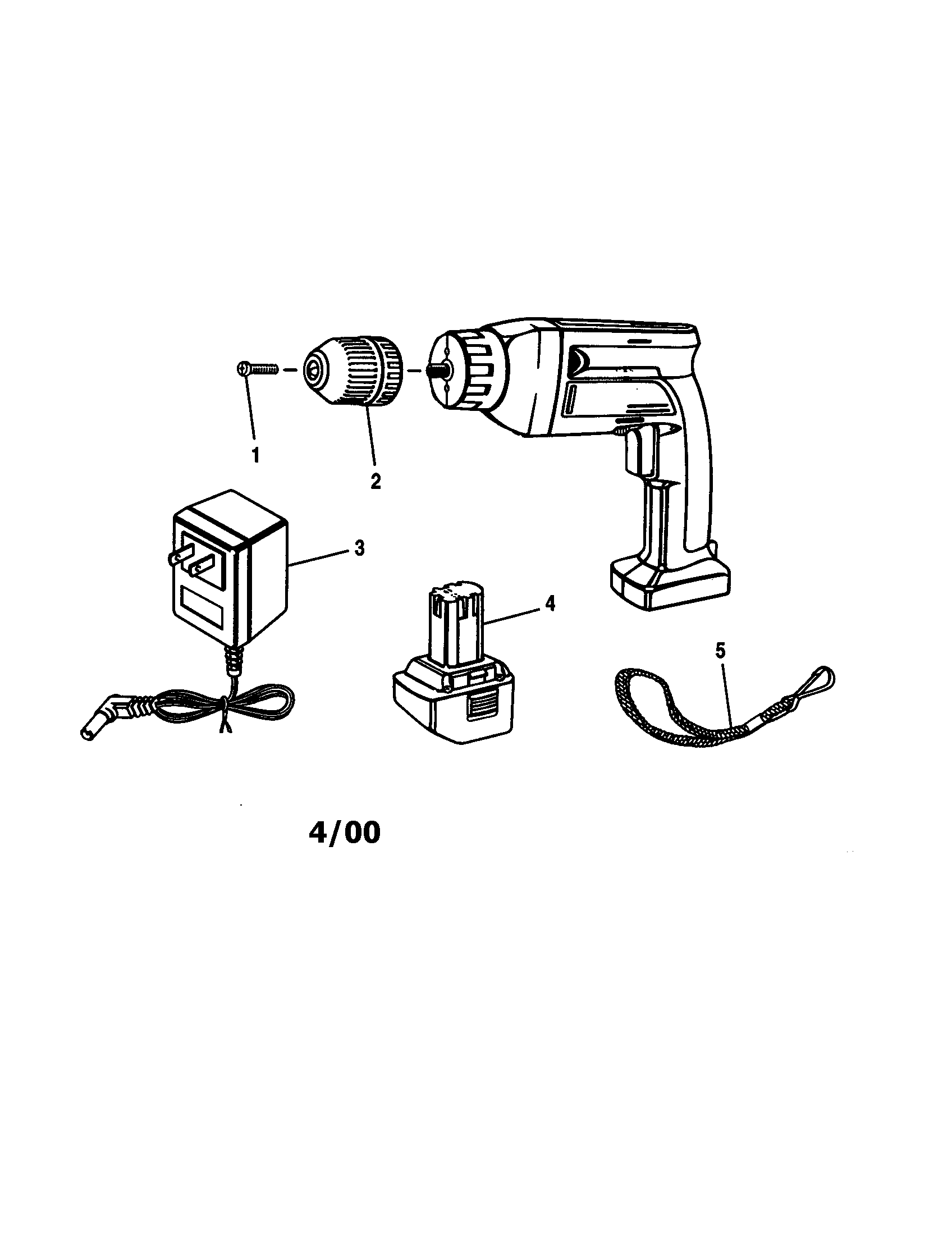

3/8" cordless drill diagram

Chuck

Part #973094-001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 9-11091
#4

3/8" cordless drill diagram

Battery pack

Part #9-11091

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

3/8" cordless drill diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Charger 9-11081
#3

3/8" cordless drill diagram

Charger

Part #9-11081

The manufacturer no longer makes this part, and there's no substitute part

Strap 967216-004
#5

3/8" cordless drill diagram

Strap

Part #967216-004

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000-716

#NI

All parts diagram

Owner's manual

Part #972000-716

The manufacturer no longer makes this part, and there's no substitute part
