Model # PG484GGEBS/08 Official Thermador dual-fuel range

Here are the diagrams and repair parts for Official Thermador PG484GGEBS-08 dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

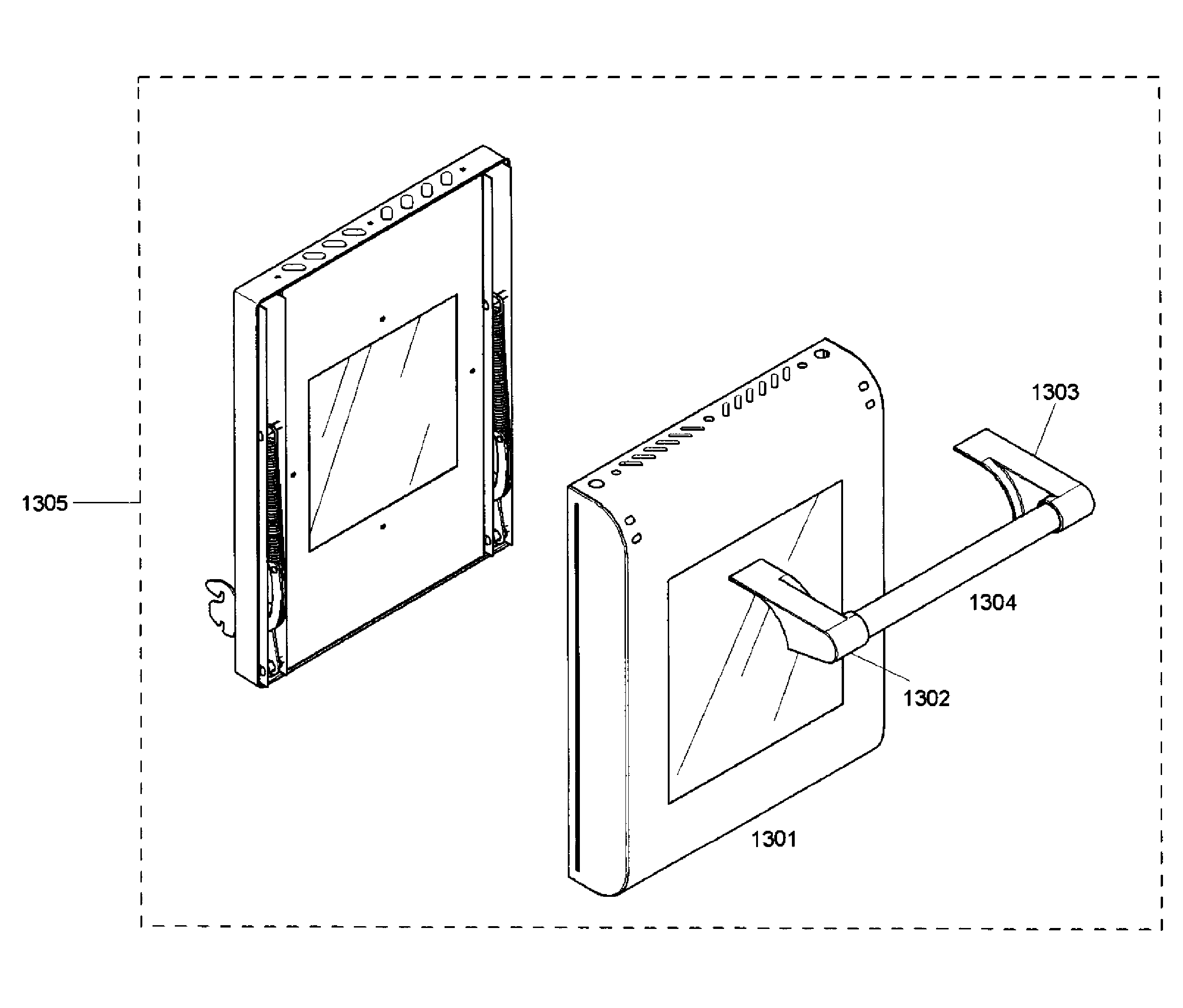

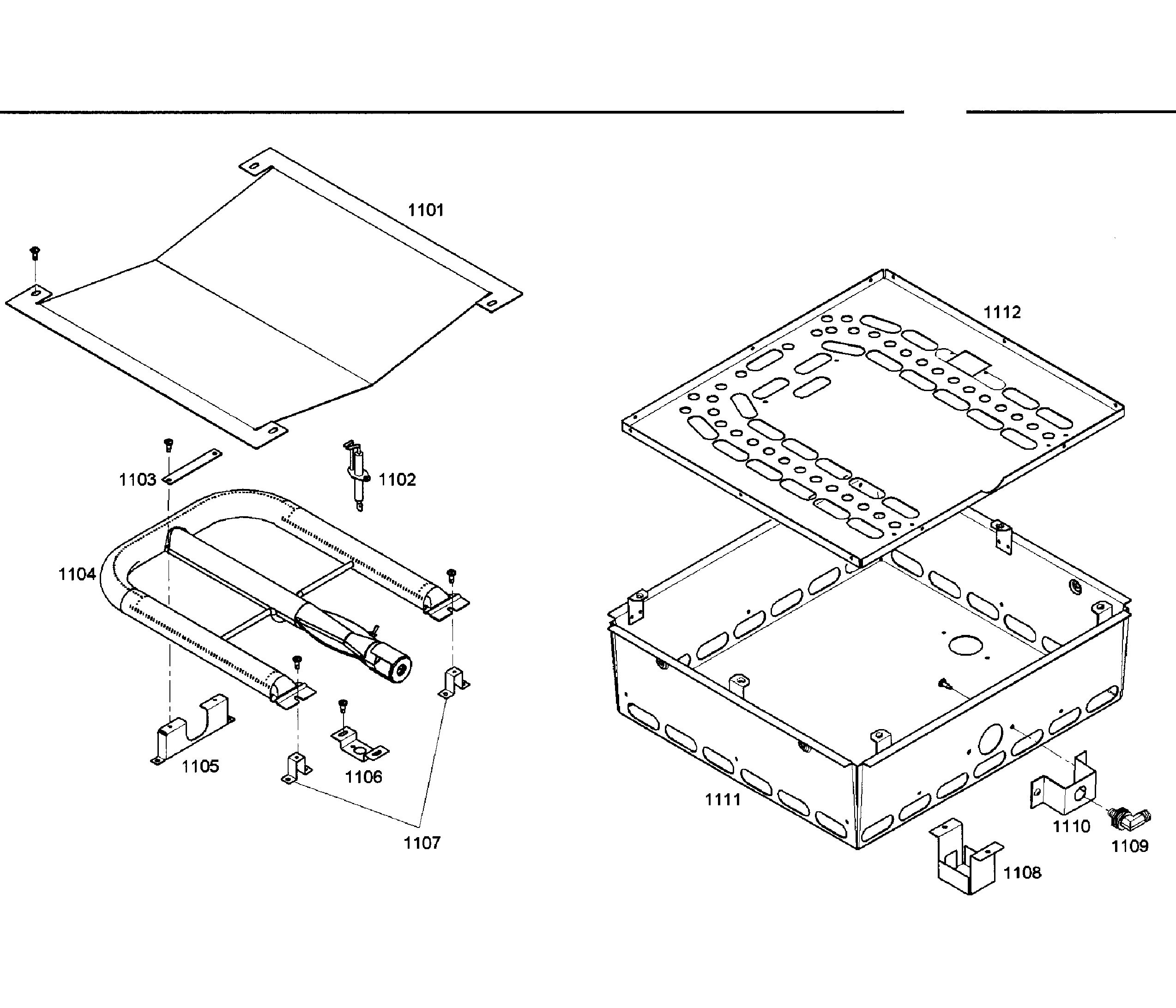

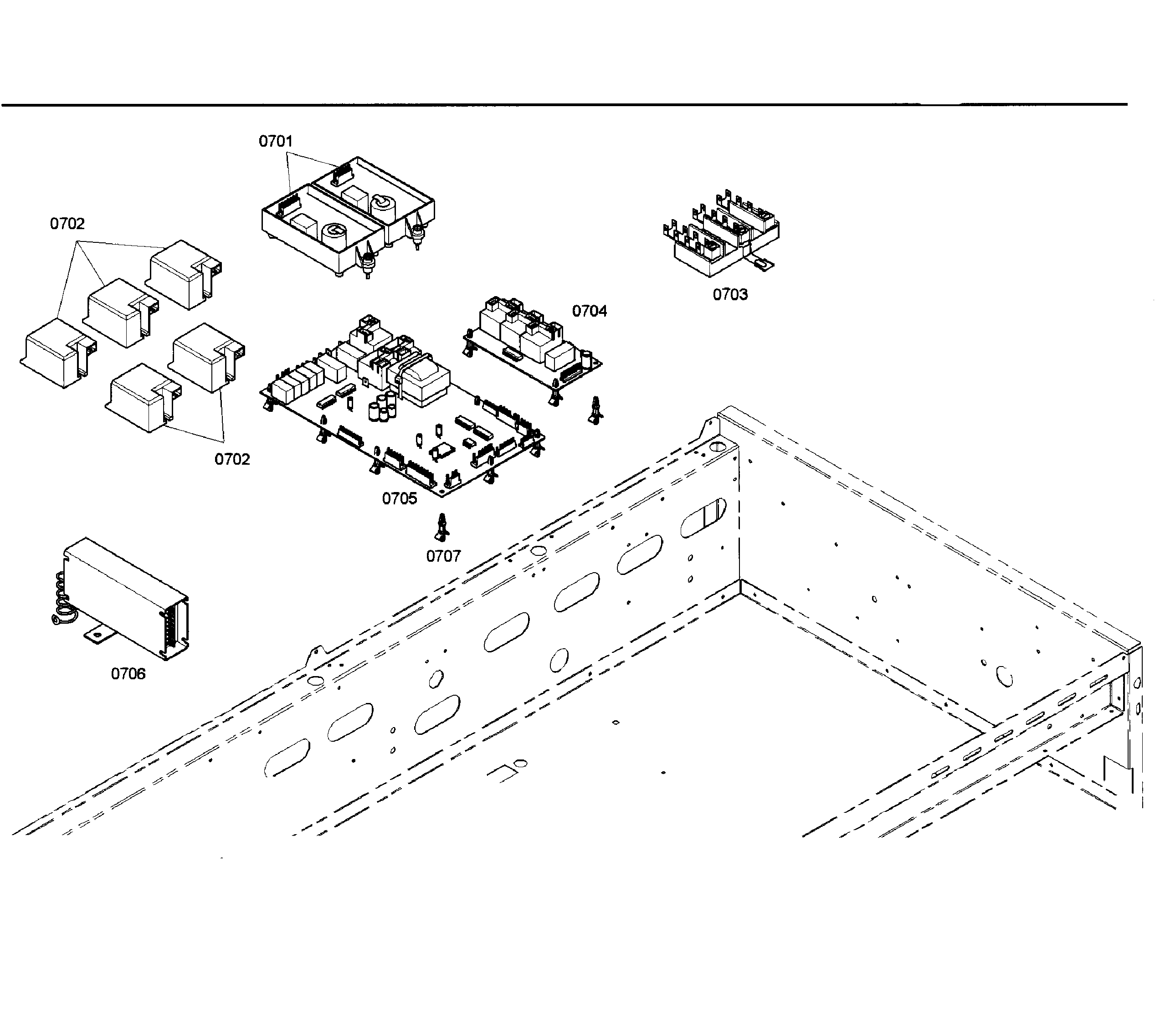

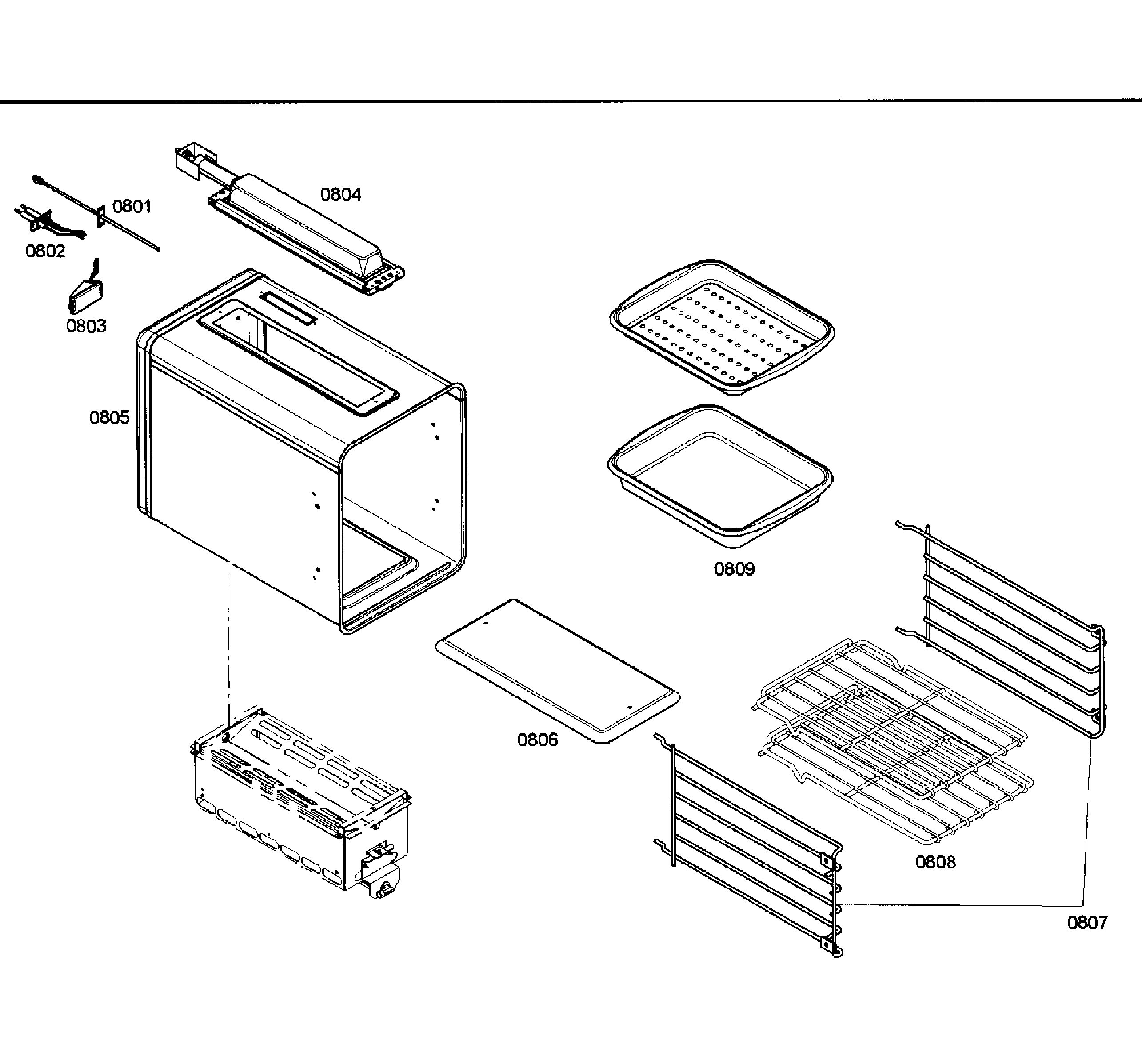

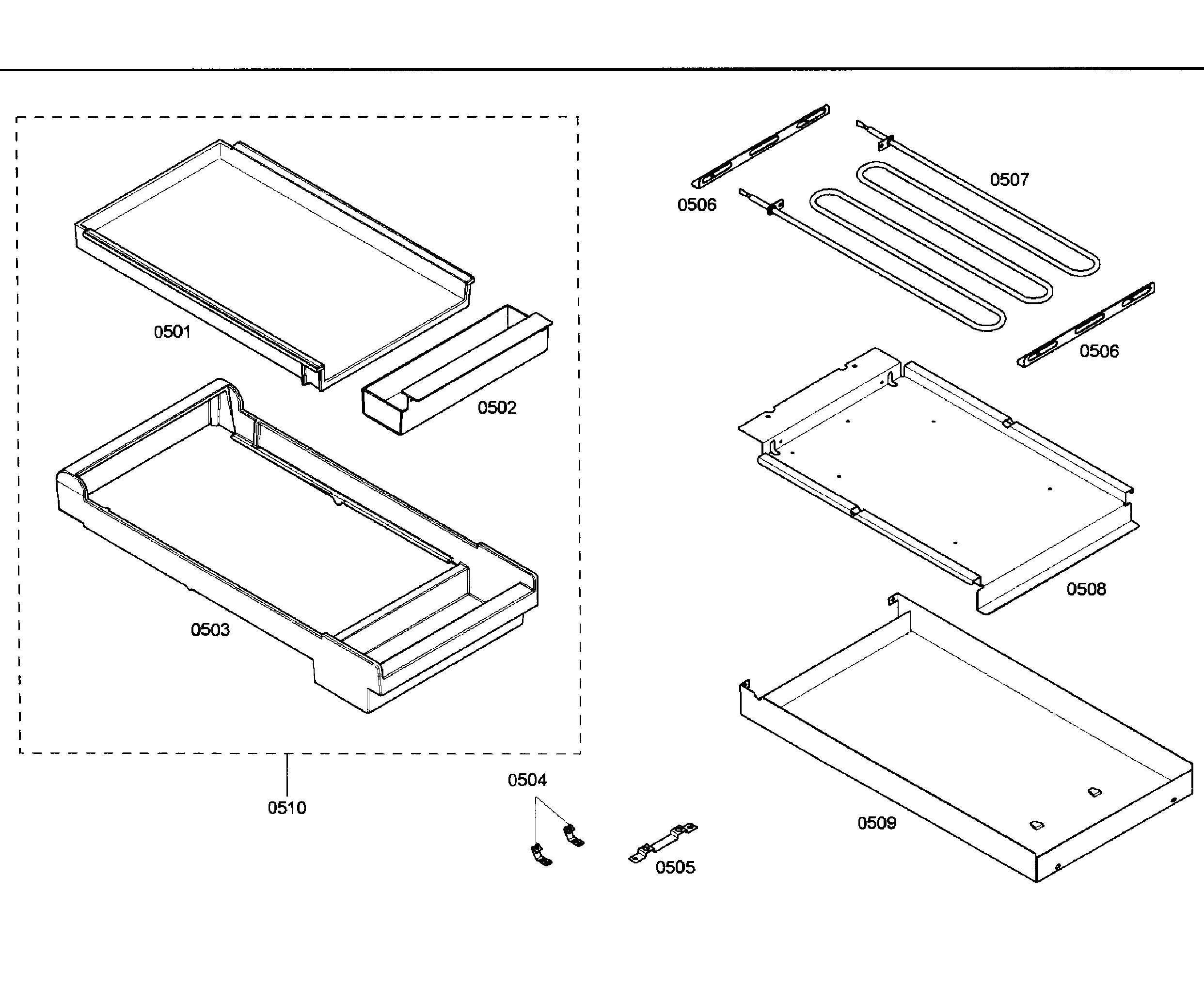

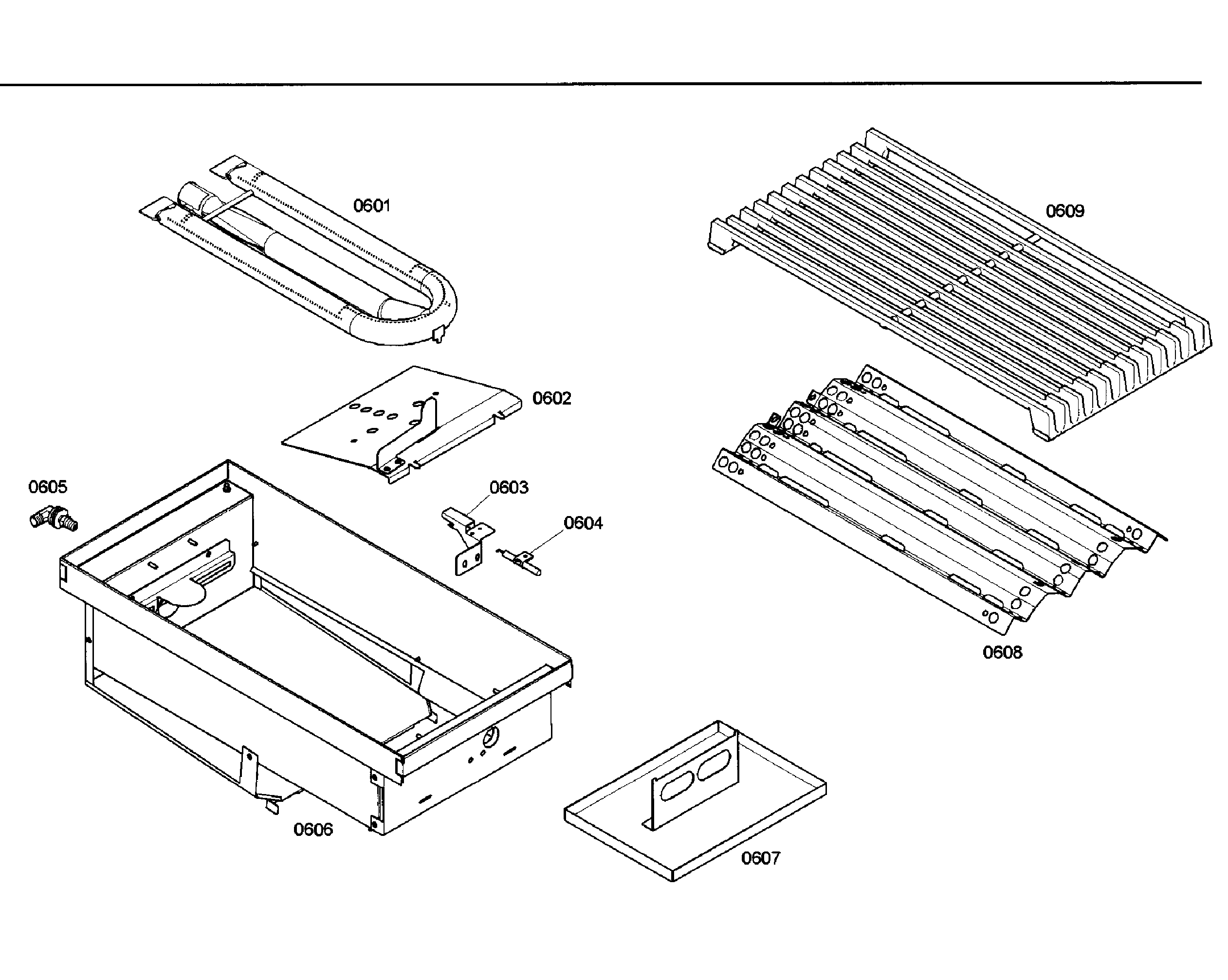

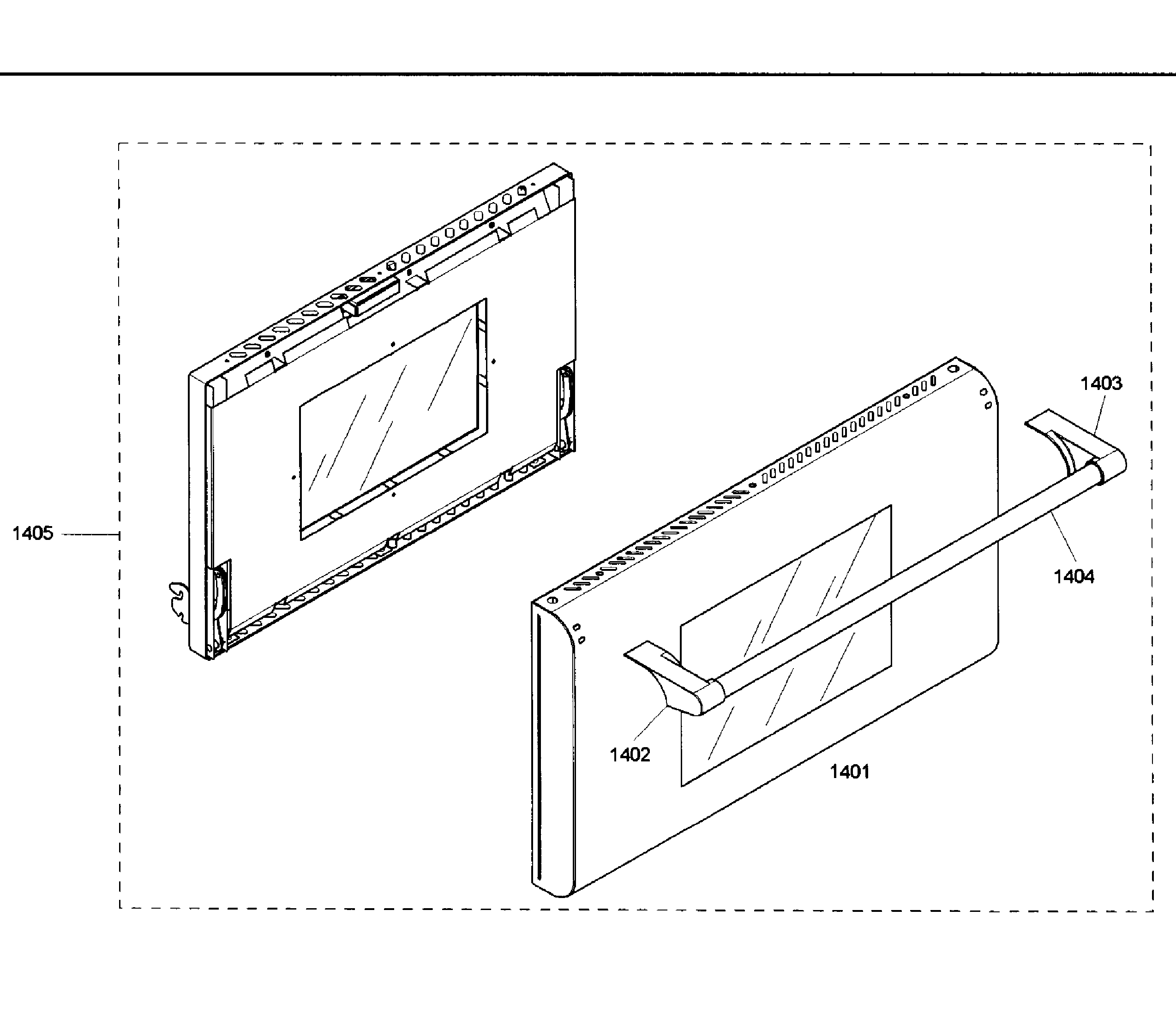

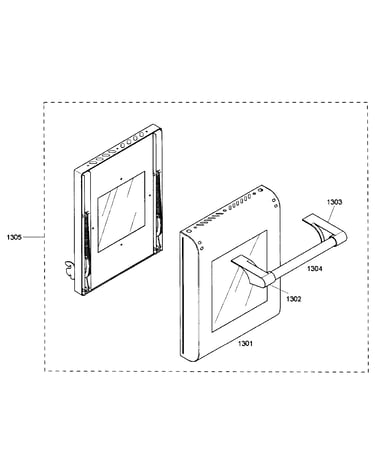

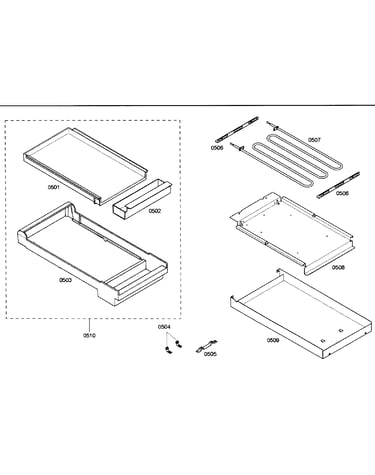

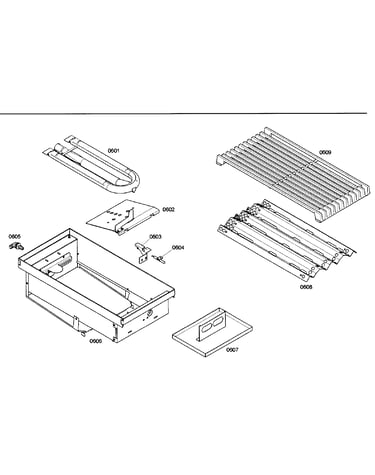

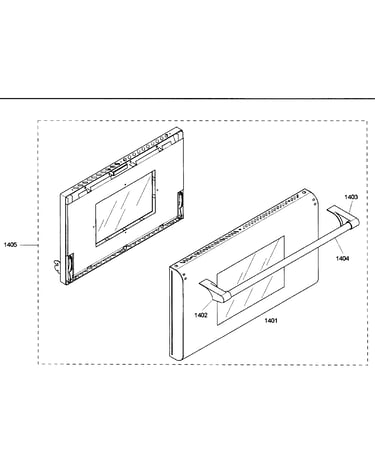

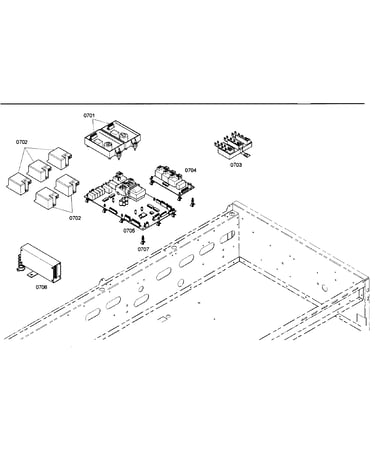

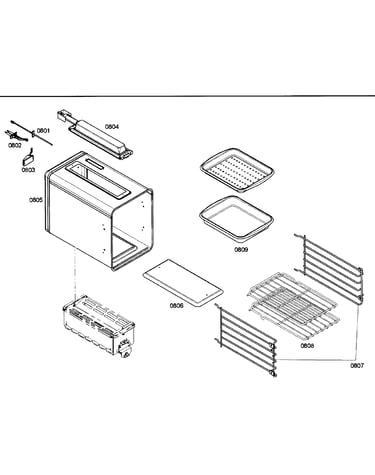

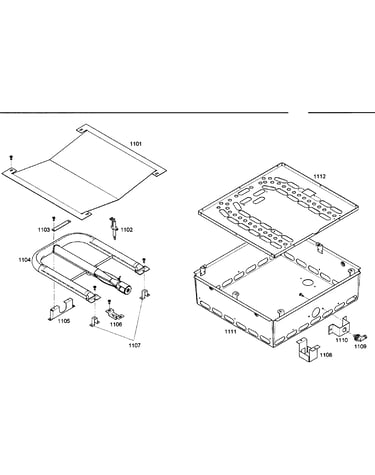

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |

Range Bake Igniter (replaces 00487383, 00610098, 492431) 00492431
Range bake igniter (replaces 00487383, 00610098, 492431)

Part #00492431

$120.69
9% OFF Phone Price : $132.69
In Stock
Range Burner Grate Rubber Pad Kit (replaces 00486249, 413552) 00413552
#NI

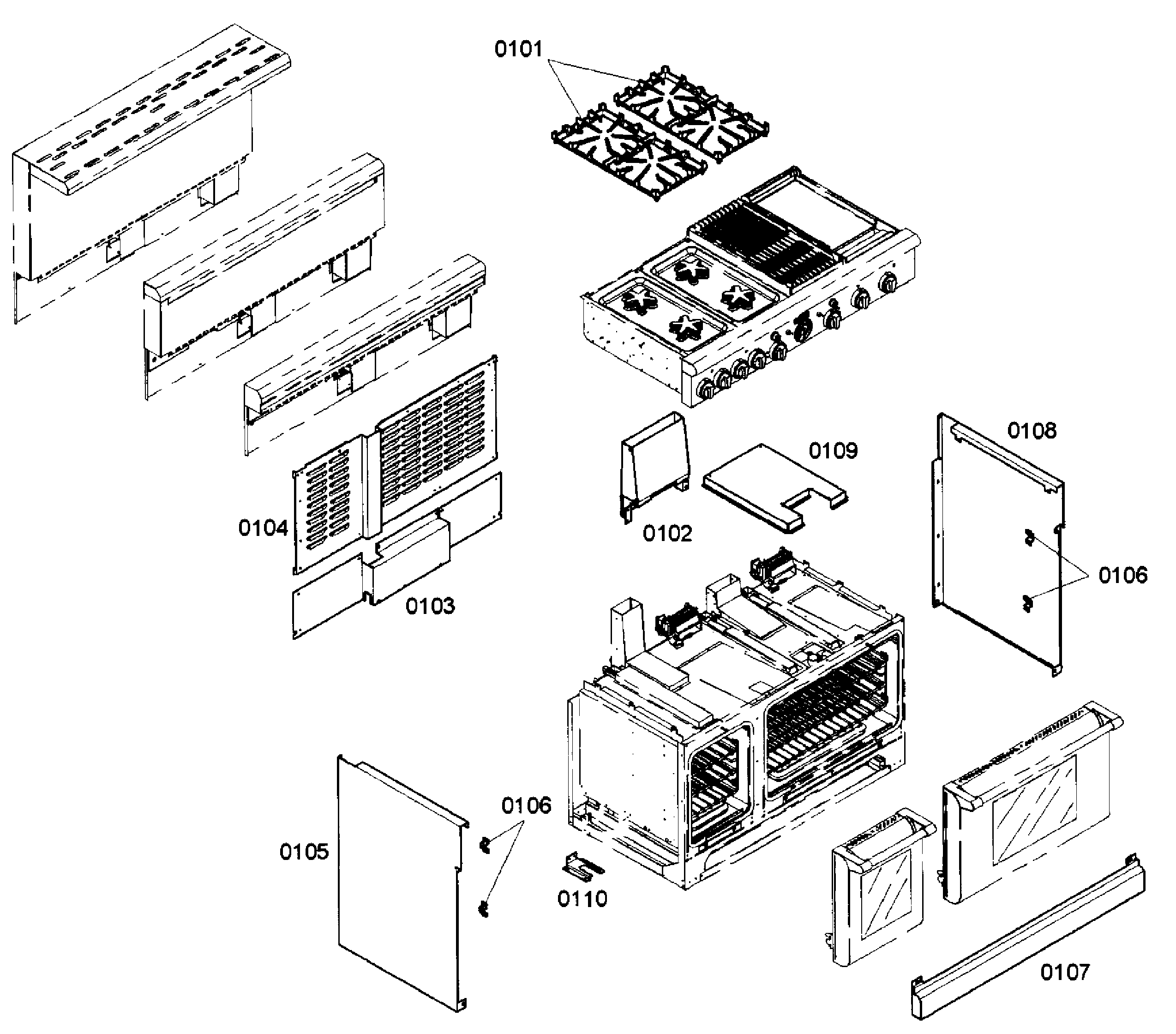

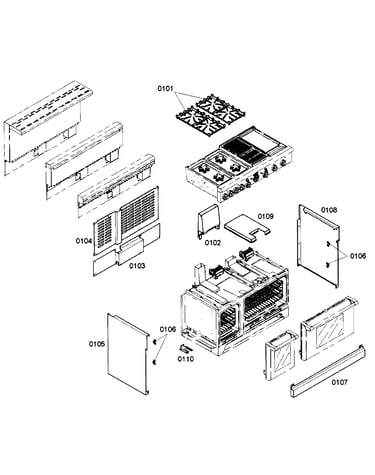

Main assy diagram

Range burner grate rubber pad kit (replaces 00486249, 413552)

Part #00413552

This item is not returnable
$27.49
18% OFF Phone Price : $33.49
In Stock
Range Surface Burner Tube 00189023
#302

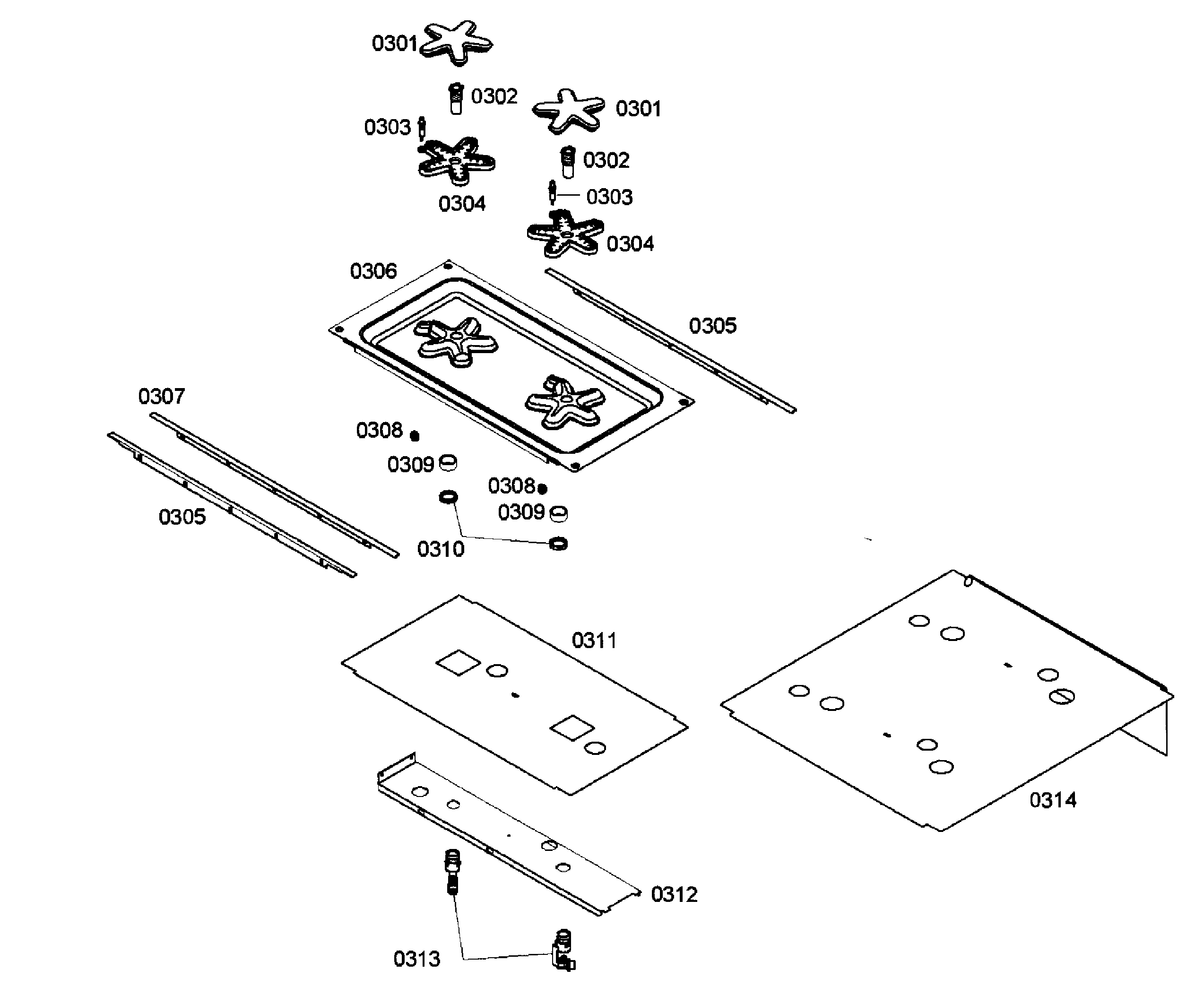

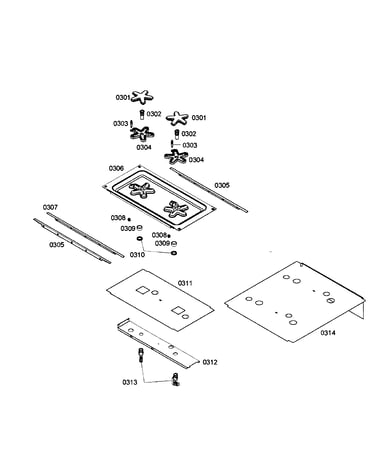

Burners assy diagram

Range surface burner tube

Part #00189023

$35.49
14% OFF Phone Price : $41.49
In Stock
Oven Switch 00489370
#1210

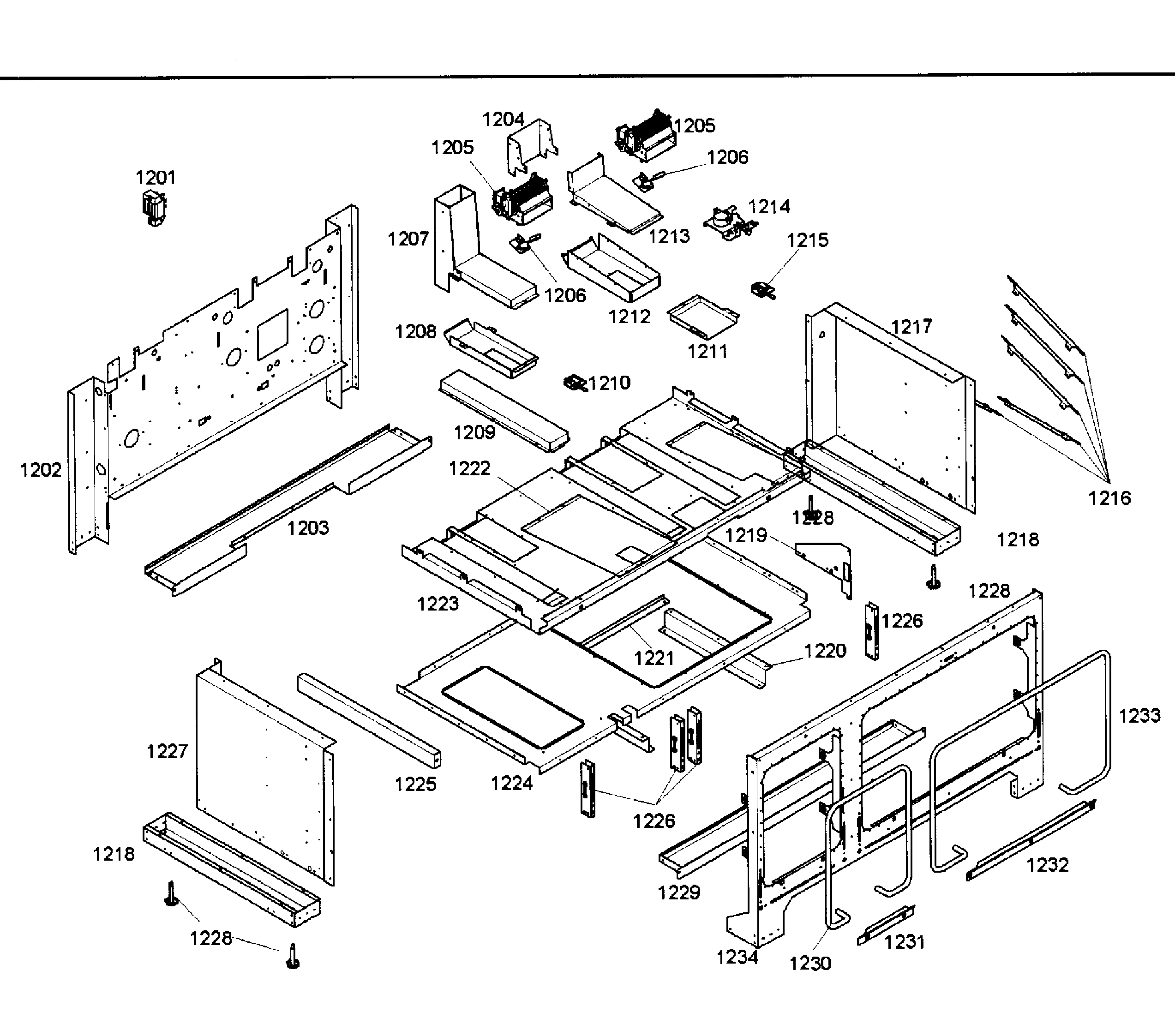

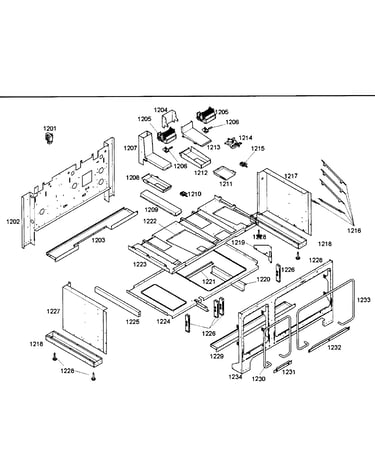

Frame assy diagram

Oven switch

Part #00489370

In Stock
Thermador Range Surface Burner Supply Tube, Left Front 00498909
#413

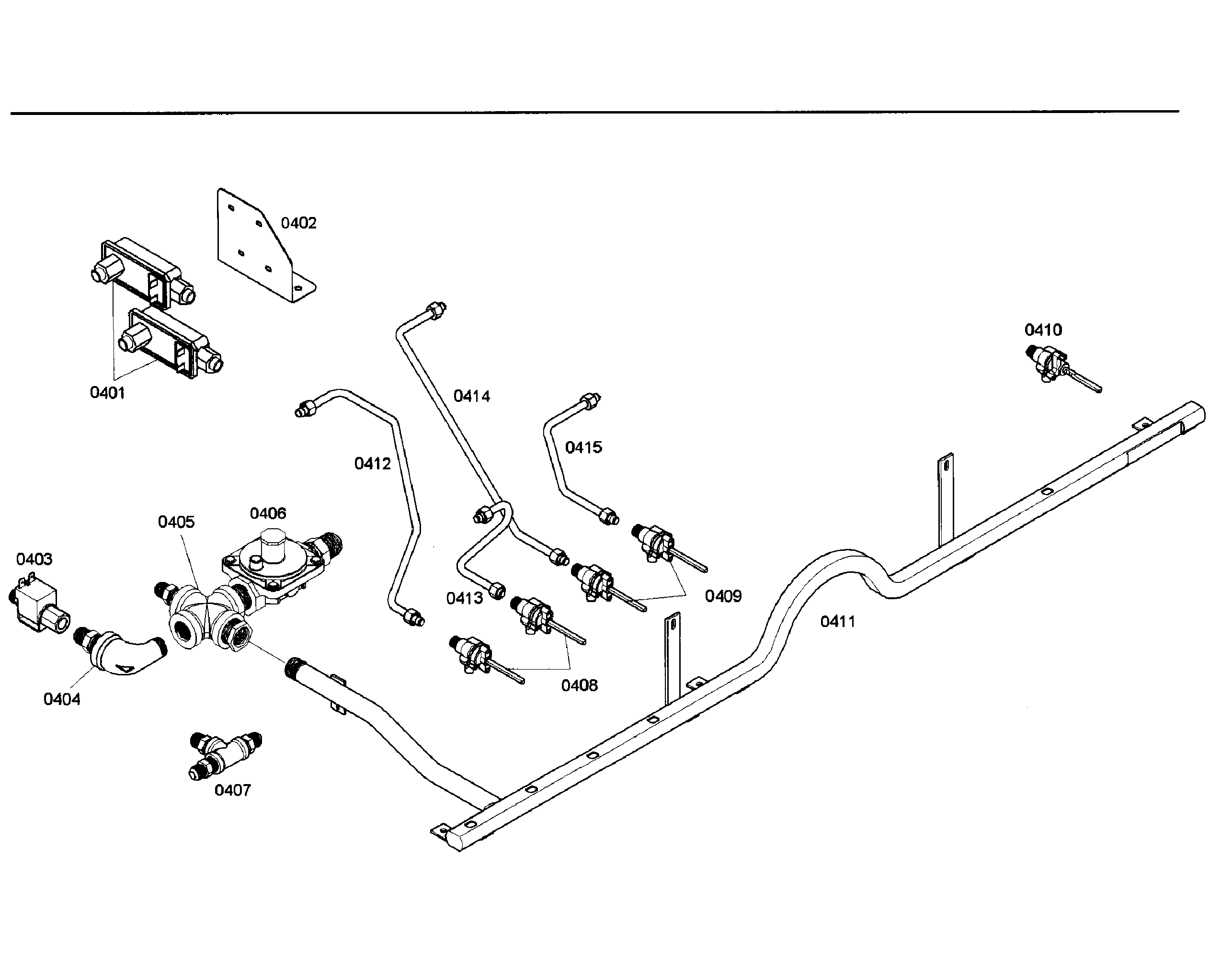

Manifold assy diagram

Thermador range surface burner supply tube, left front

Part #00498909

In Stock
Thermador Range Surface Burner Knob (blue) (replaces 428476) 00428476
#224

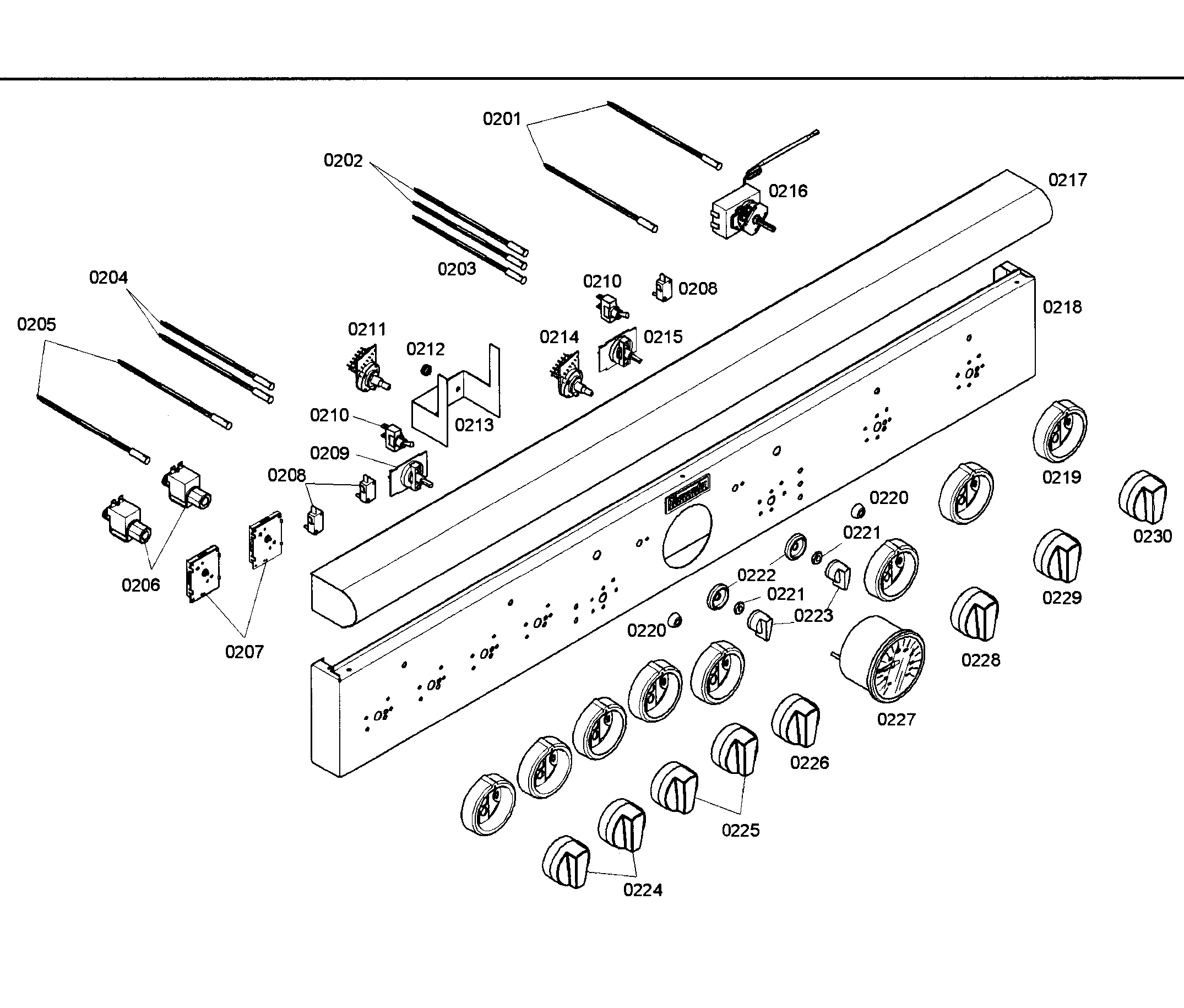

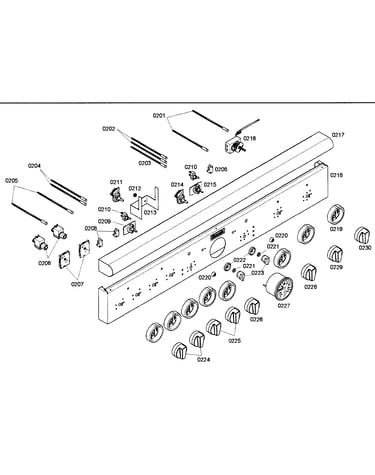

Control panel diagram

Thermador range surface burner knob (blue) (replaces 428476)

Part #00428476

$22.09
21% OFF Phone Price : $28.09
In Stock
Thermador Air Duct 00440332
#901

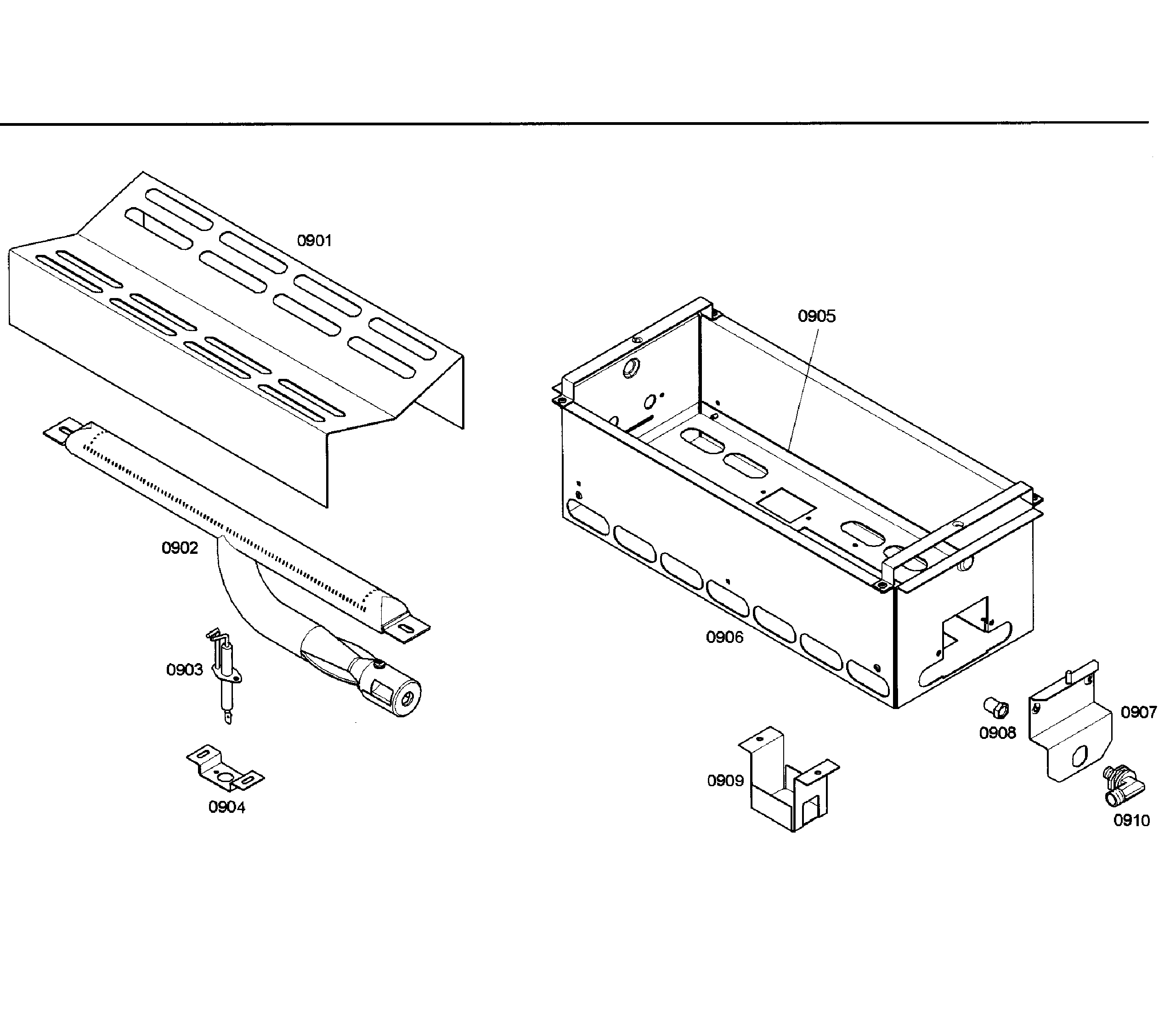

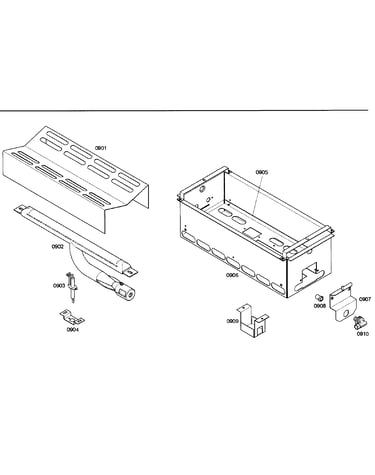

Small burner diagram

Thermador air duct

Part #00440332

In Stock
Range Oven Rack Ladder Bracket 00418089
Range oven rack ladder bracket

Part #00418089

In Stock
Grill Grid 00449756
#NI

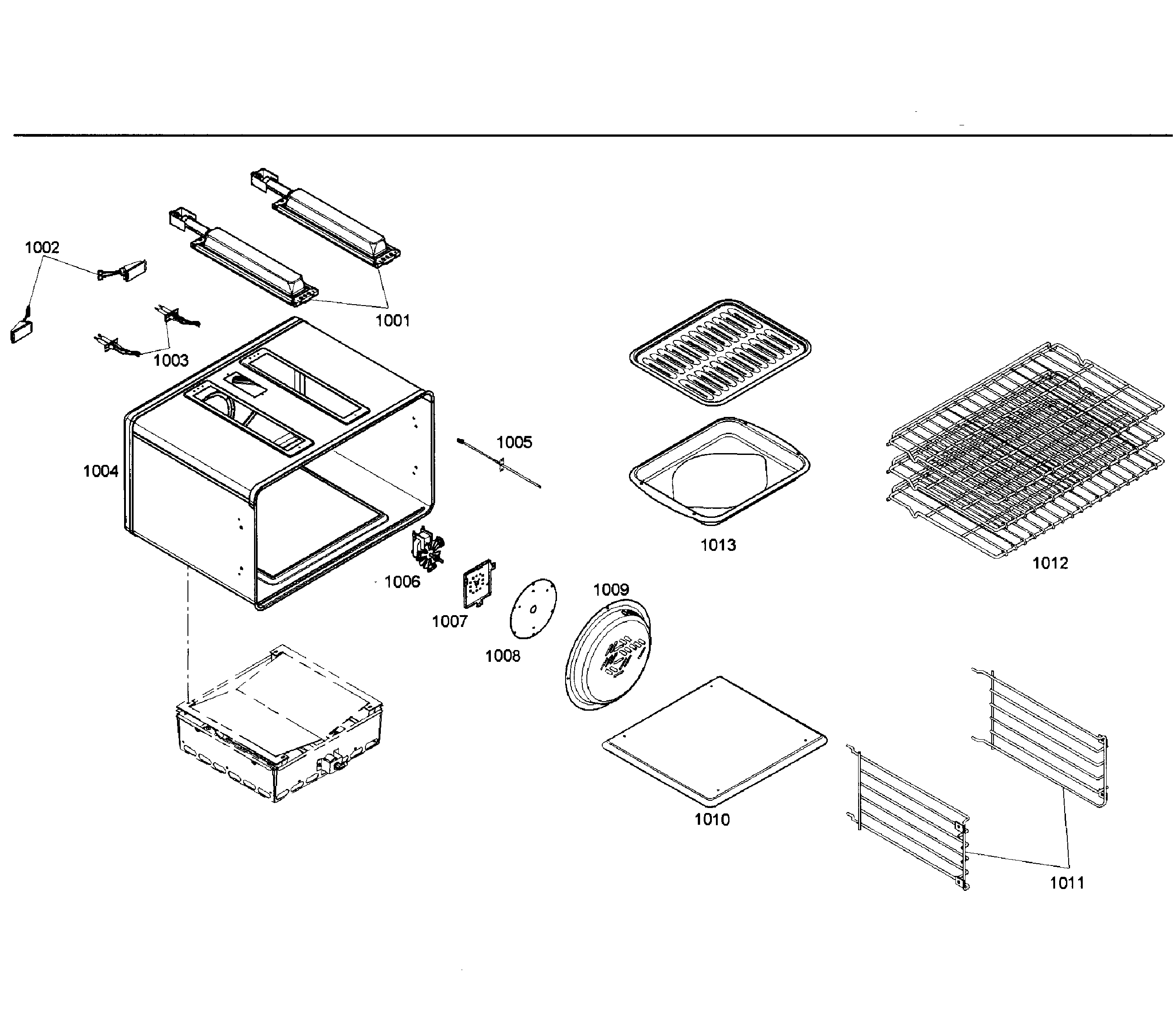

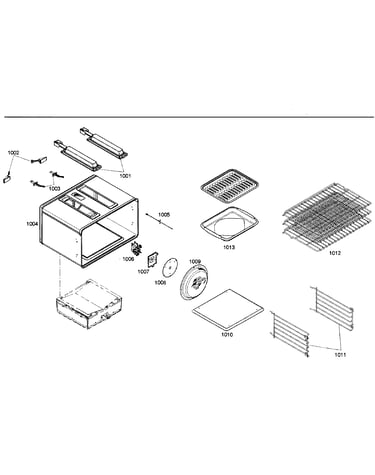

Large oven diagram

Grill grid

Part #00449756

In Stock
Thermador Range Knob 00428480
#226

Control panel diagram

Thermador range knob

Part #00428480

In Stock
