Craftsman
Wet/Dry Vacuum

Model # 113179900 Official Craftsman 16-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179900 16-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Filter 9-17816
#29

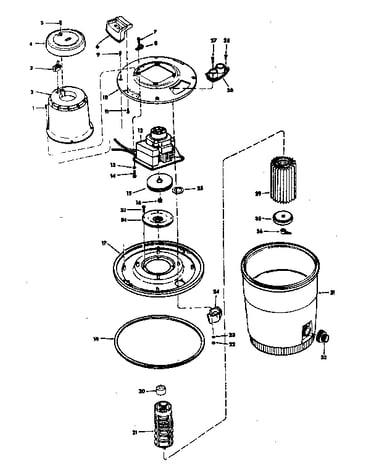

Unit diagram

Filter

Part #9-17816

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Ferrule 73242
#26

Unit diagram

Shop vacuum ferrule

Part #73242

The manufacturer no longer makes this part, and there's no substitute part

Hdlr Assry 73248
#1

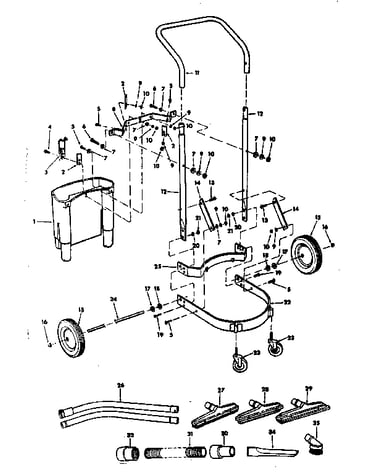

Cart assembly and accessories diagram

Hdlr assry

Part #73248

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Nut 73316
#36

Unit diagram

Shop vacuum filter nut

Part #73316

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#32

Unit diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (black) 28229-01
#24

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#3

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Relief Stran 169123-11
#10

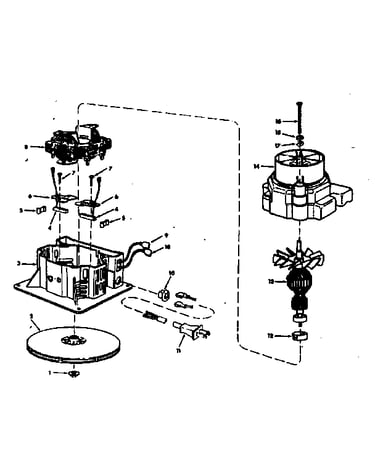

Motor no. 73364 diagram

Relief stran

Part #169123-11

The manufacturer no longer makes this part, and there's no substitute part

Screw 809372-6
#16

Motor no. 73364 diagram

Screw

Part #809372-6

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 9-16904
#34

Cart assembly and accessories diagram

Nozzle

Part #9-16904

The manufacturer no longer makes this part, and there's no substitute part
