Model # DPXH46GA0CC Official GE gas dryer

Here are the diagrams and repair parts for Official GE DPXH46GA0CC gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Dryer Belt WE12X10001
#1325

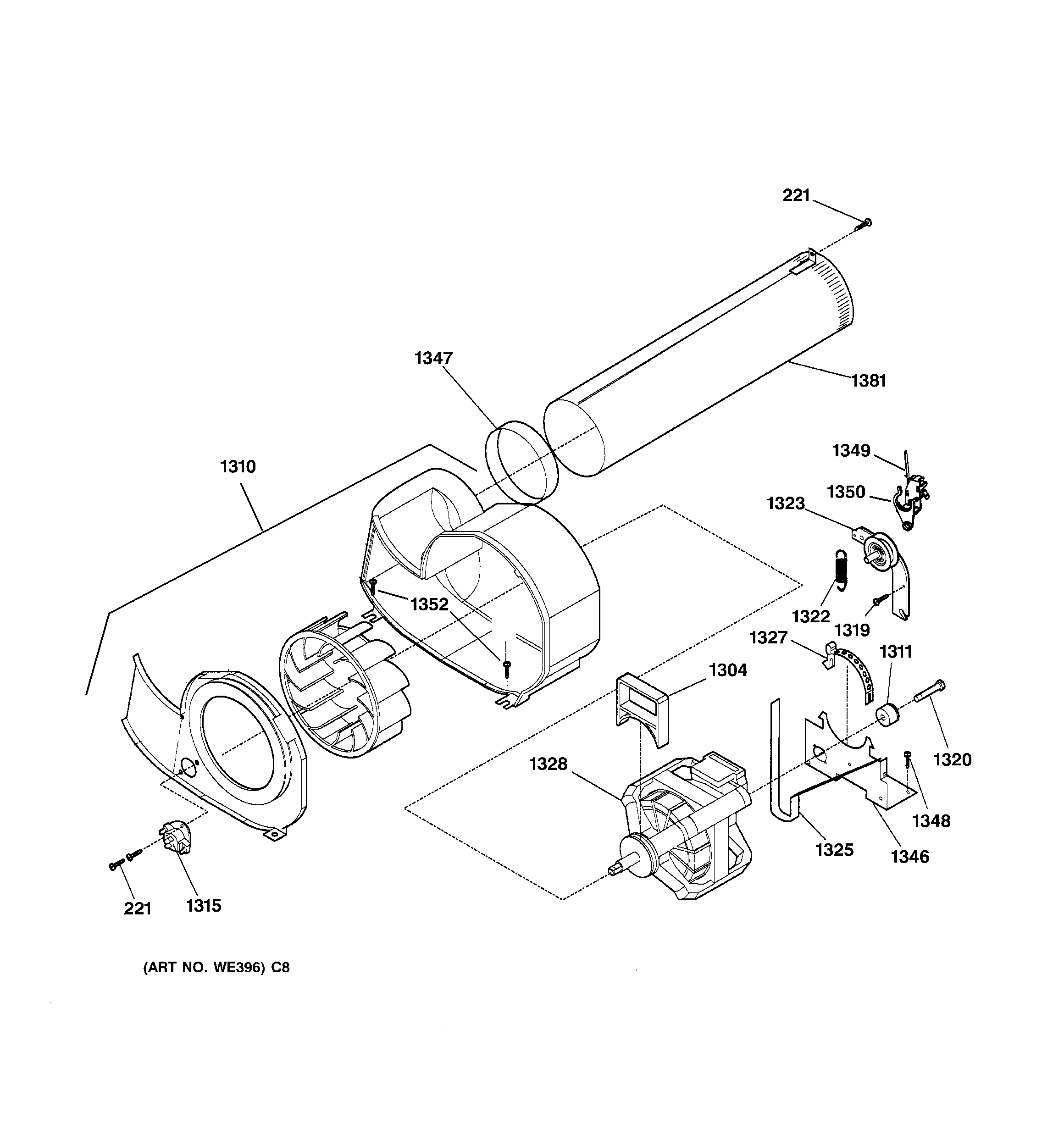

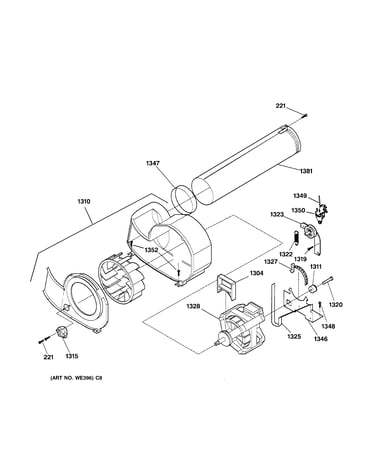

Motor diagram

Dryer belt

Part #WE12X10001

Replaced by #WE12X10009

?
Manufacturer substitution
This part replaces WE12X10001. Substitute parts can look different from the original.
BEST SELLER
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

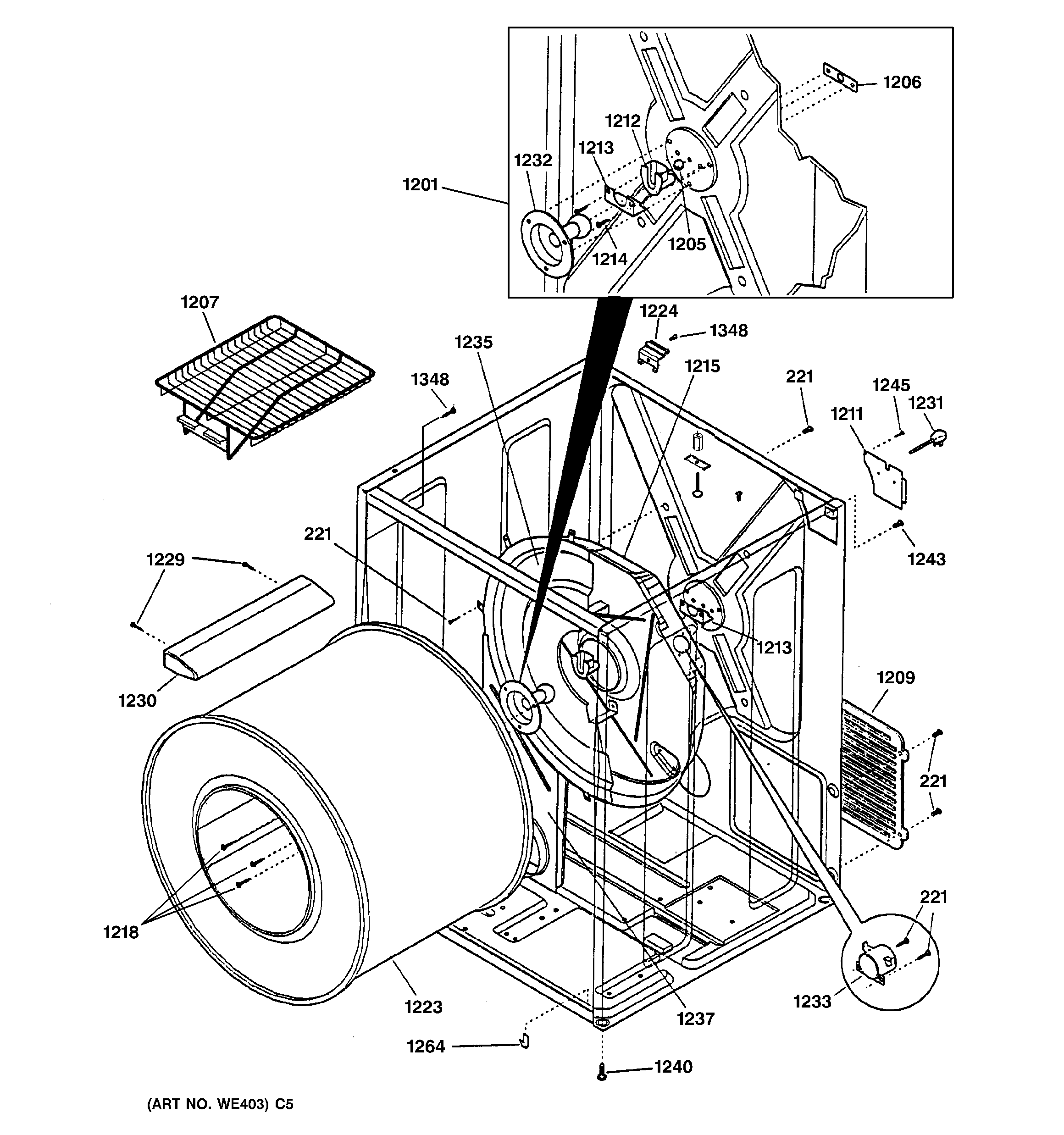

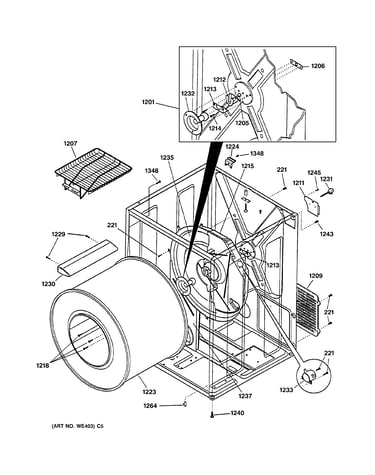

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Screw WE02X10011
#1245

Cabinet & drum diagram

Screw

Part #WE02X10011

$23.71
In Stock
Drum Glide WE03X0073
#1220

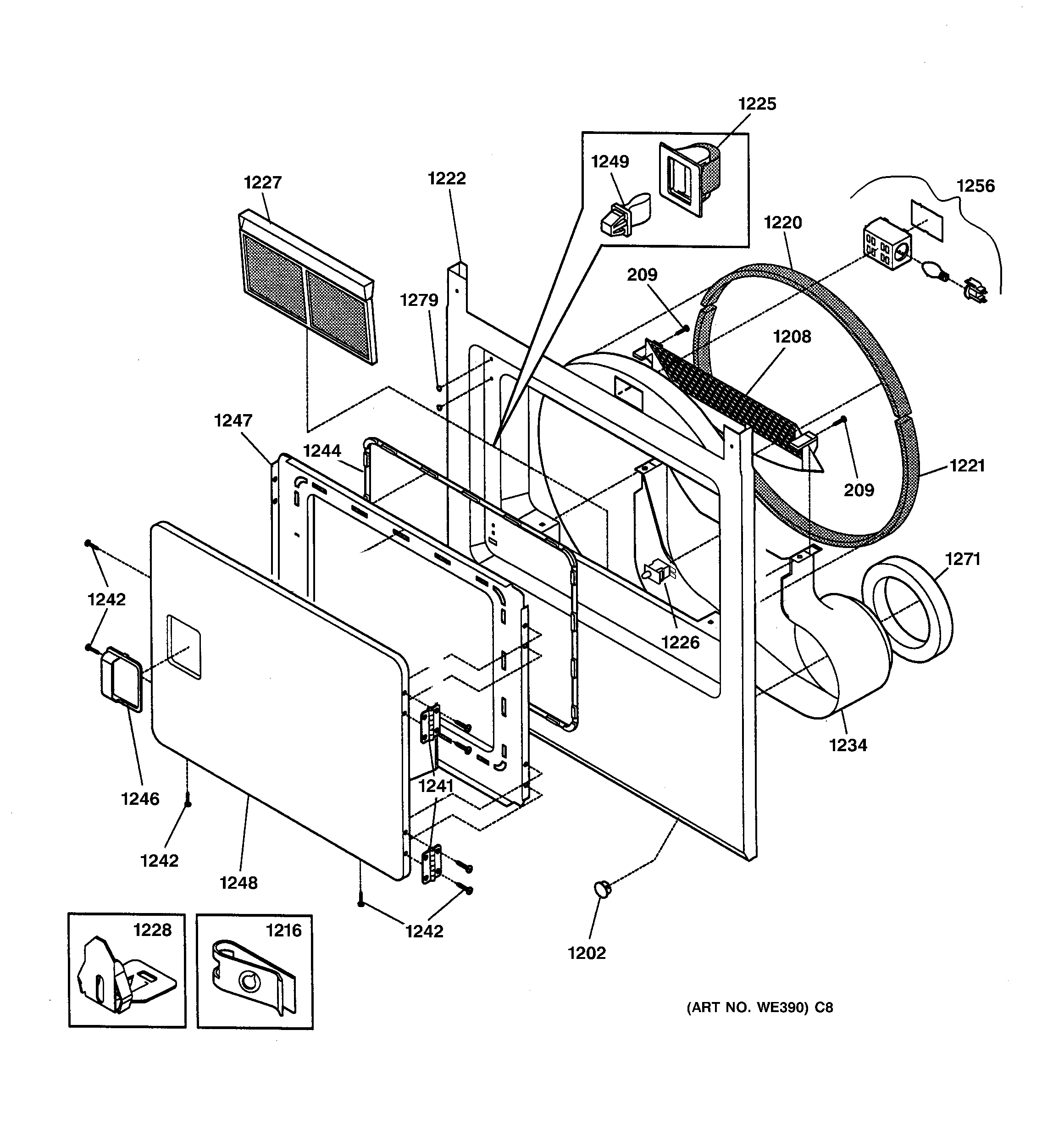

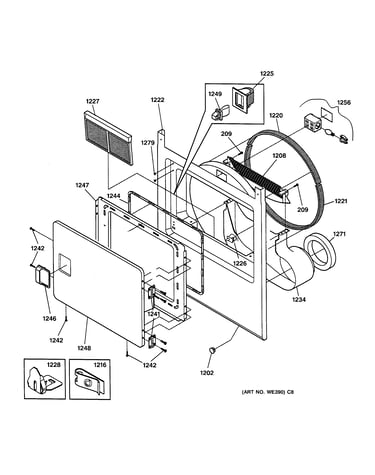

Front panel & door diagram

Drum glide

Part #WE03X0073

Replaced by #WE03X10001

?
Manufacturer substitution
This part replaces WE03X0073. Substitute parts can look different from the original.
$100.99 |
11% OFF Phone Price : $112.99
In Stock
Igniter WE04X0750
#1374

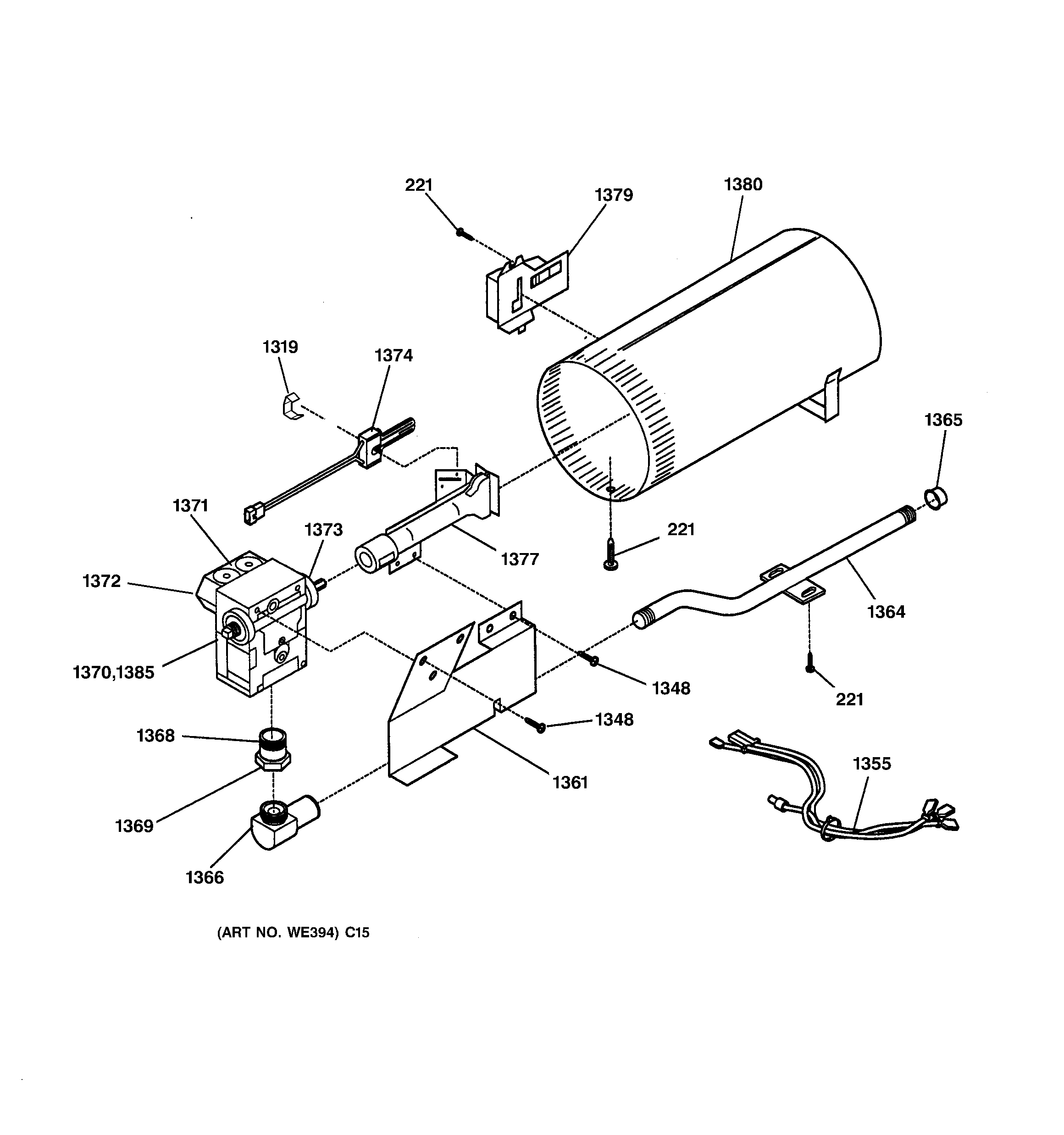

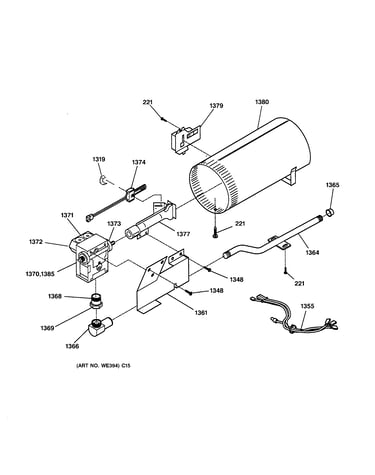

Burner diagram

Igniter

Part #WE04X0750

Replaced by #WE4X750

?
Manufacturer substitution
This part replaces WE04X0750. Substitute parts can look different from the original.
This item is not returnable
$27.31 |
18% OFF Phone Price : $33.31
In Stock
Uc Spacemake 49-9963-2
#1

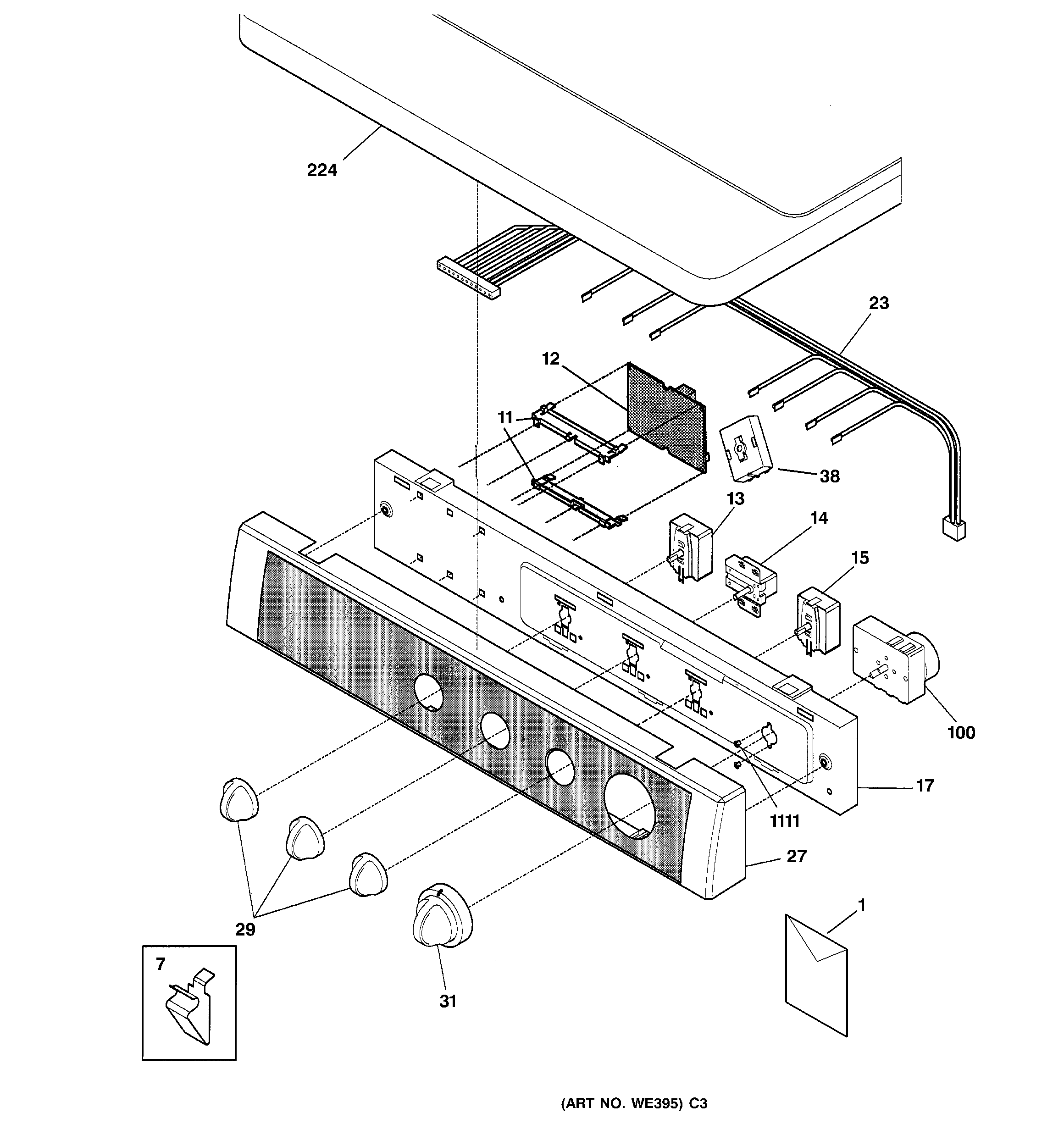

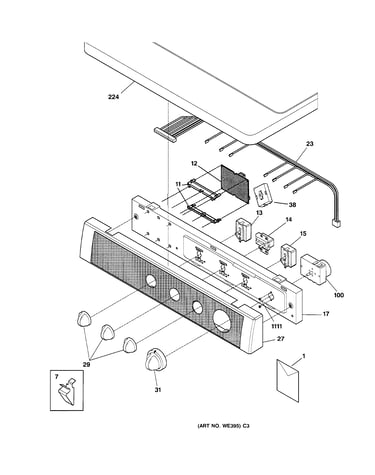

Controls & top panel diagram

Uc spacemake

Part #49-9963-2

Replaced by #049-90117-1

?
Manufacturer substitution
This part replaces 49-9963-2. Substitute parts can look different from the original.
$17.99
In Stock
Dryer Blower Wheel (replaces We14x10008, We14x10009, We16x10001) WE14X10025
#1310

Motor diagram

Dryer blower wheel (replaces we14x10008, we14x10009, we16x10001)

Part #WE14X10025

The manufacturer no longer makes this part, and there's no substitute part

Belt Switch WE04X10030
#1349

Motor diagram

Belt switch

Part #WE04X10030

The manufacturer no longer makes this part, and there's no substitute part
