Model # DSC-WX70/S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-WX70-S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Cushion 429222301
#5

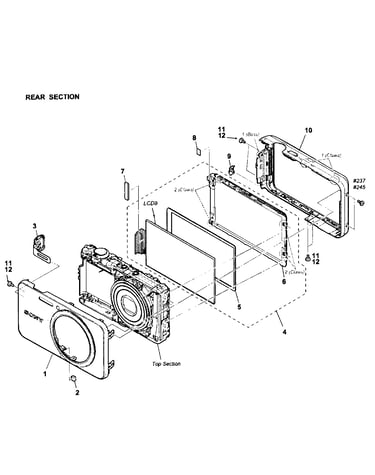

Rear section diagram

Cushion

Part #429222301

$35.98
In Stock
Sheet 427343701
#118

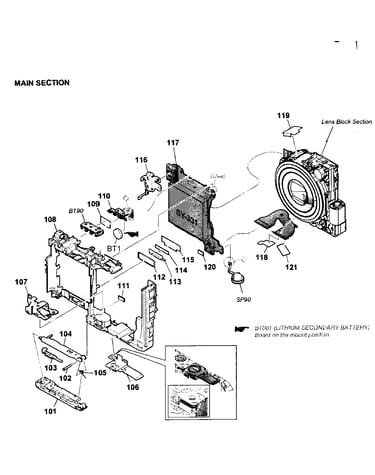

Main section diagram

Sheet

Part #427343701

$13.24
In Stock
Dc Motor A1799444A
#160

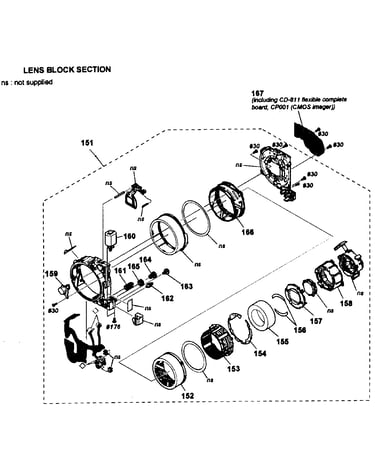

Lens block diagram

Dc motor

Part #A1799444A

This item is not returnable
$6.49
In Stock
Barrier Bl A1799629A
#157

Lens block diagram

Barrier bl

Part #A1799629A

$8.03
In Stock
Sheet, Rad 441506201
#62

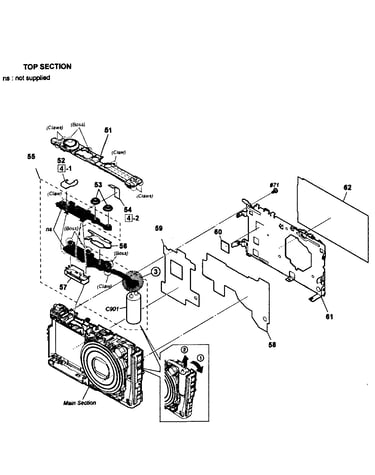

Top section diagram

Sheet, rad

Part #441506201

$13.60
In Stock
Cover 427006301
#112

Main section diagram

Cover

Part #427006301

$18.61
In Stock
Tube A1799617A
#153

Lens block diagram

Tube

Part #A1799617A

This item is not returnable
$4.41
In Stock
Sony Lid,bt Sil 441262601
#101

Main section diagram

Sony lid,bt sil

Part #441262601

$13.87
In Stock
Microphone 441164901
#53

Top section diagram

Microphone

Part #441164901

$15.95
In Stock
Tape 414710901
#156

Lens block diagram

Tape

Part #414710901

$28.11
In Stock
