Craftsman
Power Drill

Model # 315105151 Official Craftsman electric drill

Here are the diagrams and repair parts for Official Craftsman 315105151 electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

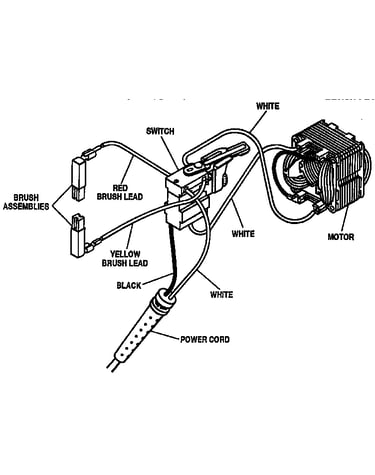

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Plascrw 617966-020
#11

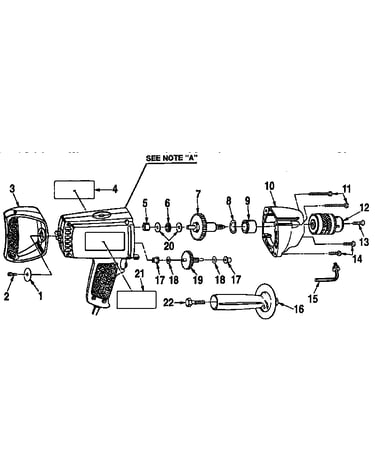

Gear assembly diagram

Plascrw

Part #617966-020

The manufacturer no longer makes this part, and there's no substitute part

Flange Brg 623325-000
#17

Gear assembly diagram

Flange brg

Part #623325-000

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 972308-001
#4

Gear assembly diagram

Logo plate

Part #972308-001

The manufacturer no longer makes this part, and there's no substitute part

Hsg W/brg 611570-003
#1

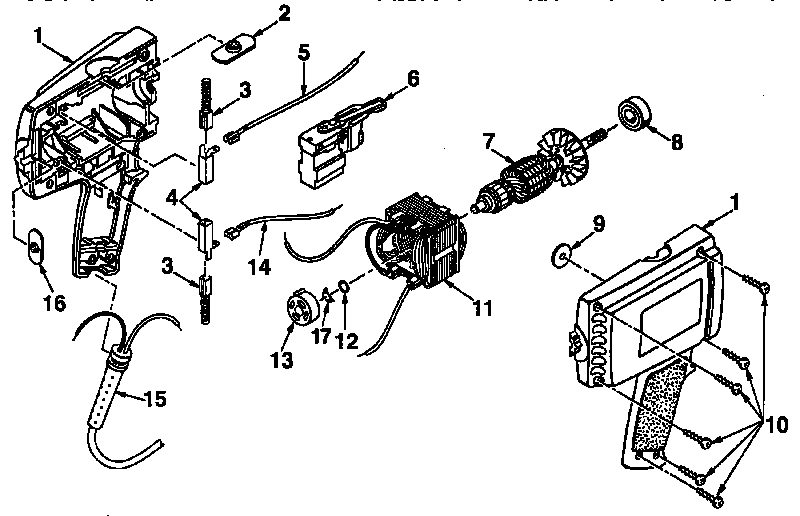

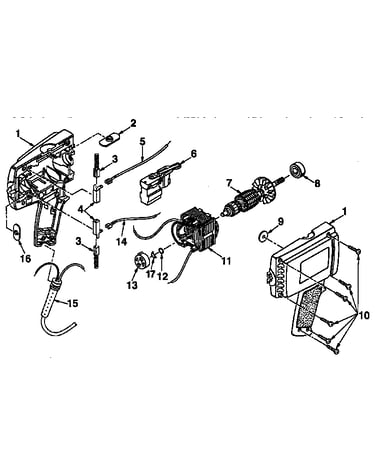

Housing assembly diagram

Hsg w/brg

Part #611570-003

The manufacturer no longer makes this part, and there's no substitute part

Sleev Bearng 606704-001
#9

Gear assembly diagram

Sleev bearng

Part #606704-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 971975-001
#21

Gear assembly diagram

Data plate

Part #971975-001

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 617595-004
#22

Gear assembly diagram

Cap screw

Part #617595-004

The manufacturer no longer makes this part, and there's no substitute part

Field 967573-002
#11

Housing assembly diagram

Field

Part #967573-002

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 606858-000
#15

Gear assembly diagram

Chuck key

Part #606858-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 703493-817
#18

Gear assembly diagram

Washer

Part #703493-817

The manufacturer no longer makes this part, and there's no substitute part
