Kenmore
Laundry Center

Model # 41799877990 Official Kenmore stacked laundry center

Here are the diagrams and repair parts for Official Kenmore 41799877990 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

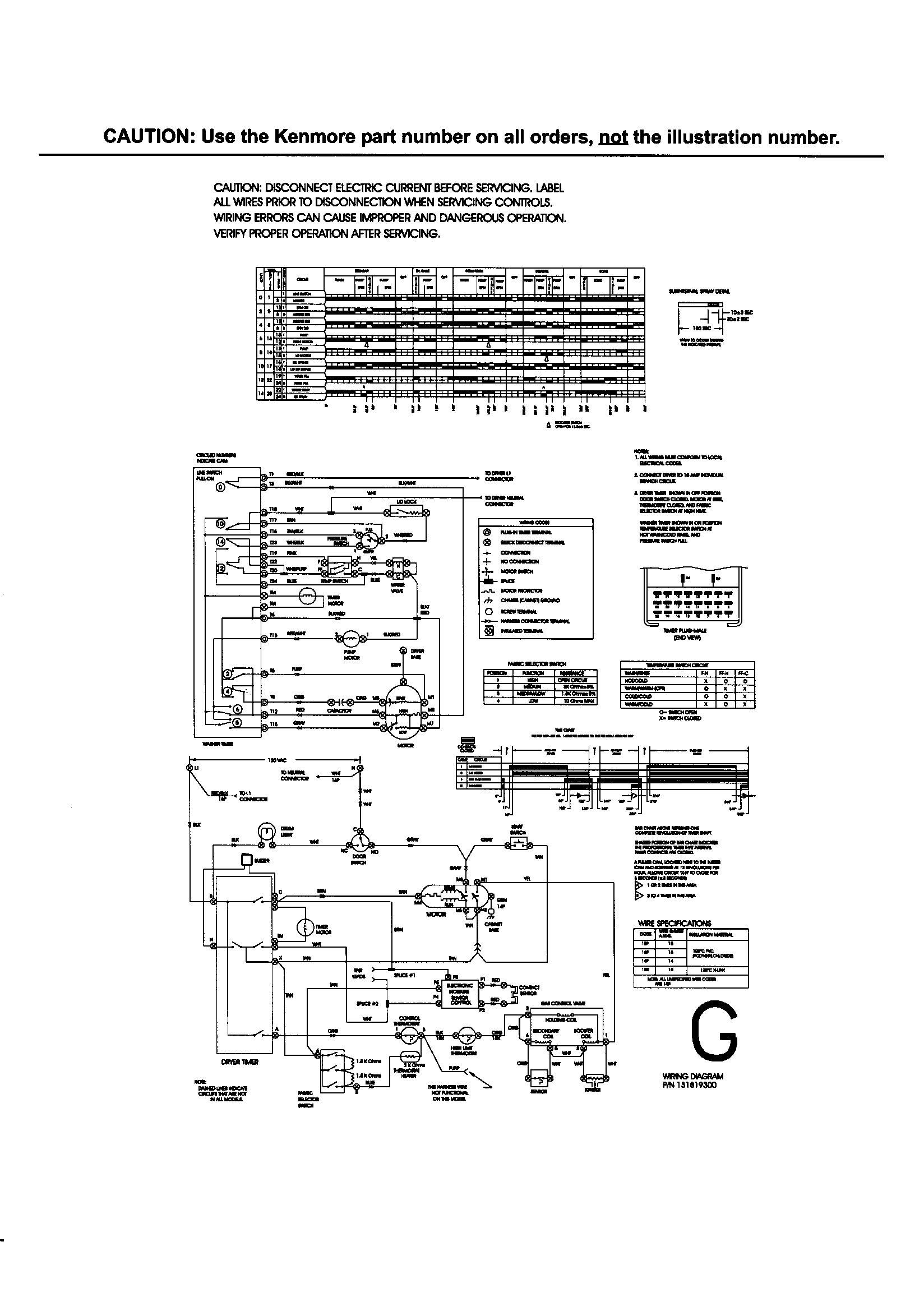

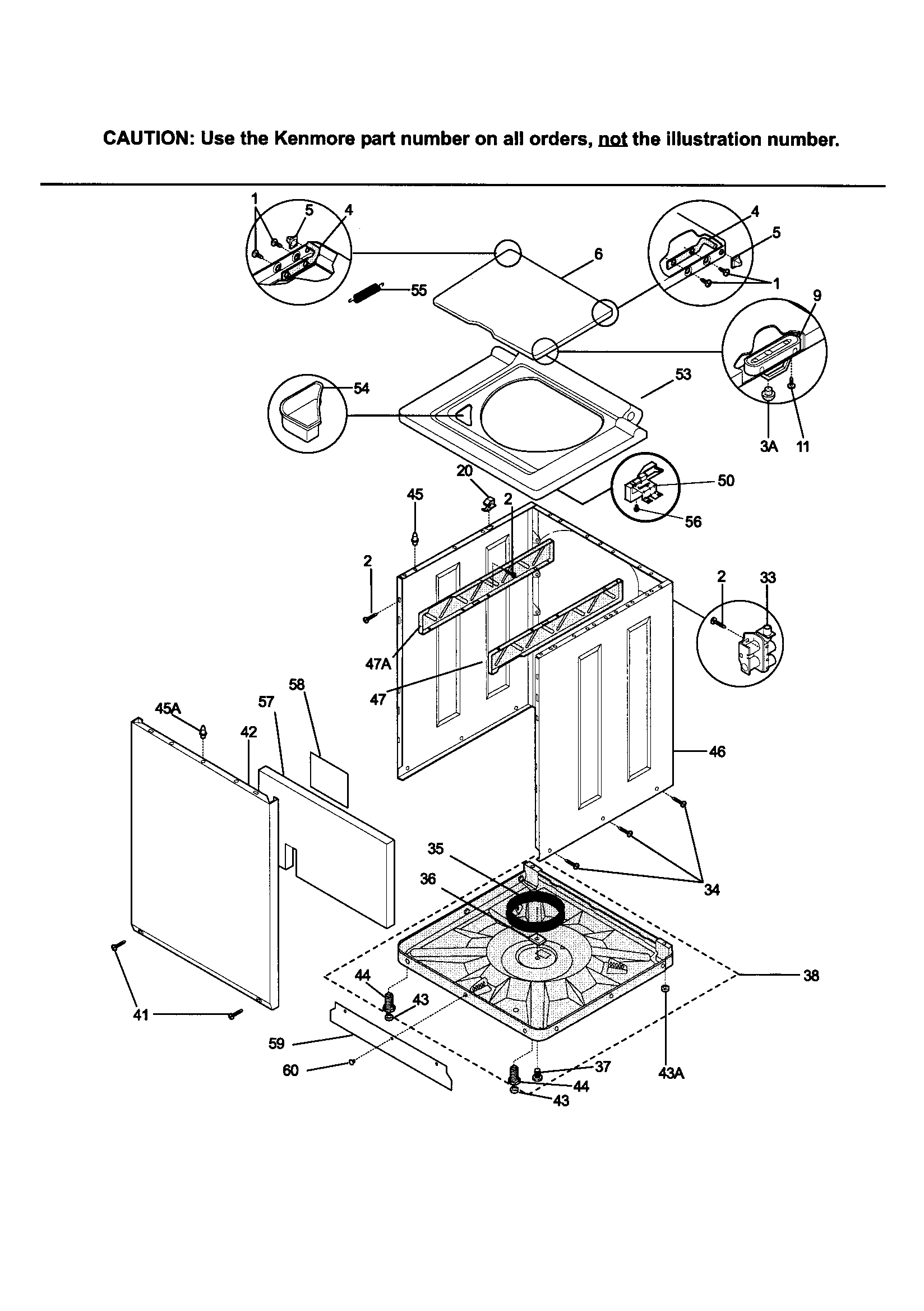

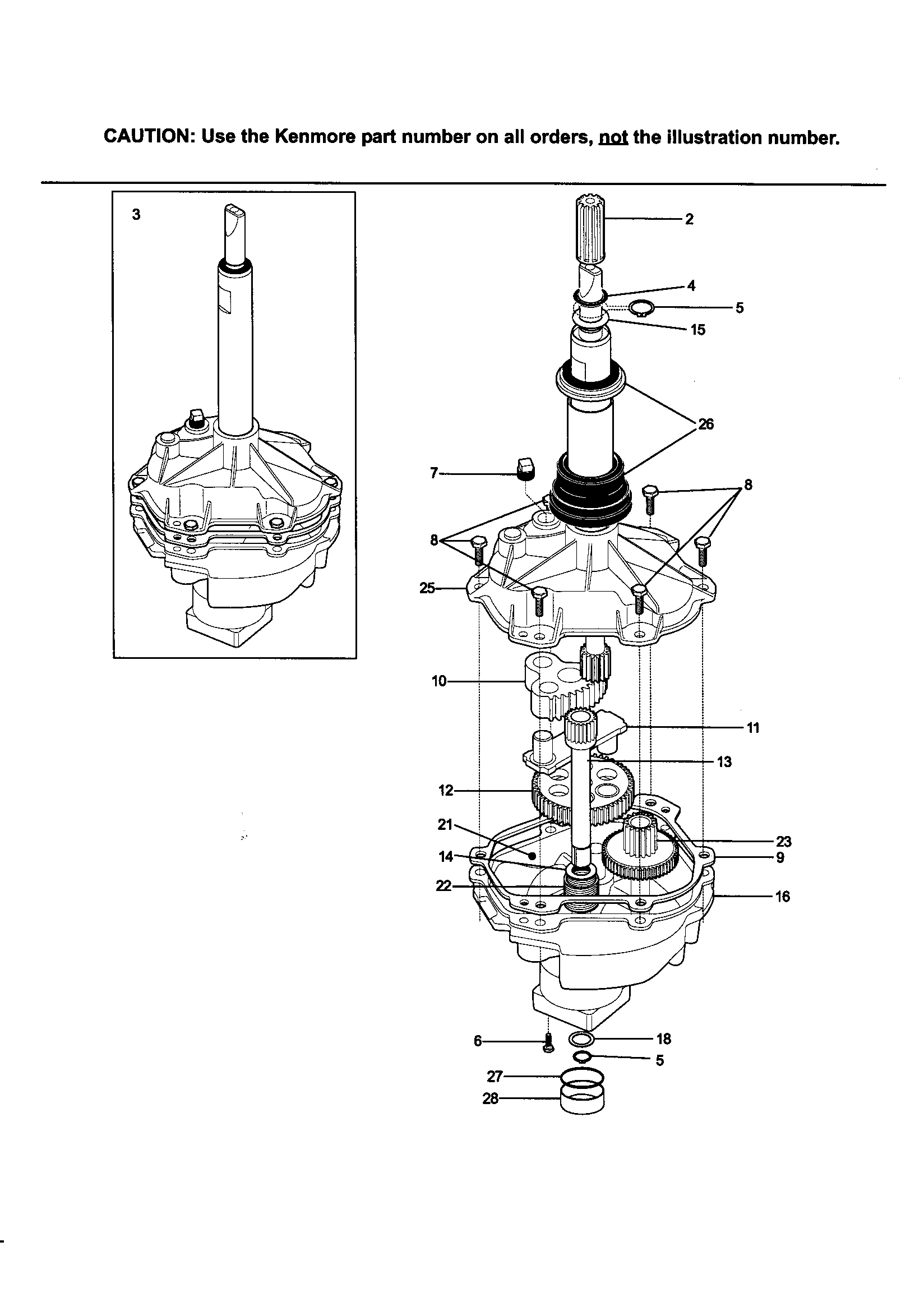

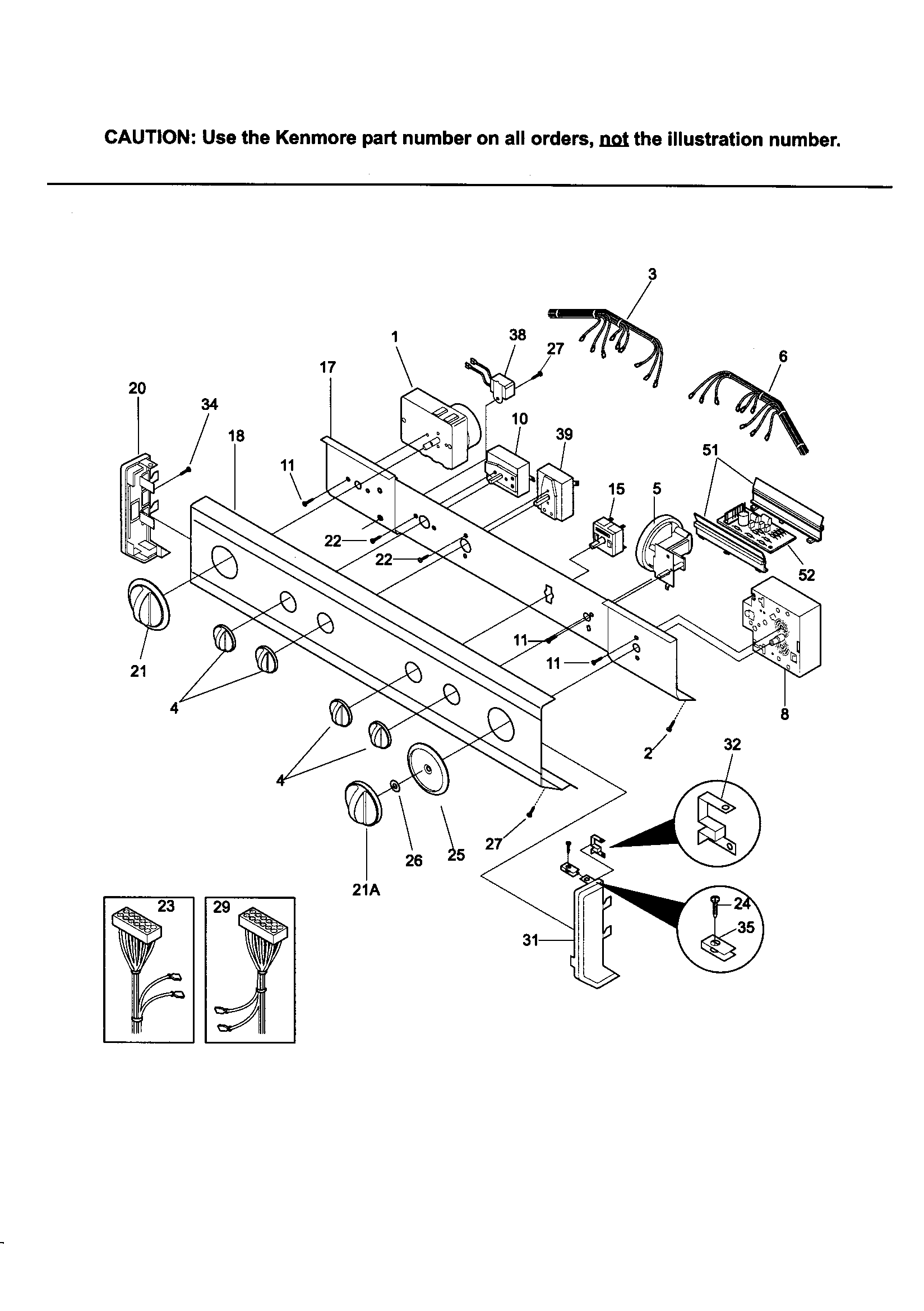

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 265 parts  |
Belt 5303283287
#25

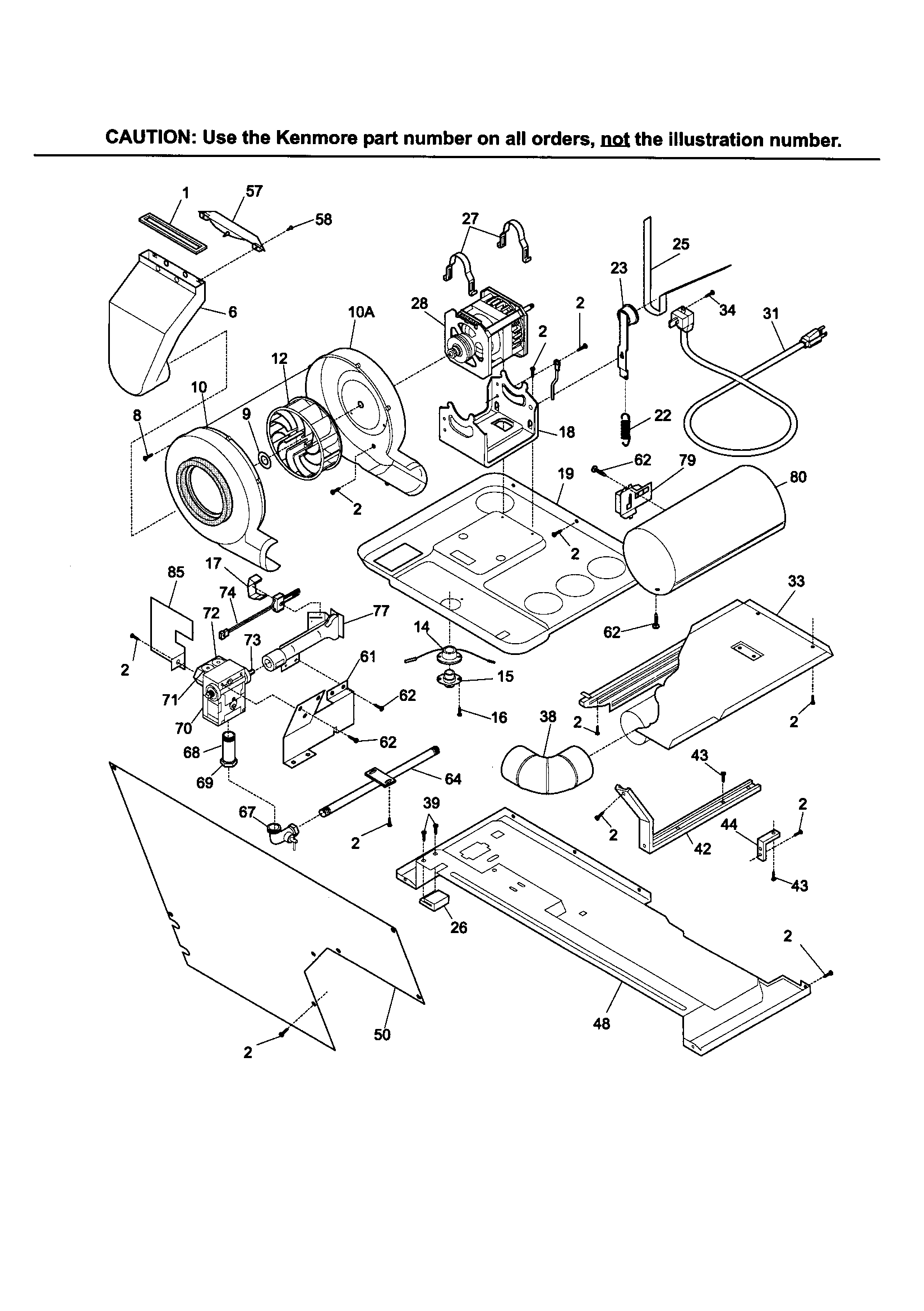

Page 2 diagram

Belt

Part #5303283287

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283287. Substitute parts can look different from the original.
BEST SELLER
$14.48 |
12% OFF Phone Price : $16.48
In Stock
Bearing 5303281008
#12

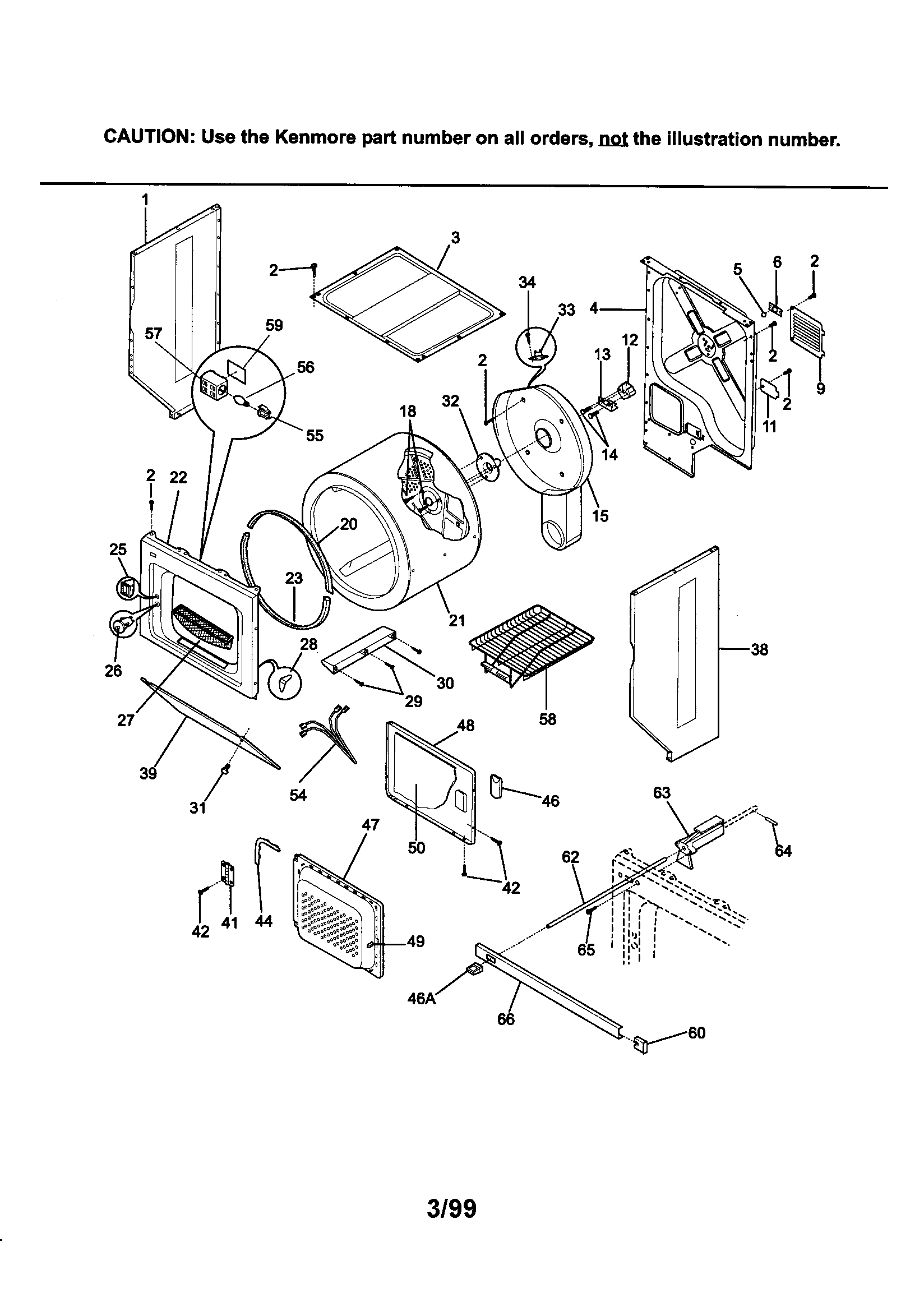

Page 1 diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
$7.44 |
12% OFF Phone Price : $8.44
In Stock
Pump 131724000
#43

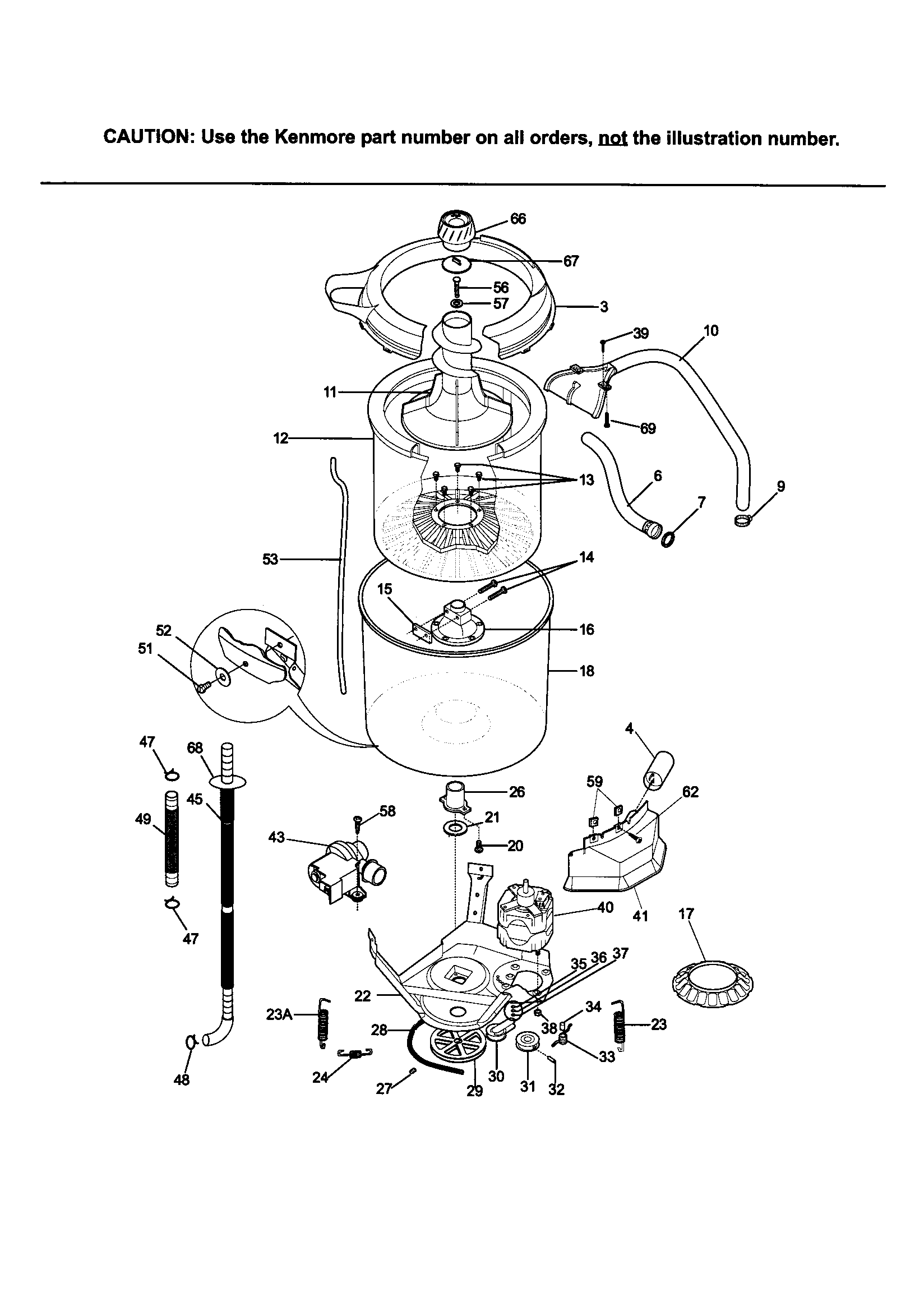

Page 5 diagram

Pump

Part #131724000

Replaced by #137221600

?
Manufacturer substitution
This part replaces 131724000. Substitute parts can look different from the original.
BEST SELLER
$130.68 |
8% OFF Phone Price : $142.68
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Page 1 diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Washer Belt 131686100
#28

Page 5 diagram

Washer belt

Part #131686100

The manufacturer no longer makes this part, and there's no substitute part

Dryer Lint Filter 131359600
#27

Page 1 diagram

Dryer lint filter

Part #131359600

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131359600. Substitute parts can look different from the original.
BEST SELLER
$37.40 |
14% OFF Phone Price : $43.40
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#23

Page 1 diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$38.52 |
13% OFF Phone Price : $44.52
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Dryer Screw 131477000
#18

Page 1 diagram

Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Universal/multiflex (frigidaire) Washer Agitator (replaces 131605900) 131605901
#11

Page 5 diagram

Universal/multiflex (frigidaire) washer agitator (replaces 131605900)

Part #131605901

BEST SELLER
$120.66 |
9% OFF Phone Price : $132.66
In Stock
