Kenmore
Bottom-Mount Refrigerator

Model # 79575286400 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79575286400 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

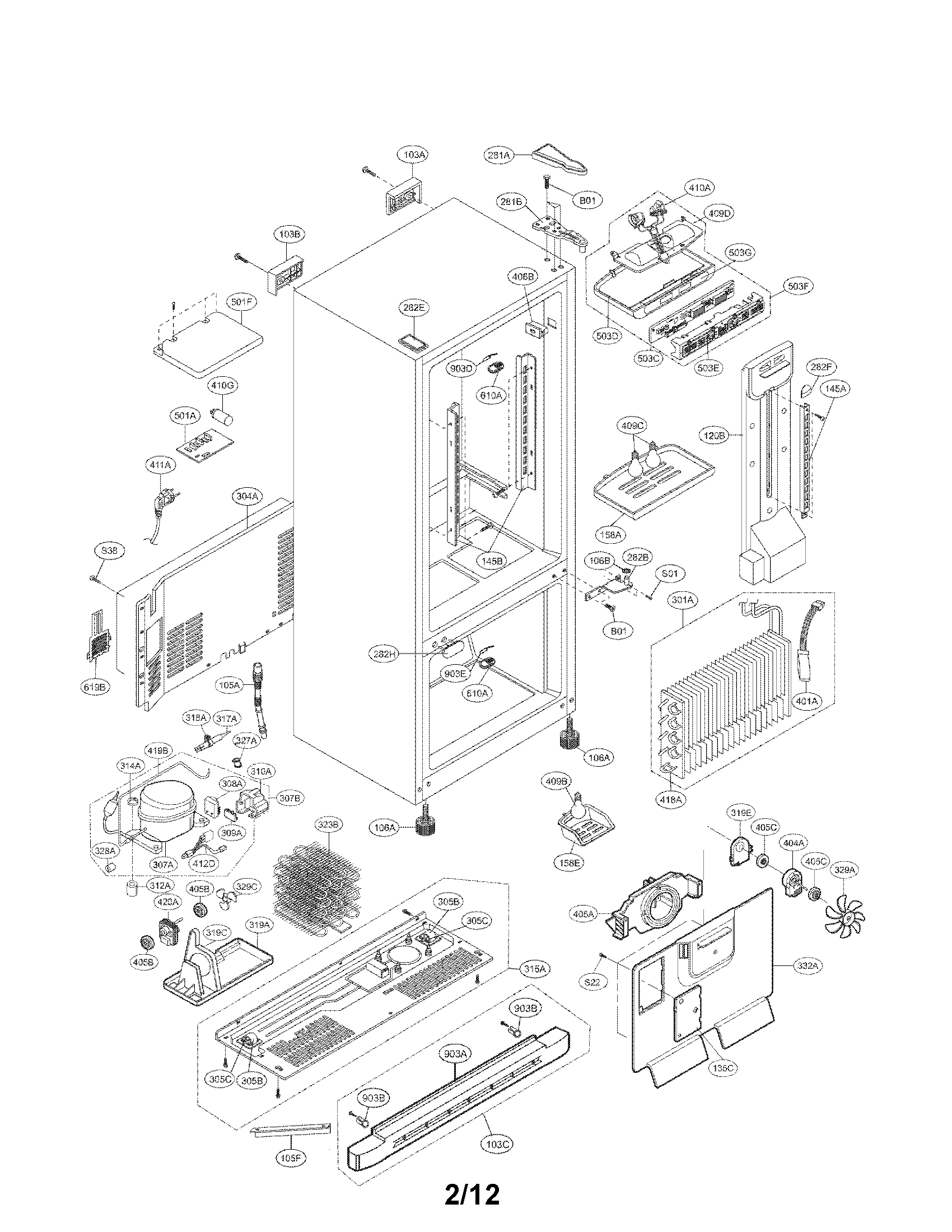

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Lg Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Lg refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Case parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Ice Maker Assembly 5989JA0002P
#600A

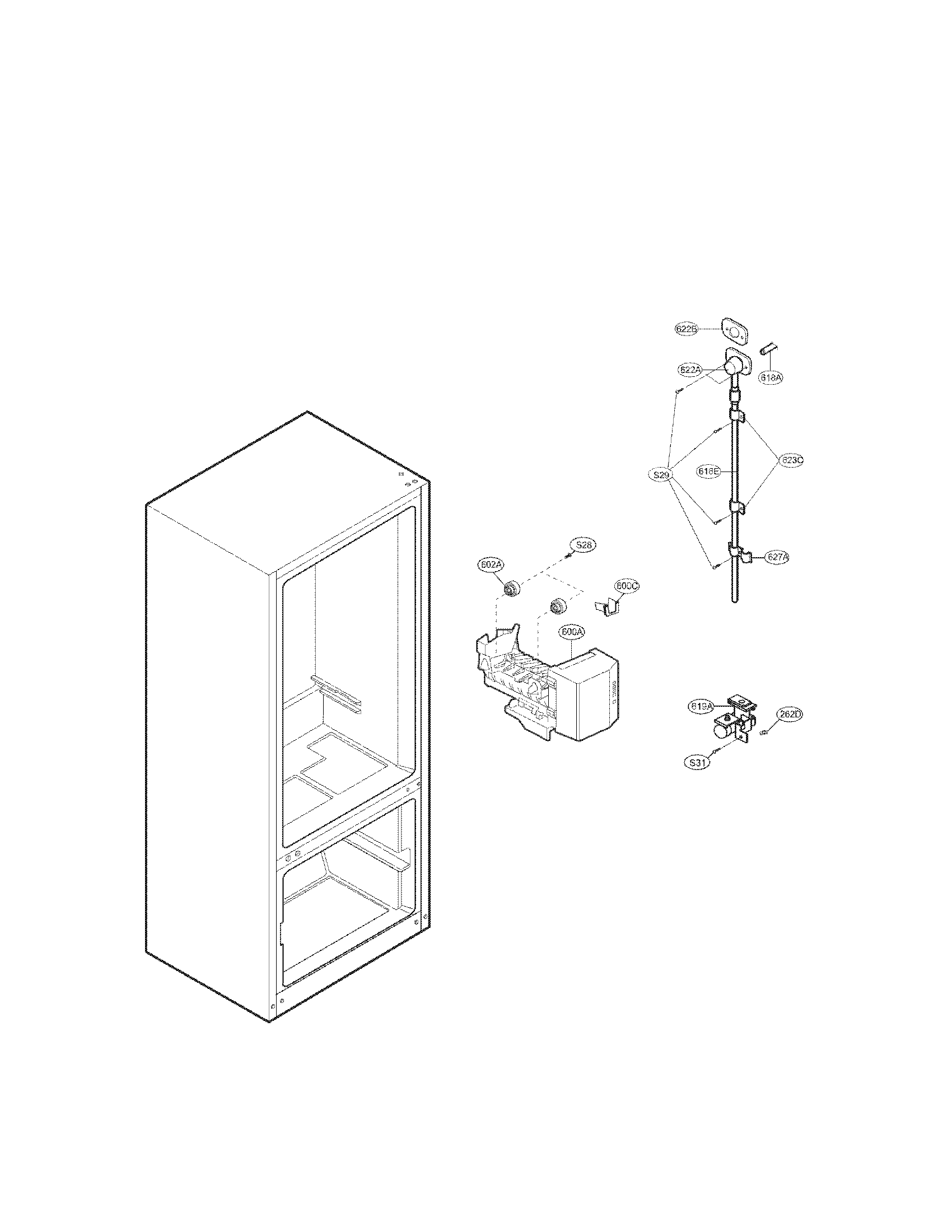

Ice maker parts diagram

Refrigerator ice maker assembly

Part #5989JA0002P

Replaced by #5989JA0002N

?
Manufacturer substitution
This part replaces 5989JA0002P. Substitute parts can look different from the original.
BEST SELLER
$214.10 |
5% OFF Phone Price : $226.10
In Stock
Compressor Support MJB61877901
#314A

Case parts diagram

Compressor support

Part #MJB61877901

Replaced by #4620JA3015A

?
Manufacturer substitution
This part replaces MJB61877901. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Compressor Start Relay 6748C-0004D
#308A

Case parts diagram

Refrigerator compressor start relay

Part #6748C-0004D

Replaced by #6749C-0014E

?
Manufacturer substitution
This part replaces 6748C-0004D. Substitute parts can look different from the original.
BEST SELLER
$28.23 |
18% OFF Phone Price : $34.23
In Stock
Refrigerator Defrost Sensor Assembly 6615JB2005C
#401A

Case parts diagram

Refrigerator defrost sensor assembly

Part #6615JB2005C

BEST SELLER
$32.15 |
16% OFF Phone Price : $38.15
In Stock
Refrigerator Light Socket (replaces 6620jk2001b, 6621jk2001b, 6621jk2002d) 6621JK2003B
#410A

Case parts diagram

Refrigerator light socket (replaces 6620jk2001b, 6621jk2001b, 6621jk2002d)

Part #6621JK2003B

Replaced by #EAG62831801

?
Manufacturer substitution
This part replaces 6621JK2003B. Substitute parts can look different from the original.
BEST SELLER
$101.04
In Stock
Refrigerator Door Gasket ADX52752609
#203A

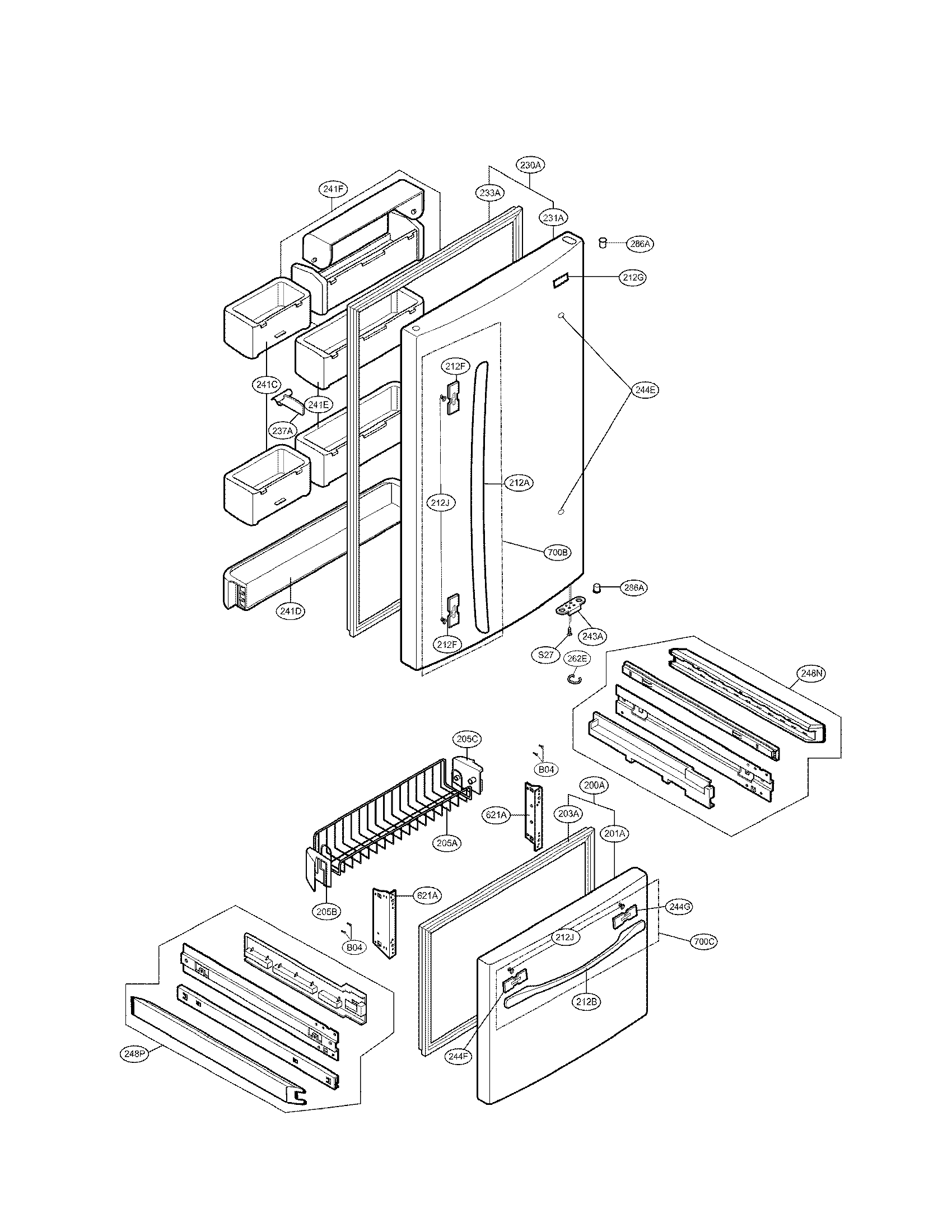

Door parts diagram

Refrigerator door gasket

Part #ADX52752609

Replaced by #ADX73350926

?
Manufacturer substitution
This part replaces ADX52752609. Substitute parts can look different from the original.
BEST SELLER
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Refrigerator Evaporator 5421JJ1001B
#301A

Case parts diagram

Refrigerator evaporator

Part #5421JJ1001B

BEST SELLER
$263.19 |
$12.00 OFF Phone Price : $275.19
In Stock
