Kenmore
Electric Range

Model # 1199028811 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 1199028811 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Block 3051098
#13

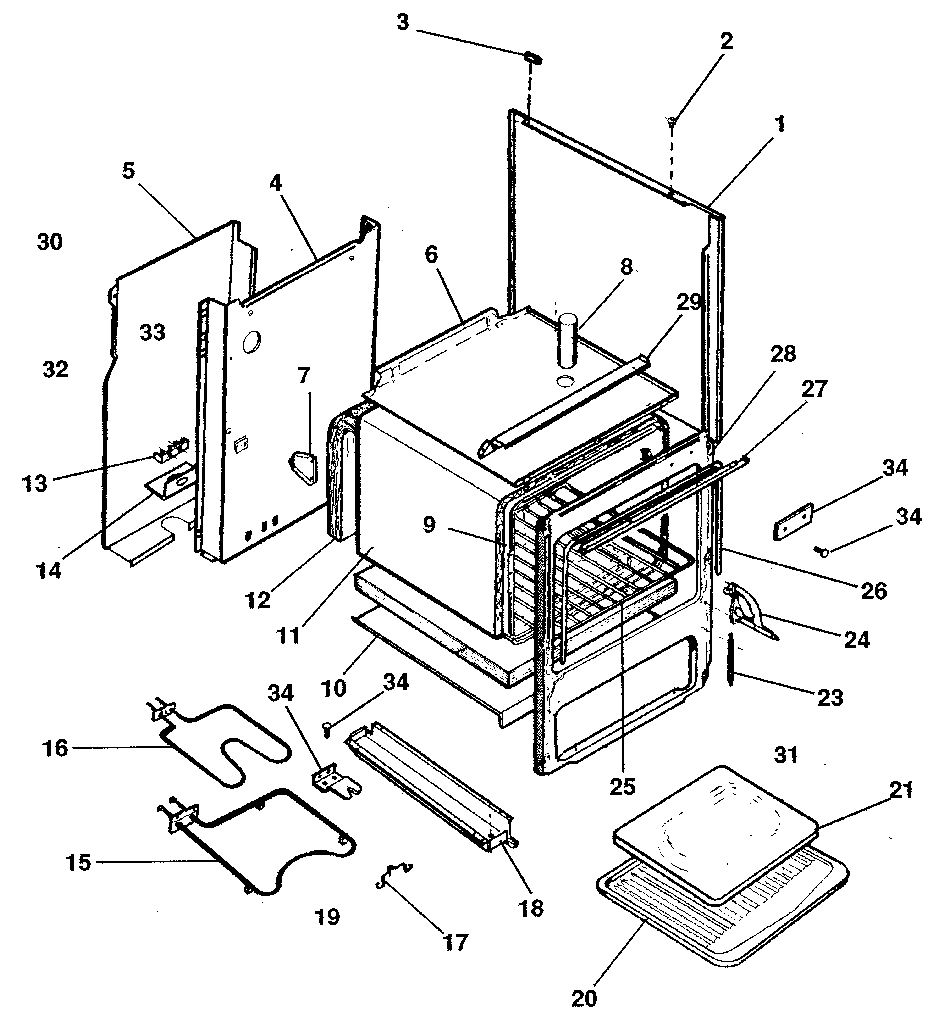

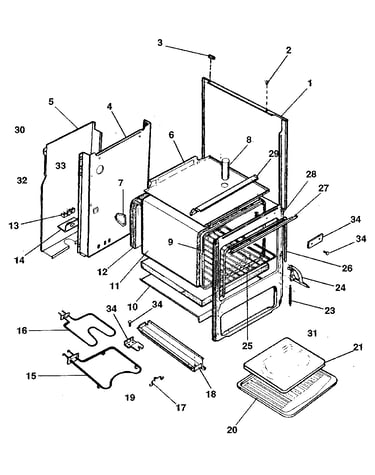

Basic body diagram

Block

Part #3051098

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 3051098. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Switch 3051032
#6

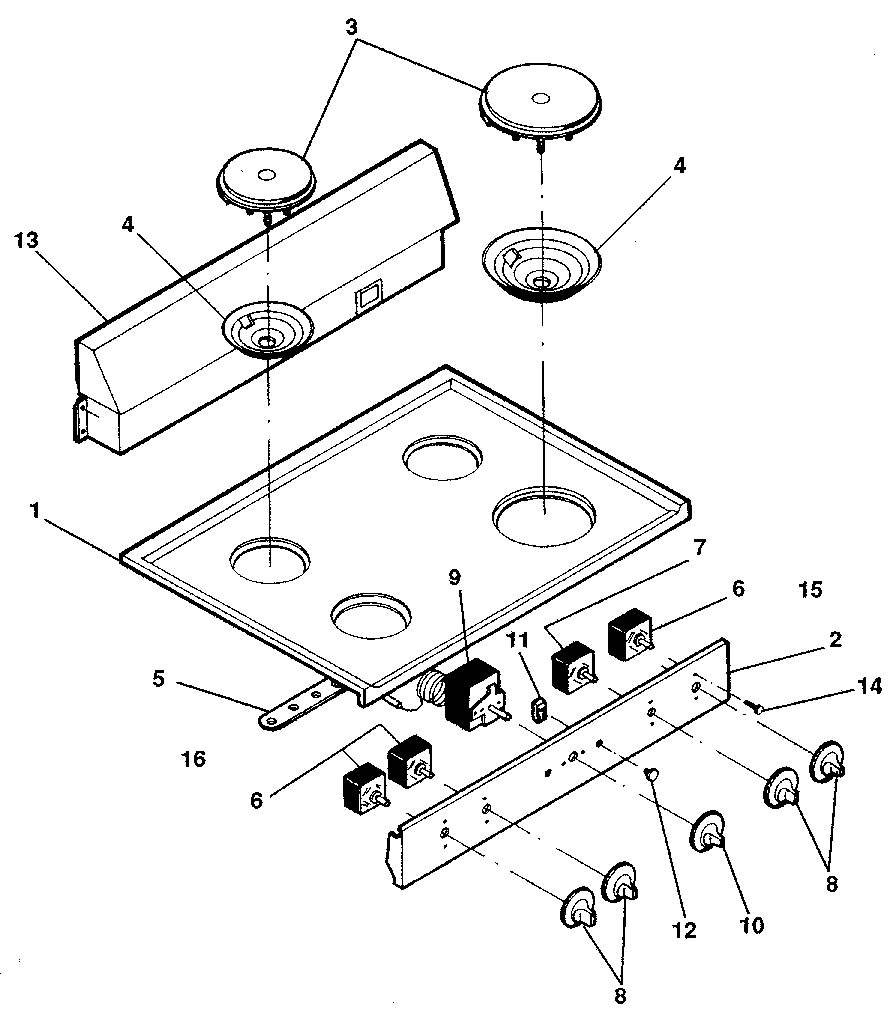

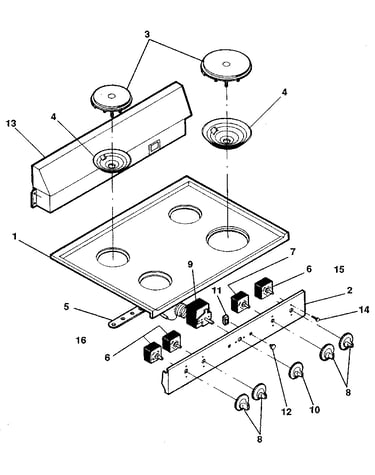

Main top diagram

Switch

Part #3051032

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051032. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Switch 3051035
#7

Main top diagram

Switch

Part #3051035

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051035. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Hinge 3051077
#24A

Basic body diagram

Hinge

Part #3051077

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3051077. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Nut 3051099
#32

Basic body diagram

Nut

Part #3051099

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3051099. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 3051043
#6

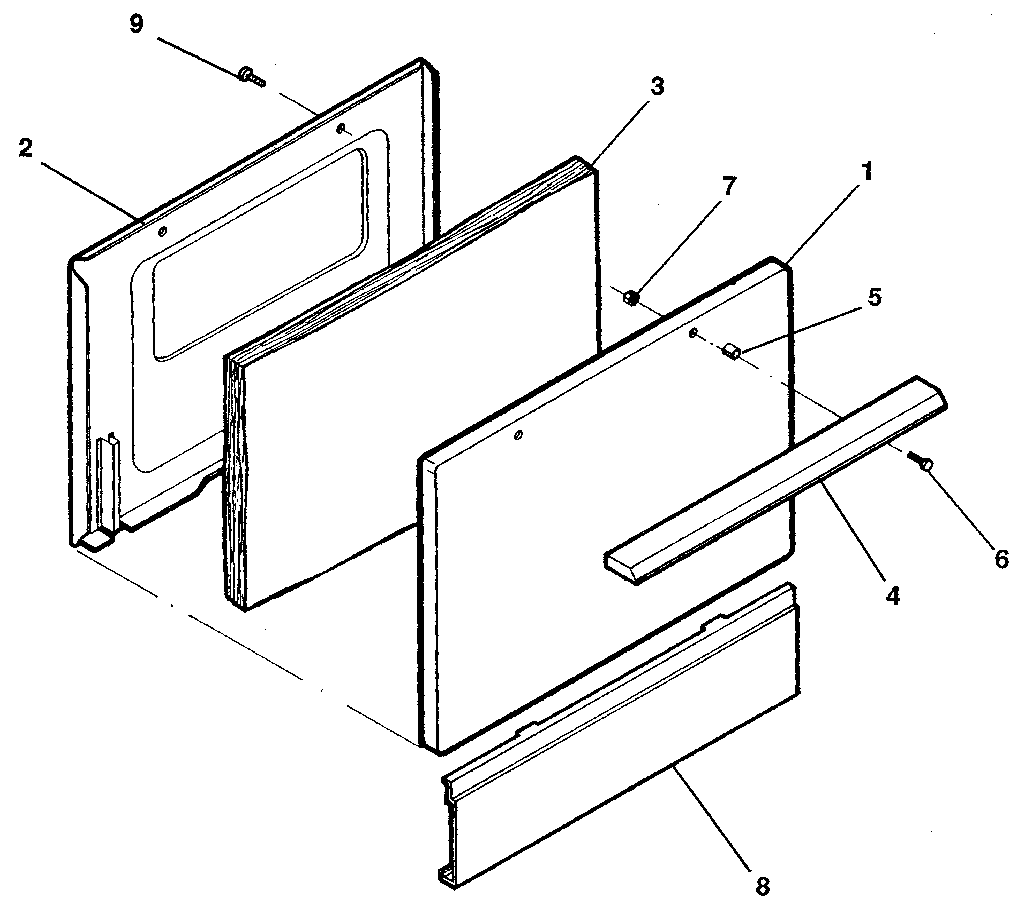

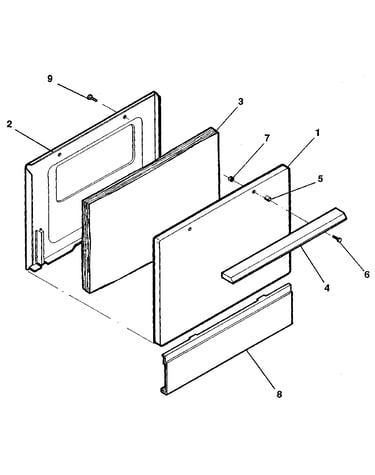

Door diagram

Screw

Part #3051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 3051043. Substitute parts can look different from the original.
$13.29
In Stock
Knob 3200539
#8

Main top diagram

Knob

Part #3200539

The manufacturer no longer makes this part, and there's no substitute part

Nut 3051038
#7

Door diagram

Nut

Part #3051038

Replaced by #3051038

?
Manufacturer substitution
This part replaces 3051038. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Screw 3051070
#31

Basic body diagram

Screw

Part #3051070

Replaced by #134154100

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
Panel 3203619
#4

Basic body diagram

Panel

Part #3203619

The manufacturer no longer makes this part, and there's no substitute part
