Kenmore
Central Air Conditioner

Model # 56561412 Official Kenmore blower-type side-discharge air cooler

Here are the diagrams and repair parts for Official Kenmore 56561412 blower-type side-discharge air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

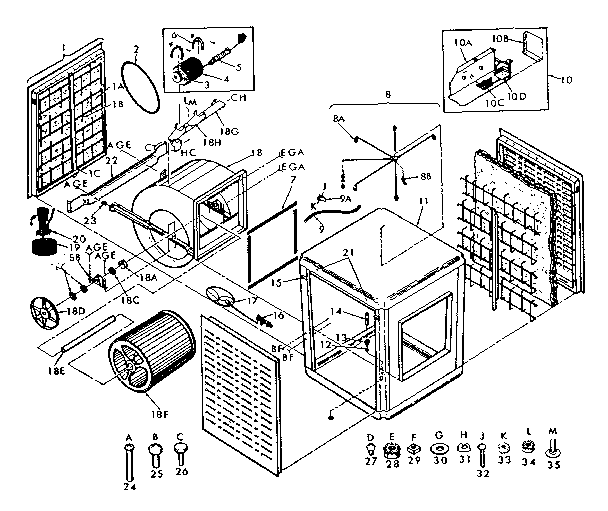

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Latch Pad P9-785-114
#15

Functional replacement parts diagram

Latch pad

Part #P9-785-114

The manufacturer no longer makes this part, and there's no substitute part

Screw P8-315
#27

Functional replacement parts diagram

Screw

Part #P8-315

The manufacturer no longer makes this part, and there's no substitute part

Motor P11-203T
#4A

Functional replacement parts diagram

Motor

Part #P11-203T

The manufacturer no longer makes this part, and there's no substitute part

Cord P2-911
#5B

Functional replacement parts diagram

Cord

Part #P2-911

The manufacturer no longer makes this part, and there's no substitute part

Shaft M8-136-2
#18EA

Functional replacement parts diagram

Shaft

Part #M8-136-2

The manufacturer no longer makes this part, and there's no substitute part

Connector P9-227
#8B

Functional replacement parts diagram

Connector

Part #P9-227

The manufacturer no longer makes this part, and there's no substitute part

Check Clamp A4-302
#9A

Functional replacement parts diagram

Check clamp

Part #A4-302

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2-905
#10C

Functional replacement parts diagram

Receptacle

Part #P2-905

The manufacturer no longer makes this part, and there's no substitute part

565.61412 565.61422 565.61432 565.61442 P5-109(3.75)
#3B

Functional replacement parts diagram

565.61412 565.61422 565.61432 565.61442

Part #P5-109(3.75)

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2-907
#10D

Functional replacement parts diagram

Receptacle

Part #P2-907

The manufacturer no longer makes this part, and there's no substitute part
