Model # GNE29GSHESS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GNE29GSHESS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

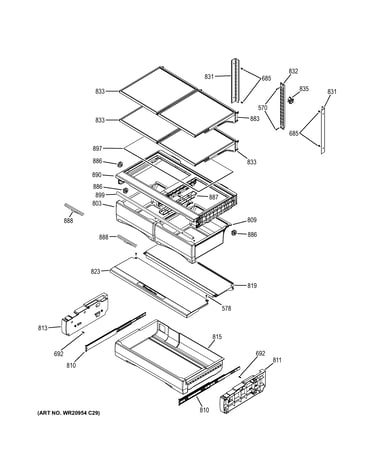

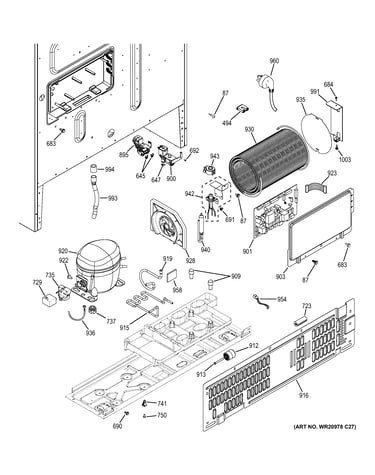

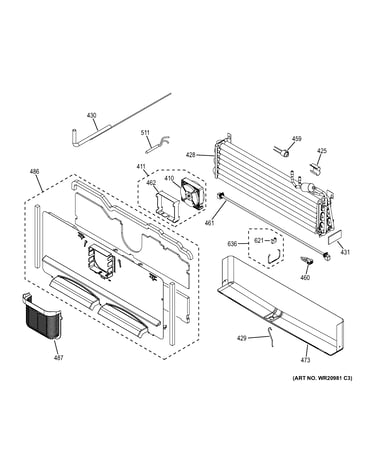

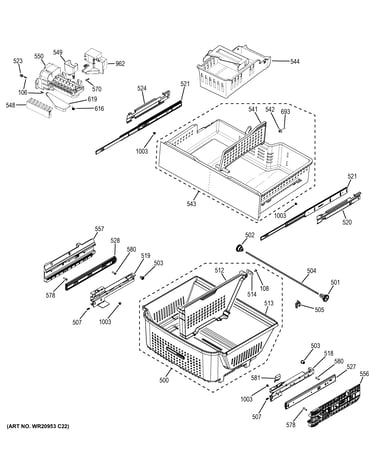

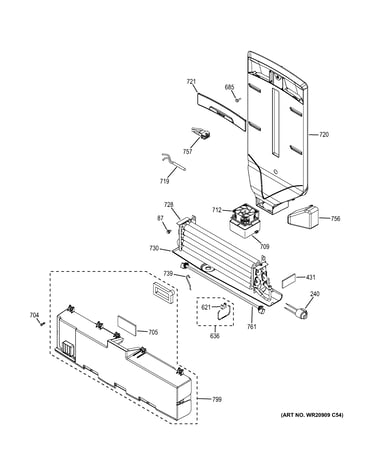

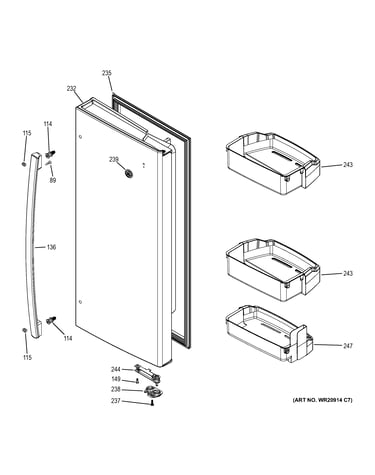

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Ge Refrigerator Water Filter (replaces Rpwf) RPWFE
#NI

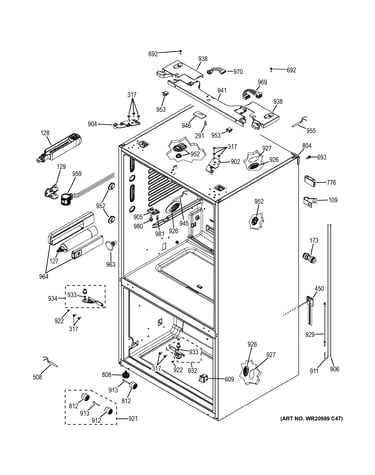

Case parts diagram

Ge refrigerator water filter (replaces rpwf)

Part #RPWFE

BEST SELLER

Get free shipping with Automatic Reorder

$54.99
In Stock
Refrigerator Freezer Door Gasket WR14X10376
#312

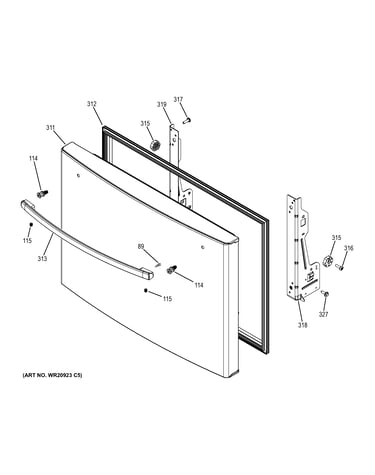

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X10376

Replaced by #WR14X36194

?
Manufacturer substitution
This part replaces WR14X10376. Substitute parts can look different from the original.
BEST SELLER
$59.85 |
9% OFF Phone Price : $65.85
In Stock
Refrigerator Door Handle (replaces Wr12x11015) WR12X23646
#313

Freezer door diagram

Refrigerator door handle (replaces wr12x11015)

Part #WR12X23646

$87.52 |
6% OFF Phone Price : $93.52
In Stock
Refrigerator User Interface WR55X22124
#195

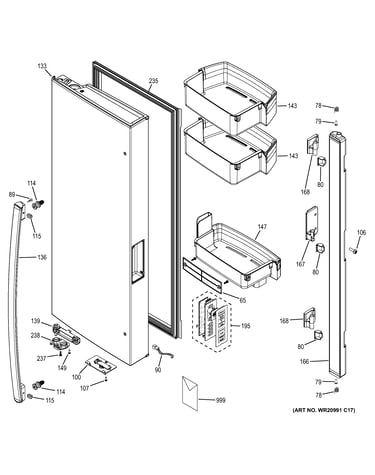

Fresh food door - lh diagram

Refrigerator user interface

Part #WR55X22124

Replaced by #WR55X39248

?
Manufacturer substitution
This part replaces WR55X22124. Substitute parts can look different from the original.
$109.67
In Stock
Hinge End Cap WR17X20164
#938

Case parts diagram

Hinge end cap

Part #WR17X20164

$53.20 |
10% OFF Phone Price : $59.20
In Stock
Top Cover Mi WR17X13217
#941

Case parts diagram

Top cover mi

Part #WR17X13217

$34.89 |
15% OFF Phone Price : $40.89
In Stock
Refrigerator Door Handle WR12X23647
Refrigerator door handle

Part #WR12X23647

$90.01 |
6% OFF Phone Price : $96.01
In Stock
Refrigerator Dispenser Ice Chute Door Motor WR60X10344
#143

Fresh food door - lh diagram

Refrigerator dispenser ice chute door motor

Part #WR60X10344

$58.11 |
9% OFF Phone Price : $64.11
In Stock
Refrigerator Flipper Assembly (replaces Wr17x13116, Wr17x13136, Wr17x32037) WR17X13240
#166

Fresh food door - lh diagram

Refrigerator flipper assembly (replaces wr17x13116, wr17x13136, wr17x32037)

Part #WR17X13240

$129.88 |
8% OFF Phone Price : $141.88
In Stock
Cap Case Cor WR02X13759
#804

Case parts diagram

Cap case cor

Part #WR02X13759

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
