Craftsman
Power Sander

Model # 315277171 Official Craftsman professional random orbit sander

Here are the diagrams and repair parts for Official Craftsman 315277171 professional random orbit sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Bag Cap 970214-000
#6

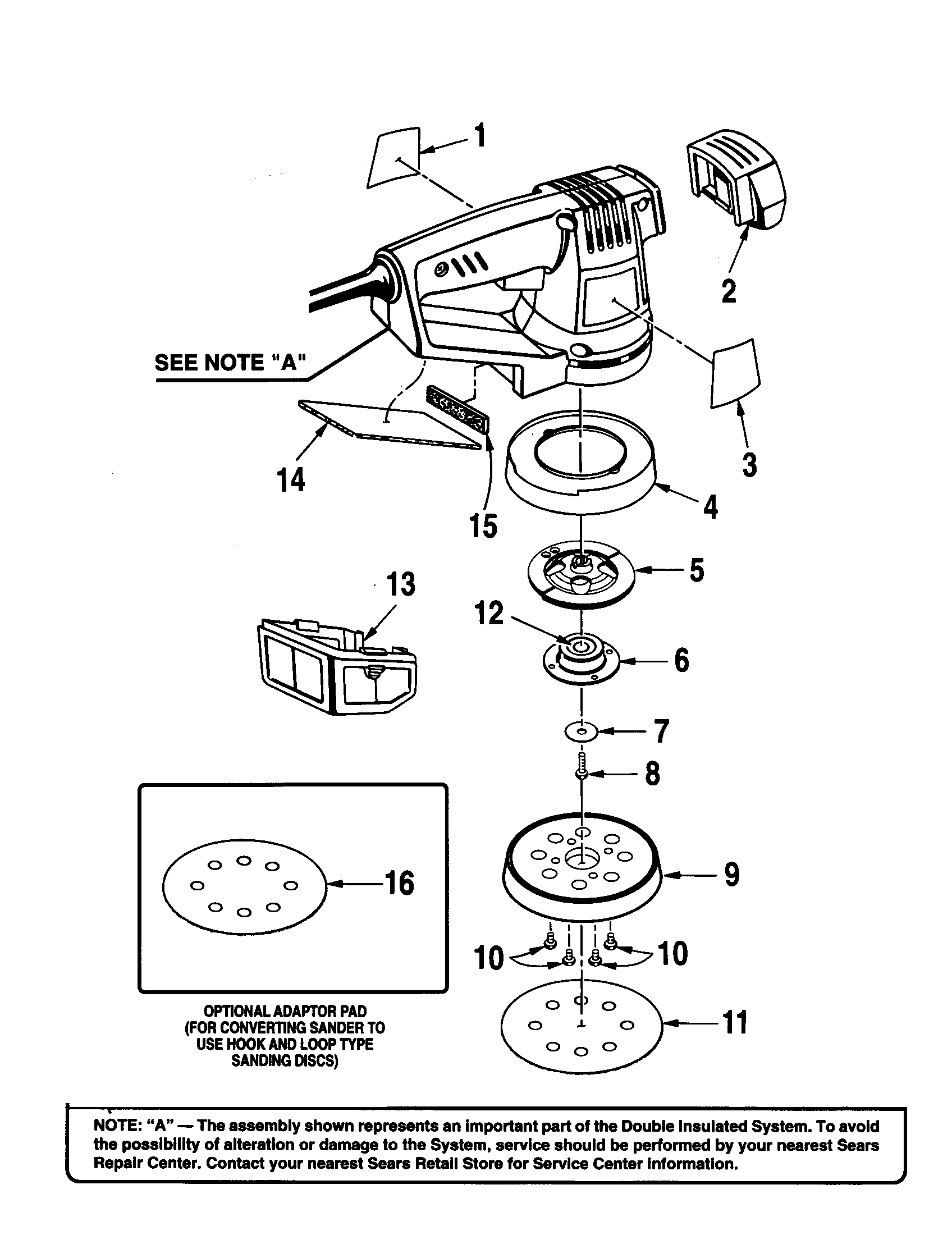

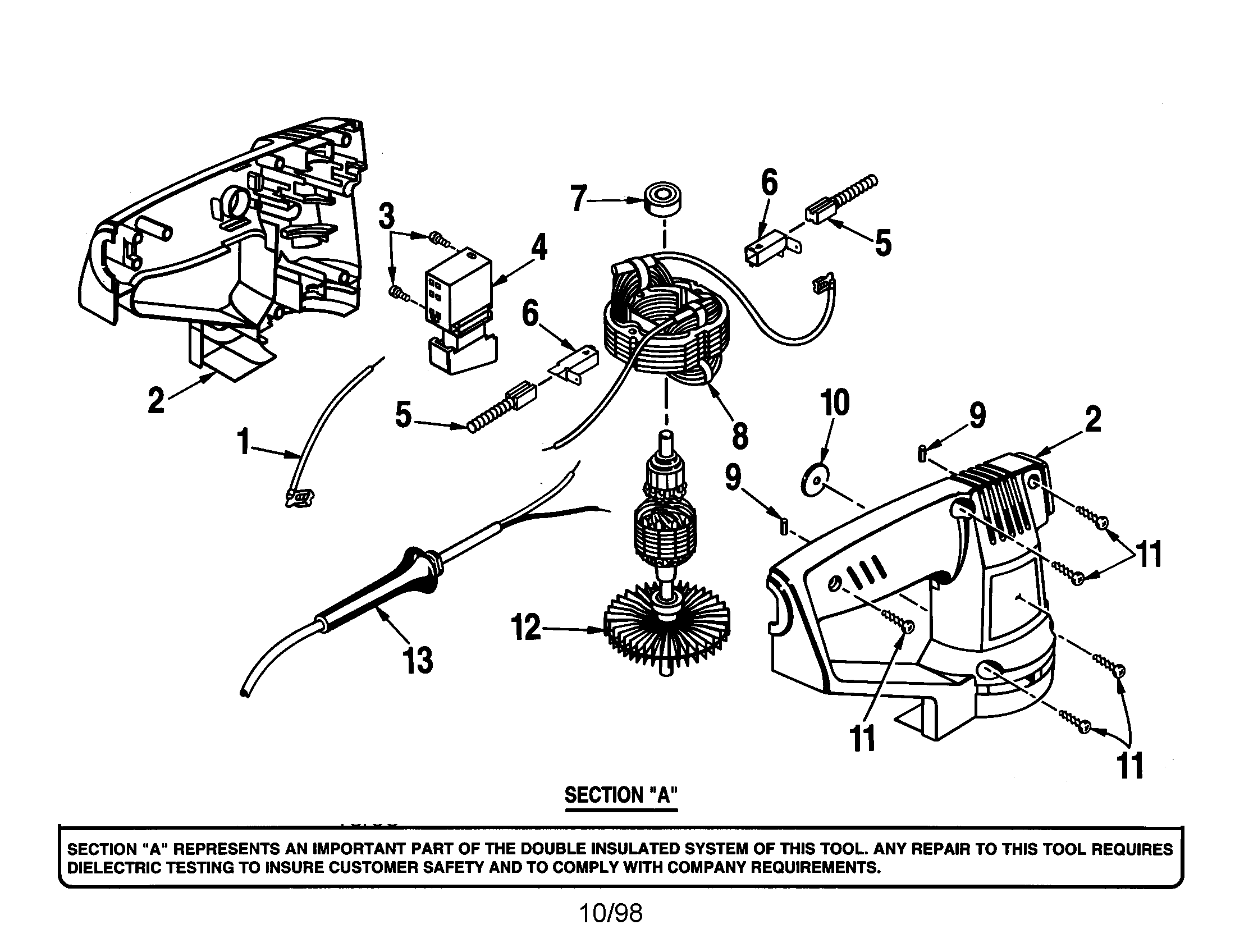

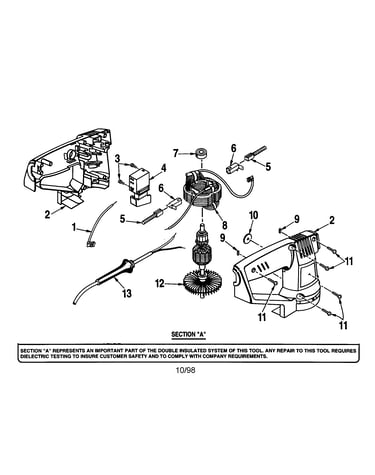

Random orbit sander diagram

Bag cap

Part #970214-000

The manufacturer no longer makes this part, and there's no substitute part

Skirt 973713-001
#4

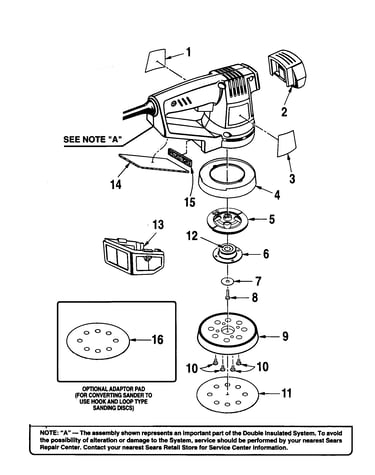

Random orbit sander diagram

Skirt

Part #973713-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 703493-818
#7

Random orbit sander diagram

Washer

Part #703493-818

The manufacturer no longer makes this part, and there's no substitute part

Screw (#6-19 X 3/4 In Pan Hd)(standard Hardware Item-may Be Purchased Locally) 968700-001
#11

Random orbit sander diagram

Screw (#6-19 x 3/4 in pan hd)(standard hardware item-may be purchased locally)

Part #968700-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 979857-001
#1

Random orbit sander diagram

Logo plate

Part #979857-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 969649-001
#8

Random orbit sander diagram

Screw

Part #969649-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 979859-001
#3

Random orbit sander diagram

Data plate

Part #979859-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Brush 610784-053
#5

Random orbit sander diagram

Sander motor brush

Part #610784-053

The manufacturer no longer makes this part, and there's no substitute part

Gasket 969896-001
#15

Random orbit sander diagram

Gasket

Part #969896-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Backing Pad 973709-001
#9

Random orbit sander diagram

Sander backing pad

Part #973709-001

The manufacturer no longer makes this part, and there's no substitute part
