Kenmore
Top-Mount Refrigerator

Model # 3639656686 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 3639656686 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

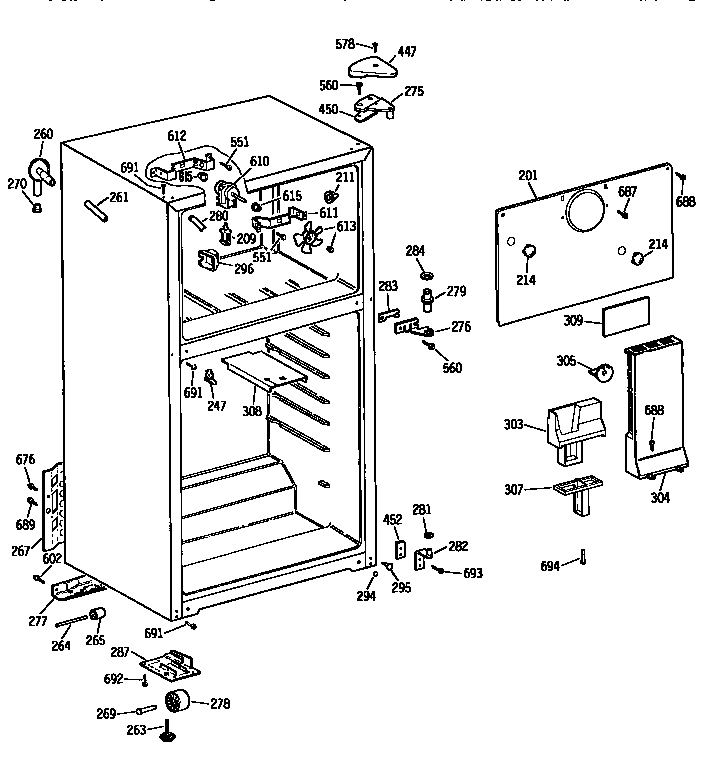

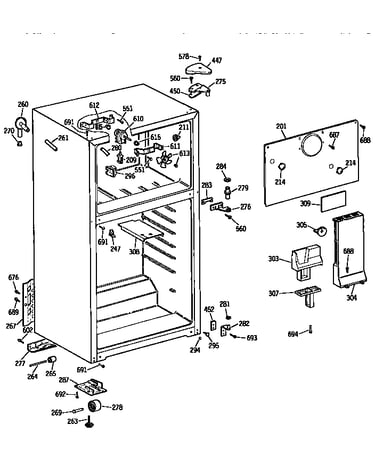

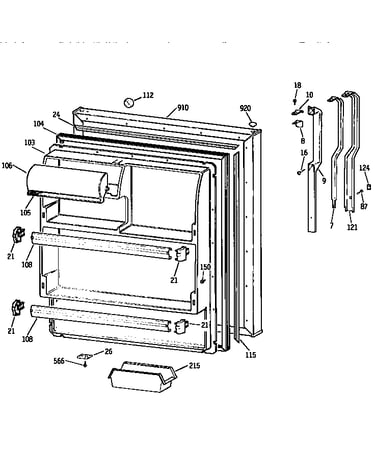

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Dryer Filter WR86X0096
#740

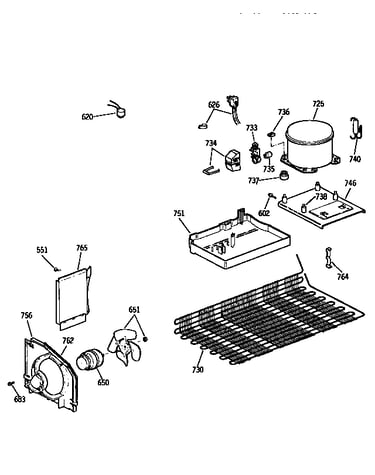

Unit diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

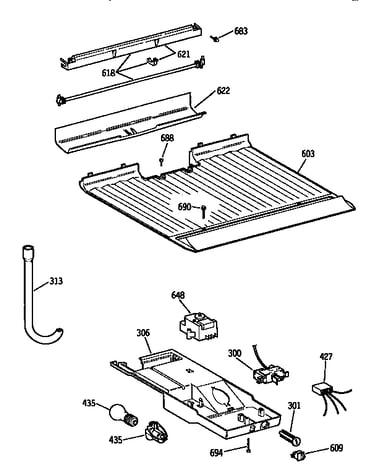

Freezer floor and control diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Comp Repl Kt WR87X0473
#725

Unit diagram

Comp repl kt

Part #WR87X0473

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X0473. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Refrigerator Gasket WR24X0524
#23

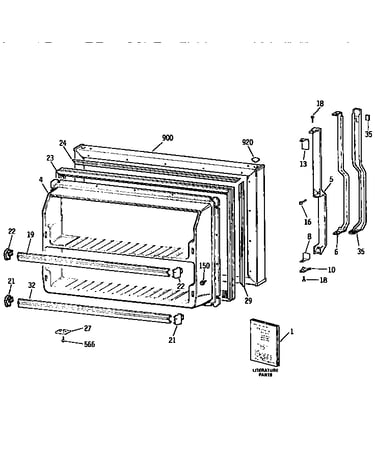

Freezer door diagram

Refrigerator gasket

Part #WR24X0524

Replaced by #WR24X10228

?
Manufacturer substitution
This part replaces WR24X0524. Substitute parts can look different from the original.
$68.92 |
8% OFF Phone Price : $74.92
In Stock
Sckt & Term. WR02X7270
#435A

Freezer floor and control diagram

Sckt & term.

Part #WR02X7270

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X7270. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Light Switch WR23X0193
#609

Freezer floor and control diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X0108
#626A

Unit diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Relay WR07X0214
#733

Unit diagram

Refrigerator relay

Part #WR07X0214

Replaced by #WR07X26748

?
Manufacturer substitution
This part replaces WR07X0214. Substitute parts can look different from the original.
This item is not returnable
$13.37 |
13% OFF Phone Price : $15.37
In Stock
Refrigerator Shelf Cap WR02X7975
Refrigerator shelf cap

Part #WR02X7975

Replaced by #WR2X7975

?
Manufacturer substitution
This part replaces WR02X7975. Substitute parts can look different from the original.
$24.04 |
20% OFF Phone Price : $30.04
In Stock
Refrigerator Deli Drawer WR32X1448
#236

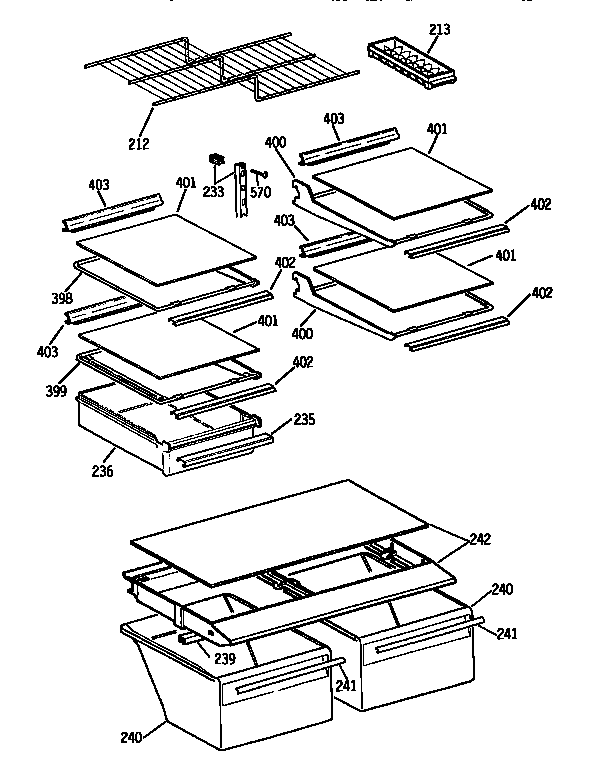

Shelf diagram

Refrigerator deli drawer

Part #WR32X1448

$75.76 |
7% OFF Phone Price : $81.76
In Stock
