Model # 502455590 Official Sears 24" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502455590 24" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

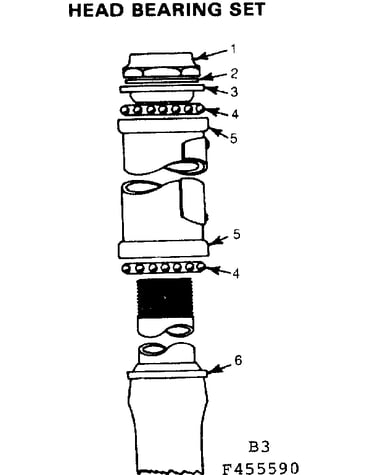

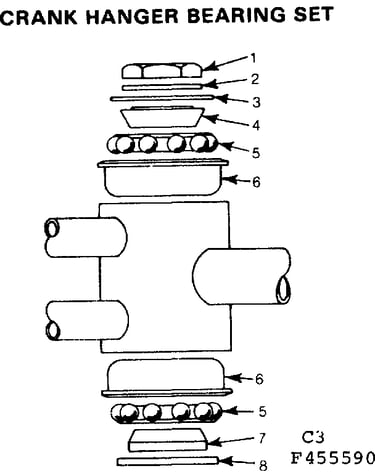

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Brake Shoe 308697
#6

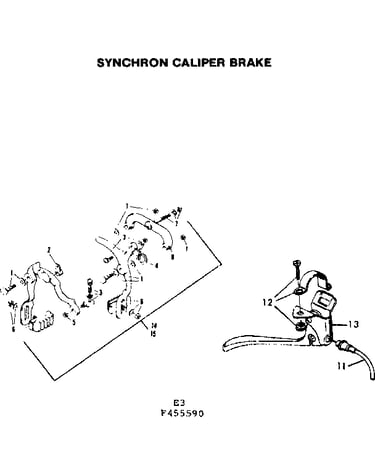

Synchron caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 300424
#48C

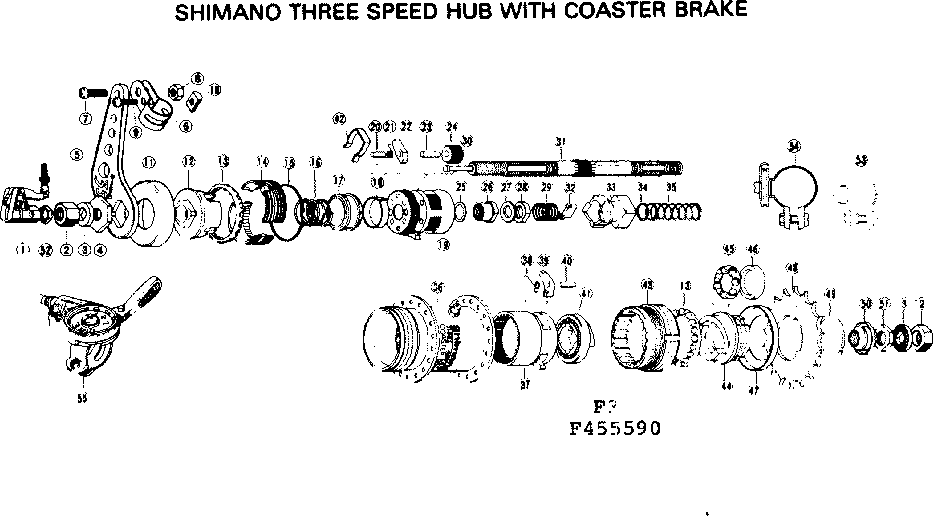

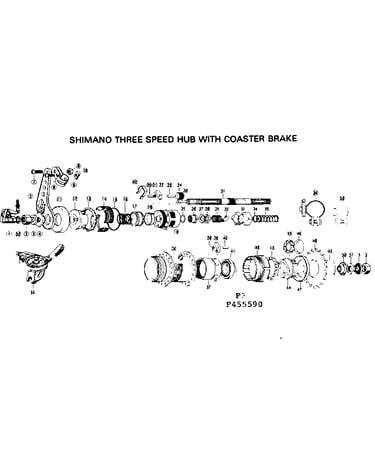

Shimano three speed hub with coaster brake diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

#NI

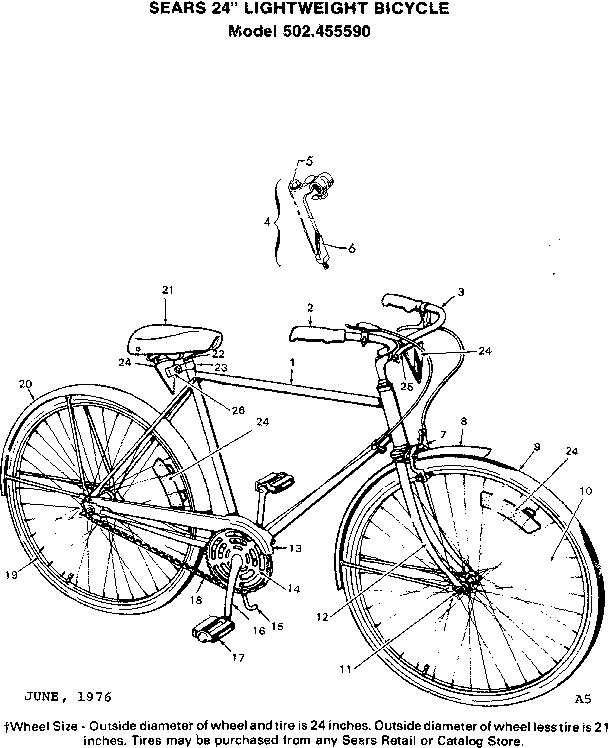

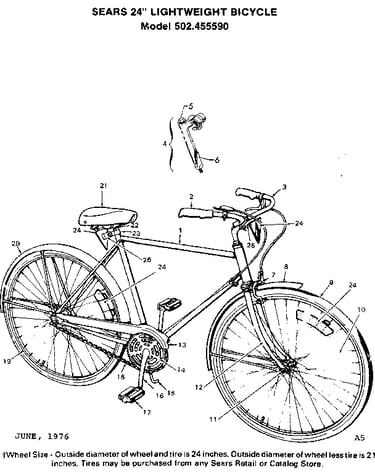

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Fr Cal Brake 28772PA
Fr cal brake

Part #28772PA

The manufacturer no longer makes this part, and there's no substitute part

Washer 300730
#34

Shimano three speed hub with coaster brake diagram

Washer

Part #300730

The manufacturer no longer makes this part, and there's no substitute part

Screw W/nut 304549
#1

Synchron caliper brake diagram

Screw w/nut

Part #304549

The manufacturer no longer makes this part, and there's no substitute part

Brake Cone 300711
#12

Shimano three speed hub with coaster brake diagram

Brake cone

Part #300711

The manufacturer no longer makes this part, and there's no substitute part

Axle Nut 3/8 300701
#2

Shimano three speed hub with coaster brake diagram

Axle nut 3/8

Part #300701

The manufacturer no longer makes this part, and there's no substitute part

Rturn Spring 300714
#16

Shimano three speed hub with coaster brake diagram

Rturn spring

Part #300714

The manufacturer no longer makes this part, and there's no substitute part

Axle Key 300728
#32

Shimano three speed hub with coaster brake diagram

Axle key

Part #300728

The manufacturer no longer makes this part, and there's no substitute part
