Model # FEB500BAB3 Official Frigidaire electric wall oven - 5995238879
Here are the diagrams and repair parts for Official Frigidaire FEB500BAB3 electric wall oven - 5995238879, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

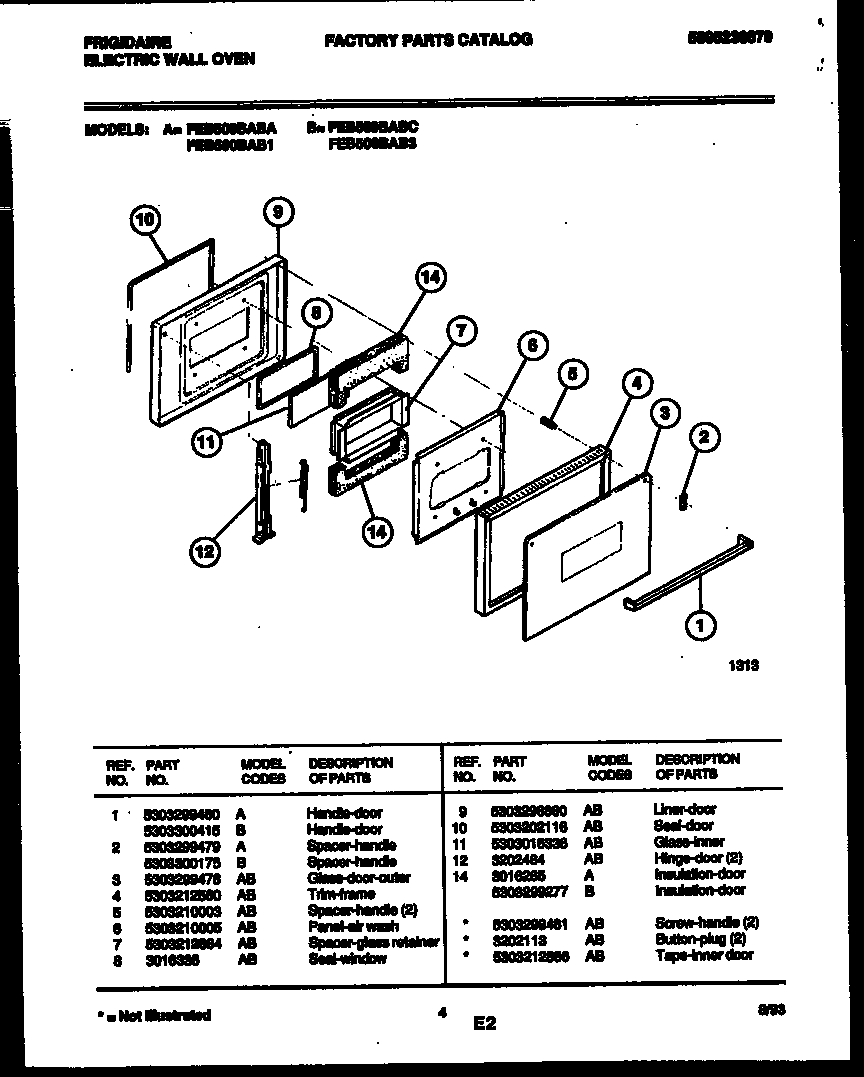

SELECT DIAGRAM
Browse Parts forFEB500BAB3 Wall Ovens
- #4

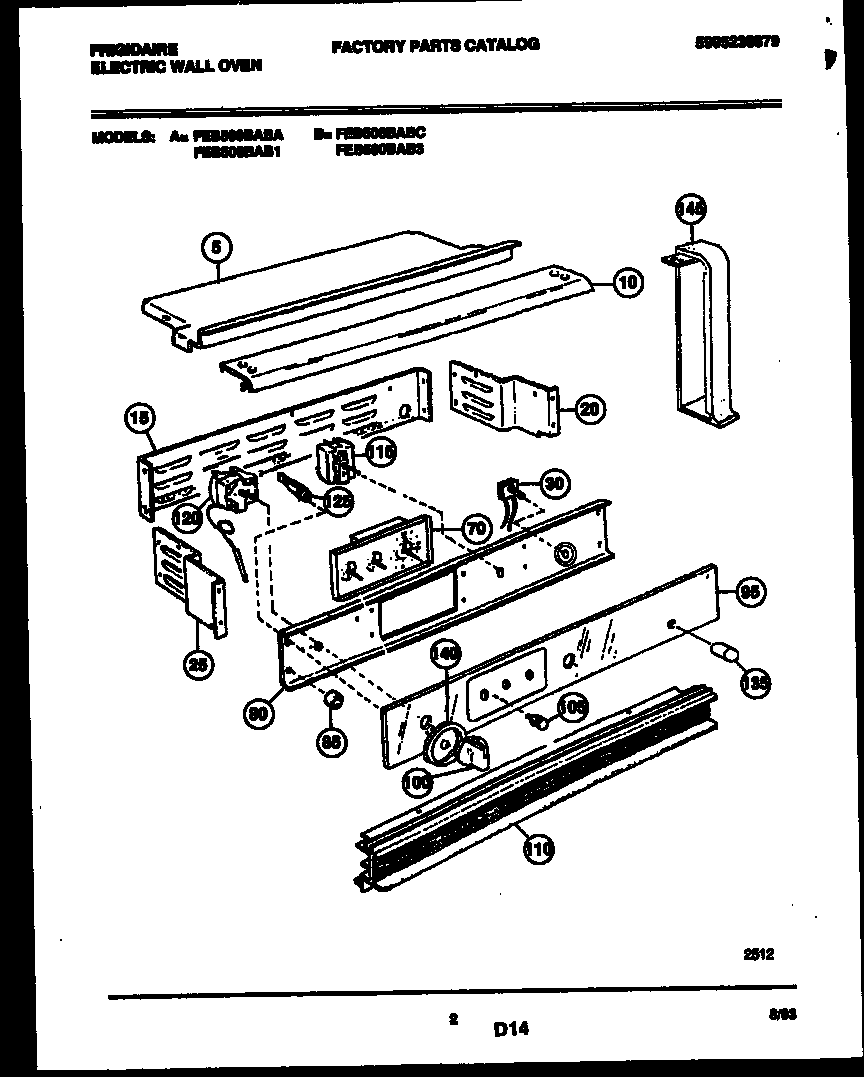

Body parts diagram
BulbPart #3201908
Replaced by #316538904
?Manufacturer substitutionThis part replaces 3201908. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #19

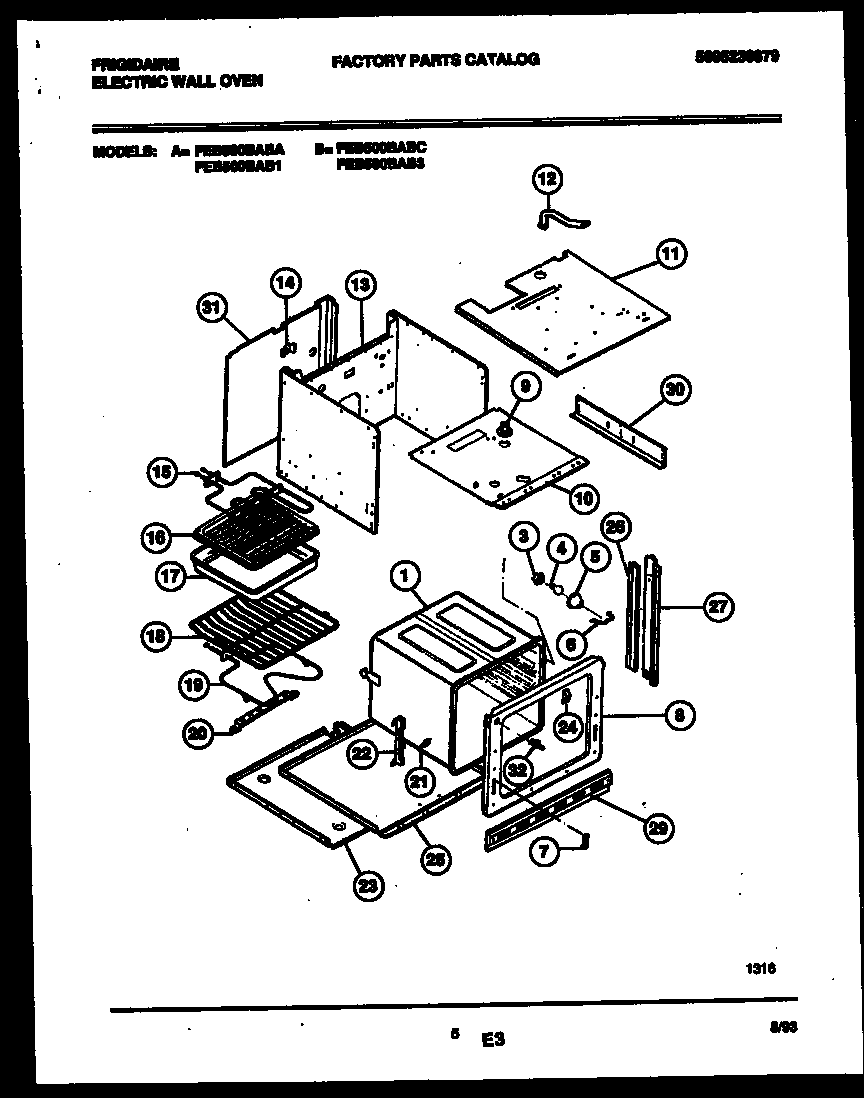

Body parts diagram
ElementPart #3202440
Replaced by #318255101
?Manufacturer substitutionThis part replaces 3202440. Substitute parts can look different from the original.$117.96 |9% OFF Phone Price : $129.96In Stock - #5
Body parts diagram
CoverPart #3201911
Replaced by #5304524341
?Manufacturer substitutionThis part replaces 3201911. Substitute parts can look different from the original.$15.61 |11% OFF Phone Price : $17.61In Stock - #15
Body parts diagram
Range broil elementPart #5303016247
$168.18 |7% OFF Phone Price : $180.18In Stock #NI
All parts diagram
Range oven control thermostat bulb clipPart #5303284616
This item is not returnable$9.63 |9% OFF Phone Price : $10.63In Stock#NI
All parts diagram
BlockPart #5306563359
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5306563359. Substitute parts can look different from the original.$22.93 |21% OFF Phone Price : $28.93In Stock- #18
Body parts diagram
Oven rackPart #5303296873
Replaced by #318345216
?Manufacturer substitutionThis part replaces 5303296873. Substitute parts can look different from the original.$79.78 |7% OFF Phone Price : $85.78In Stock - #30
Body parts diagram
Adjustment supportPart #5303299686
Replaced by #318284201
?Manufacturer substitutionThis part replaces 5303299686. Substitute parts can look different from the original.$81.43In Stock - #32
Body parts diagram
Wall oven door switchPart #5301314211
The manufacturer no longer makes this part, and there's no substitute part
- #15
Control panel diagram
Panel-rear hPart #5303300409
The manufacturer no longer makes this part, and there's no substitute part
