Samsung
Digital Camcorder

Model # SMXF40RN/XAA Official Samsung camcorder

Here are the diagrams and repair parts for Official Samsung SMXF40RN-XAA camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

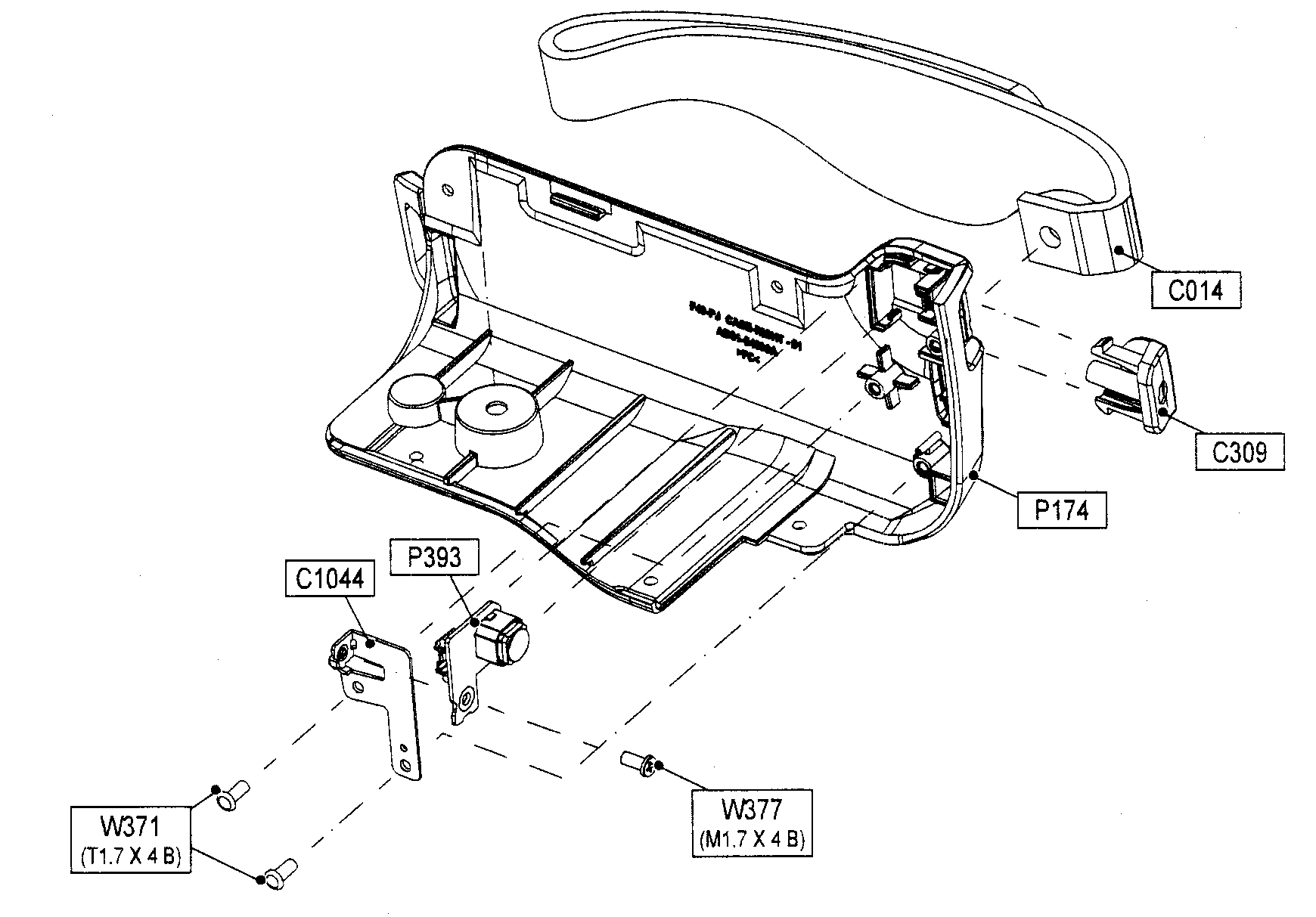

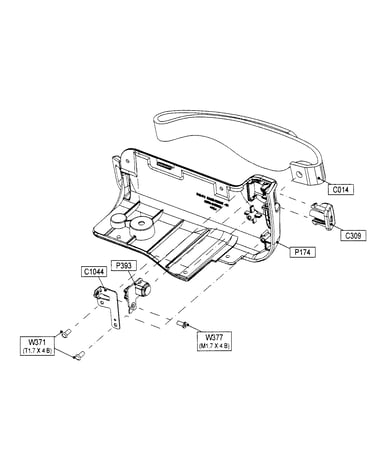

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

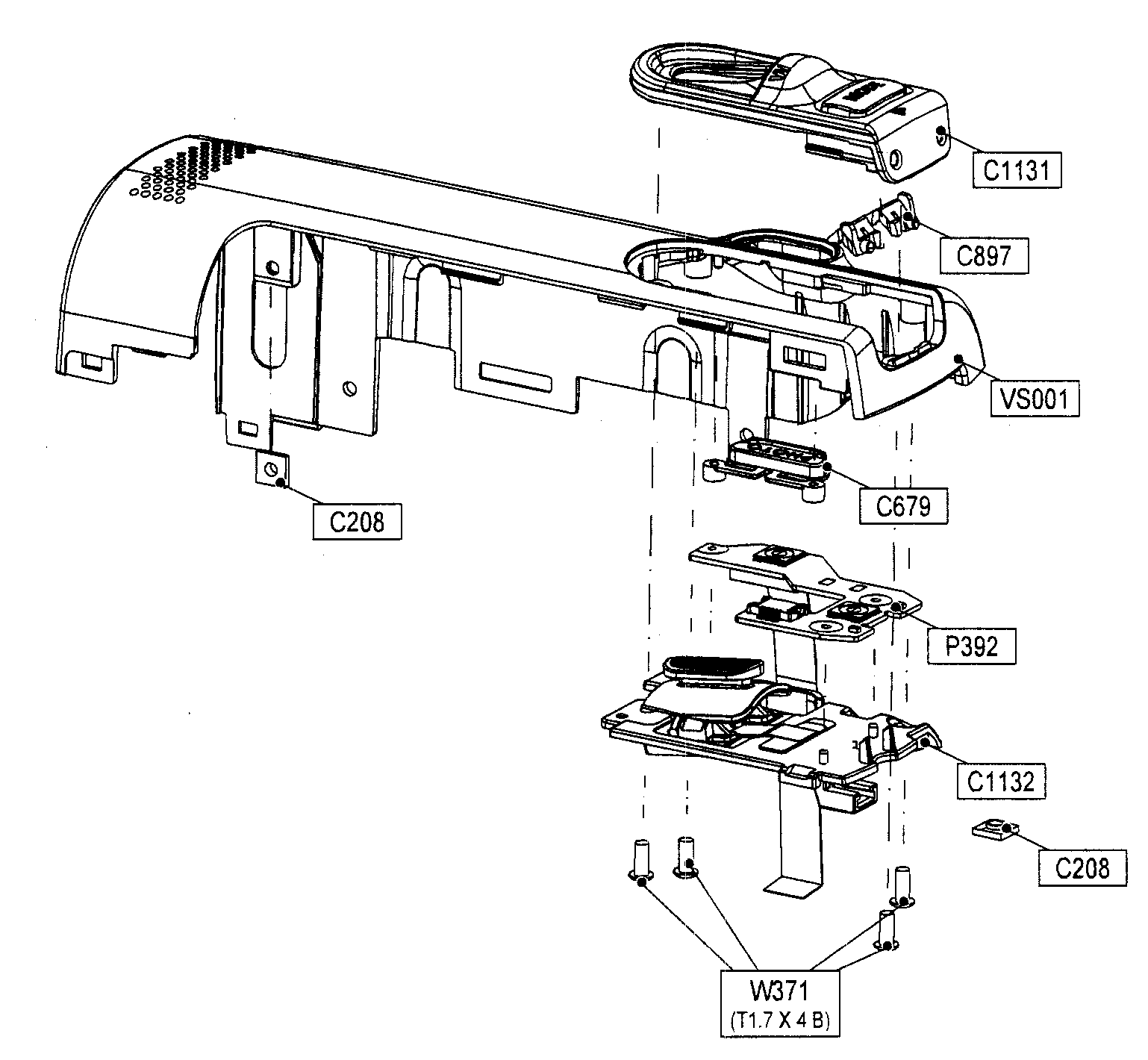

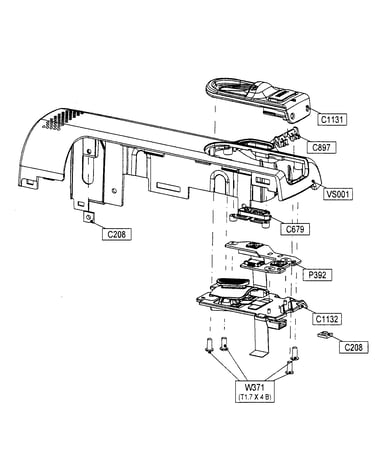

Bracket-nu AD61-12033A
#C208

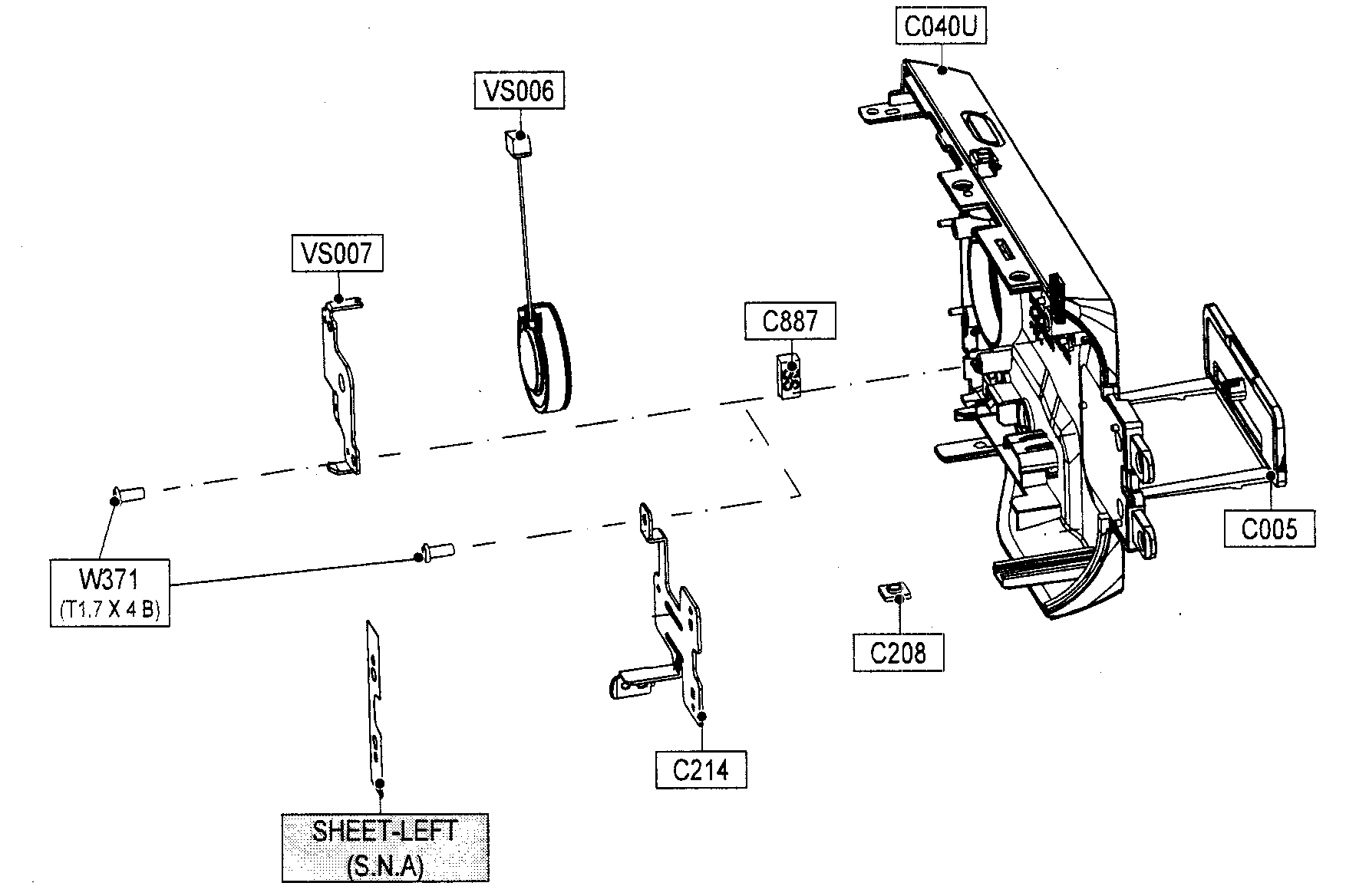

Left case diagram

Bracket-nu

Part #AD61-12033A

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Usb Cable AD39-00169A
#NI

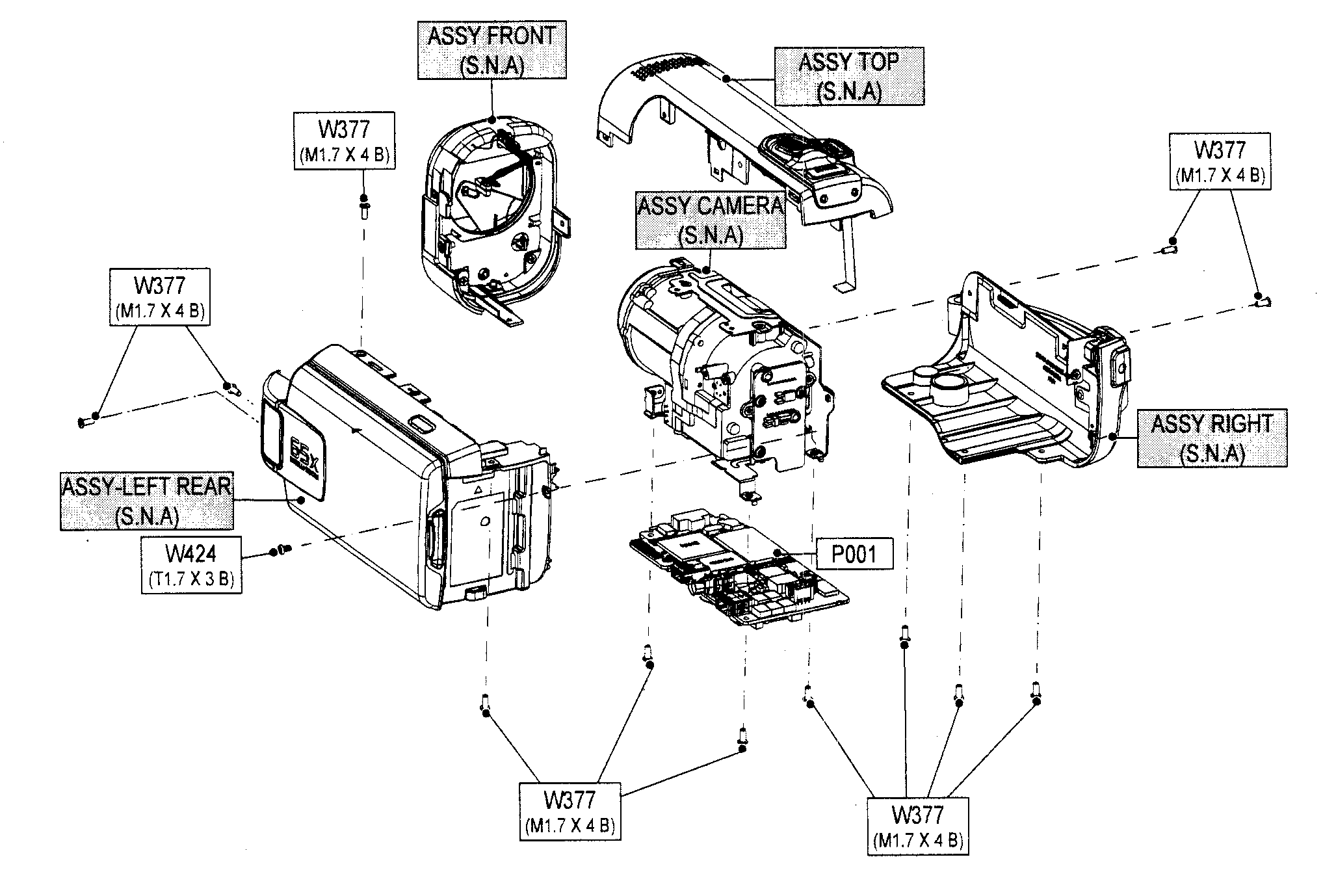

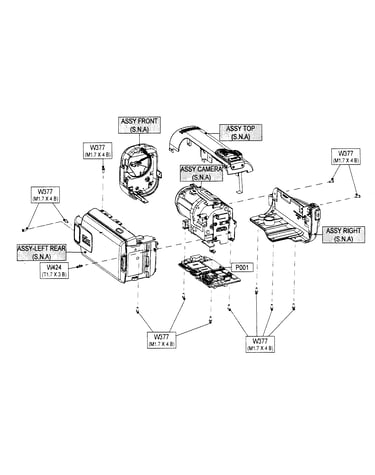

Chassis assy diagram

Camcorder usb cable

Part #AD39-00169A

The manufacturer no longer makes this part, and there's no substitute part

Lens Assembly AD97-18638A
#P259

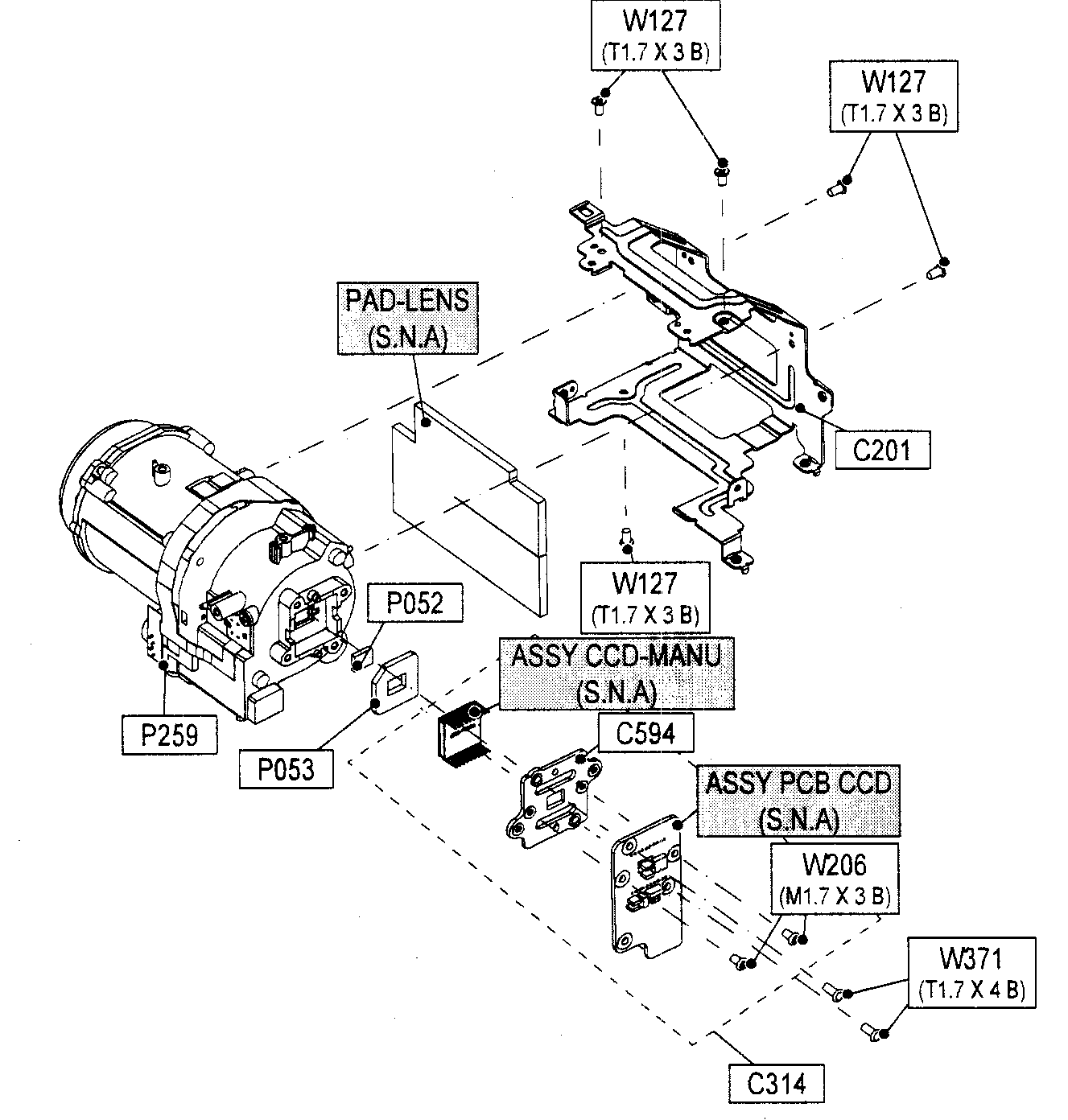

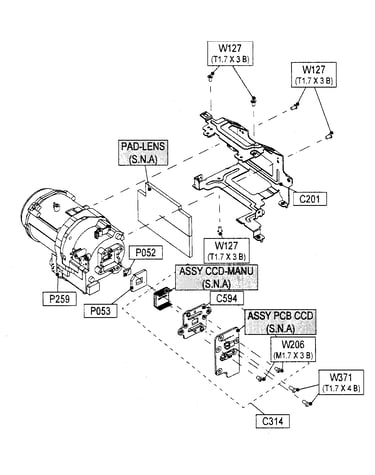

Lens assy diagram

Lens assembly

Part #AD97-18638A

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Plate AD61-02368A
#C594

Lens assy diagram

Camcorder plate

Part #AD61-02368A

The manufacturer no longer makes this part, and there's no substitute part

Li-ion Battery 4302-001225
#NI

Chassis assy diagram

Li-ion battery

Part #4302-001225

The manufacturer no longer makes this part, and there's no substitute part

Microphone Assembly AD97-18174A
#VS50

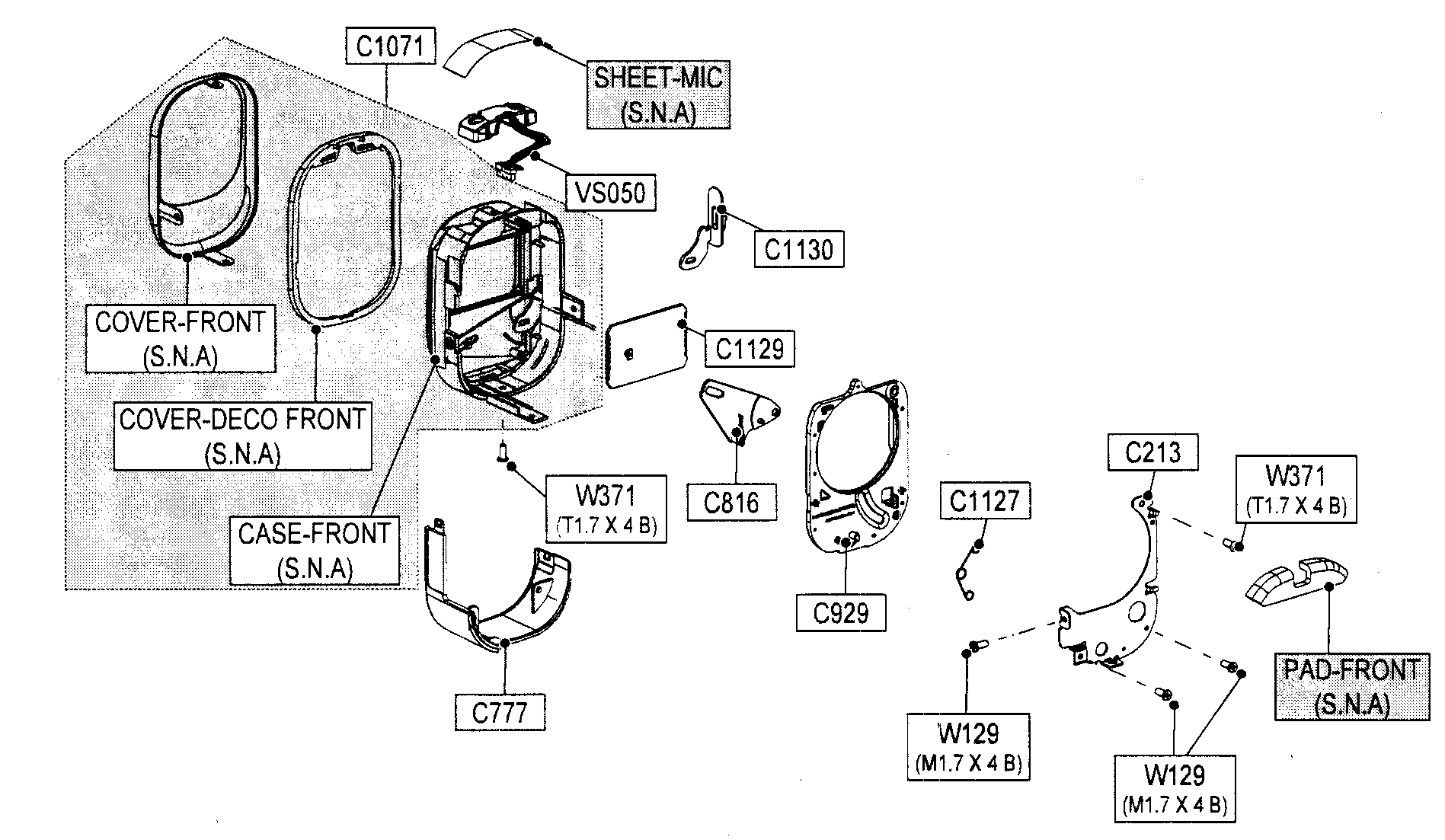

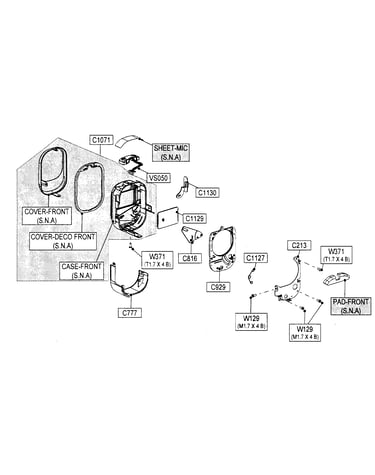

Front assy diagram

Microphone assembly

Part #AD97-18174A

The manufacturer no longer makes this part, and there's no substitute part

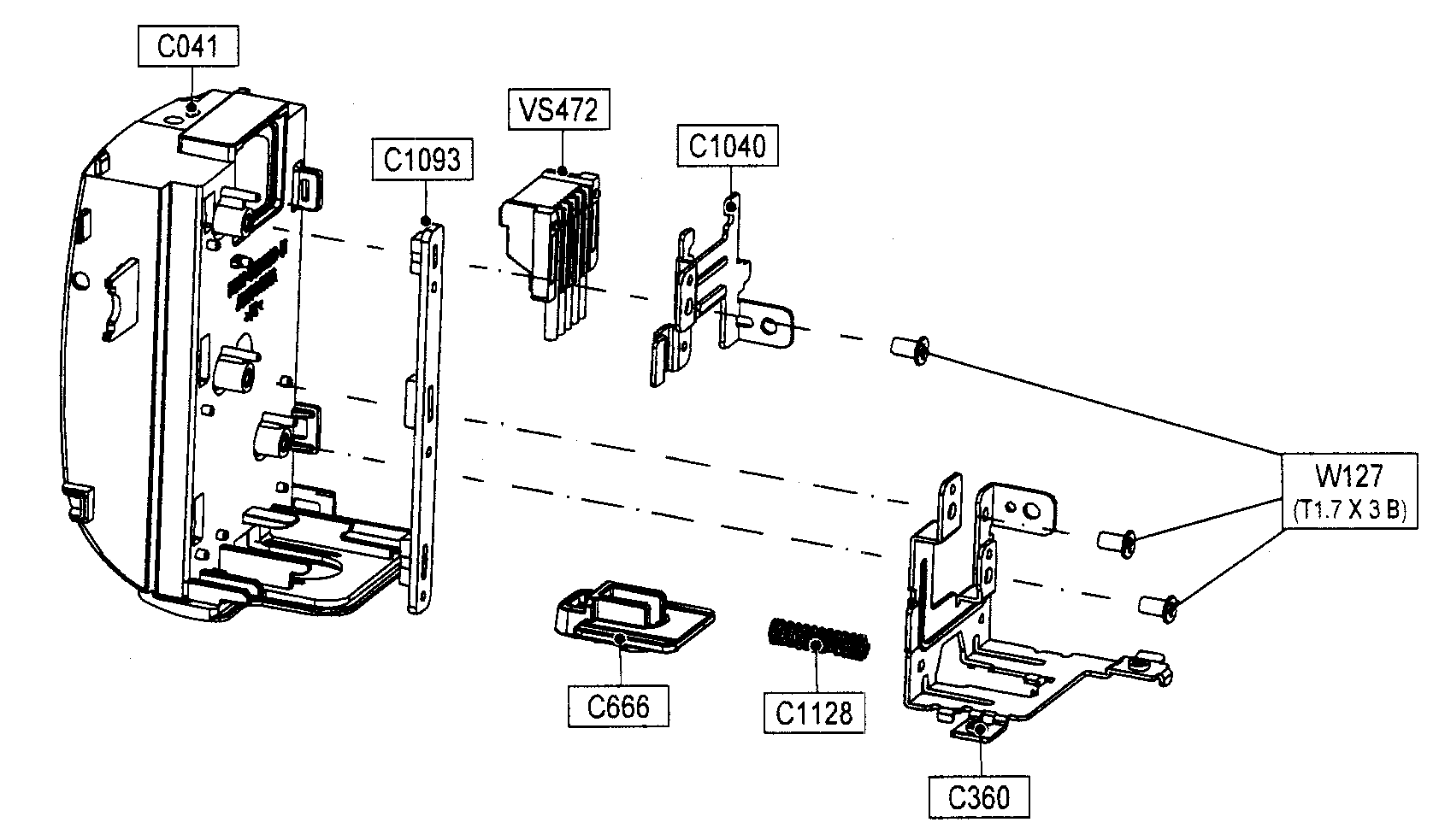

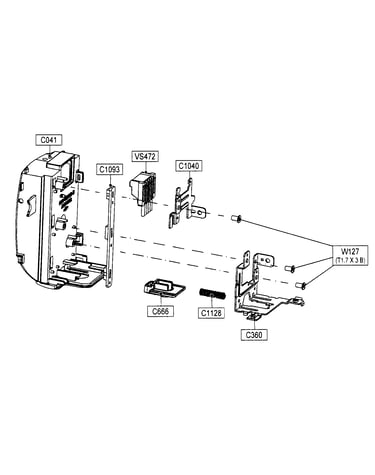

Screw 6003-001292
#W127

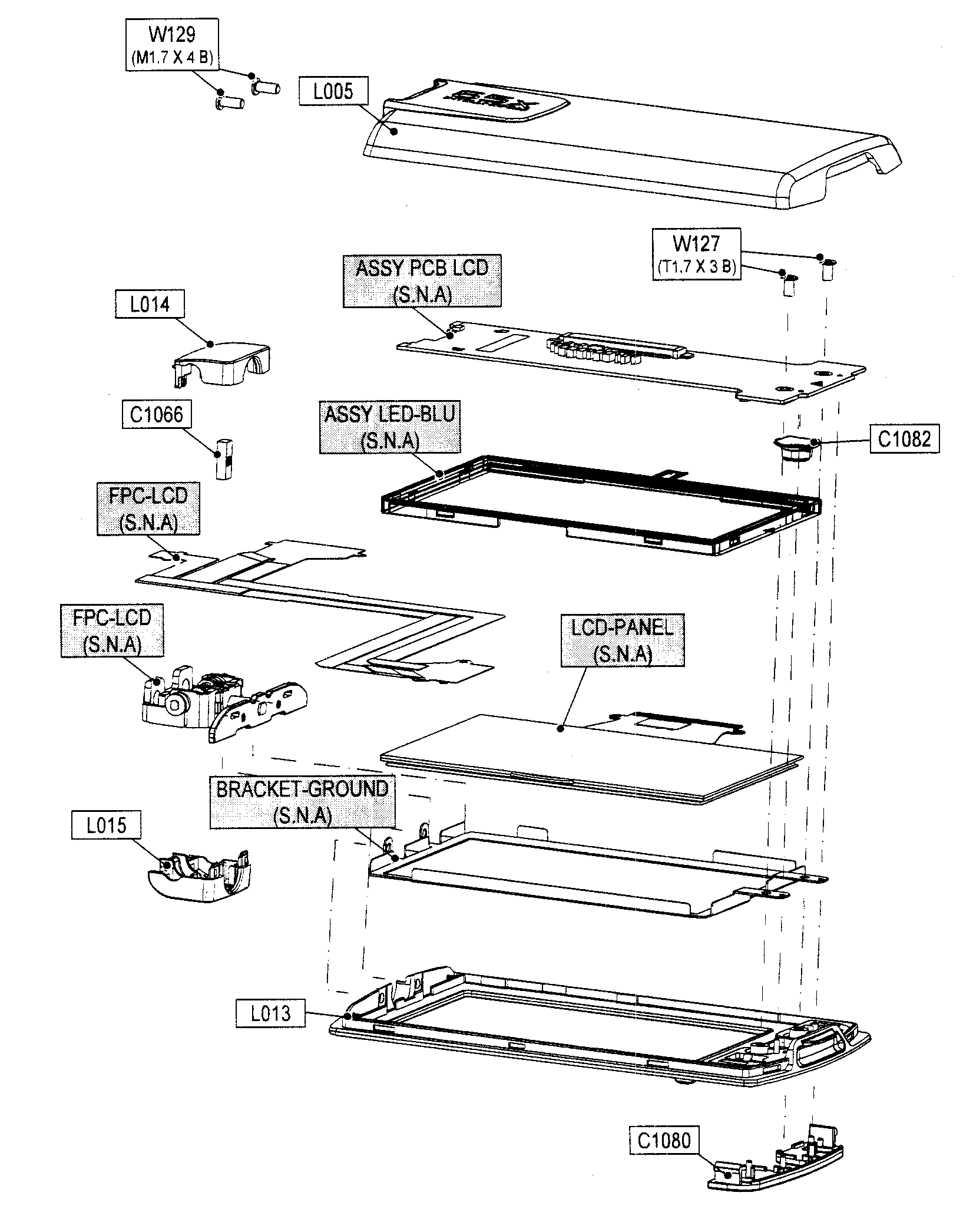

Lcd assy diagram

Screw

Part #6003-001292

The manufacturer no longer makes this part, and there's no substitute part

Adapter AD44-00151A
#NI

Chassis assy diagram

Adapter

Part #AD44-00151A

The manufacturer no longer makes this part, and there's no substitute part

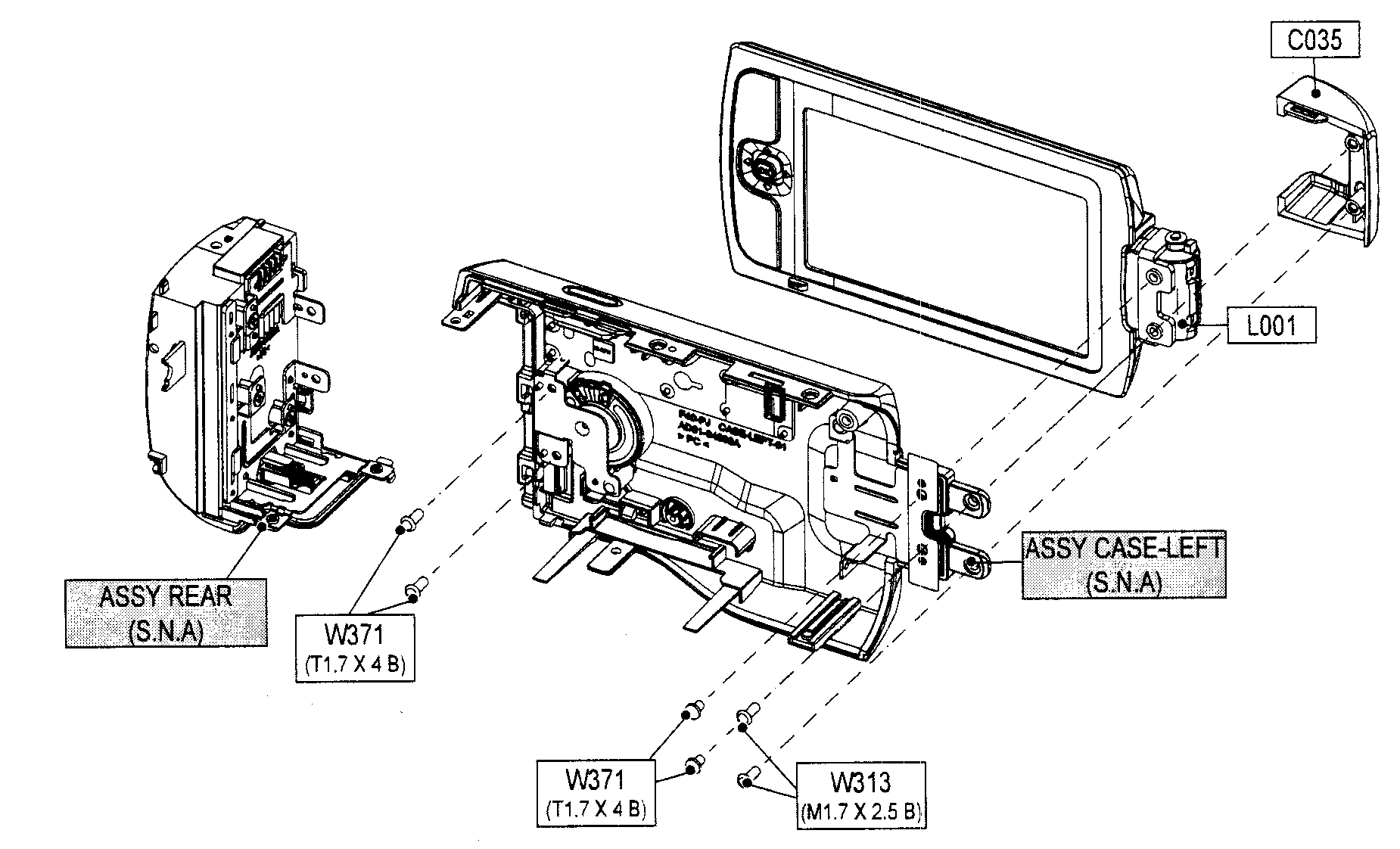

Screw 6001-001510
#W313

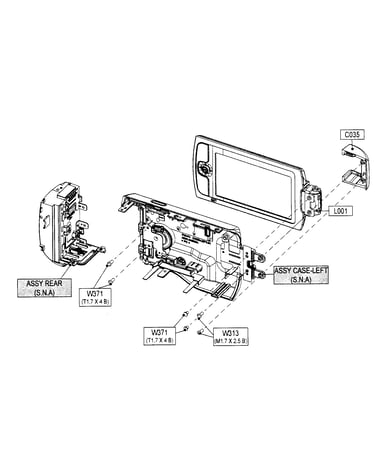

Left assy diagram

Screw

Part #6001-001510

The manufacturer no longer makes this part, and there's no substitute part

Screw 6001-001373
#W206

Lens assy diagram

Screw

Part #6001-001373

The manufacturer no longer makes this part, and there's no substitute part
