Model # 1034407910 Official Kenmore 36" induction glass top counter unit

Here are the diagrams and repair parts for Official Kenmore 1034407910 36" induction glass top counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Nut 110340
#44

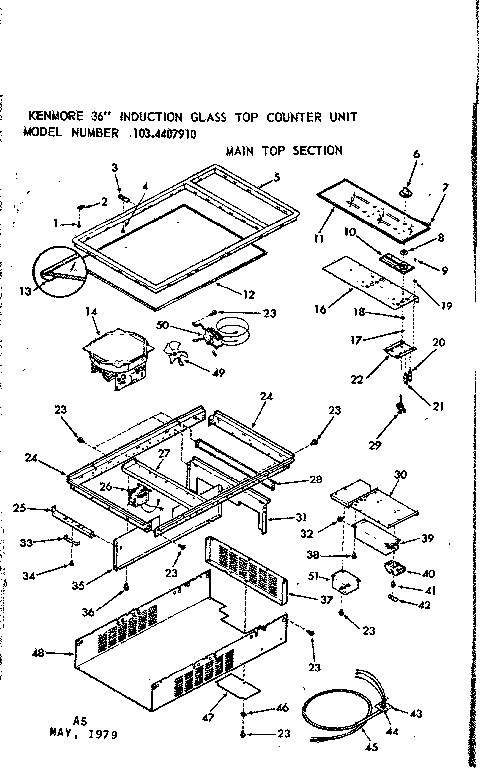

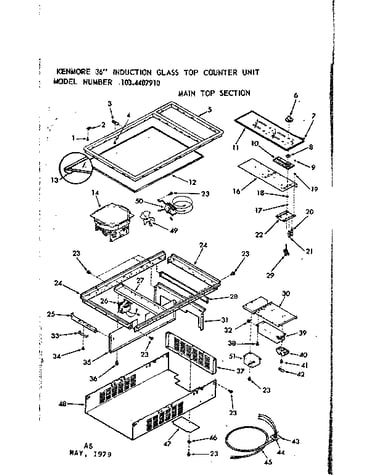

Main top section diagram

Nut

Part #110340

This item is not returnable
$2.16
In Stock
Glass Control Panel 313434
#11

Main top section diagram

Glass control panel

Part #313434

$43.49
In Stock
Gm Screw 166359
#96

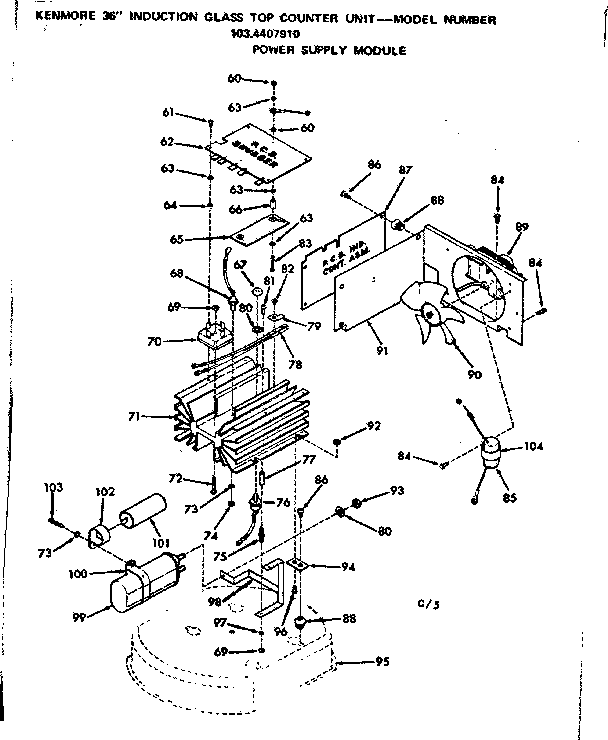

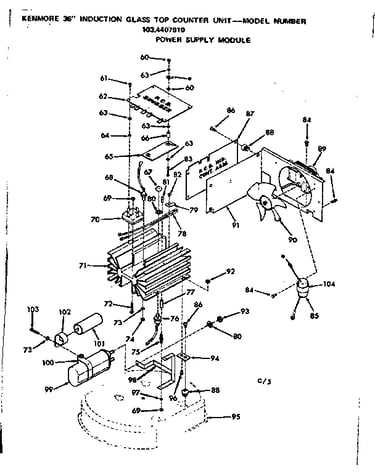

Power supply module diagram

Gm screw

Part #166359

This item is not returnable
$2.16
In Stock
Screw 313190
#103

Power supply module diagram

Screw

Part #313190

Replaced by #WB1X1258

?
Manufacturer substitution
This part replaces 313190. Substitute parts can look different from the original.
$8.11
In Stock
Screw 102428
#36

Main top section diagram

Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 299271
#1

Main top section diagram

Screw

Part #299271

Replaced by #WB1X1258

?
Manufacturer substitution
This part replaces 299271. Substitute parts can look different from the original.
$8.11
In Stock
Capacitor 312615
#99A

Power supply module diagram

Capacitor

Part #312615

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 235110
#46

Main top section diagram

Lock washer

Part #235110

The manufacturer no longer makes this part, and there's no substitute part

Cooktop 313662
#12B

Main top section diagram

Cooktop

Part #313662

The manufacturer no longer makes this part, and there's no substitute part

Indicator 313437
#10

Main top section diagram

Indicator

Part #313437

The manufacturer no longer makes this part, and there's no substitute part
