GE
Laundry Center

Model # WSM2700TEWWB Official GE washer/dryer

Here are the diagrams and repair parts for Official GE WSM2700TEWWB washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

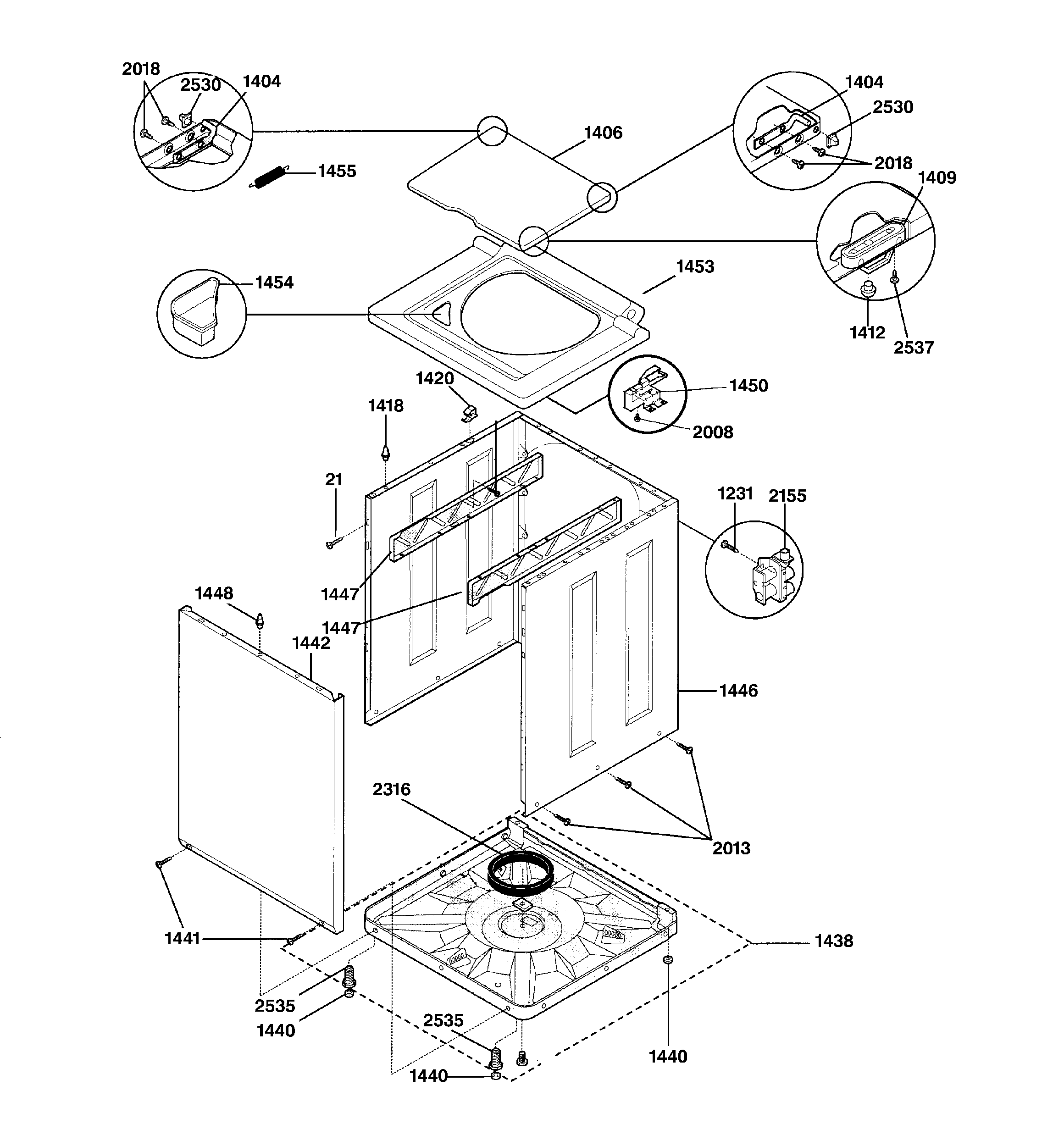

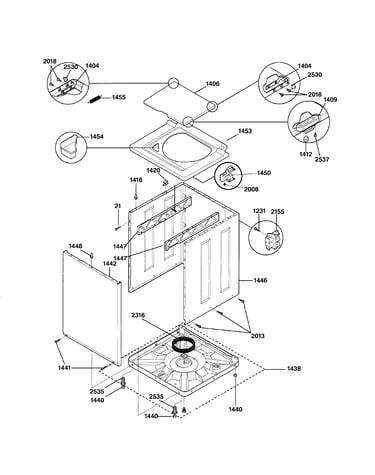

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |
Dryer Belt WE12X0090
#1325

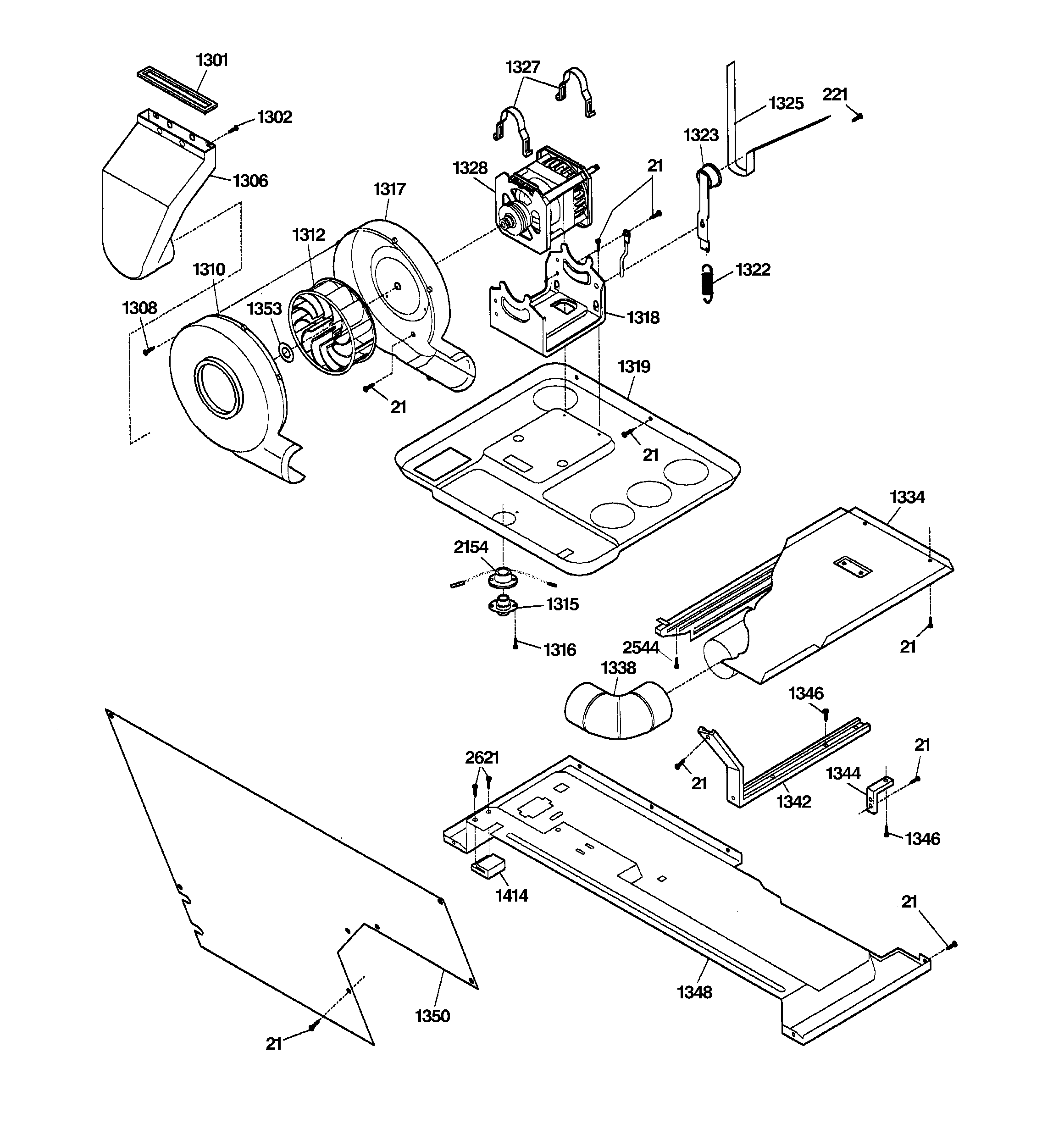

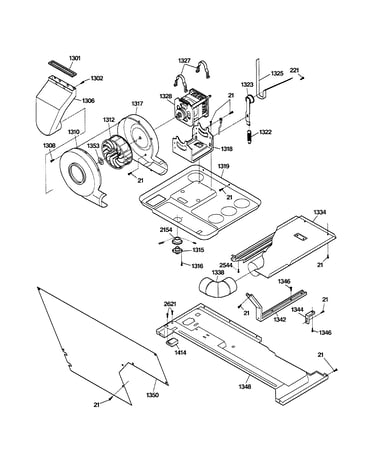

Dryer motor, blower & belt diagram

Dryer belt

Part #WE12X0090

Replaced by #WE12X10009

?
Manufacturer substitution
This part replaces WE12X0090. Substitute parts can look different from the original.
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Univ Clamp WH01X2036
#790

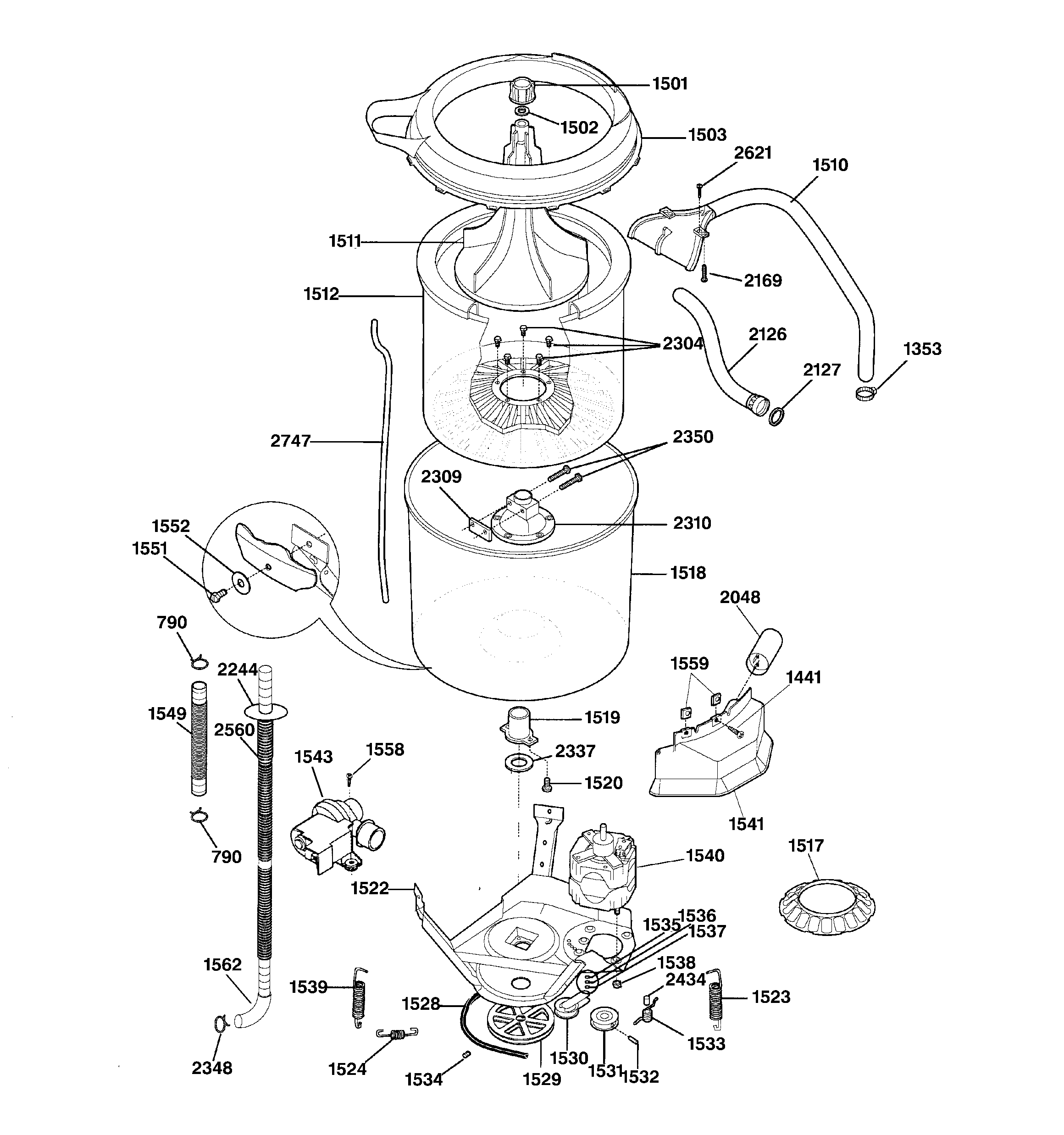

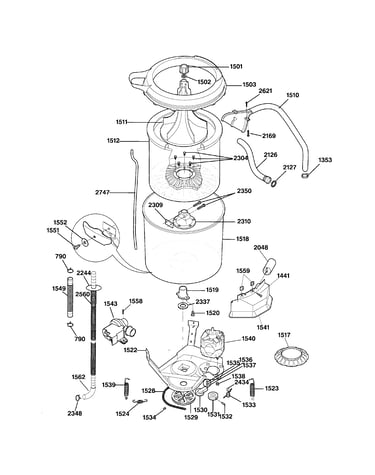

Washer motor & tub diagram

Univ clamp

Part #WH01X2036

Replaced by #WH1X2036

?
Manufacturer substitution
This part replaces WH01X2036. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Idler Arm WE01X10004
#1323

Dryer motor, blower & belt diagram

Idler arm

Part #WE01X10004

Replaced by #WE03X29378

?
Manufacturer substitution
This part replaces WE01X10004. Substitute parts can look different from the original.
$82.58 |
7% OFF Phone Price : $88.58
In Stock
Laundry Center Blower Wheel WE16X0028
#1312

Dryer motor, blower & belt diagram

Laundry center blower wheel

Part #WE16X0028

Replaced by #WE16X28

?
Manufacturer substitution
This part replaces WE16X0028. Substitute parts can look different from the original.
$84.04 |
7% OFF Phone Price : $90.04
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

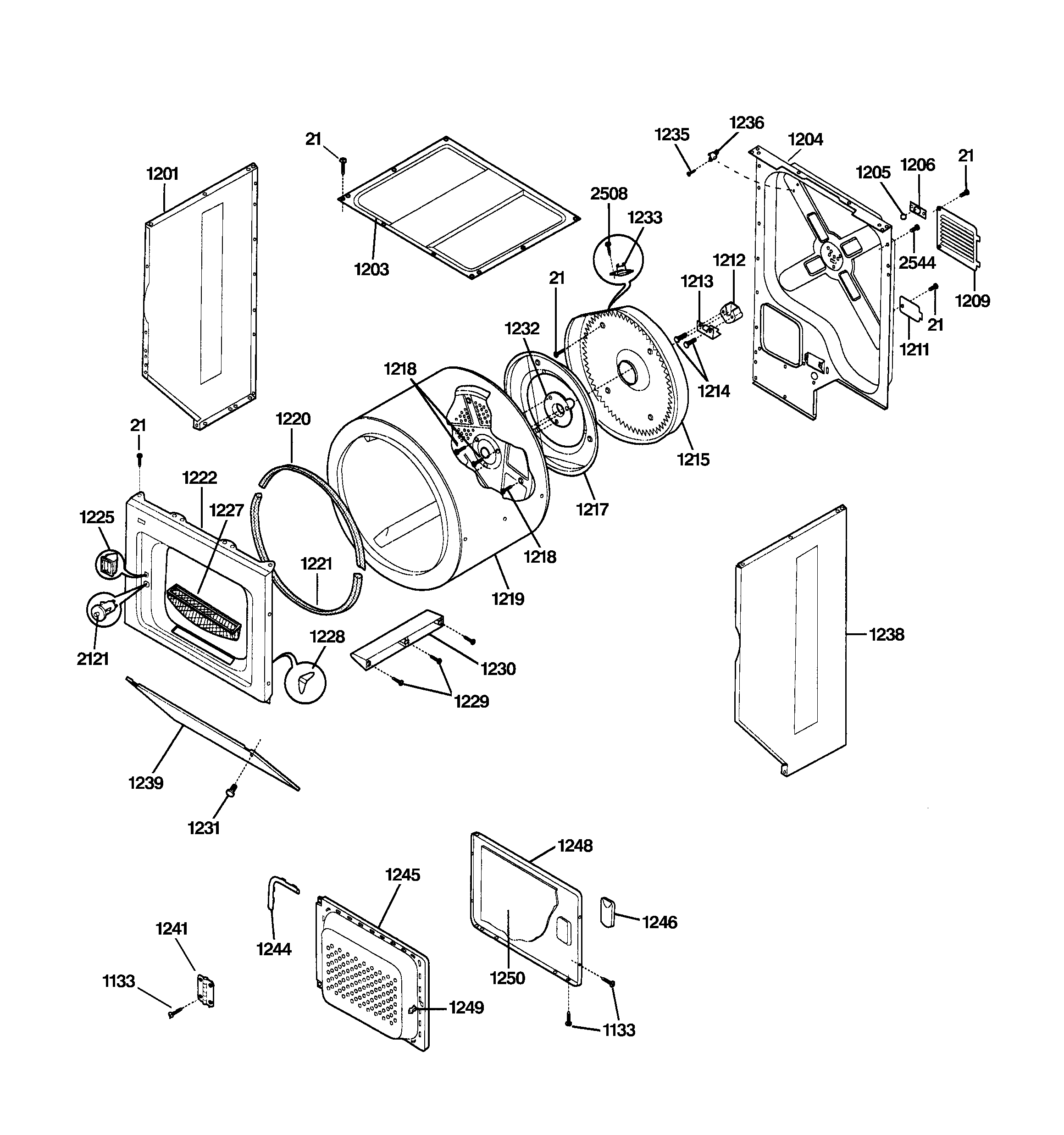

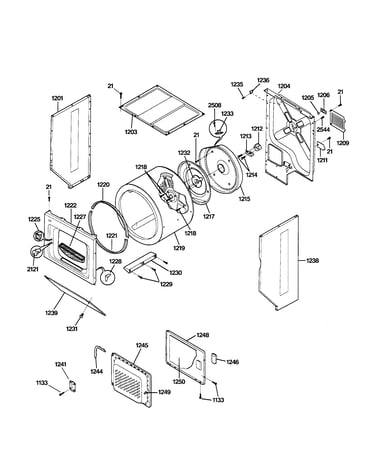

Dryer upper cabinet, drum & heater diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Timer D WE04X0775
#2601

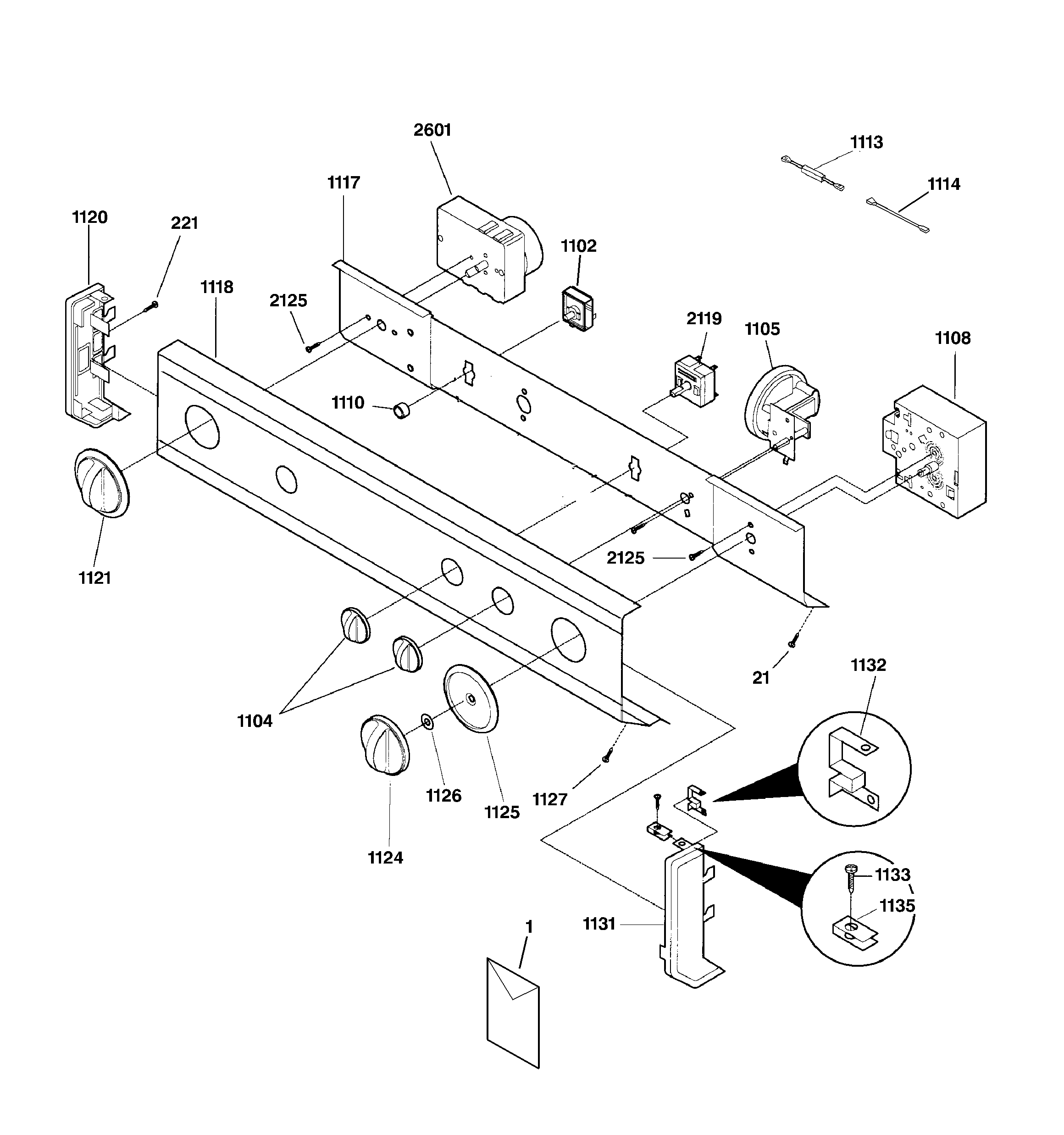

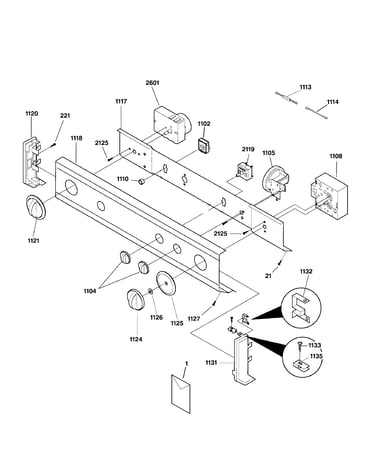

Control panel diagram

Timer d

Part #WE04X0775

Replaced by #WE4X775

?
Manufacturer substitution
This part replaces WE04X0775. Substitute parts can look different from the original.
$148.41 |
7% OFF Phone Price : $160.41
In Stock
Use And Care Guide 49-9897
#1

Control panel diagram

Use and care guide

Part #49-9897

$8.49
In Stock
Washer Tub Seal Assembly WH08X10004
#1626

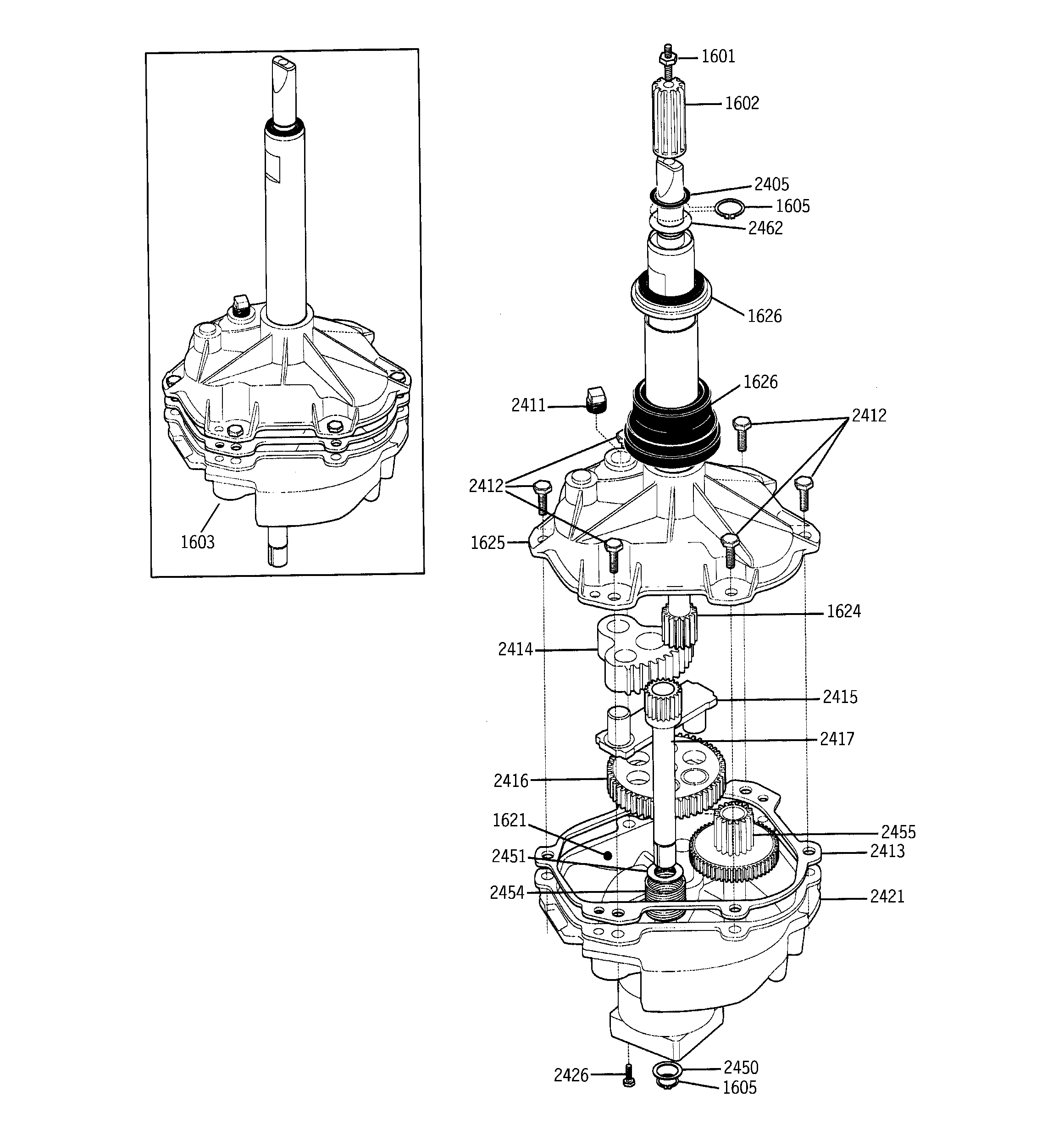

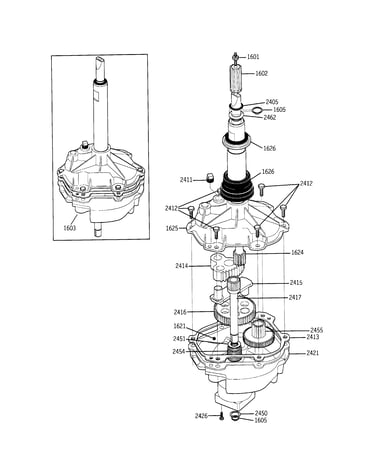

Transmission diagram

Washer tub seal assembly

Part #WH08X10004

$113.43 |
10% OFF Phone Price : $125.43
In Stock
Belt WH07X10002
#1528

Washer motor & tub diagram

Belt

Part #WH07X10002

Replaced by #WH07X10009

?
Manufacturer substitution
This part replaces WH07X10002. Substitute parts can look different from the original.
$67.43 |
8% OFF Phone Price : $73.43
In Stock
Spacemaker W 31-2810
#1

Control panel diagram

Spacemaker w

Part #31-2810

Replaced by #049-90383

?
Manufacturer substitution
This part replaces 31-2810. Substitute parts can look different from the original.
$18.59 |
10% OFF Phone Price : $20.59
In Stock
