Model # JNM7196DK4BB Official GE microwave/hood combo
Here are the diagrams and repair parts for Official GE JNM7196DK4BB microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

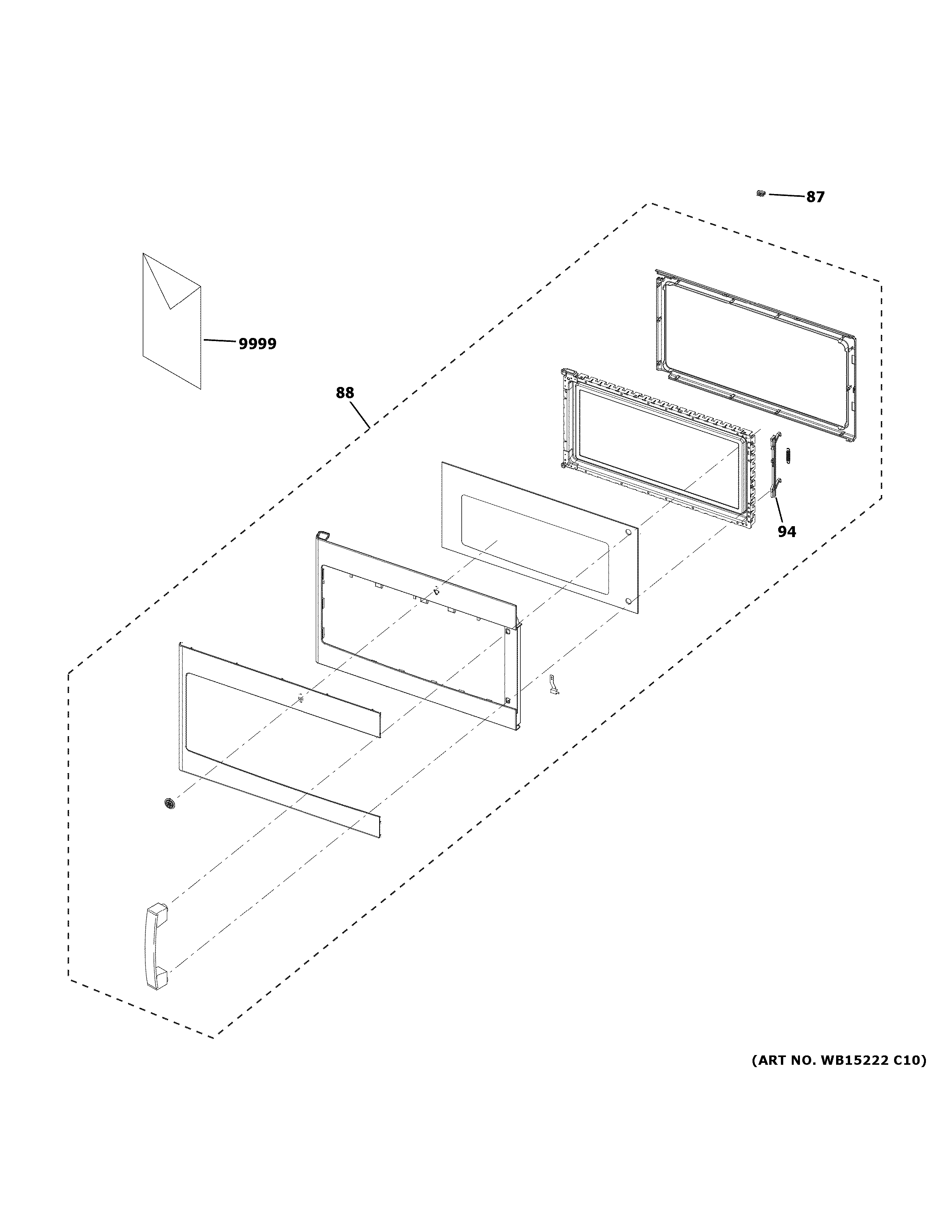

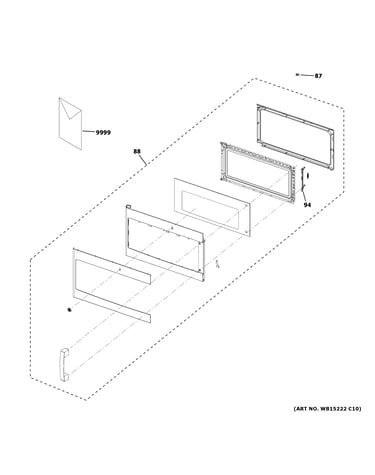

SELECT DIAGRAM
Browse Parts for
JNM7196DK4BB Microwave/Hood Combo
#39

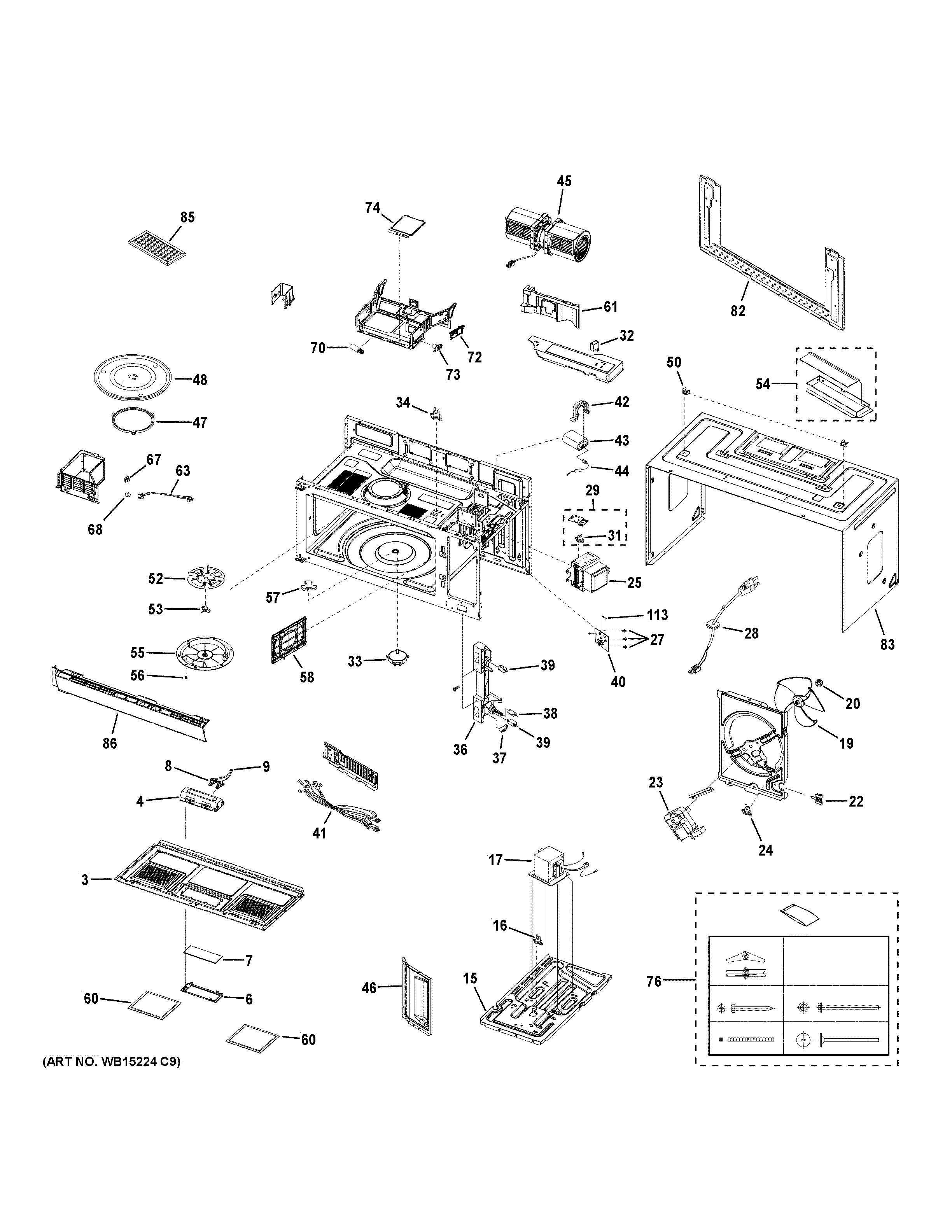

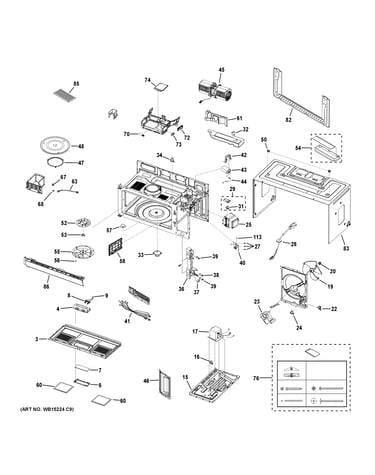

Oven cavity parts diagram
Switch-micro
Part #WB24X10038
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#38
Oven cavity parts diagram
Micro-switch
Part #WB24X10075
Replaced by #WB24X830
?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
#25
Oven cavity parts diagram
Microwave magnetron (replaces wb27t10545)
Part #WB27X11079
$125.59 |
9% OFF Phone Price : $137.59
In Stock
#44
Oven cavity parts diagram
Microwave high-voltage diode (replaces wb27x608)
Part #WB27X1160
$79.22 |
7% OFF Phone Price : $85.22
In Stock
#67
Oven cavity parts diagram
Microwave gas sensor (replaces wb24x0799)
Part #WB24X799
$151.05 |
7% OFF Phone Price : $163.05
In Stock
#17
Oven cavity parts diagram
Microwave high-voltage transformer (replaces wb20x10044)
Part #WB27X10910
$238.79 |
5% OFF Phone Price : $250.79
In Stock
#36
Oven cavity parts diagram
Microwave door latch housing
Part #WB14X10051
$16.04 |
11% OFF Phone Price : $18.04
In Stock
#33
Oven cavity parts diagram
Microwave turntable motor
Part #WB26X10233
$32.99 |
15% OFF Phone Price : $38.99
In Stock
#31
Oven cavity parts diagram
Microwave thermal cut-off
Part #WB24X29270
$57.26 |
9% OFF Phone Price : $63.26
In Stock
#106

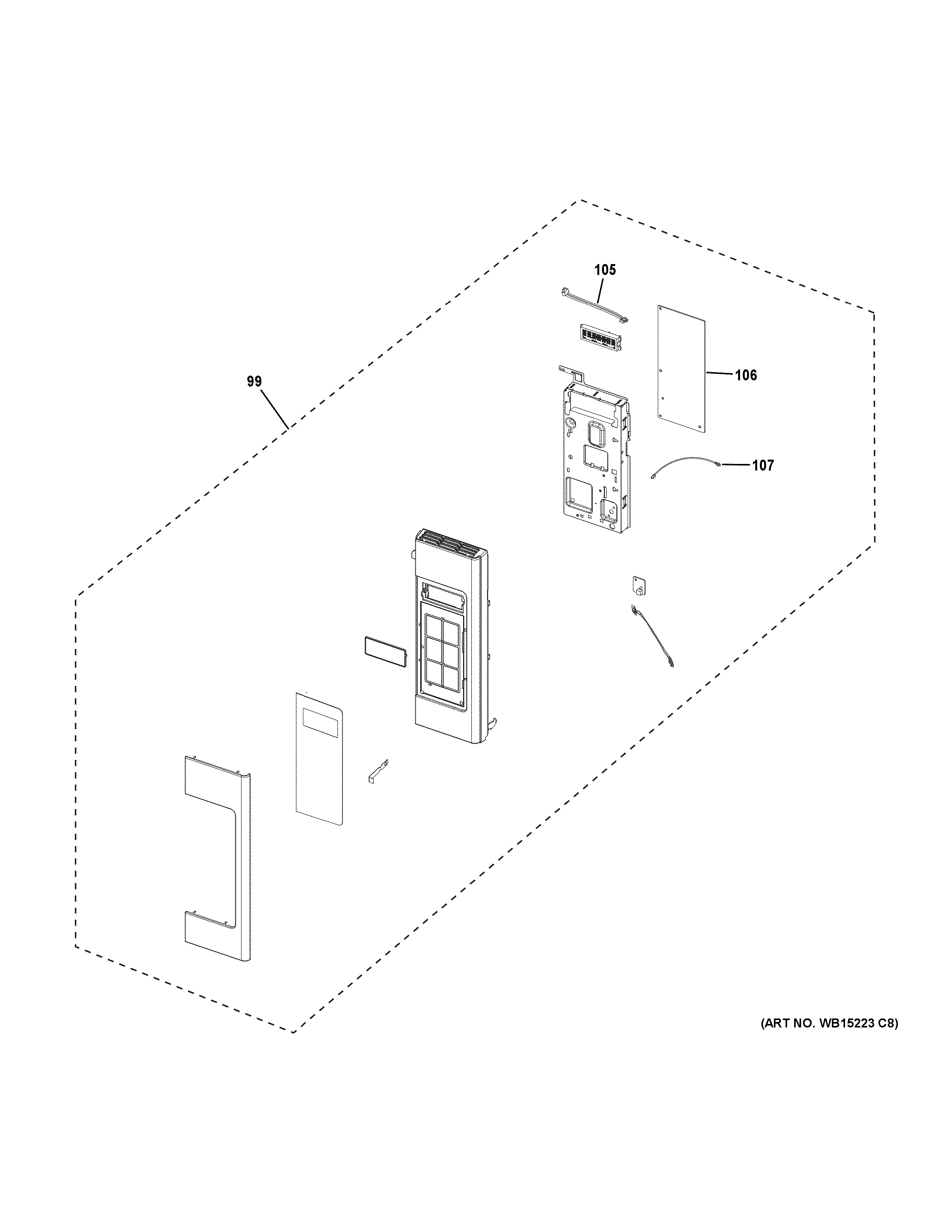

Control parts diagram
Board
Part #WB27X26794
Replaced by #WB27X30632
?
Manufacturer substitution
This part replaces WB27X26794. Substitute parts can look different from the original.
This item is not returnable
$283.09 |
$12.00 OFF Phone Price : $295.09
In Stock
