Model # 59677533700 Official Kenmore bottom-mount refrigerator
Here are the diagrams and repair parts for Official Kenmore 59677533700 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

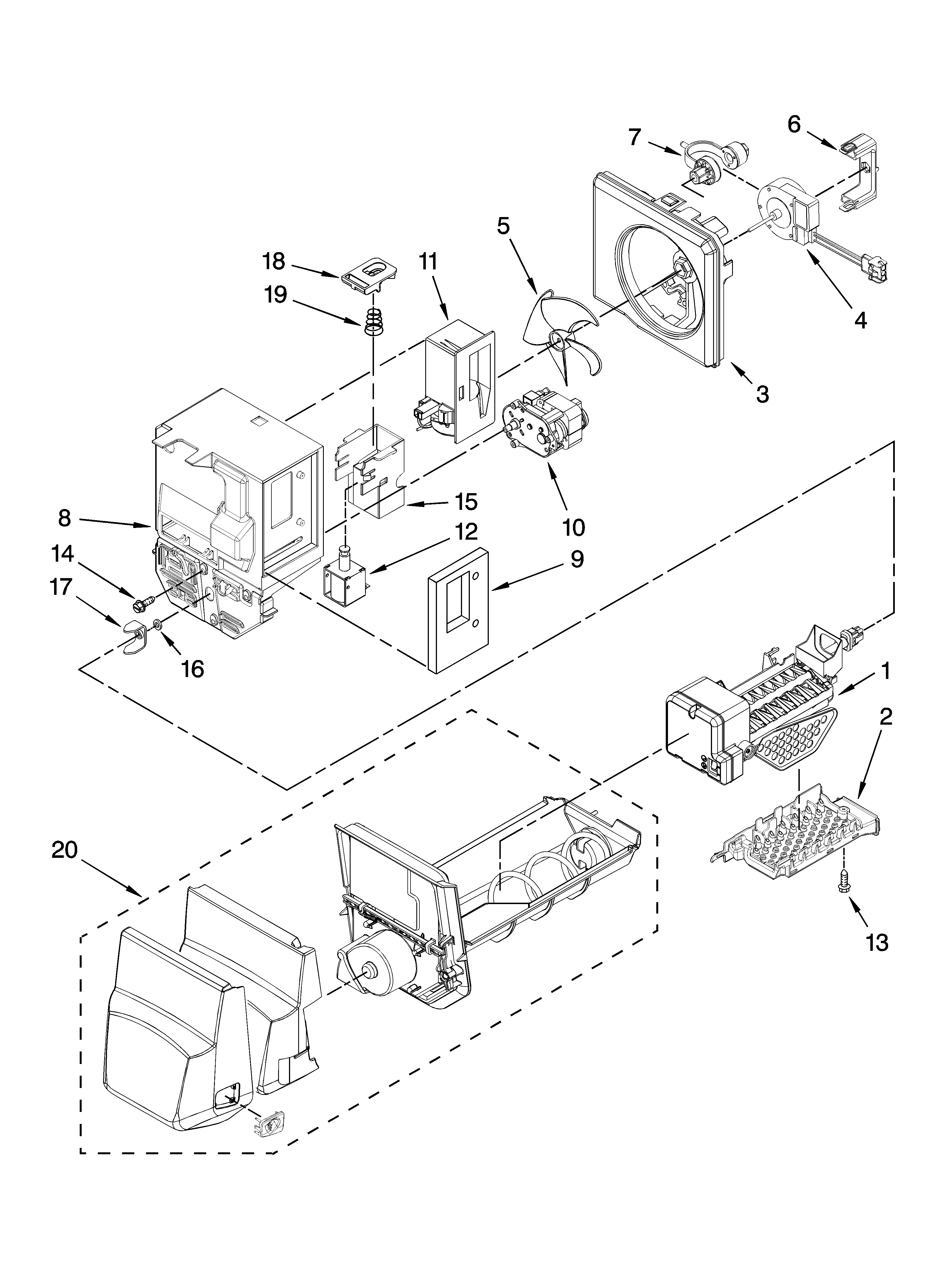

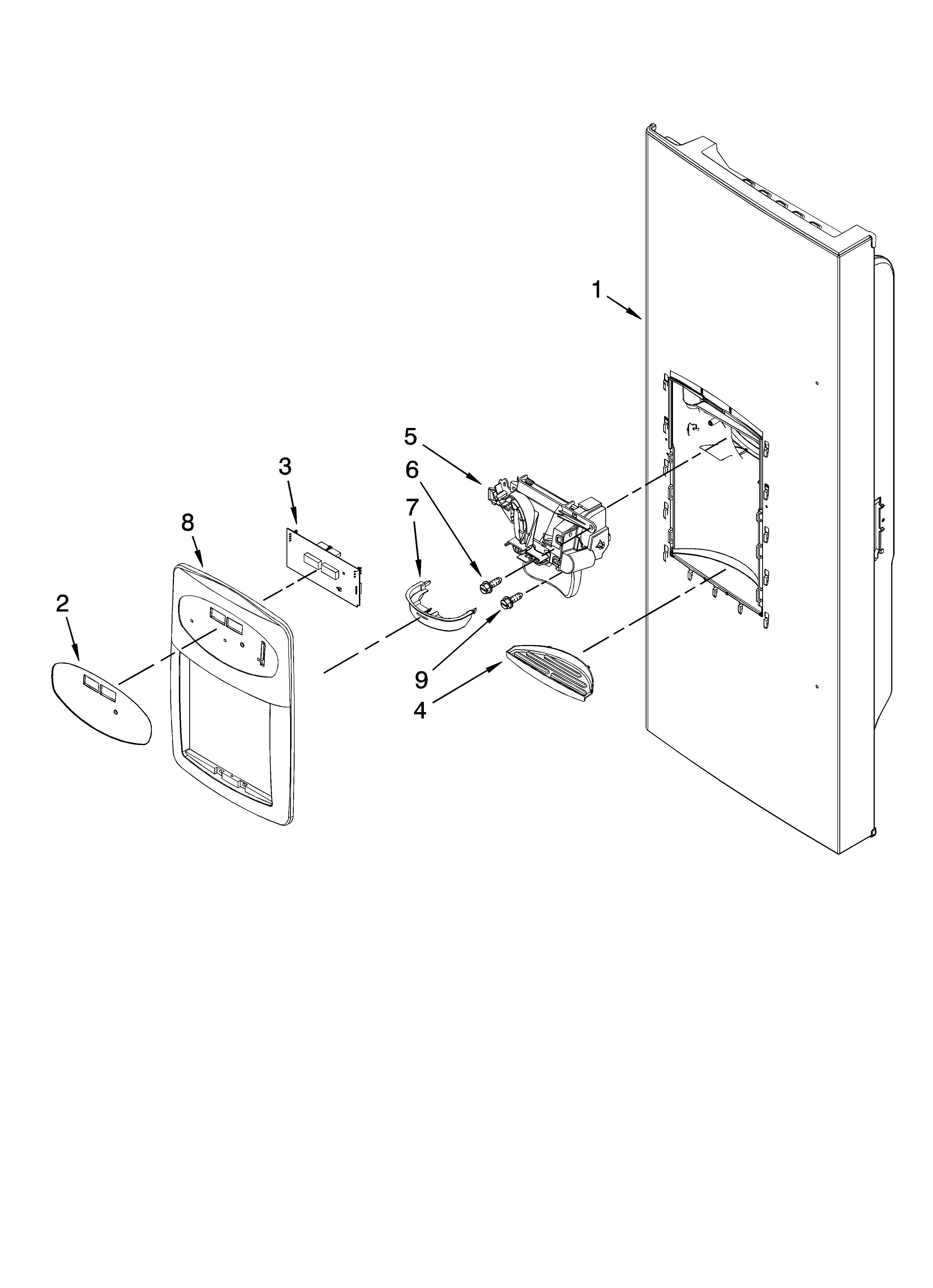

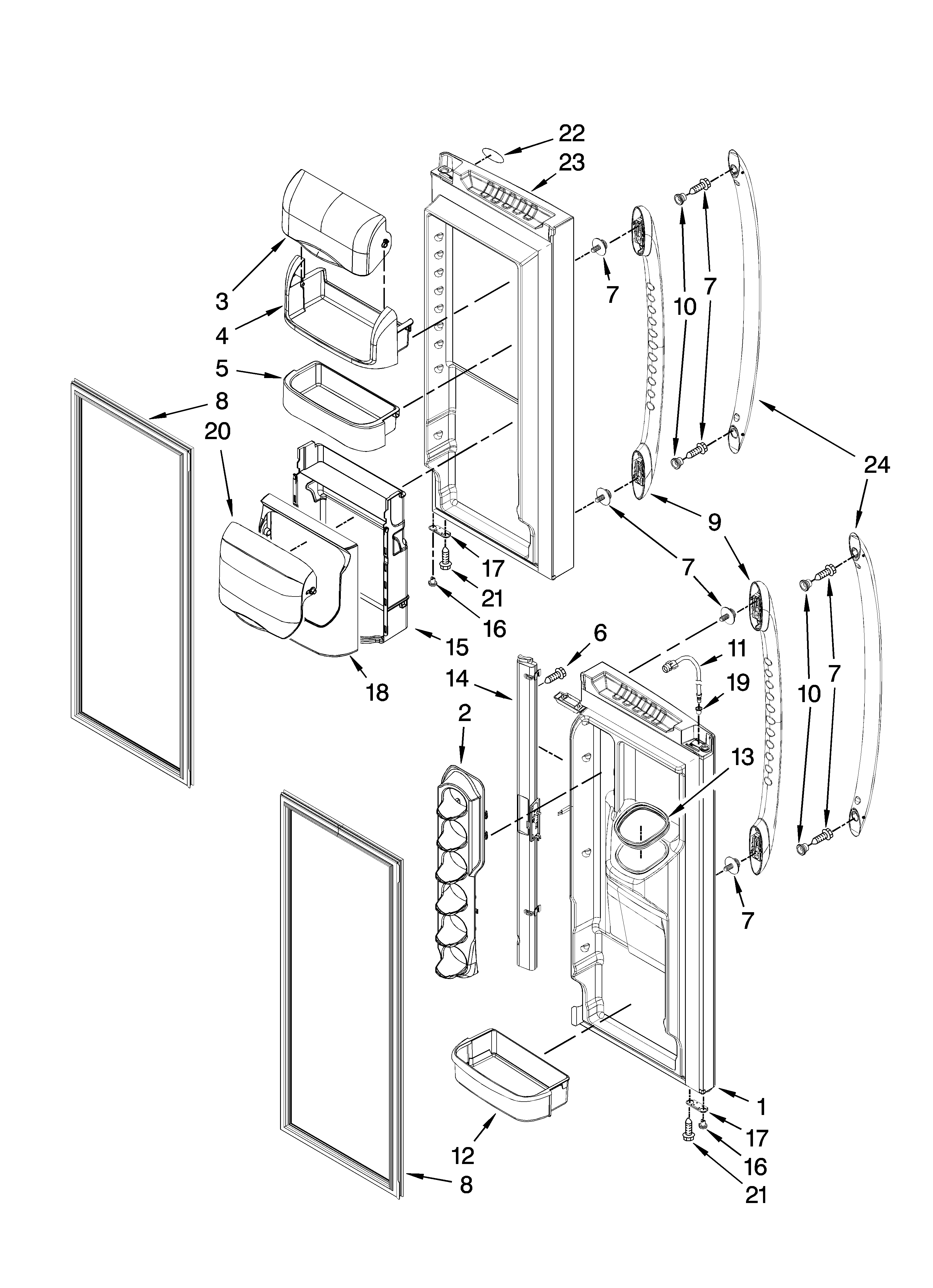

SELECT DIAGRAM
Browse Parts for59677533700 Refrigerators
- #11A

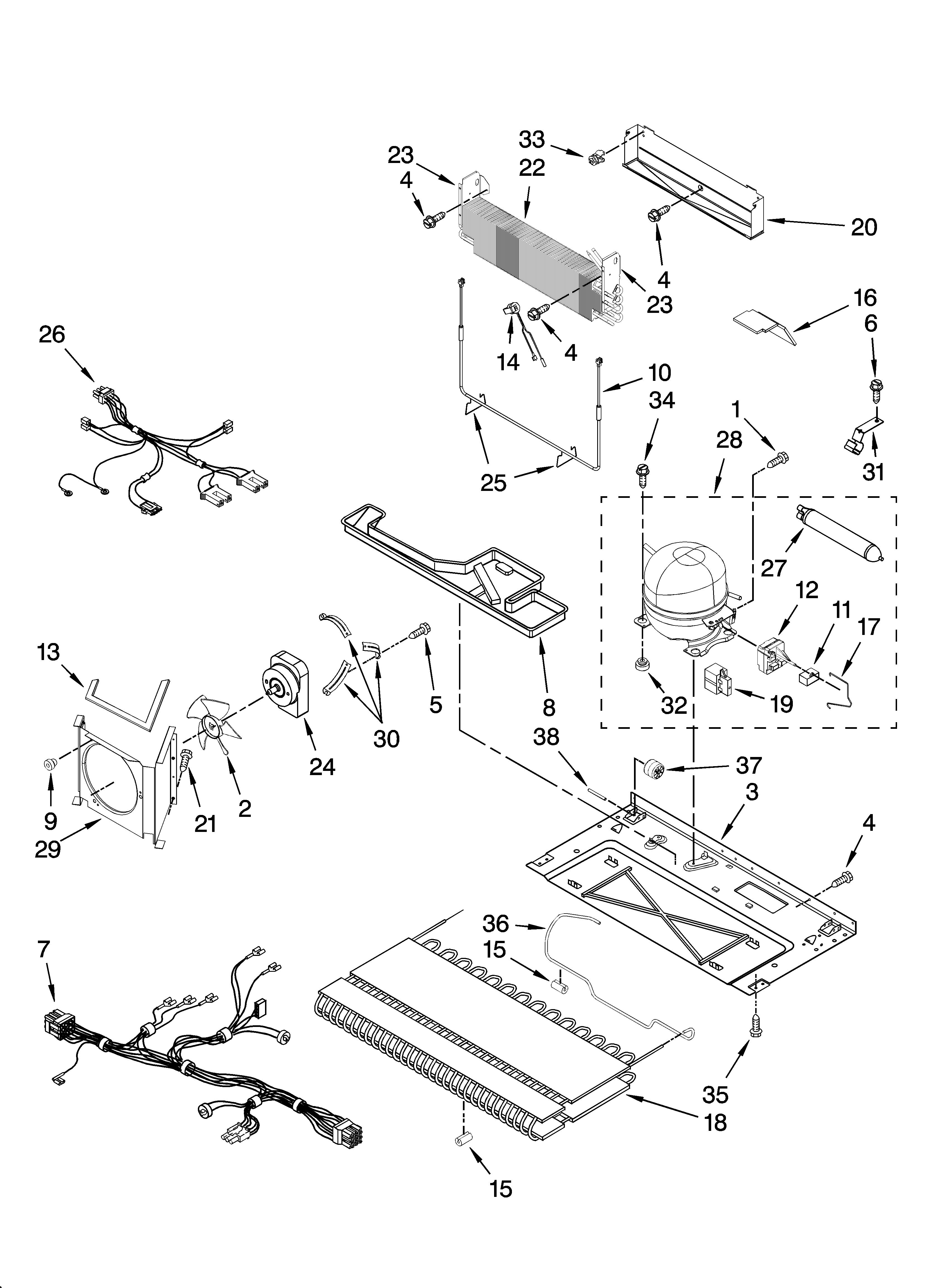

Unit parts, optional parts (not included) diagram
Run capacitorPart #1118576
Replaced by #WPW10662129
?Manufacturer substitutionThis part replaces 1118576. Substitute parts can look different from the original.$41.80 |13% OFF Phone Price : $47.80In Stock - #28
Unit parts, optional parts (not included) diagram
Refrigerator compressorPart #8201555
Replaced by #W10309989
?Manufacturer substitutionThis part replaces 8201555. Substitute parts can look different from the original.$502.83 |$12.00 OFF Phone Price : $514.83In Stock - #28

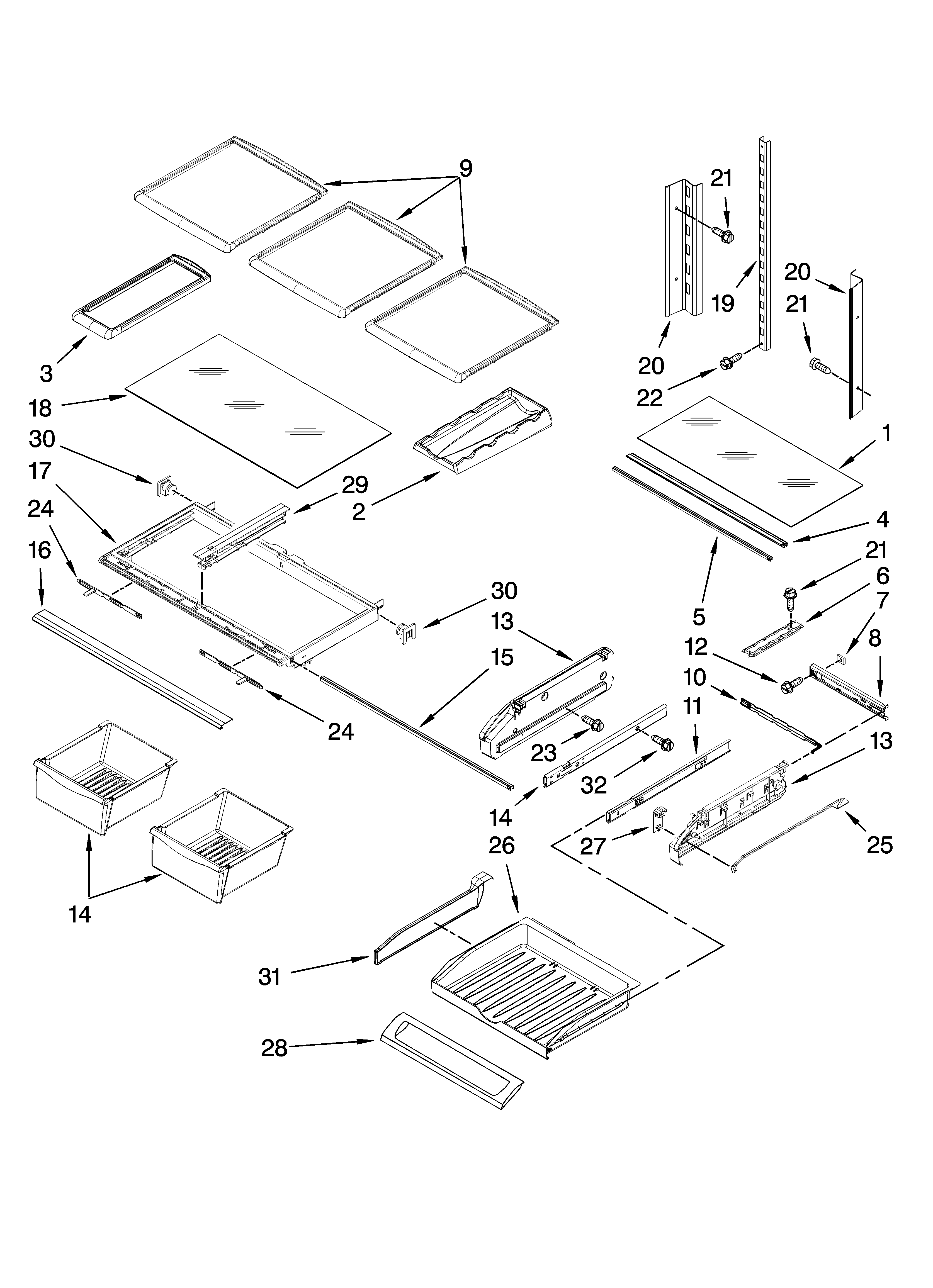

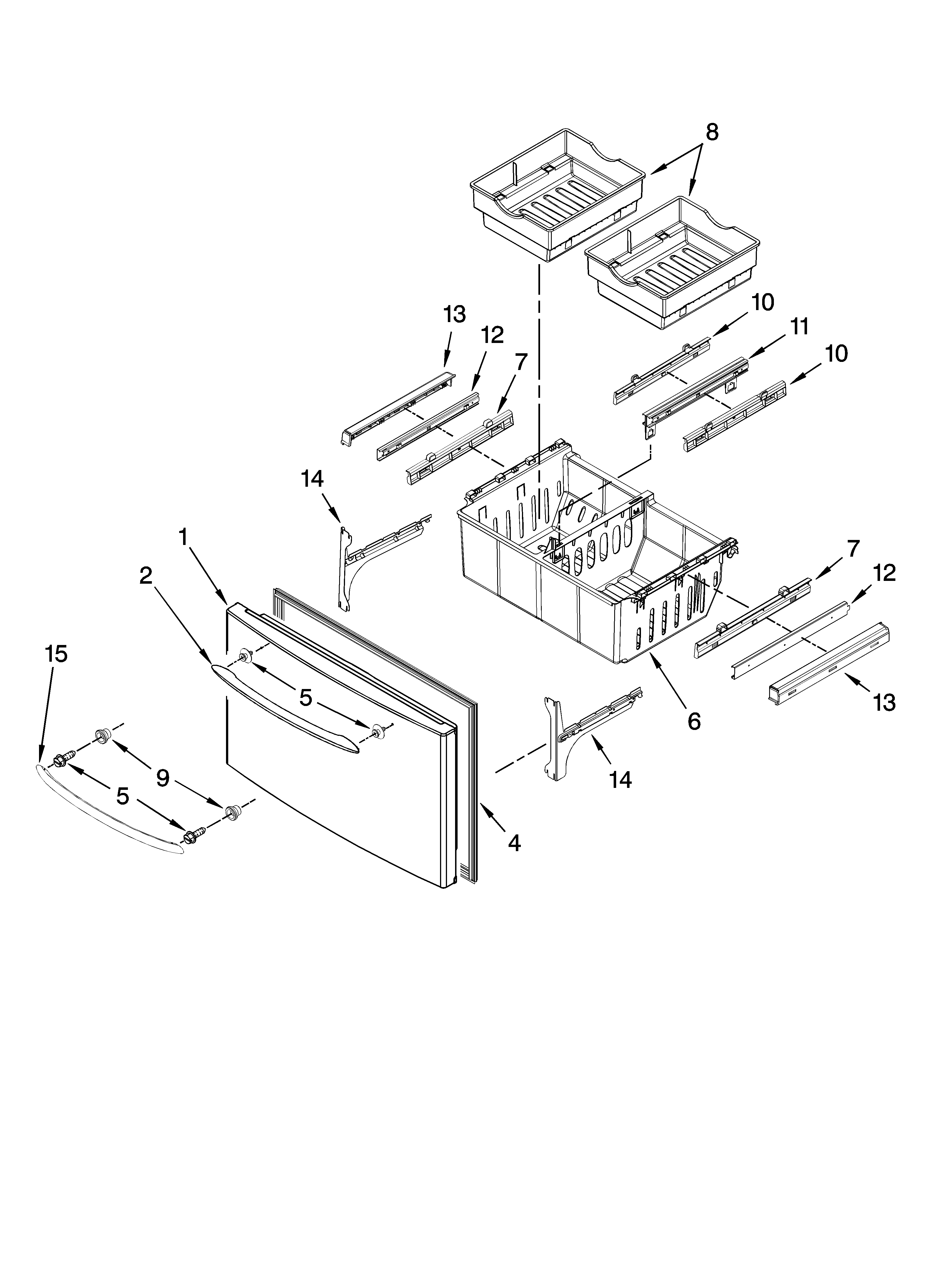

Shelf parts diagram
Refrigerator pantry drawer doorPart #67005899
Replaced by #W10827015
?Manufacturer substitutionThis part replaces 67005899. Substitute parts can look different from the original.$98.76 |11% OFF Phone Price : $110.76In Stock - #31

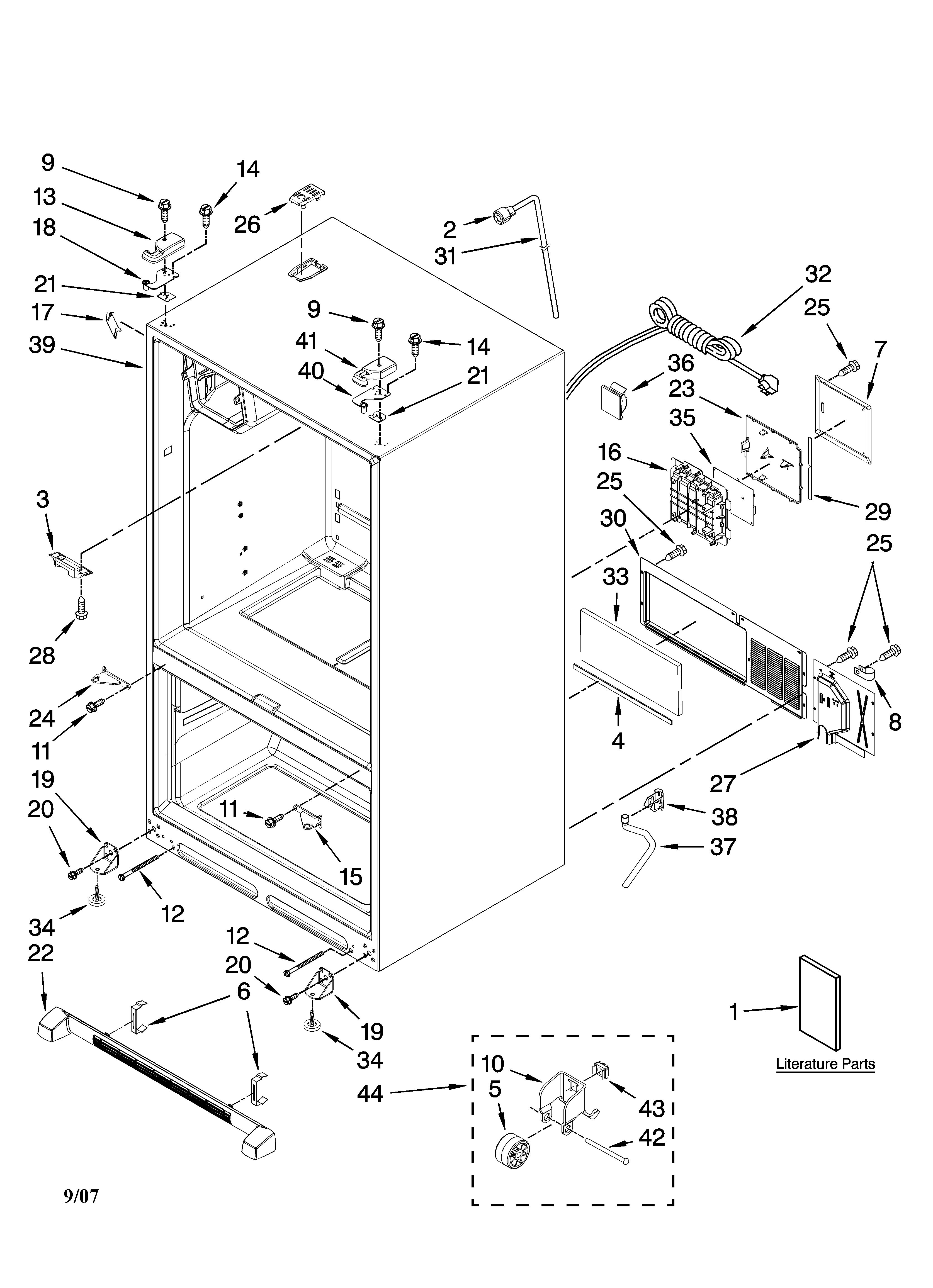

Cabinet parts diagram
Refrigerator water tubingPart #67006317
Replaced by #W11415785
?Manufacturer substitutionThis part replaces 67006317. Substitute parts can look different from the original.$36.68 |14% OFF Phone Price : $42.68In Stock - Refrigerator evaporator fan blade
Part #67006337
Replaced by #WP67006337
?Manufacturer substitutionThis part replaces 67006337. Substitute parts can look different from the original.$52.87 |10% OFF Phone Price : $58.87In Stock - Refrigerator mounting screw
Part #67002935
Replaced by #WP3387230
?Manufacturer substitutionThis part replaces 67002935. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock - #NI
Unit parts, optional parts (not included) diagram
Spray paint (white)Part #350930
Replaced by #350930
?Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnable$15.69 |11% OFF Phone Price : $17.69In Stock - #19
Unit parts, optional parts (not included) diagram
Refrigerator start relayPart #2183454
Replaced by #W10920279
?Manufacturer substitutionThis part replaces 2183454. Substitute parts can look different from the original.$48.01 |11% OFF Phone Price : $54.01In Stock - Refrigerator light socket
Part #Y12570701
Replaced by #W11447232
?Manufacturer substitutionThis part replaces Y12570701. Substitute parts can look different from the original.This item is not returnable$7.59 |12% OFF Phone Price : $8.59In Stock - #19

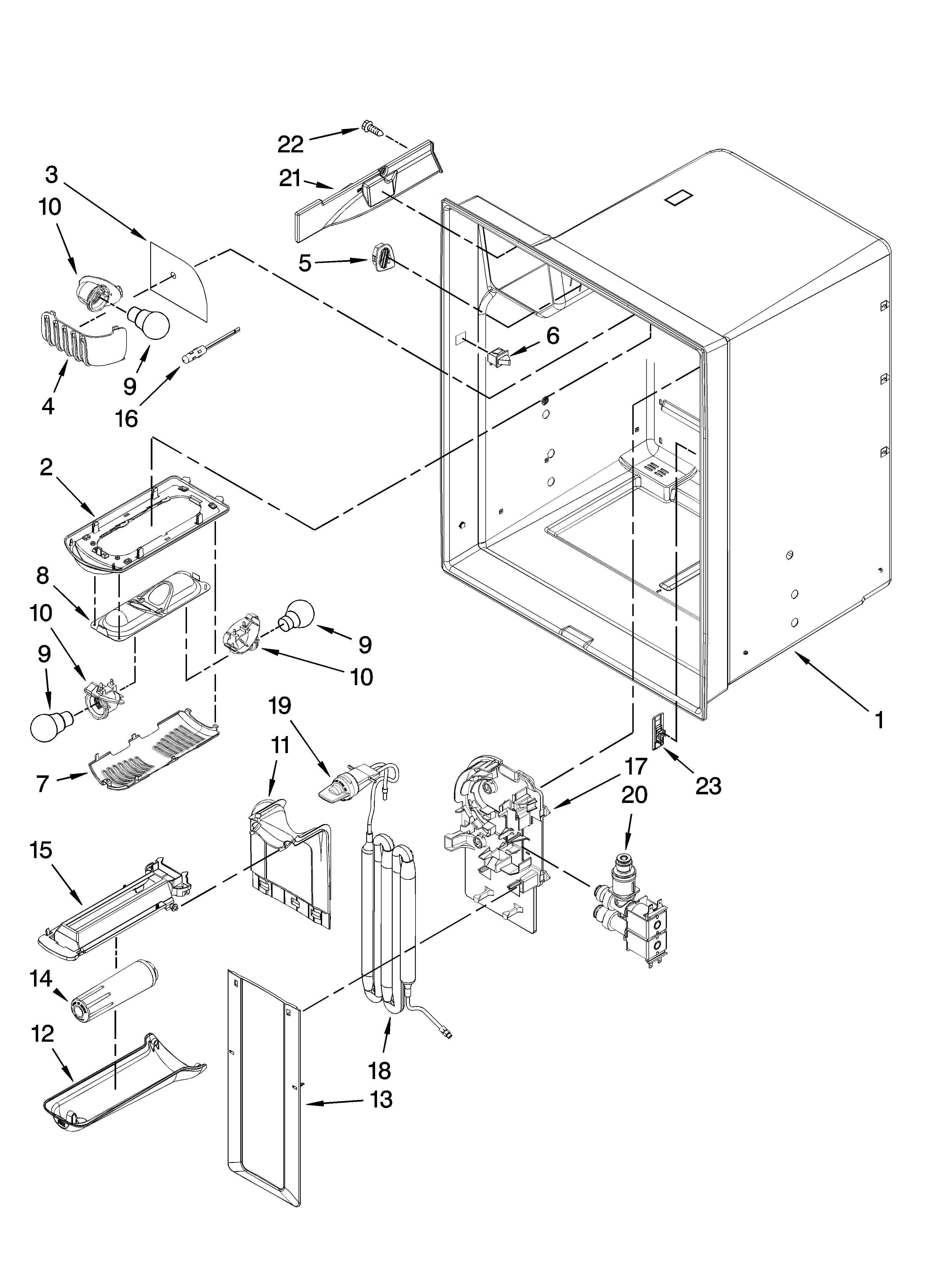

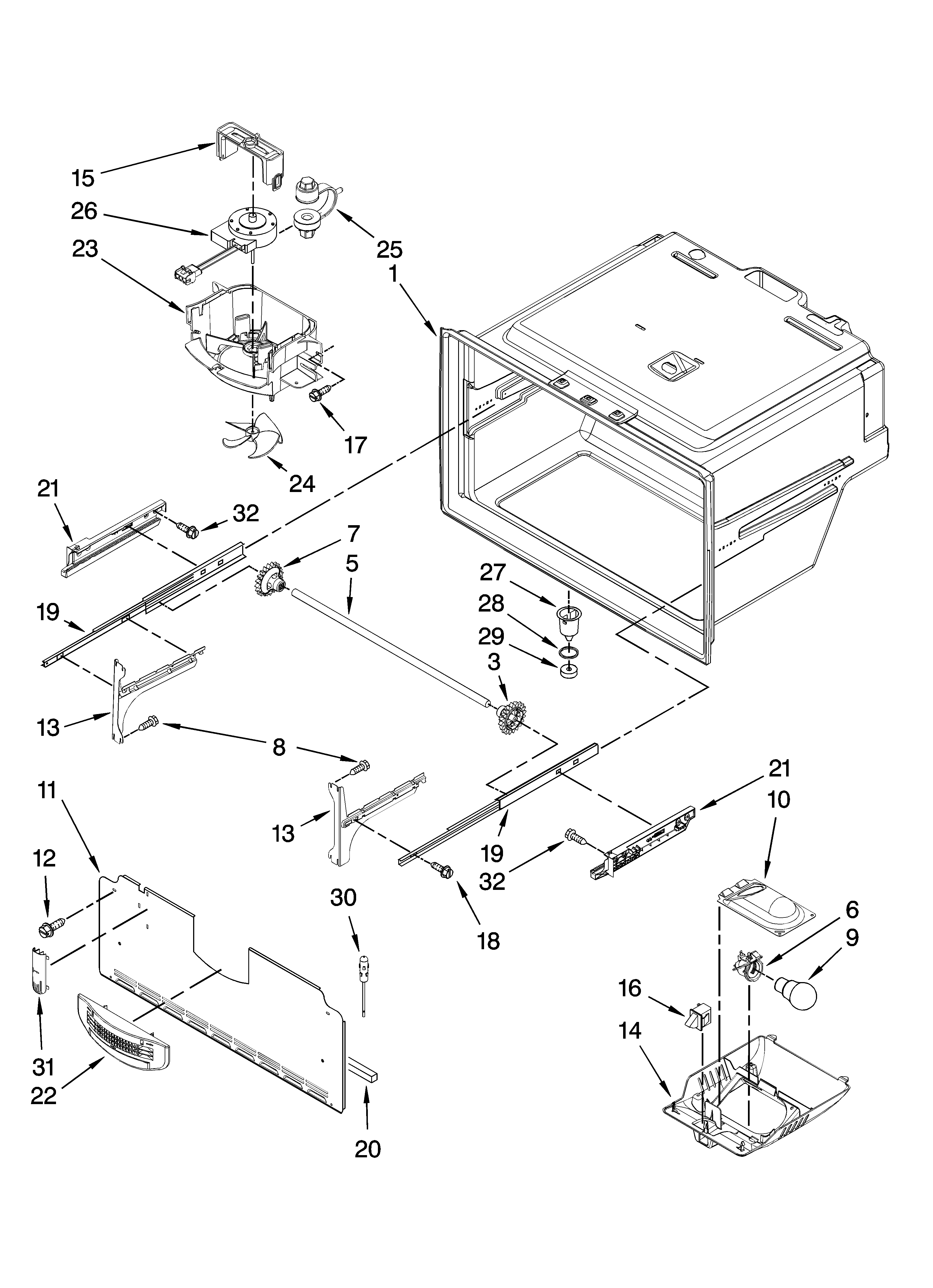

Refrigerator liner parts diagram
Refrigerator water filter bypassPart #12664501
Replaced by #W11395888
?Manufacturer substitutionThis part replaces 12664501. Substitute parts can look different from the original.$31.98 |16% OFF Phone Price : $37.98In Stock
