Model # 229960061 Official Kenmore gas-fired boiler
Here are the diagrams and repair parts for Official Kenmore 229960061 gas-fired boiler, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
229960061 Gas-Fired Boiler
#1

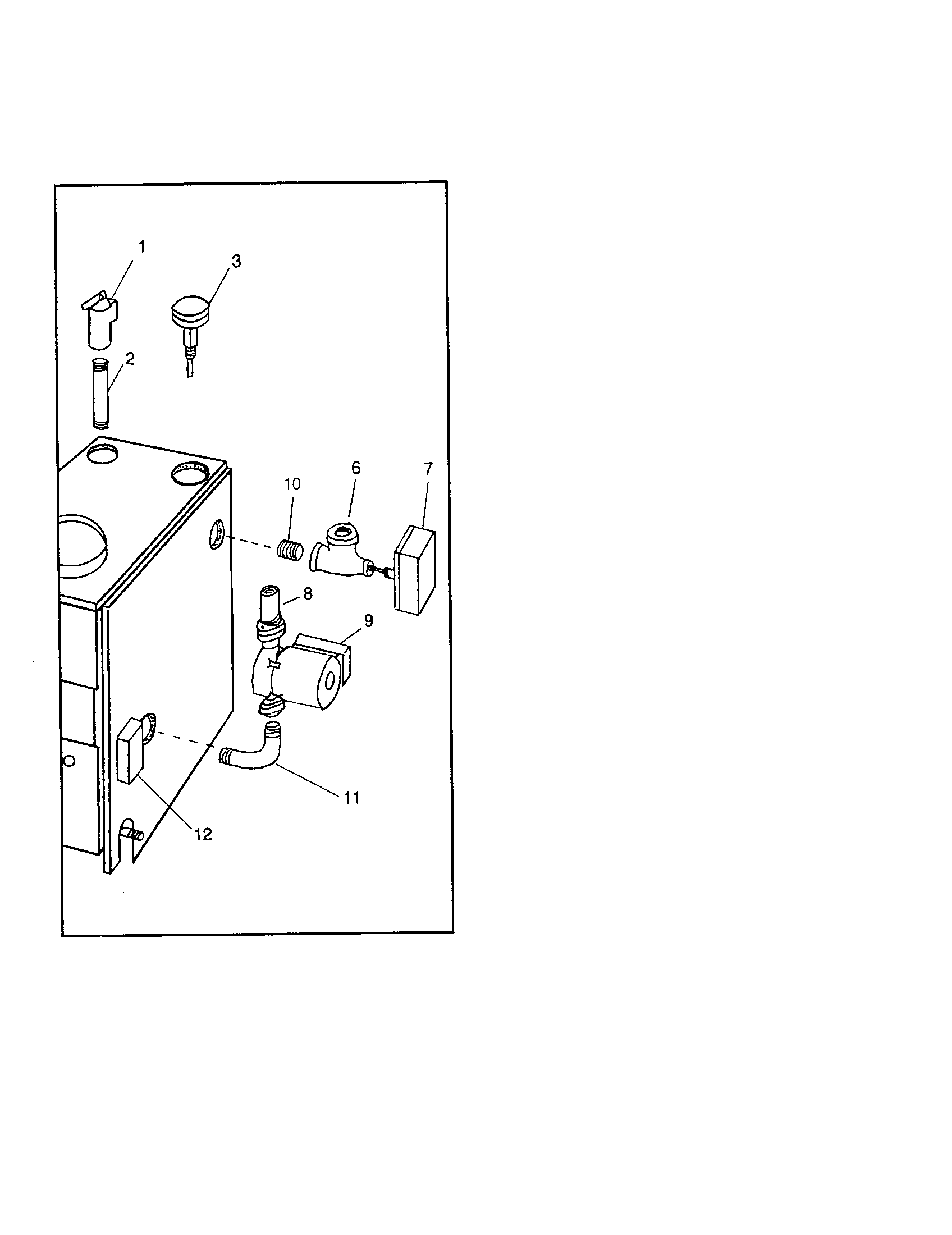

Boiler controls/piping diagram
Relief valve
Part #146-22-011
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
#NI08
All parts diagram
Circulator
Part #146-26-045
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#8
Boiler controls/piping diagram
Circulator
Part #146-26-043
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#9
Boiler controls/piping diagram
Gas valve
Part #146-62-047
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-62-047. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Vent damper
Part #146-28-003
Replaced by #FC46487201
?
Manufacturer substitution
This part replaces 146-28-003. Substitute parts can look different from the original.
$233.99
In Stock
#11

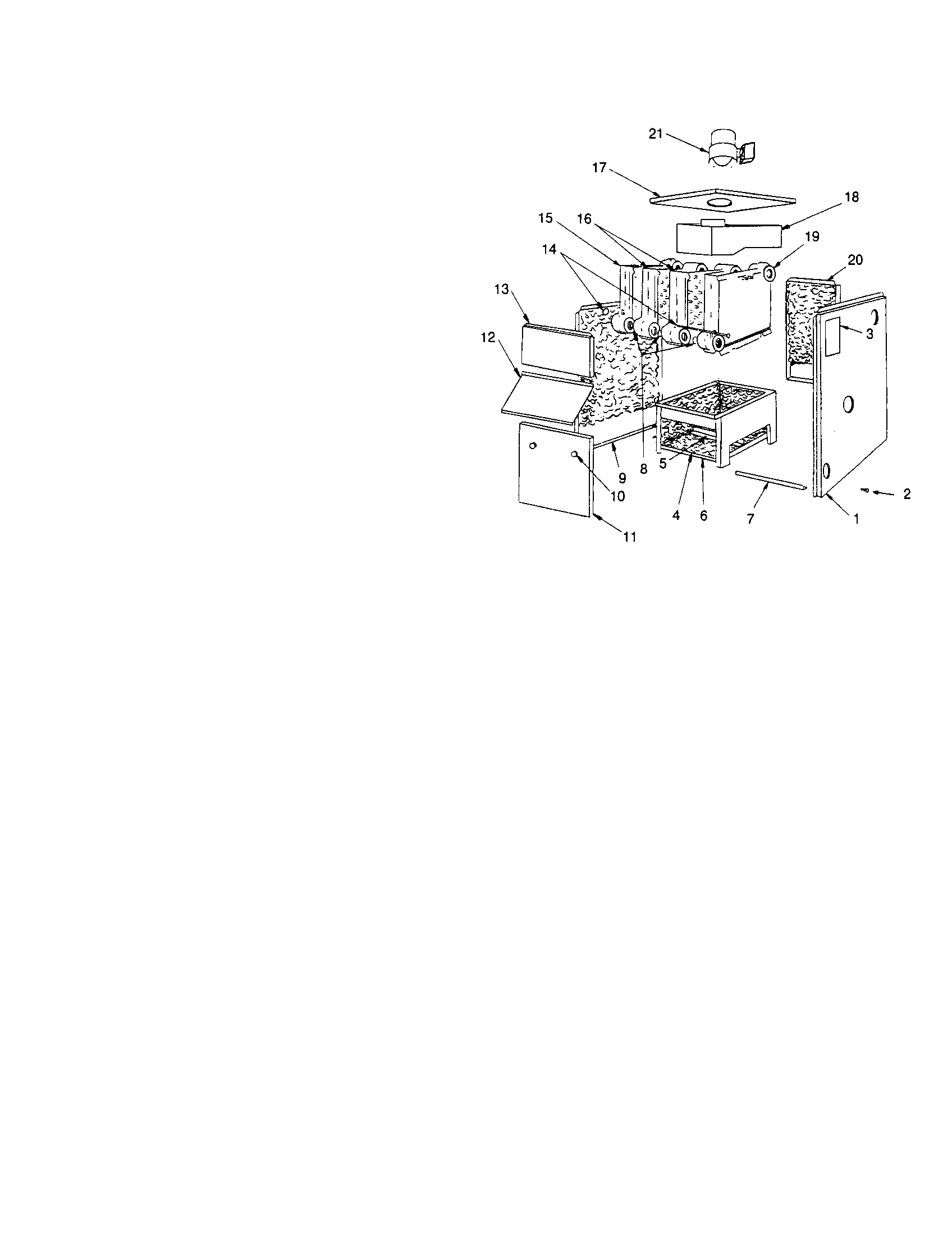

Jacket-section/base parts diagram
Jacket door
Part #425-00-916
Replaced by #42500916AC
?
Manufacturer substitution
This part replaces 425-00-916. Substitute parts can look different from the original.
$52.80
In Stock
#1A

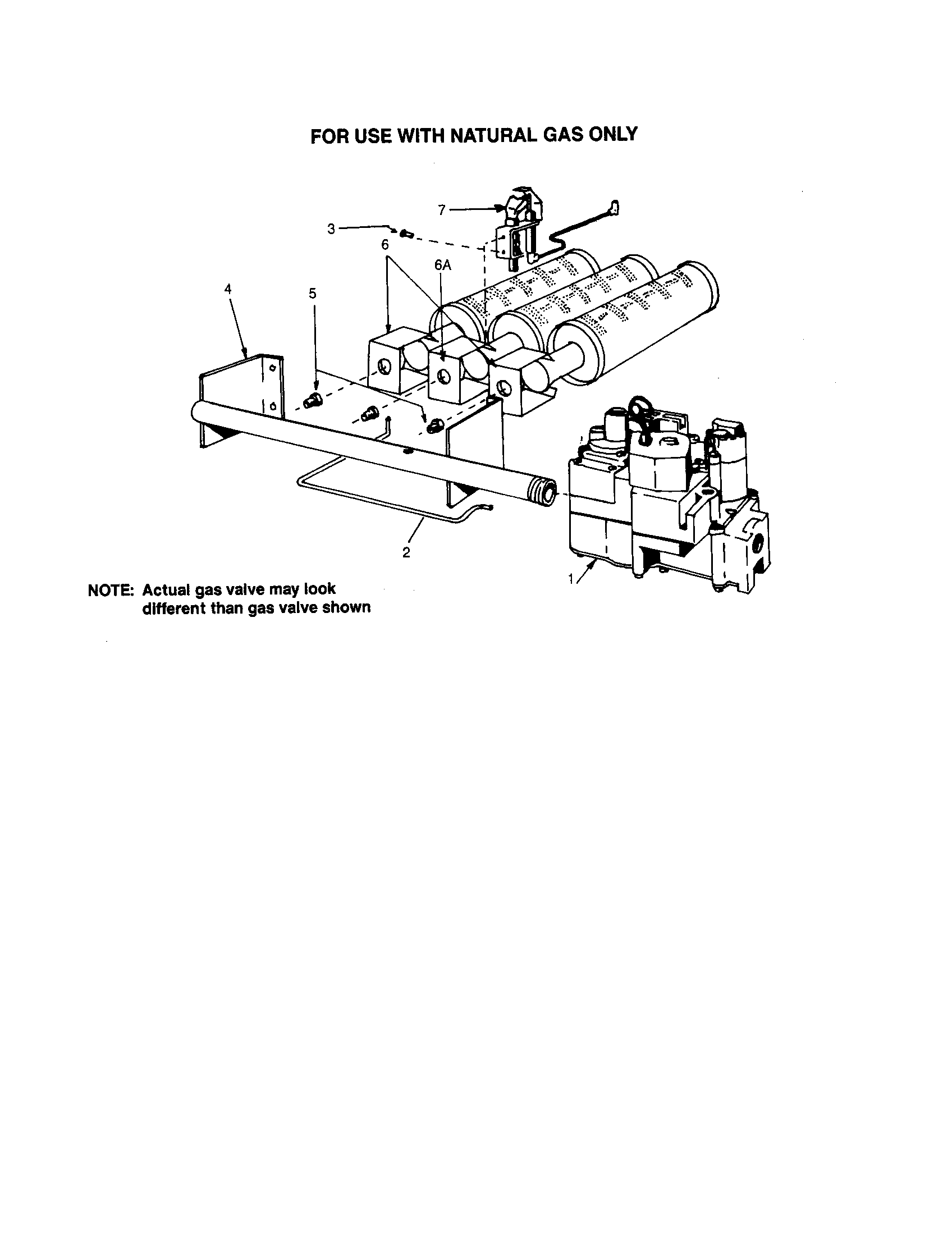

Natural gas burners/manifold parts diagram
Gas valve
Part #146-62-060
The manufacturer no longer makes this part, and there's no substitute part
#3
Boiler controls/piping diagram
Gauge
Part #146-23-009
Replaced by #240005246
?
Manufacturer substitution
This part replaces 146-23-009. Substitute parts can look different from the original.
$70.04 |
8% OFF Phone Price : $76.04
In Stock
#NI04
All parts diagram
6 sec block
Part #410-00-613
Replaced by #41000613SVC
?
Manufacturer substitution
This part replaces 410-00-613. Substitute parts can look different from the original.
$1264.77
In Stock
#13A
Boiler controls/piping diagram
Control lp
Part #146-62-071
Replaced by #BG1600M51EF-1AA
?
Manufacturer substitution
This part replaces 146-62-071. Substitute parts can look different from the original.
$191.94 |
6% OFF Phone Price : $203.94
In Stock
