Carrier
Heating & Cooling Combined Unit

Model # 50GL042300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 50GL042300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

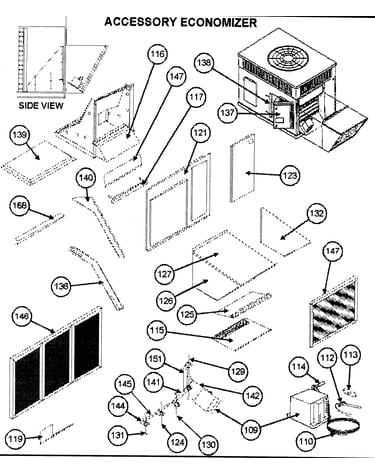

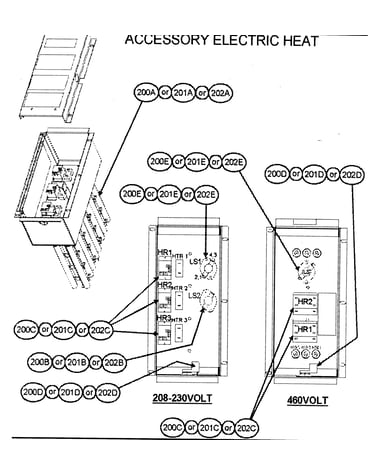

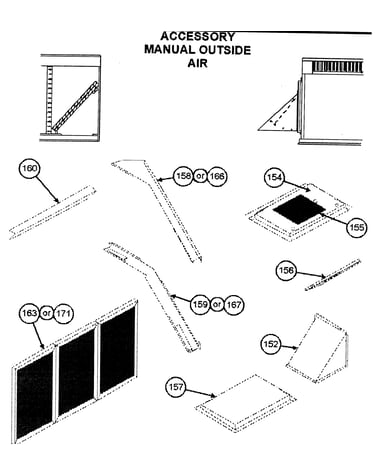

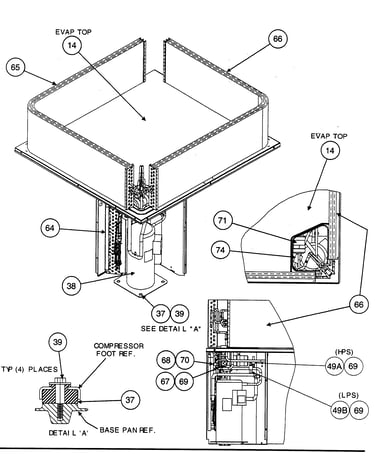

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Rely Tim Dly HN67KJ077
#46

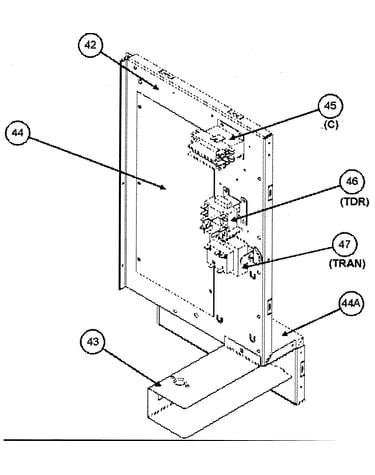

Control box assy diagram

Rely tim dly

Part #HN67KJ077

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor HC35GE235
Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock
Filter 9460-4900
Filter

Part #9460-4900

$599.08
In Stock
Furnace Blower Fan Motor HC43AE233
#55

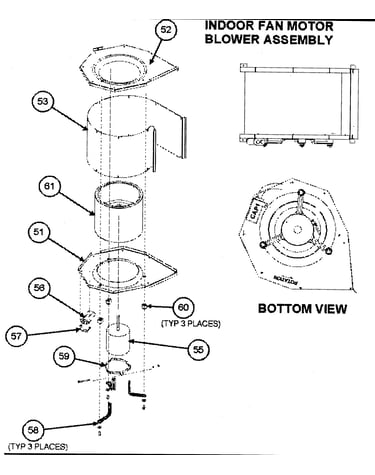

Indoor fan motor/blower assy/bottom view diagram

Furnace blower fan motor

Part #HC43AE233

$585.07 |
$12.00 OFF Phone Price : $597.07
In Stock
Panel 48GS500247
#9

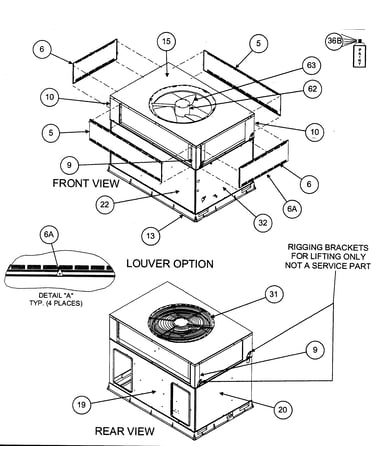

Front view/louver option/rear view diagram

Panel

Part #48GS500247

$58.67
In Stock
Grommet KA56DS001
#35

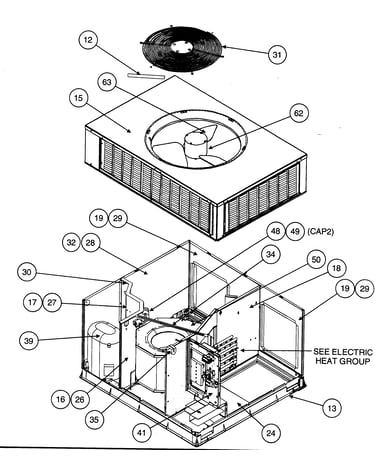

Inside view 1 diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Insulation 48GS500307
#29

Inside view 1 diagram

Insulation

Part #48GS500307

$63.60
In Stock
Plate Assembly 48GS400310
#51

Indoor fan motor/blower assy/bottom view diagram

Plate assembly

Part #48GS400310

$288.69
In Stock
Fan Plate 48GS500240
#52

Indoor fan motor/blower assy/bottom view diagram

Fan plate

Part #48GS500240

$198.18
In Stock
Strap Cap P281-0028
#49

Inside view 1 diagram

Strap cap

Part #P281-0028

$18.83
In Stock
