DeWalt
Angle Grinder

Model # DWE4012 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DWE4012-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Screw N122904
#62

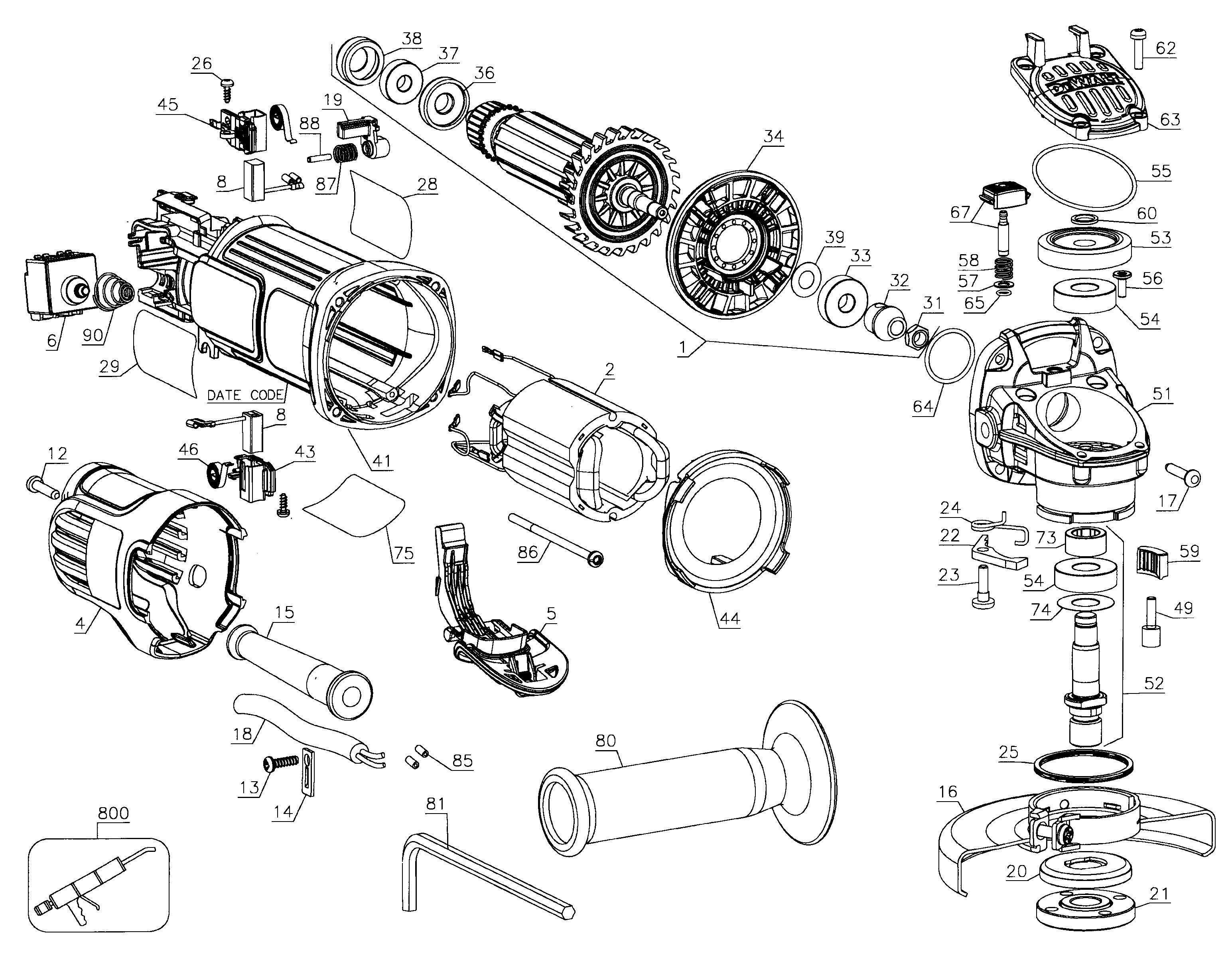

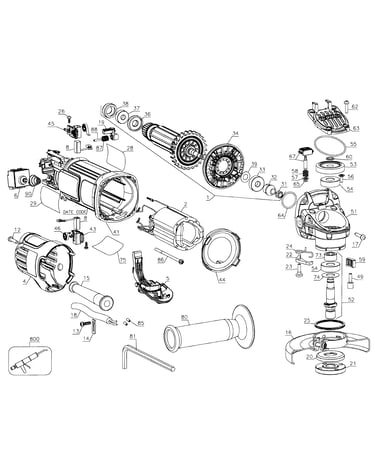

Grinder assy diagram

Screw

Part #N122904

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Flange Nut N134467
#21

Grinder assy diagram

Angle grinder flange nut

Part #N134467

The manufacturer no longer makes this part, and there's no substitute part

Spindle N181764
#52

Grinder assy diagram

Spindle

Part #N181764

The manufacturer no longer makes this part, and there's no substitute part

Washer N135116
#25

Grinder assy diagram

Washer

Part #N135116

The manufacturer no longer makes this part, and there's no substitute part

Grease 30301914-01
#NI

Grinder assy diagram

Grease

Part #30301914-01

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench N107295
#81

Grinder assy diagram

Hex wrench

Part #N107295

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 641823-00
#38

Grinder assy diagram

Bearing cup

Part #641823-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Side Handle N239381
#80

Grinder assy diagram

Angle grinder side handle

Part #N239381

The manufacturer no longer makes this part, and there's no substitute part

Ring 444793-00
#60

Grinder assy diagram

Ring

Part #444793-00

The manufacturer no longer makes this part, and there's no substitute part

Screw N137733
#23

Grinder assy diagram

Screw

Part #N137733

The manufacturer no longer makes this part, and there's no substitute part
