Model # A05LH8L1 Official Frigidaire room air conditioner - lf34089150

Here are the diagrams and repair parts for Official Frigidaire A05LH8L1 room air conditioner - lf34089150, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

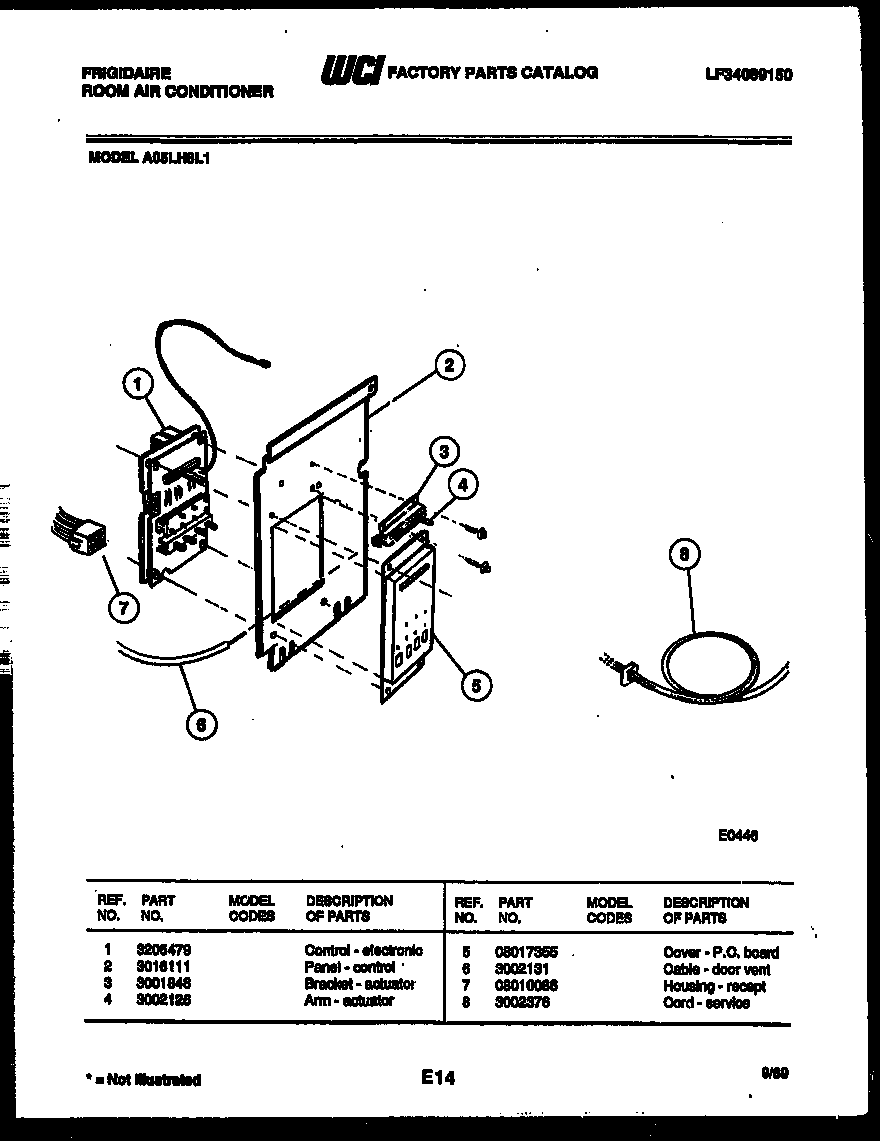

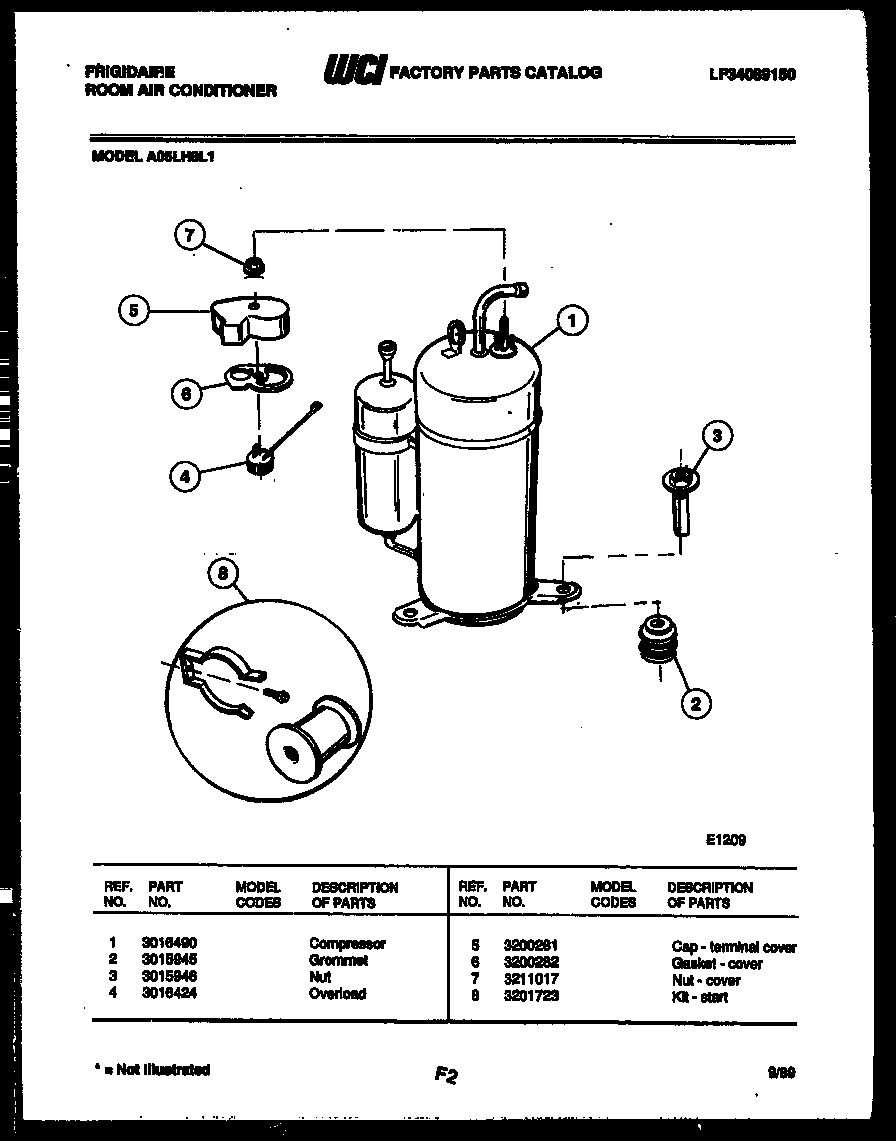

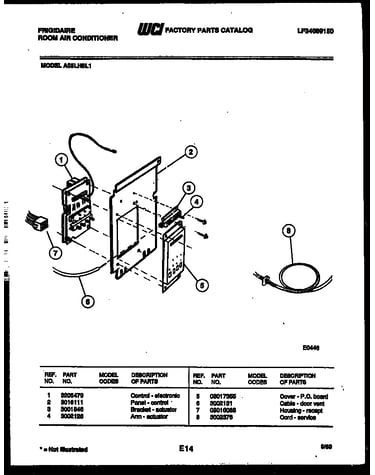

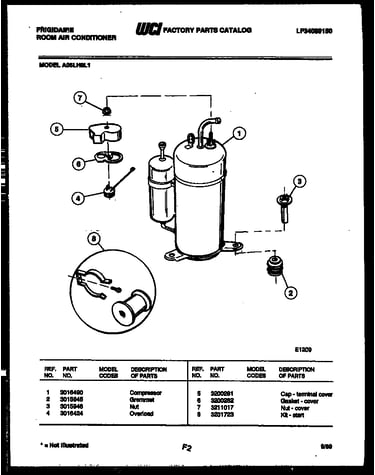

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Filter A000265301
#3

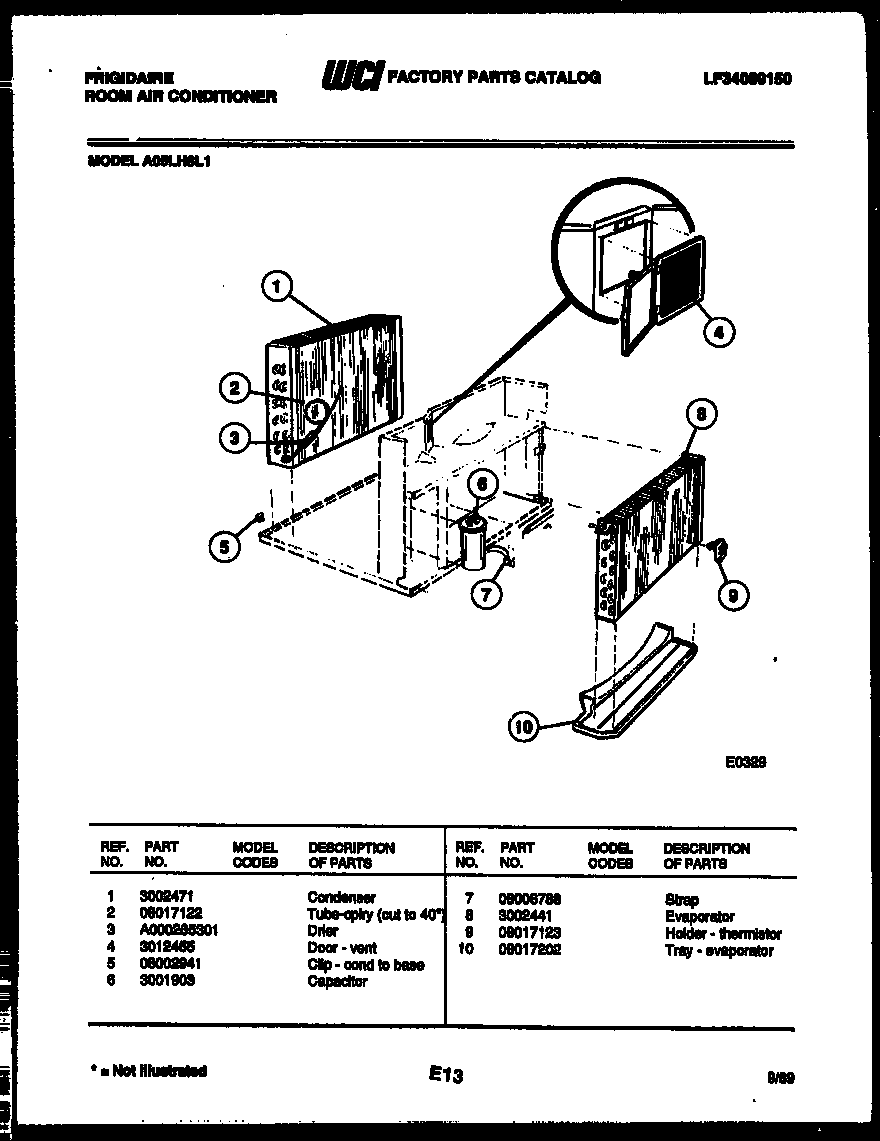

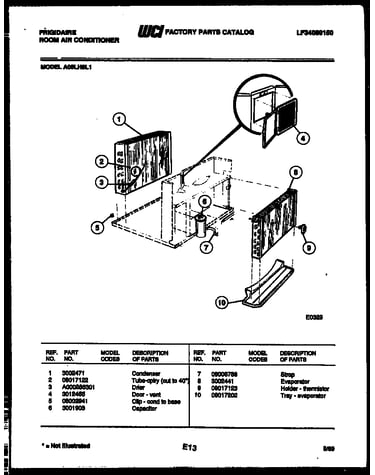

Unit parts diagram

Filter

Part #A000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces A000265301. Substitute parts can look different from the original.
$212.62
In Stock
Screw 08007473
#9

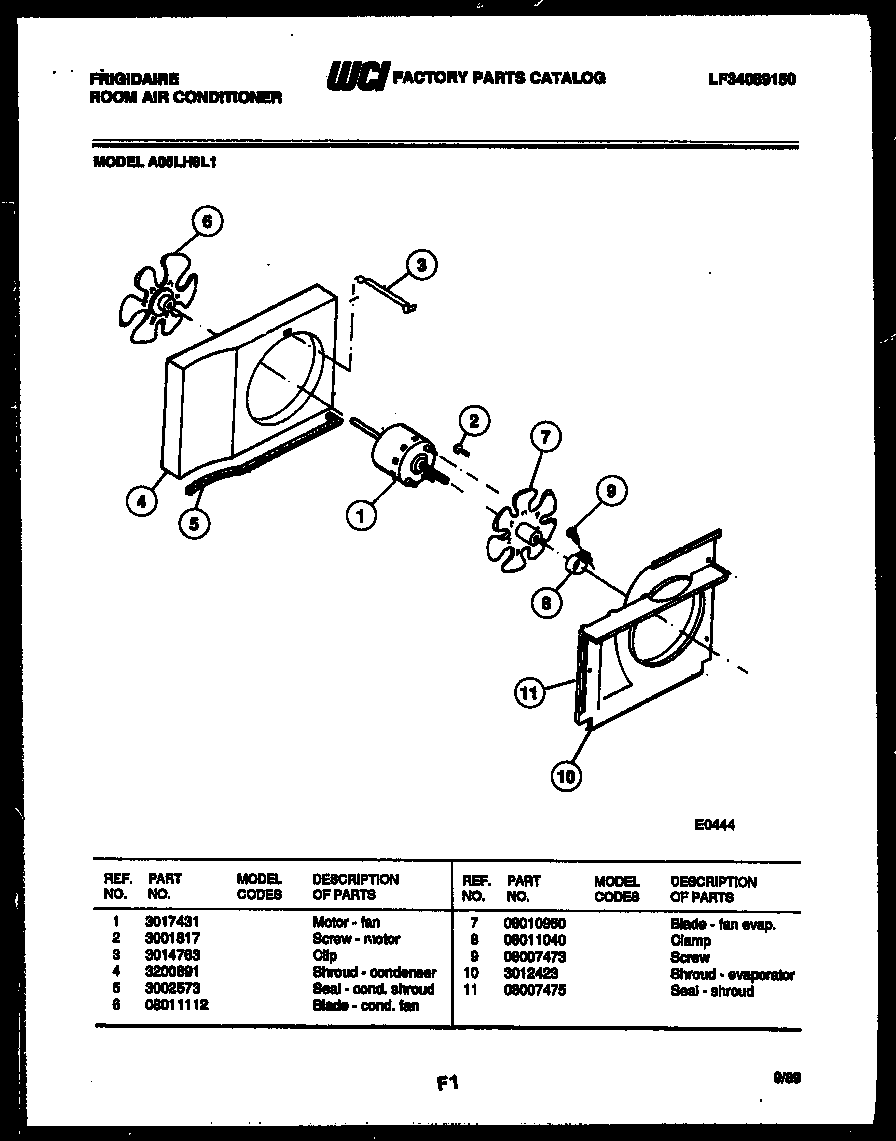

Air handling parts diagram

Screw

Part #08007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 08007473. Substitute parts can look different from the original.
$13.26
In Stock
Louver 08017364
#6

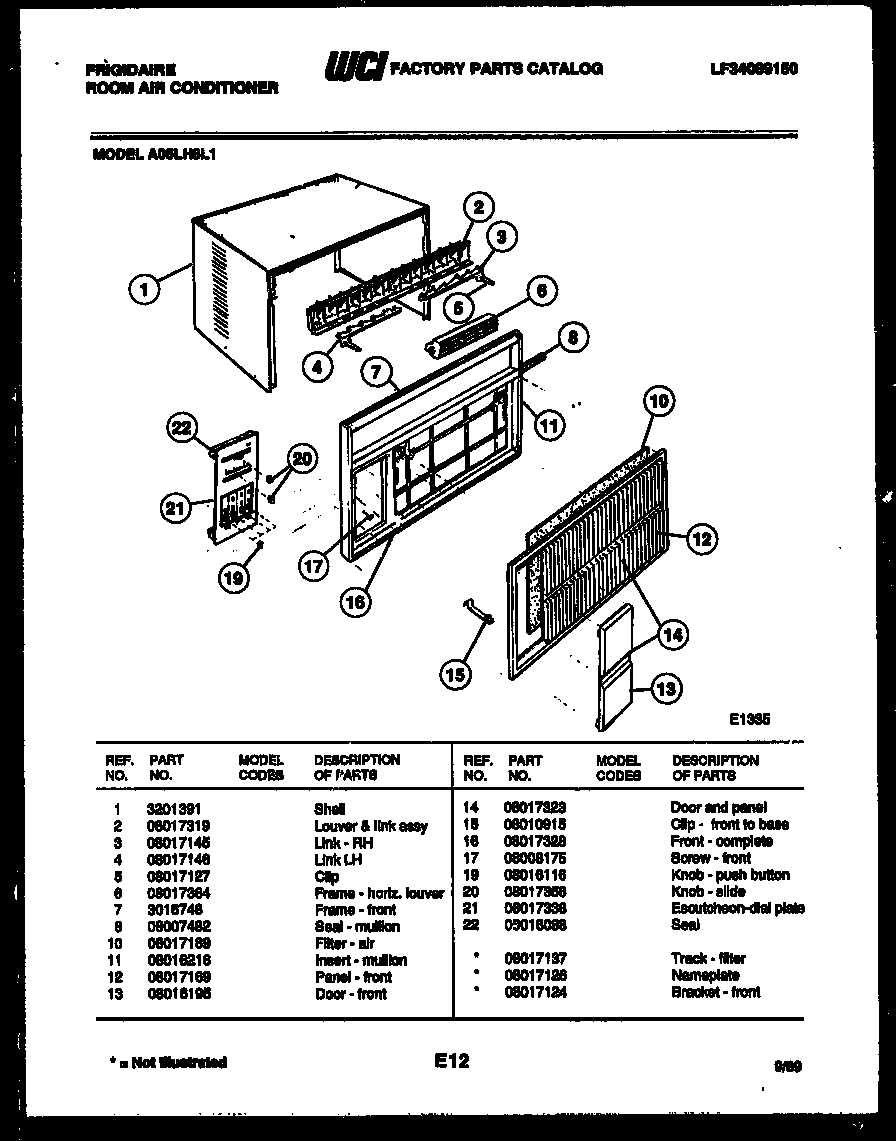

Cabinet parts diagram

Louver

Part #08017364

This item is not returnable
$4.99
In Stock
Nut 08016090
#4

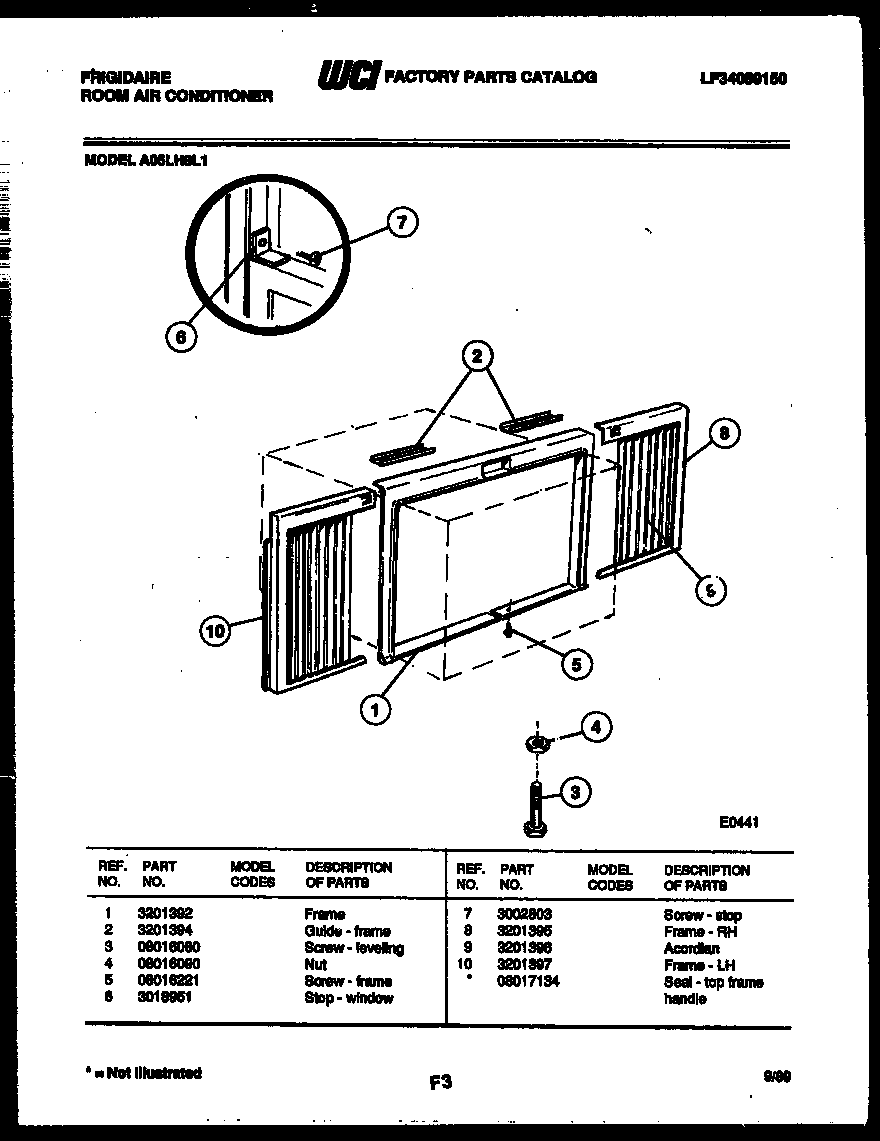

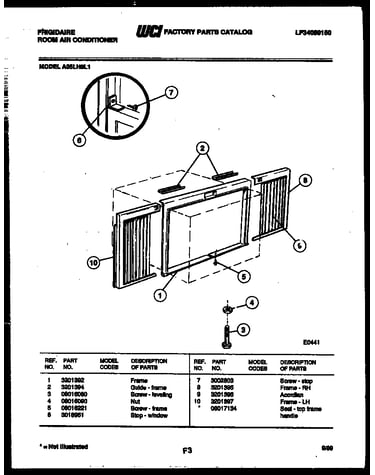

Window mounting parts diagram

Nut

Part #08016090

This item is not returnable
$2.16
In Stock
Door 3012455
#4

Unit parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Seal 08016088
#22

Cabinet parts diagram

Seal

Part #08016088

The manufacturer no longer makes this part, and there's no substitute part

Screw Front 08008175
#17

Cabinet parts diagram

Screw front

Part #08008175

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 3001903
#6

Unit parts diagram

Capacitor

Part #3001903

The manufacturer no longer makes this part, and there's no substitute part

Seal 08007482
#8

Cabinet parts diagram

Seal

Part #08007482

The manufacturer no longer makes this part, and there's no substitute part

Guide 3201394
#2

Window mounting parts diagram

Guide

Part #3201394

The manufacturer no longer makes this part, and there's no substitute part
