Amana
Bottom-Mount Refrigerator

Model # BC20J-P7680812W Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana BC20J-P7680812W bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

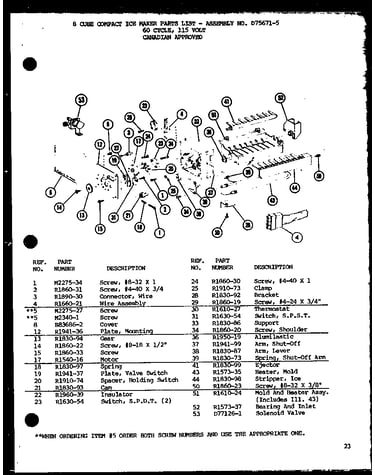

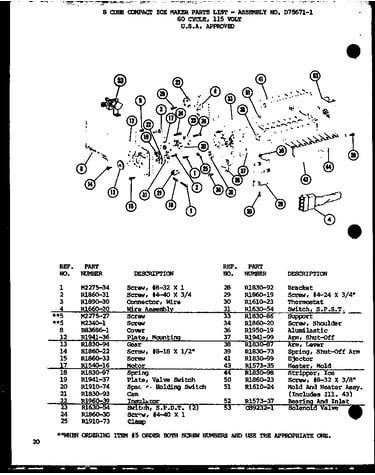

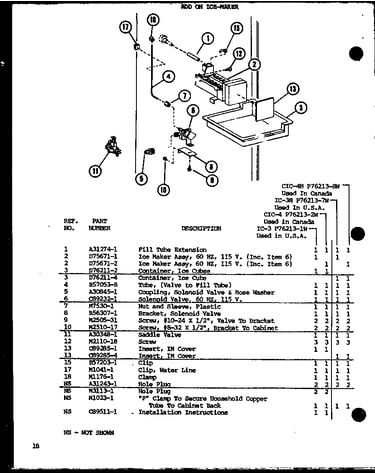

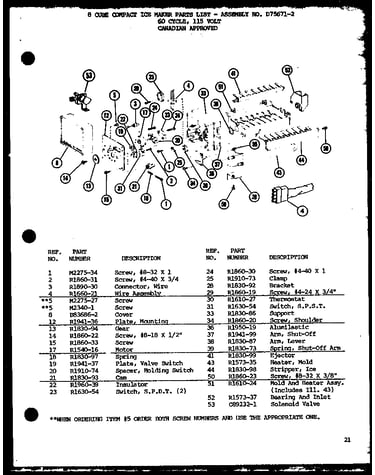

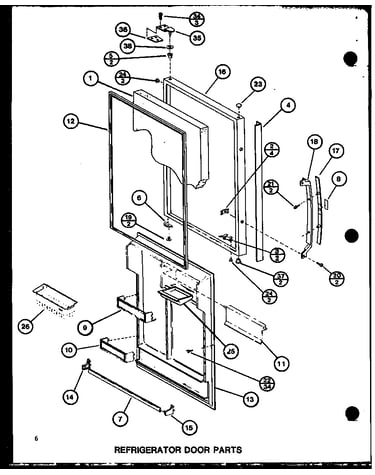

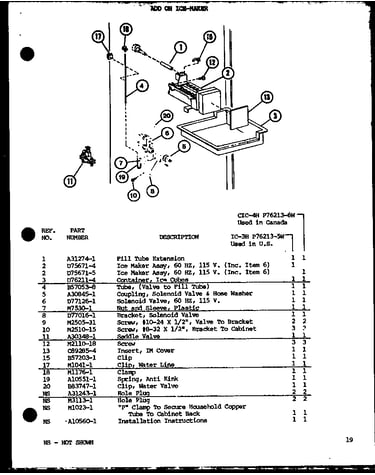

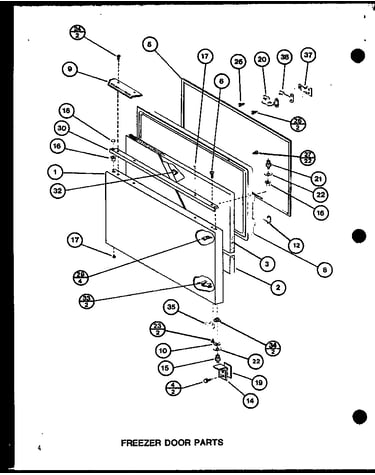

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#17

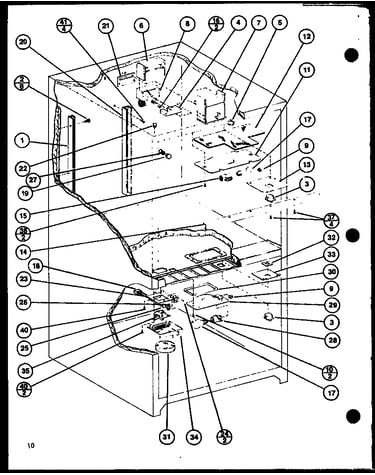

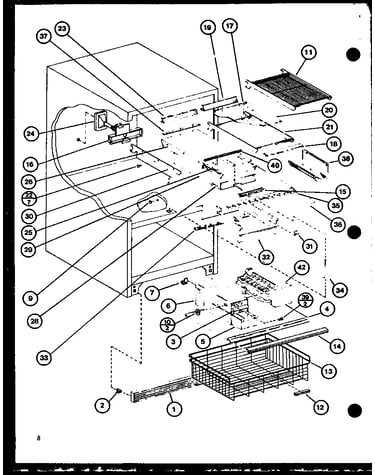

(bc20j/p7680812w) (br20j/p7680813w) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680307
#3

(bc20j/p7680812w) (br20j/p7680813w) diagram

Refrigerator light switch

Part #C3680307

The manufacturer no longer makes this part, and there's no substitute part

Drier B5715001
#17

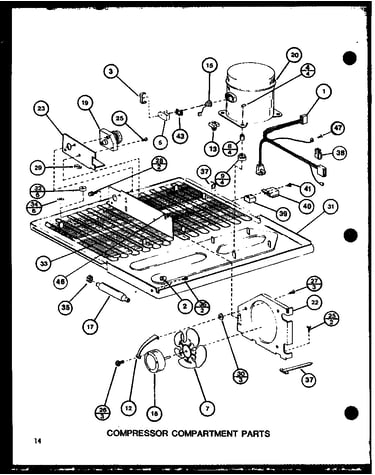

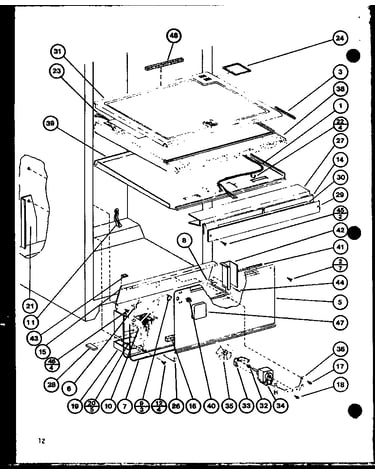

Compressor compartment parts (bc20j/p7680812w) (br20j/p7680813w) diagram

Drier

Part #B5715001

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B5715001. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Fan Motor D7584001
#18

Compressor compartment parts (bc20j/p7680812w) (br20j/p7680813w) diagram

Refrigerator fan motor

Part #D7584001

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584001. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw M0203931
Refrigerator screw

Part #M0203931

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0203931. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Grommet A1017202
#32

(bc20j/p7680812w) (br20j/p7680813w) diagram

Refrigerator grommet

Part #A1017202

Replaced by #WP2264462

?
Manufacturer substitution
This part replaces A1017202. Substitute parts can look different from the original.
This item is not returnable
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Evaporator Motor C8891601
#34

(bc20j/p7680812w) (br20j/p7680813w) diagram

Evaporator motor

Part #C8891601

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Roller M0520102
#20

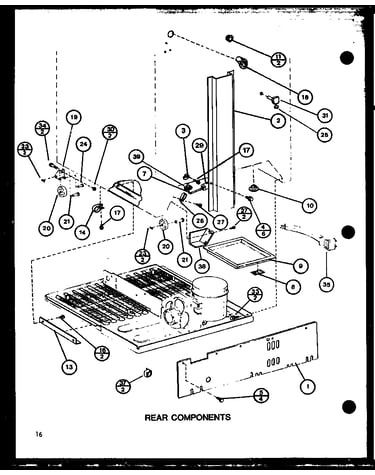

Rear components (bc20j/p7680812w) (br20j/p7680813w) diagram

Refrigerator roller

Part #M0520102

The manufacturer no longer makes this part, and there's no substitute part

Screw M0236717
#20

(bc20j/p7680812w) (br20j/p7680813w) diagram

Screw

Part #M0236717

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0236717. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0241118
#5

Rear components (bc20j/p7680812w) (br20j/p7680813w) diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
