Model # 143640000 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143640000 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

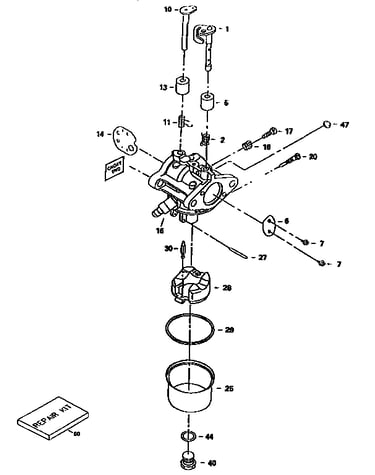

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Walton Spring Retainer 632653
#2

Replacement parts diagram

Walton spring retainer

Part #632653

This item is not returnable
$6.14
In Stock
Walton Lawn & Garden Equipment Engine Screw 650506
#7

Replacement parts diagram

Walton lawn & garden equipment engine screw

Part #650506

This item is not returnable
$2.16
In Stock
Walton Lawn & Garden Equipment Engine Carburetor Assembly 640000
#0

Replacement parts diagram

Walton lawn & garden equipment engine carburetor assembly

Part #640000

$116.22
In Stock
Walton Welch Plug 632667
#47

Replacement parts diagram

Walton welch plug

Part #632667

This item is not returnable
$4.14
In Stock
Walton Screw 632659
#17

Replacement parts diagram

Walton screw

Part #632659

This item is not returnable
$3.89
In Stock
Walton Float Shaft 632663
#27

Replacement parts diagram

Walton float shaft

Part #632663

This item is not returnable
$5.91
In Stock
Walton Spring Retainer 632656
#11

Replacement parts diagram

Walton spring retainer

Part #632656

This item is not returnable
$5.80
In Stock
Walton Inlet Needle 632666
#30

Replacement parts diagram

Walton inlet needle

Part #632666

$17.40
In Stock
Walton Idle Screw 640001
#20

Replacement parts diagram

Walton idle screw

Part #640001

$11.14
In Stock
Walton Float 632664
#28

Replacement parts diagram

Walton float

Part #632664

$25.89
In Stock
