Model # ZEK756GP1BG Official GE electric oven

Here are the diagrams and repair parts for Official GE ZEK756GP1BG electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

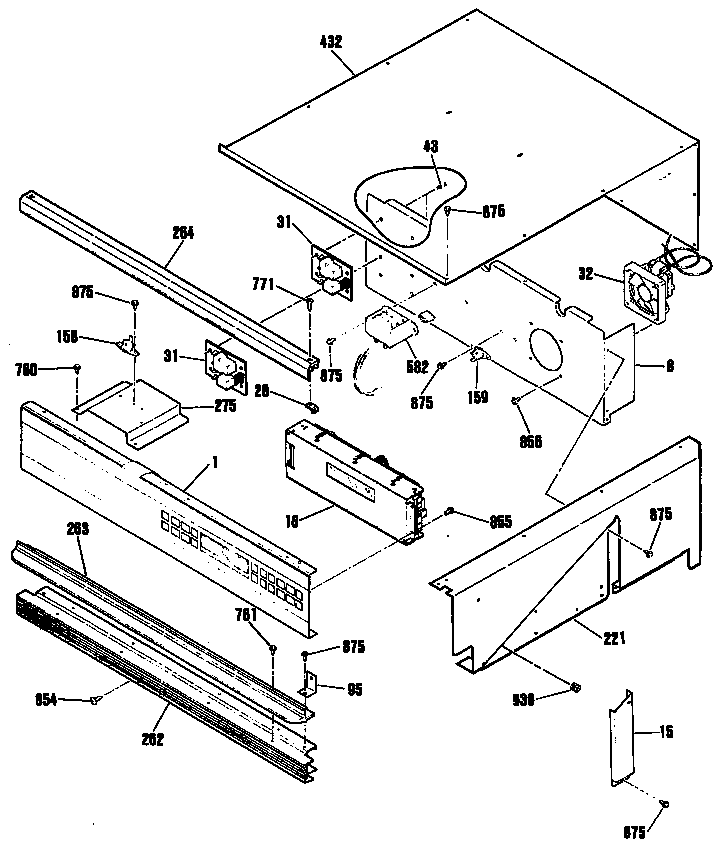

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Range Broil Element WB44K5009
#252

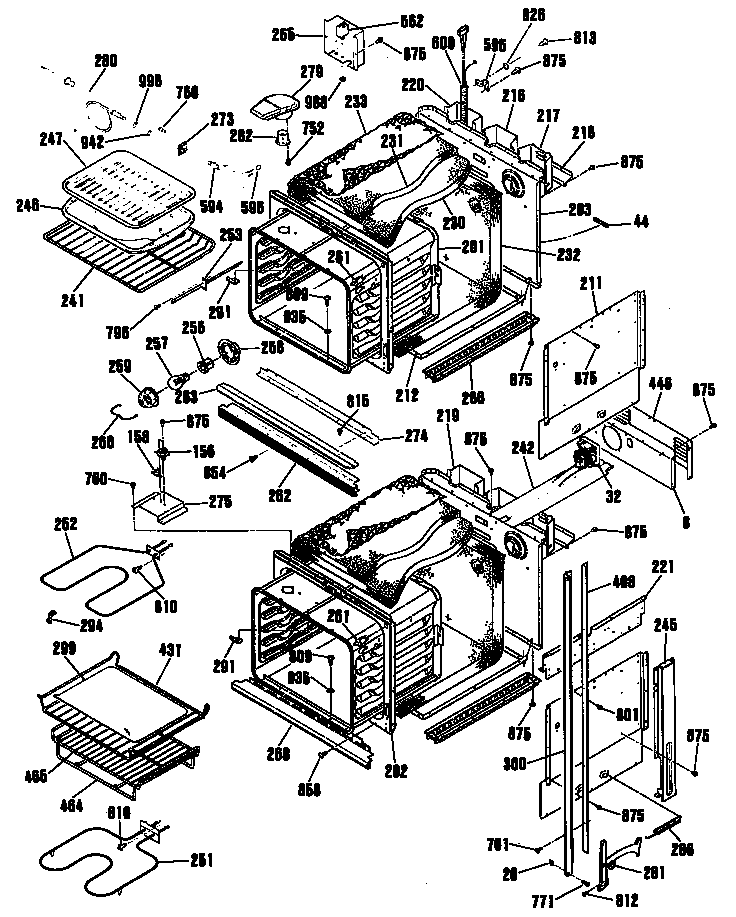

Oven assembly diagram

Range broil element

Part #WB44K5009

BEST SELLER
$58.32 |
9% OFF Phone Price : $64.32
In Stock
Range Bake Element (replaces 347753, Wb44k5008) WB44K5013
#251

Oven assembly diagram

Range bake element (replaces 347753, wb44k5008)

Part #WB44K5013

BEST SELLER
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Lock Motor WB26K5030
#151

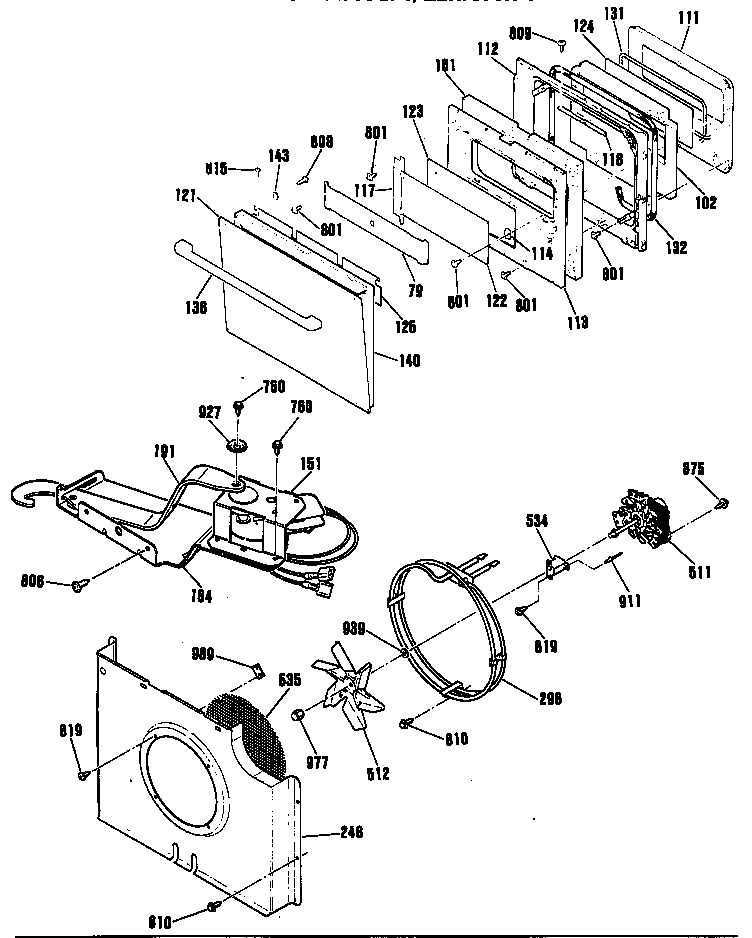

Door/lock/fan diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Screw-10-32 WB1X1135
Screw-10-32

Part #WB1X1135

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1135. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw-4-pk WB1M01
Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Gasket WB32K5025
#132

Door/lock/fan diagram

Gasket

Part #WB32K5025

Replaced by #WB32K5038

?
Manufacturer substitution
This part replaces WB32K5025. Substitute parts can look different from the original.
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Lock Lever Assembly WB15K5016
#191

Door/lock/fan diagram

Lock lever assembly

Part #WB15K5016

$13.93 |
13% OFF Phone Price : $15.93
In Stock
Seal WB2X9381
#131

Door/lock/fan diagram

Seal

Part #WB2X9381

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces WB2X9381. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Screw WB1K5062
Range screw

Part #WB1K5062

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Griddle Broil WB49X627
#247

Oven assembly diagram

Griddle broil

Part #WB49X627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X627. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
