Model # JVM1431BA01 Official GE microwave
Here are the diagrams and repair parts for Official GE JVM1431BA01 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
JVM1431BA01 Microwave
#29

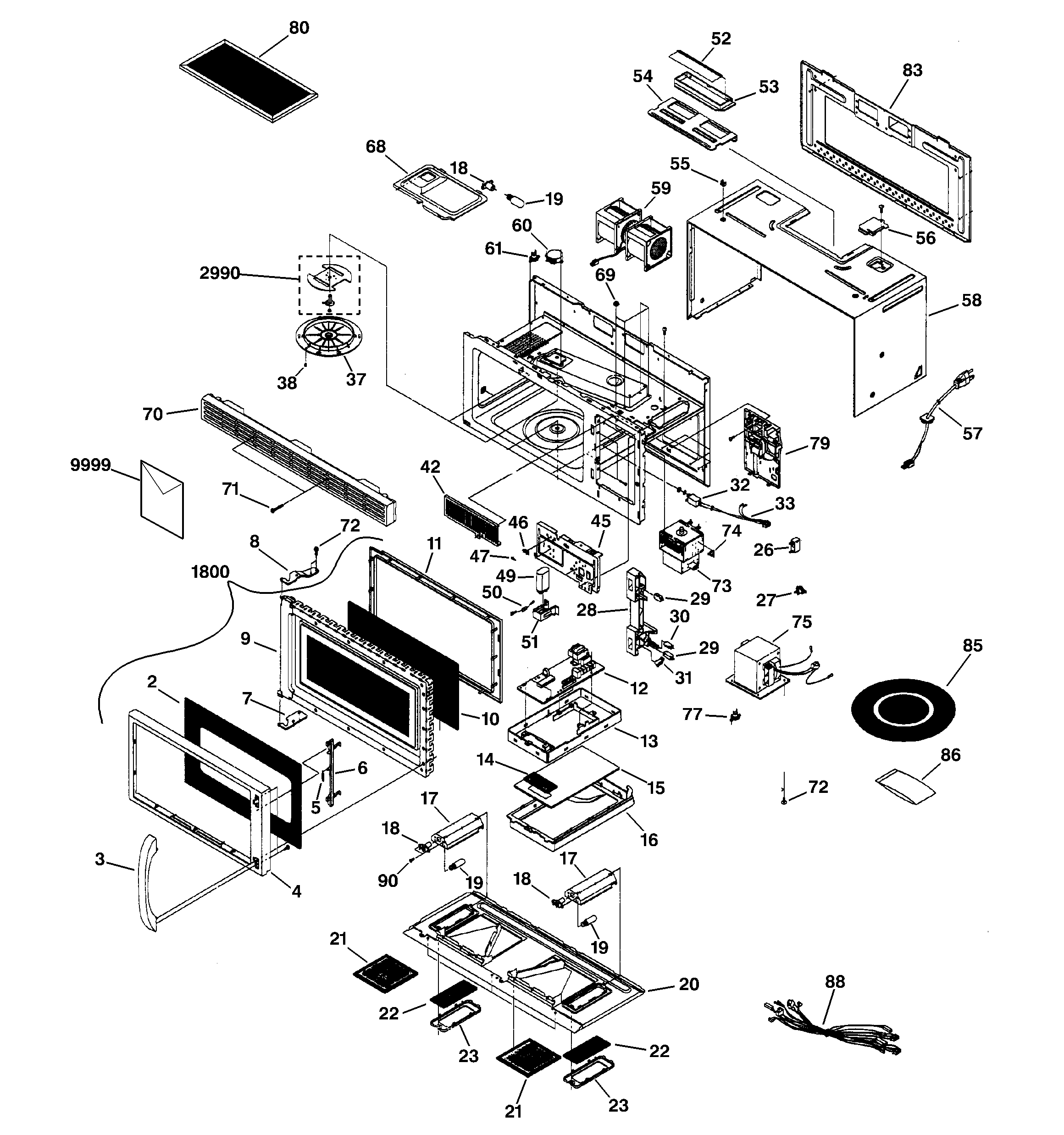

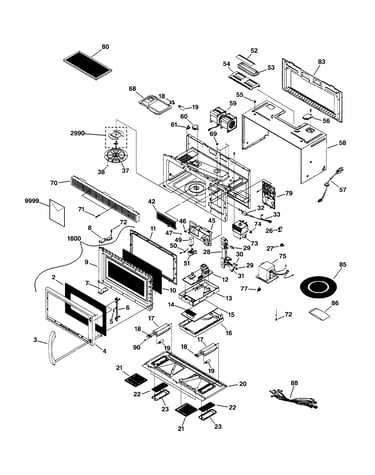

Microwave diagram
Switch-micro
Part #WB24X0829
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
$35.62 |
14% OFF Phone Price : $41.62
In Stock
#47
Microwave diagram
Fuse
Part #WB27X1159
Replaced by #WB27X10928
?
Manufacturer substitution
This part replaces WB27X1159. Substitute parts can look different from the original.
$11.95 |
14% OFF Phone Price : $13.95
In Stock
#49
Microwave diagram
Microwave high-voltage capacitor (replaces wb27x585)
Part #WB27X10011
$80.17 |
7% OFF Phone Price : $86.17
In Stock
#30
Microwave diagram
Monitor switch
Part #WB24X0830
Replaced by #WB24X830
?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
$34.54 |
15% OFF Phone Price : $40.54
In Stock
#50
Microwave diagram
High-voltage diode
Part #WB27X10169
Replaced by #WB27X10597
?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
$50.58 |
11% OFF Phone Price : $56.58
In Stock
#31
Microwave diagram
Microwave door interlock switch lever (replaces wb6x10128)
Part #WB06X10128
$10.67 |
16% OFF Phone Price : $12.67
In Stock
#74
Microwave diagram
Microwave thermal cut-off
Part #WB27X10166
$32.99 |
15% OFF Phone Price : $38.99
In Stock
#19
Microwave diagram
Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)
Part #WB36X10003
This item is not returnable
$13.40 |
13% OFF Phone Price : $15.40
In Stock
#18
Microwave diagram
Lamp socket
Part #WB08X10011
Replaced by #WB08X10016
?
Manufacturer substitution
This part replaces WB08X10011. Substitute parts can look different from the original.
This item is not returnable
$24.09 |
20% OFF Phone Price : $30.09
In Stock
#60
Microwave diagram
Microwave stirrer fan motor
Part #WB26X10037
$43.99 |
12% OFF Phone Price : $49.99
In Stock
