Model # HL-10PS Official Brother printer

Here are the diagrams and repair parts for Official Brother HL-10PS printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

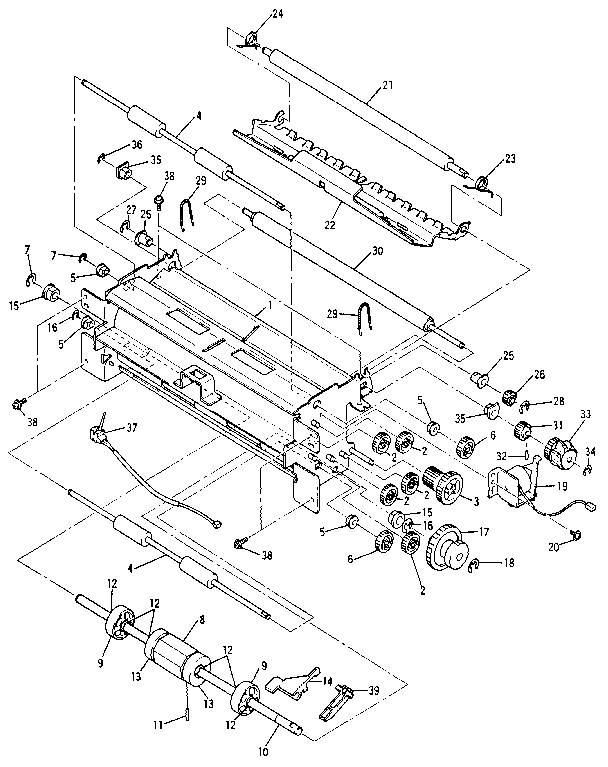

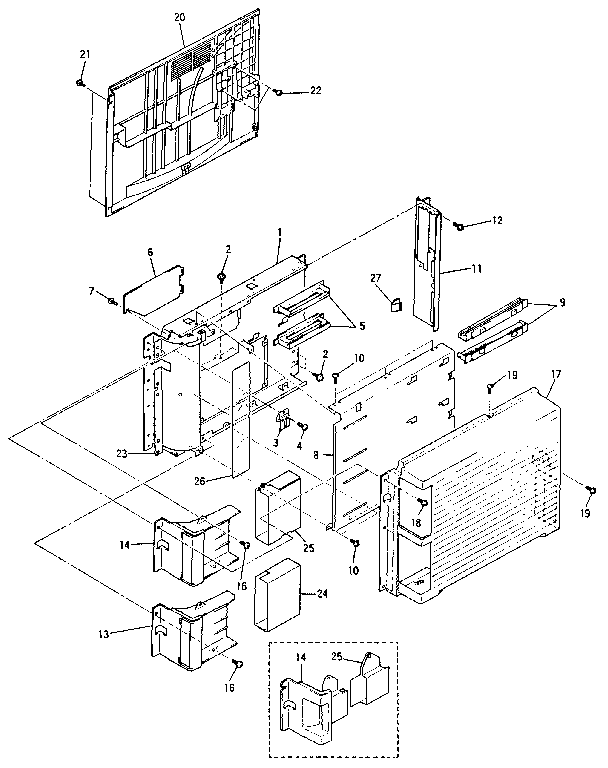

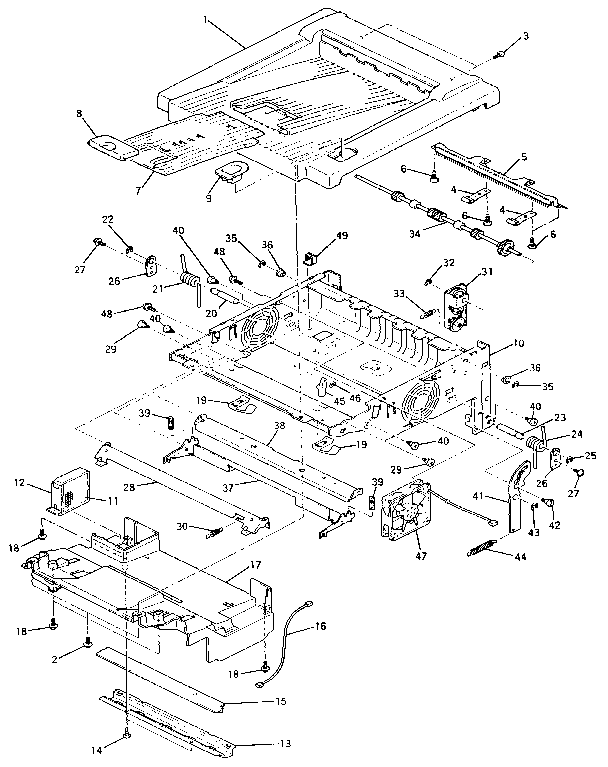

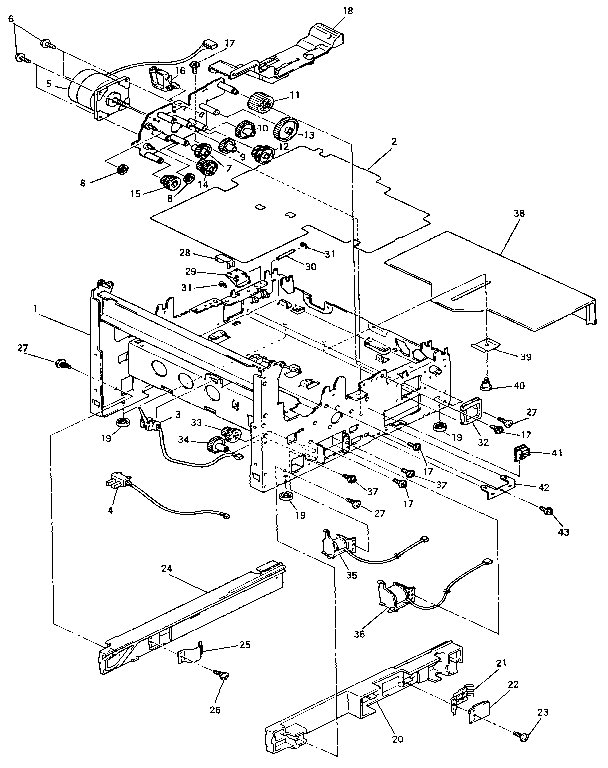

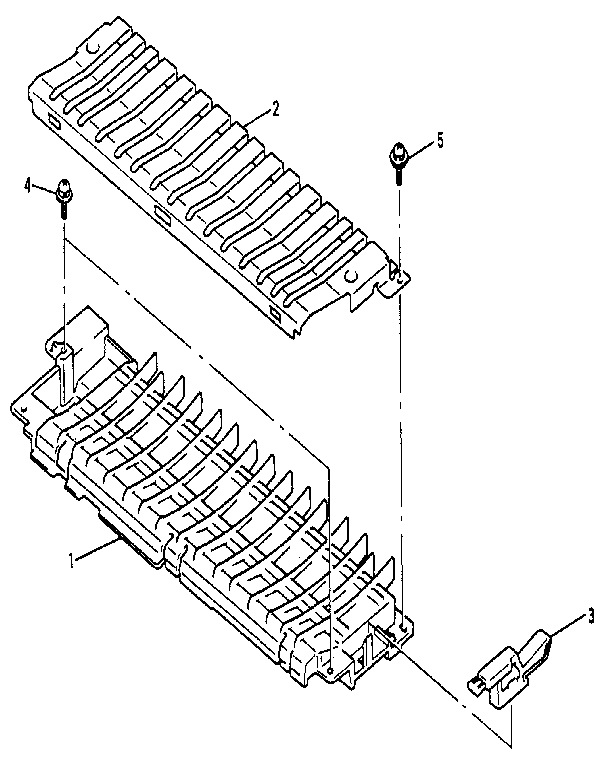

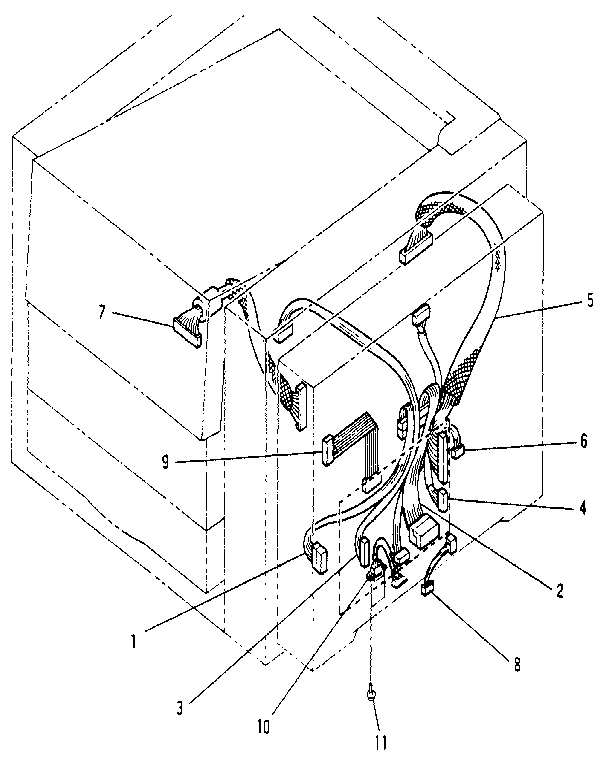

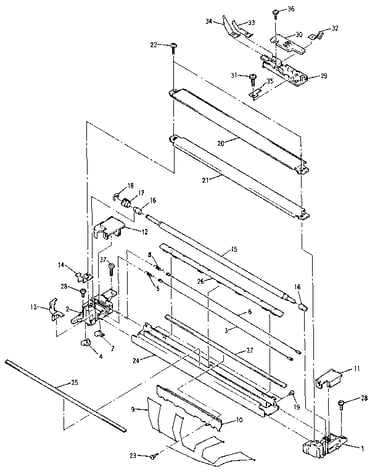

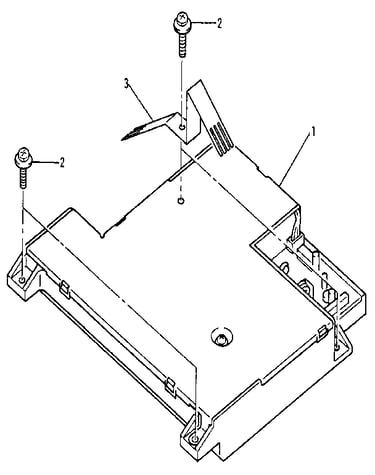

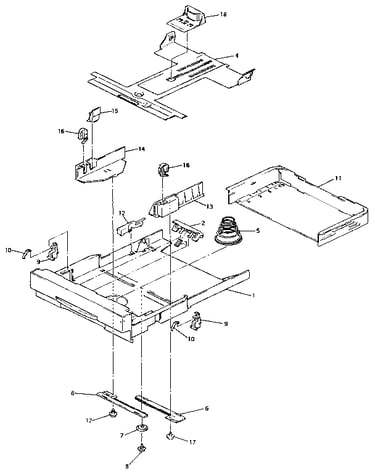

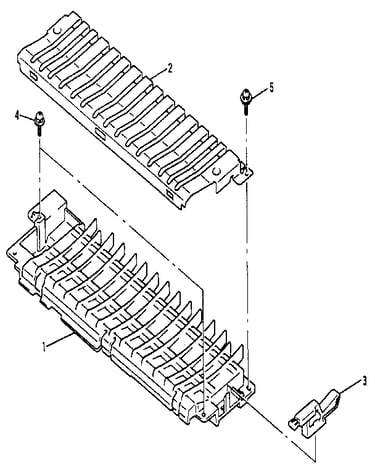

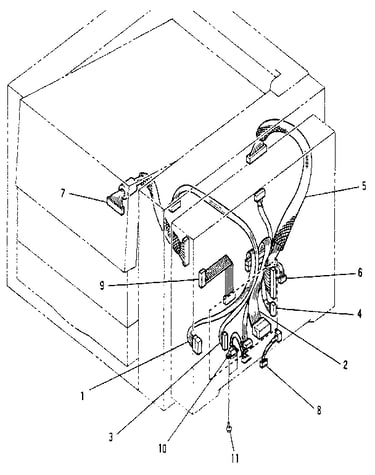

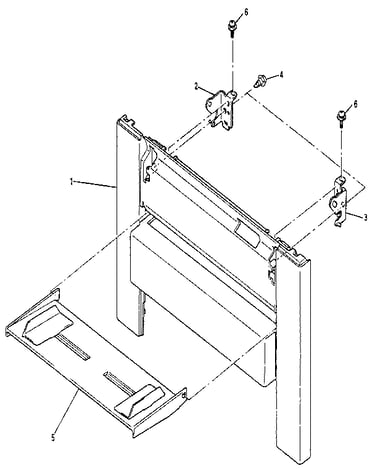

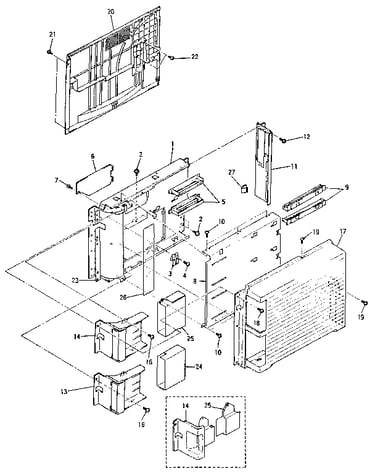

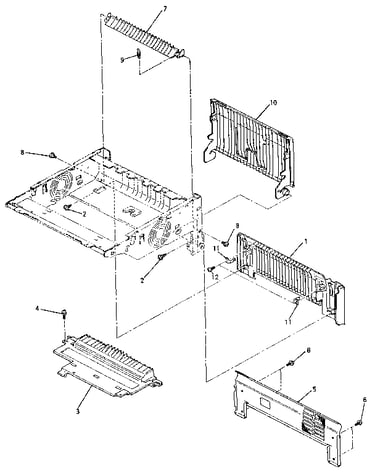

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |

Sn74ls14n 091100014
#7B

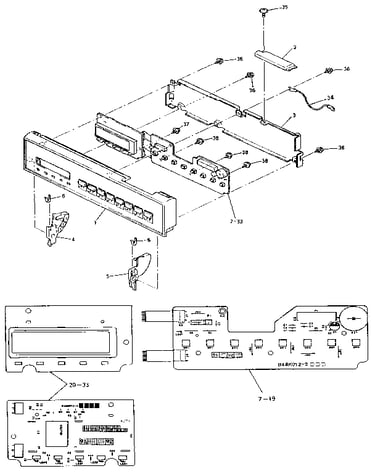

Control panel diagram

Sn74ls14n

Part #091100014

The manufacturer no longer makes this part, and there's no substitute part

Resistor UH0041000
#28

Control panel diagram

Resistor

Part #UH0041000

The manufacturer no longer makes this part, and there's no substitute part

Scr 3x8mm U05404002
Scr 3x8mm

Part #U05404002

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Y41012801
#14

Control panel diagram

Capacitor

Part #Y41012801

The manufacturer no longer makes this part, and there's no substitute part

15k 1/8w J 094153120
#27

Control panel diagram

15k 1/8w j

Part #094153120

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Y81042400
#30

Control panel diagram

Capacitor

Part #Y81042400

The manufacturer no longer makes this part, and there's no substitute part

1000pf 25v Y31021001
#15

Control panel diagram

1000pf 25v

Part #Y31021001

The manufacturer no longer makes this part, and there's no substitute part

Resistor 090331120
#12

Control panel diagram

Resistor

Part #090331120

The manufacturer no longer makes this part, and there's no substitute part

Res F 1.5k 094152120
#26

Control panel diagram

Res f 1.5k

Part #094152120

The manufacturer no longer makes this part, and there's no substitute part

Res Fc 470 094471120
#25

Control panel diagram

Res fc 470

Part #094471120

The manufacturer no longer makes this part, and there's no substitute part
