Kenmore
Laundry Center

Model # 1106709700 Official Kenmore gas combination washer/dryer

Here are the diagrams and repair parts for Official Kenmore 1106709700 gas combination washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

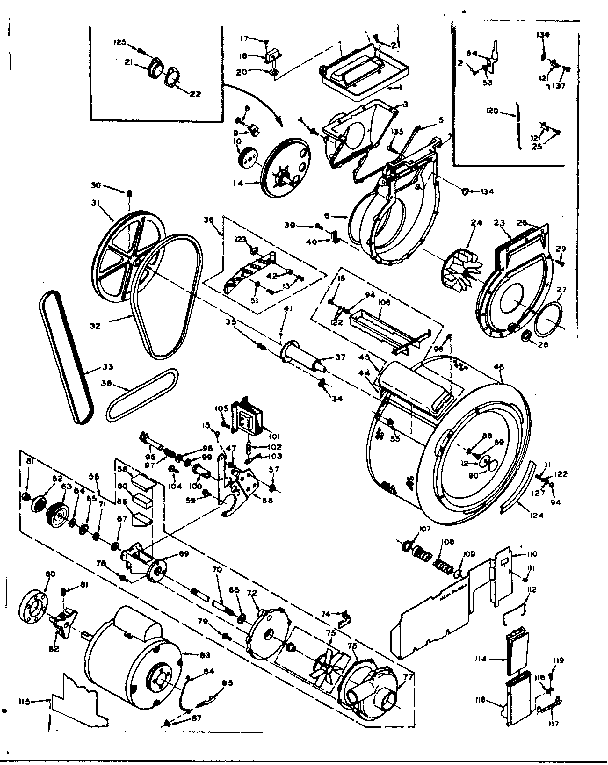

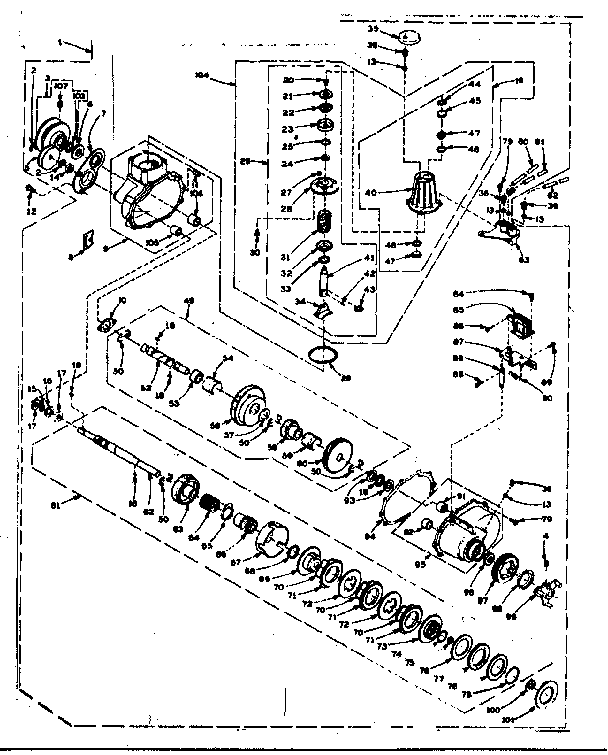

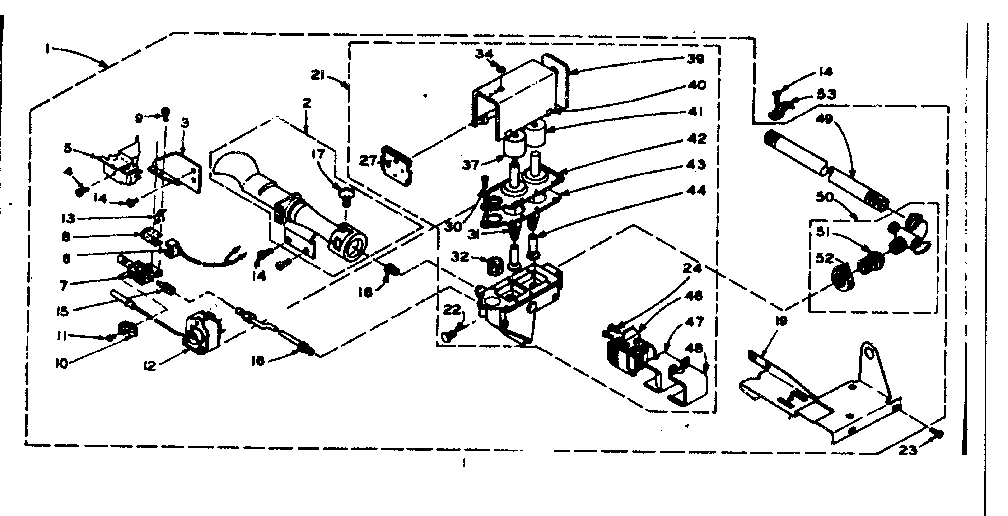

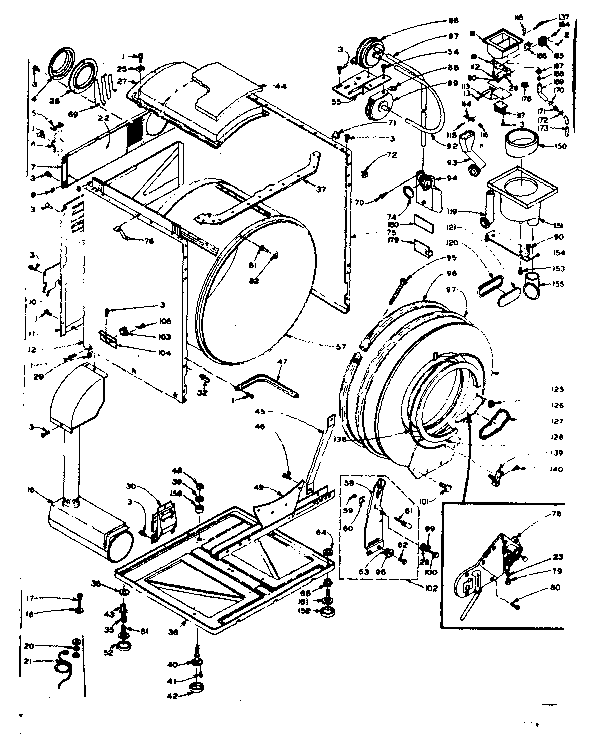

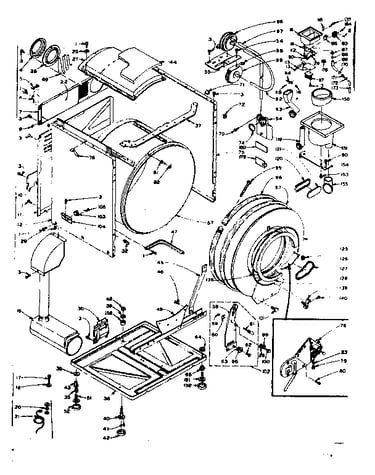

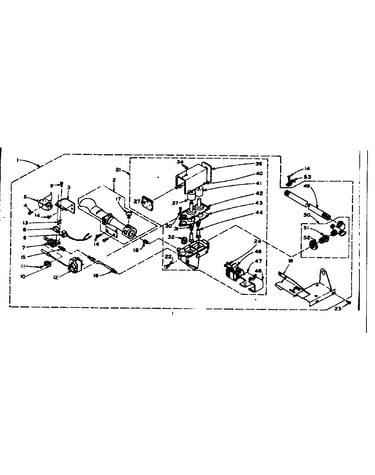

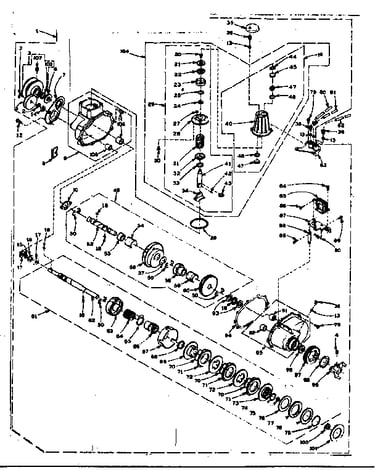

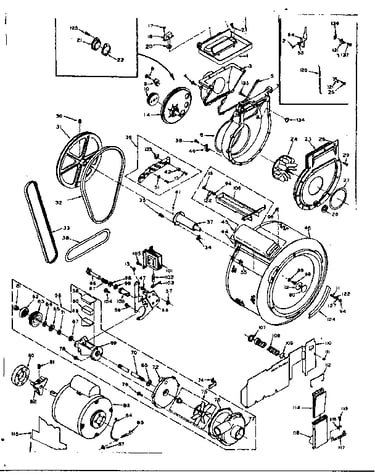

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 527 parts  |
Switch 338883
#80

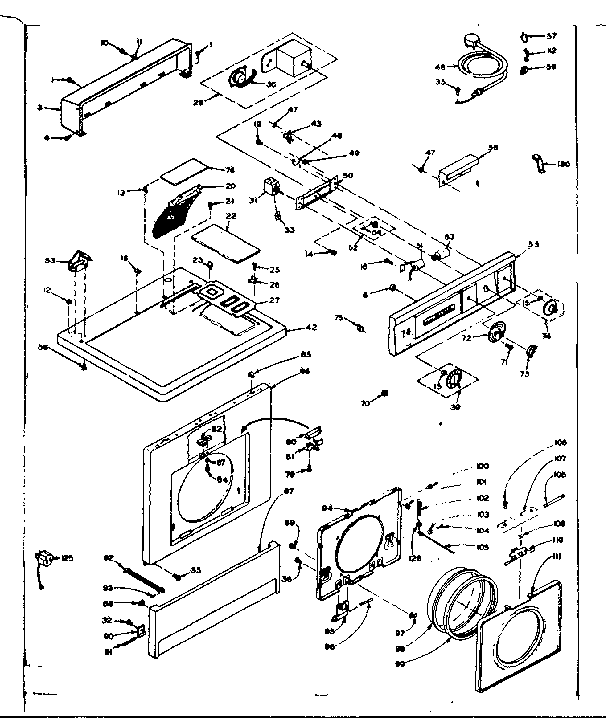

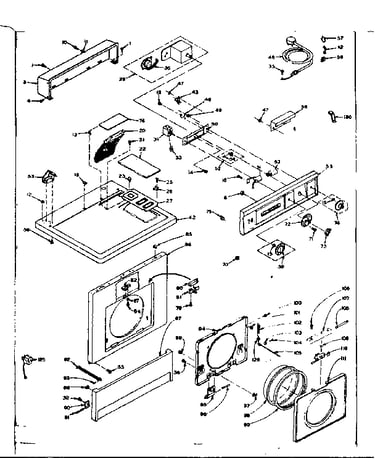

Top and front assembly diagram

Switch

Part #338883

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 338883. Substitute parts can look different from the original.
BEST SELLER
$24.95 |
19% OFF Phone Price : $30.95
In Stock
Lever 295998
#81

Top and front assembly diagram

Lever

Part #295998

Replaced by #WP691581

?
Manufacturer substitution
This part replaces 295998. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Screw 98585
Screw

Part #98585

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 98585. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Top Panel Clip 18776
#85

Top and front assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Screw 90864
#19

Top and front assembly diagram

Screw

Part #90864

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 90864. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Filter Washer 21092
#7

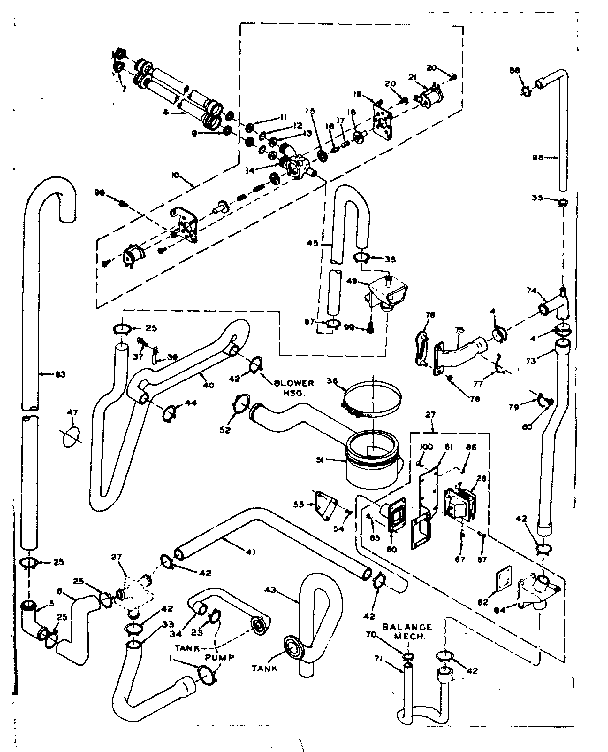

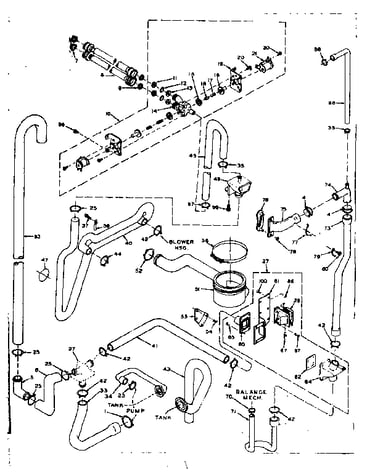

Water system diagram

Filter washer

Part #21092

Replaced by #285452A

?
Manufacturer substitution
This part replaces 21092. Substitute parts can look different from the original.
This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
Screw 96435
#14

Top and front assembly diagram

Screw

Part #96435

Replaced by #WP356418

?
Manufacturer substitution
This part replaces 96435. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Wire Harness Retainer 16515
#57

Top and front assembly diagram

Washer wire harness retainer

Part #16515

This item is not returnable
$20.39 |
23% OFF Phone Price : $26.39
In Stock
Ground Wire 54570
#48

Top and front assembly diagram

Ground wire

Part #54570

Replaced by #3184020

?
Manufacturer substitution
This part replaces 54570. Substitute parts can look different from the original.
$32.87
In Stock
Door Hinge 337184
#13

Top and front assembly diagram

Door hinge

Part #337184

Replaced by #WPW10044480

?
Manufacturer substitution
This part replaces 337184. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock

Most common symptoms to help you fix your laundry centers

Choose a symptom to see related laundry center repairs.

View all

Why won't my laundry center washer fill?

Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…

Read more

Why won't my laundry center's washer agitate or spin?

Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…

Read more

Why does my laundry'center dryer leaves clothes damp?

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …

Read more

Why won't my laundry center dryer tumble?

Main causes: broken dryer drive belt, weak drive motor, binding drum seals…

Read more

Why won't my laundry center dryer heat?

Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…

Read more

Why does my laundry center washer bang loudly?

Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…

Read more

Why won't my laundry center dryer start?

Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…

Read more

Why doesn't my laundry center washer drain?

Main causes: clogged drain system, blocked drain hose, bad drain pump…

Read more

Why won't my laundry center washer spin?

Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…

Read more
