Power Drill

Model # 315111980 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315111980 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315111980 Power Tools
Switch 975022-000
#3

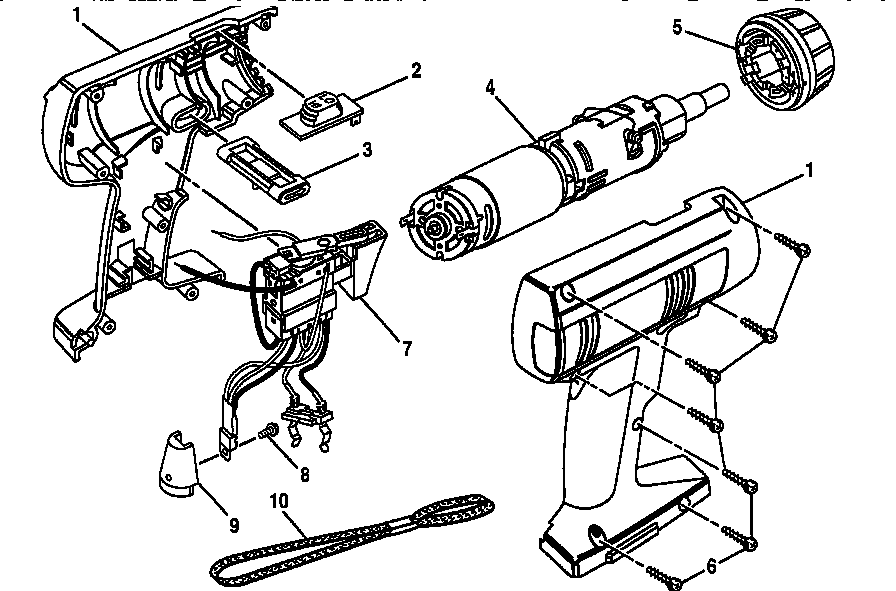

Housing assembly diagram

Switch

Part #975022-000

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000-363R

#NI

All parts diagram

Owner's manual

Part #972000-363R

The manufacturer no longer makes this part, and there's no substitute part

Case 974970-001
#6

Unit parts diagram

Case

Part #974970-001

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 975018-000
#7

Housing assembly diagram

Switch assembly

Part #975018-000

The manufacturer no longer makes this part, and there's no substitute part

Battery 974960-001
#4

Unit parts diagram

Battery

Part #974960-001

The manufacturer no longer makes this part, and there's no substitute part

Motor 975017-000
#4

Housing assembly diagram

Motor

Part #975017-000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

Unit parts diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 973571-000
#6

Housing assembly diagram

Screw

Part #973571-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 975023-000
#9

Housing assembly diagram

Heat sink

Part #975023-000

The manufacturer no longer makes this part, and there's no substitute part

Strap 975019-000
#10

Housing assembly diagram

Strap

Part #975019-000

The manufacturer no longer makes this part, and there's no substitute part
