Dacor
Countertop Microwave

Model # DMO24S Official Dacor microwave

Here are the diagrams and repair parts for Official Dacor DMO24S microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

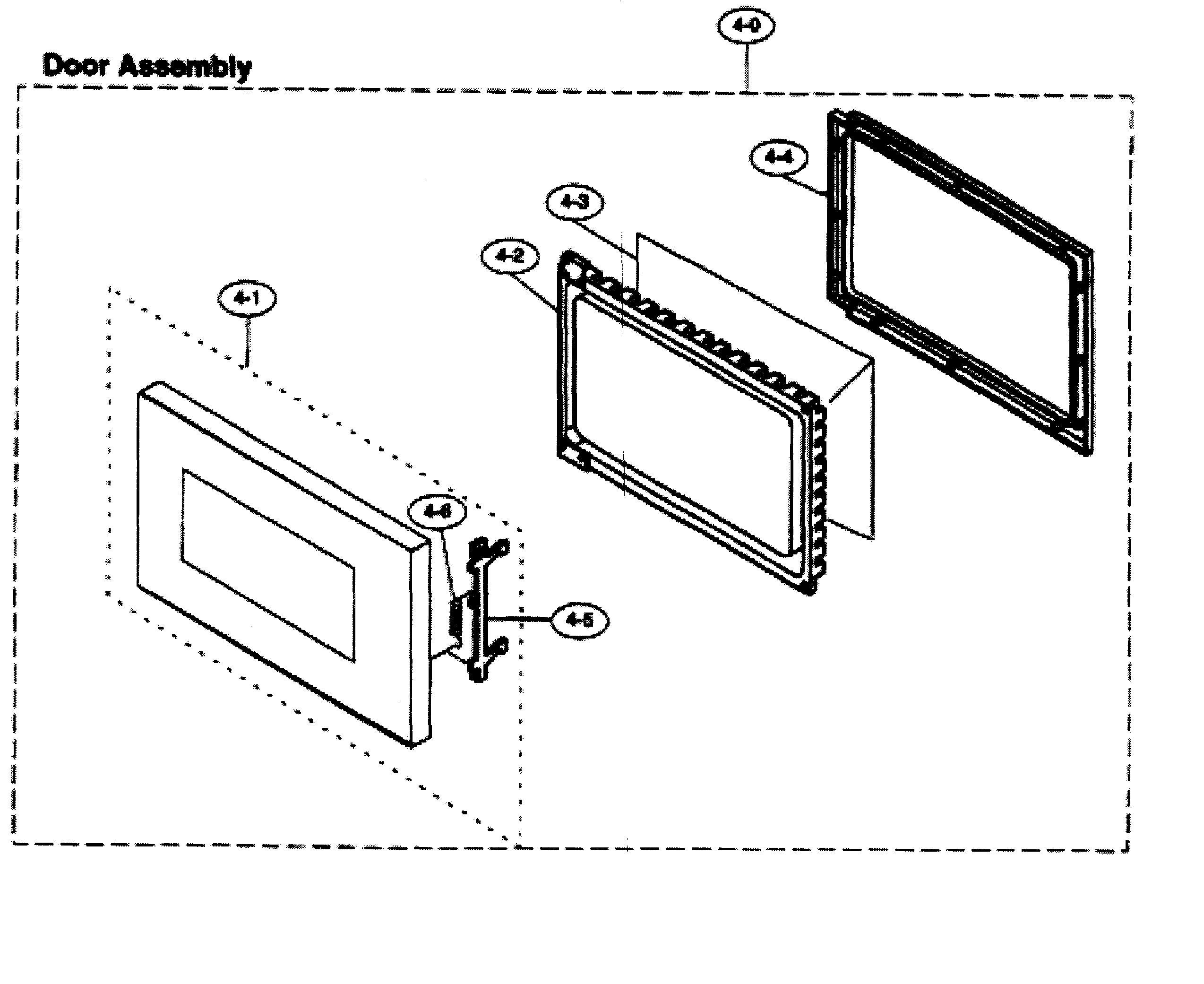

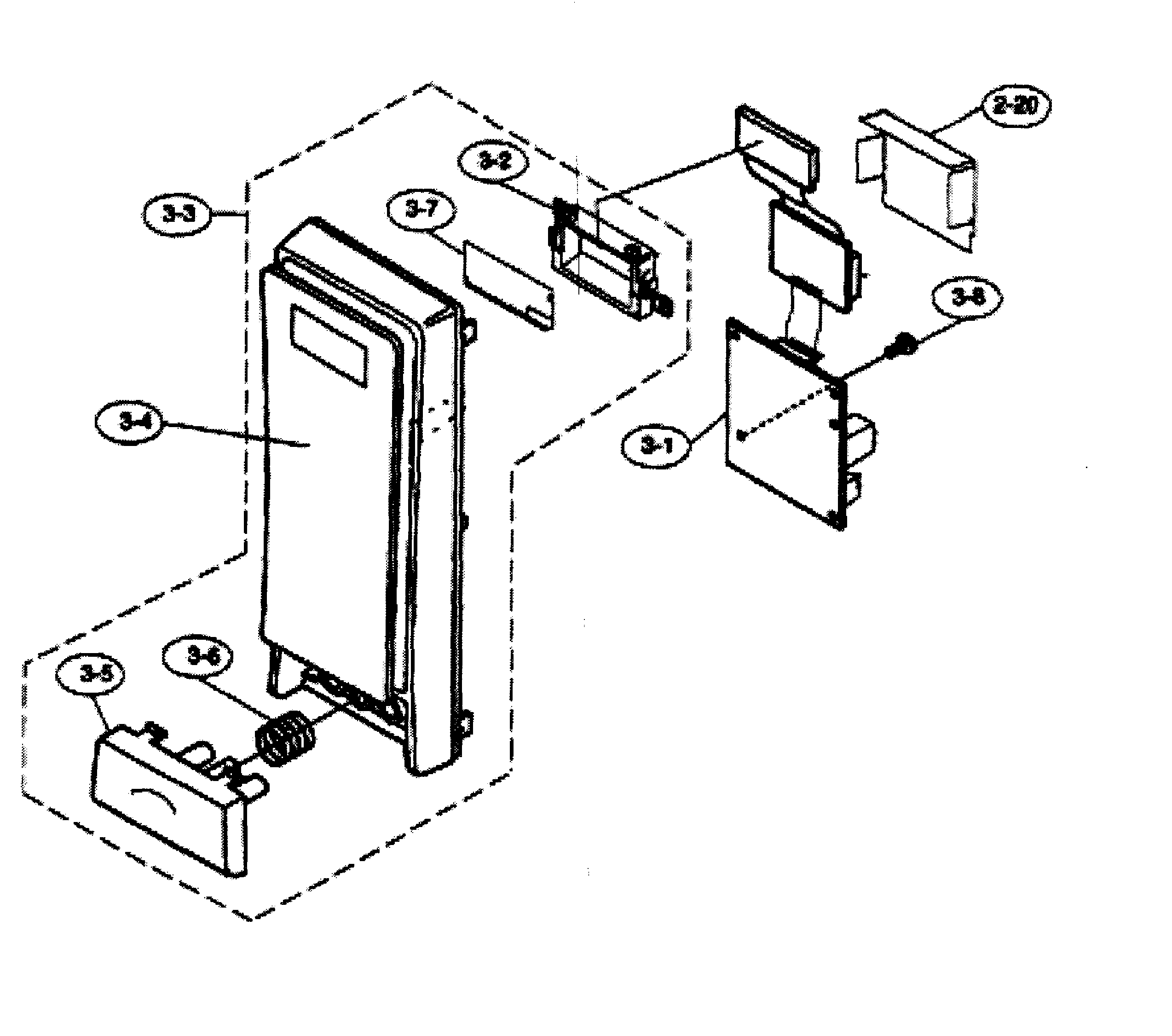

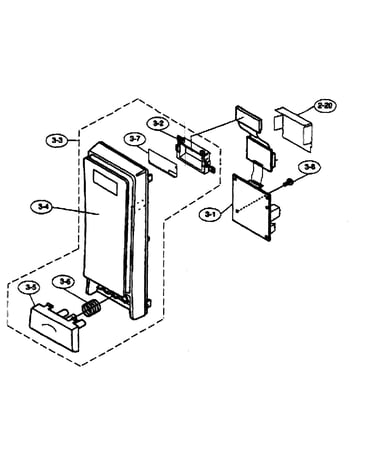

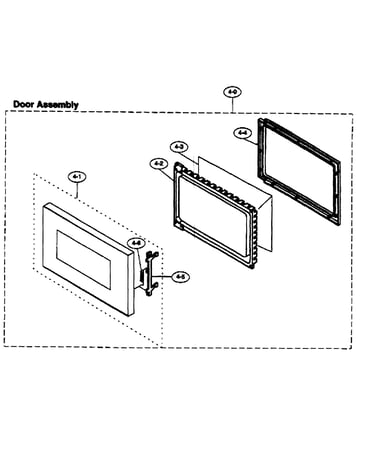

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Microwave Door Release Lever 86824
#2-6

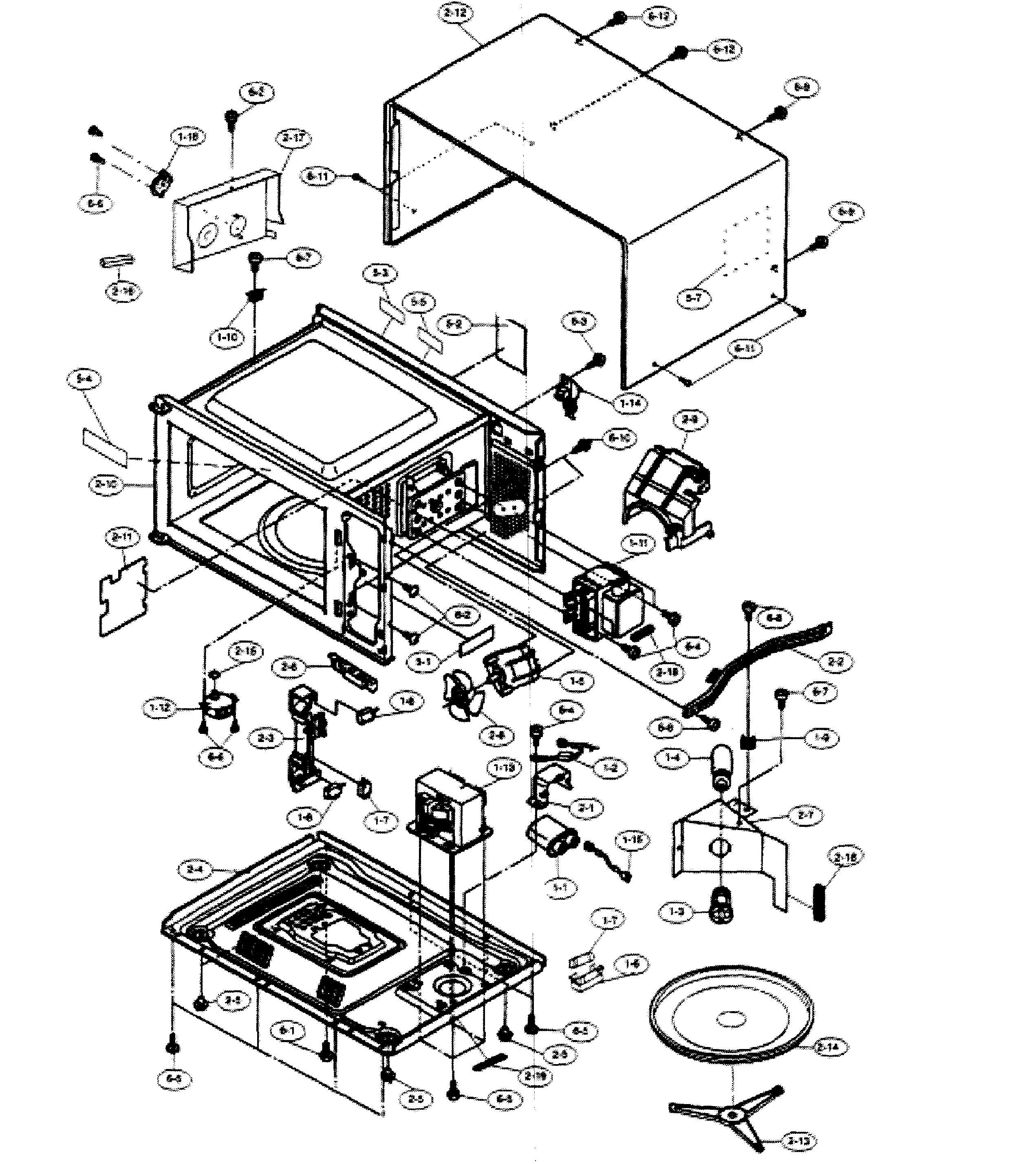

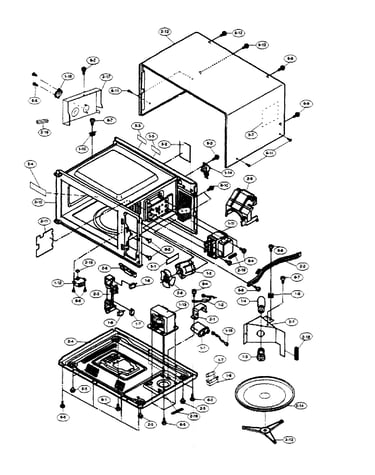

Cabinet assy diagram

Microwave door release lever

Part #86824

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring 86786
Microwave door latch spring

Part #86786

This item is not returnable
$2.16
Back Order
Latch Hook 86842
#2-3

Cabinet assy diagram

Latch hook

Part #86842

The manufacturer no longer makes this part, and there's no substitute part

Spring 86779
Spring

Part #86779

Replaced by #76170

?
Manufacturer substitution
This part replaces 86779. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Fan Blade 86825
#2-8

Cabinet assy diagram

Fan blade

Part #86825

This item is not returnable
$2.49
In Stock
Motor 86804
#1-12

Cabinet assy diagram

Motor

Part #86804

$21.99
In Stock
Pack Case 86809
#5-8

Cabinet assy diagram

Pack case

Part #86809

$40.99
In Stock
Film Seal 86788
Film seal

Part #86788

This item is not returnable
$4.99
In Stock
Diode 86791
#1-2

Cabinet assy diagram

Diode

Part #86791

$17.49
In Stock
Screw 86848
#6-6

Cabinet assy diagram

Screw

Part #86848

This item is not returnable
$2.16
In Stock
