GE
Dryer

Model # DDP1380GFM Official GE electric dryer

Here are the diagrams and repair parts for Official GE DDP1380GFM electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Idler Pulley WE12X0080
#3221

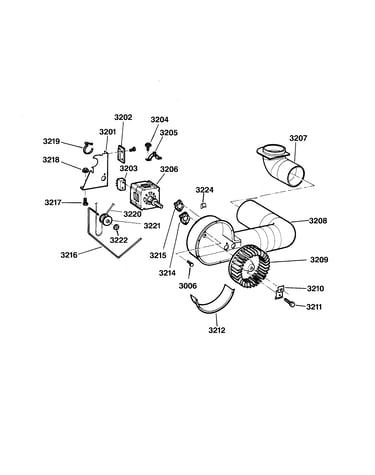

Blower & drive assembly diagram

Idler pulley

Part #WE12X0080

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12X0080. Substitute parts can look different from the original.
BEST SELLER
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Washer WE02X0195
#3127

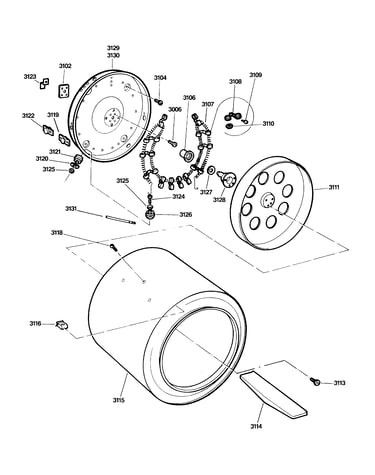

Drum diagram

Washer

Part #WE02X0195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE02X0195. Substitute parts can look different from the original.
BEST SELLER
$64.45 |
10% OFF Was : $71.61
In Stock
Shft-brkt As WE03X0039
#3128

Drum diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$64.45 |
10% OFF Was : $71.61
In Stock
Sleeve Bearing WE03X0065
#3106

Drum diagram

Sleeve bearing

Part #WE03X0065

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0065. Substitute parts can look different from the original.
BEST SELLER
$64.45 |
10% OFF Was : $71.61
In Stock
Bearing Retainer WE01M0300
#3102

Drum diagram

Bearing retainer

Part #WE01M0300

Replaced by #WE1M300

?
Manufacturer substitution
This part replaces WE01M0300. Substitute parts can look different from the original.
BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Latch Clip WE01X1032
#3029

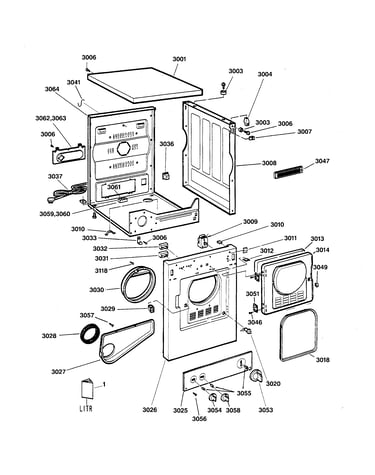

Cabinet & controls diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Bushing Strap WE01X0627
#3123

Drum diagram

Bushing strap

Part #WE01X0627

Replaced by #WE1X1172

?
Manufacturer substitution
This part replaces WE01X0627. Substitute parts can look different from the original.
$21.46 |
22% OFF Phone Price : $27.46
In Stock
Screw WH02M0270
#3204

Blower & drive assembly diagram

Screw

Part #WH02M0270

Replaced by #WZ4X241D

?
Manufacturer substitution
This part replaces WH02M0270. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Drive Hinge WE01M0315
#3051

Cabinet & controls diagram

Drive hinge

Part #WE01M0315

Replaced by #WE1M1033

?
Manufacturer substitution
This part replaces WE01M0315. Substitute parts can look different from the original.
This item is not returnable
$7.16 |
12% OFF Phone Price : $8.16
In Stock
Felt Seal WE09X0035
#3028

Cabinet & controls diagram

Felt seal

Part #WE09X0035

Replaced by #WE9X38

?
Manufacturer substitution
This part replaces WE09X0035. Substitute parts can look different from the original.
$29.87 |
17% OFF Phone Price : $35.87
In Stock
